Brand - ATEN
BrandPartCode - CS1308-AT-G
Category - KVM Switches
Code - CS1308-AT-G
Design - Cascadable - Yes
Design - Hot keys - Yes
Design - Housing material - Metal
Design - Product colour - Black
Design - Push button - Yes
Design - Rack capacity - 1U
Design - Rack mounting - Yes
Design > Material - Metal
Display - Built-in display - No
EAN - 4710423775916
Features > Connector 1 - 1 x SPHD-18 Male
Features > Connector 2 - 8 x SPHD-15 Female
GTIN - 4710423775916
GTIN - 5054533128392
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 8.7 kg
Logistics data - Master (outer) case height - 258 mm
Logistics data - Master (outer) case length - 565 mm
Logistics data - Master (outer) case net weight - 6.72 kg
Logistics data - Master (outer) case width - 375 mm
Logistics data - Products per master (outer) case - 3 pc(s)

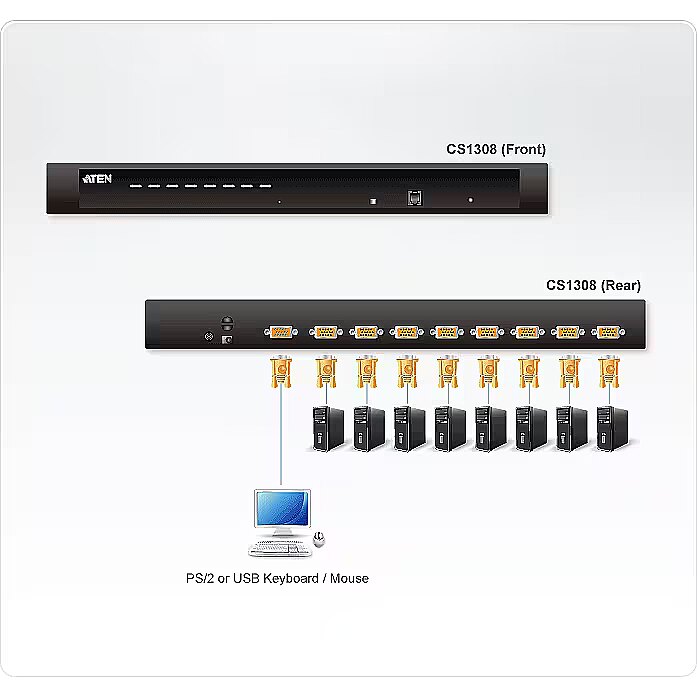

LongDesc - The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.1x CS1308 KVM Switch with Rack Mount Kit1x LIN5-27X6-U21G Console cable1x Firmware Upgrade cable1x Foot Pad set (4 pads)1x 0AD8-1605-24M1 Power Adapter1x User Instructions
LongProductName - 8-Port USB - PS/2 VGA KVM Switch
LongSummaryDescription - ATEN 8-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 5 W. Compliance certificates: RoHS
Name - Aten 8-Port PS/2-USB VGA KVM Switch | Aten
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0-50˚C °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 542 mm
Package features > Gross depth master carton - 565 mm
Package features > Gross height (mm) - 236 mm
Package features > Gross height master carton - 260 mm
Package features > Gross weight - 2.674 kg
Package features > Gross width (mm) - 116 mm
Package features > Gross width master carton - 387 mm
Package features > Net weight master carton - 8.022 kg
Package features > Packing quantity - 3 pc(s)
Package features > Palette Qty - 90 pc(s)
Package features > Paper/Pasteboard - 310 g
Package features > Tare weight (kg) - 0.31 kg
Package features > Tare weight master carton - 0.966 kg
Package features > Volume (m3) - 0.014837792 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging content - Rubber feet - Yes
Packaging data - Package depth - 540 mm
Packaging data - Package height - 233 mm
Packaging data - Package weight - 2.69 kg
Packaging data - Package width - 116 mm
Performance - DDC2B support - Yes
Performance - Firmware upgradeable - Yes
Performance - HD type - QXGA
Performance - Maximum resolution - 2048 x 1536 pixels
Performance - Scan interval - 1,255 s
Ports & interfaces - Console ports - VGA (D-Sub)
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Keyboard port type - USB, PS/2
Ports & interfaces - Mouse port type - USB, PS/2
Ports & interfaces - Number of computers controlled - 64
Ports & interfaces - VGA (D-Sub) ports quantity - 8
Ports & interfaces - Video port type - VGA
Power - Input voltage - 5.3 V
Power - Power consumption (typical) - 5 W
Power - Power source - DC
ProductName - 8-Port USB - PS/2 VGA KVM Switch
ShortSummaryDescription - ATEN 8-Port USB - PS/2 VGA KVM Switch, 2048 x 1536 pixels, QXGA, Rack mounting, 5 W, 1U, Black
Sustainability - Compliance certificates - RoHS
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Other operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details > Net weight - 2.364 kg
Technical details > Other features - One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers. Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu. Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports.
Technical details > Producer - Aten
Title - ATEN 8-Port USB - PS/2 VGA KVM Switch
URL - https://www.aten.com/gb/en/products/kvm/rack-kvm-switches/cs1308/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 437.2 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 1.89 kg
Weight & dimensions - Width - 161.3 mm
