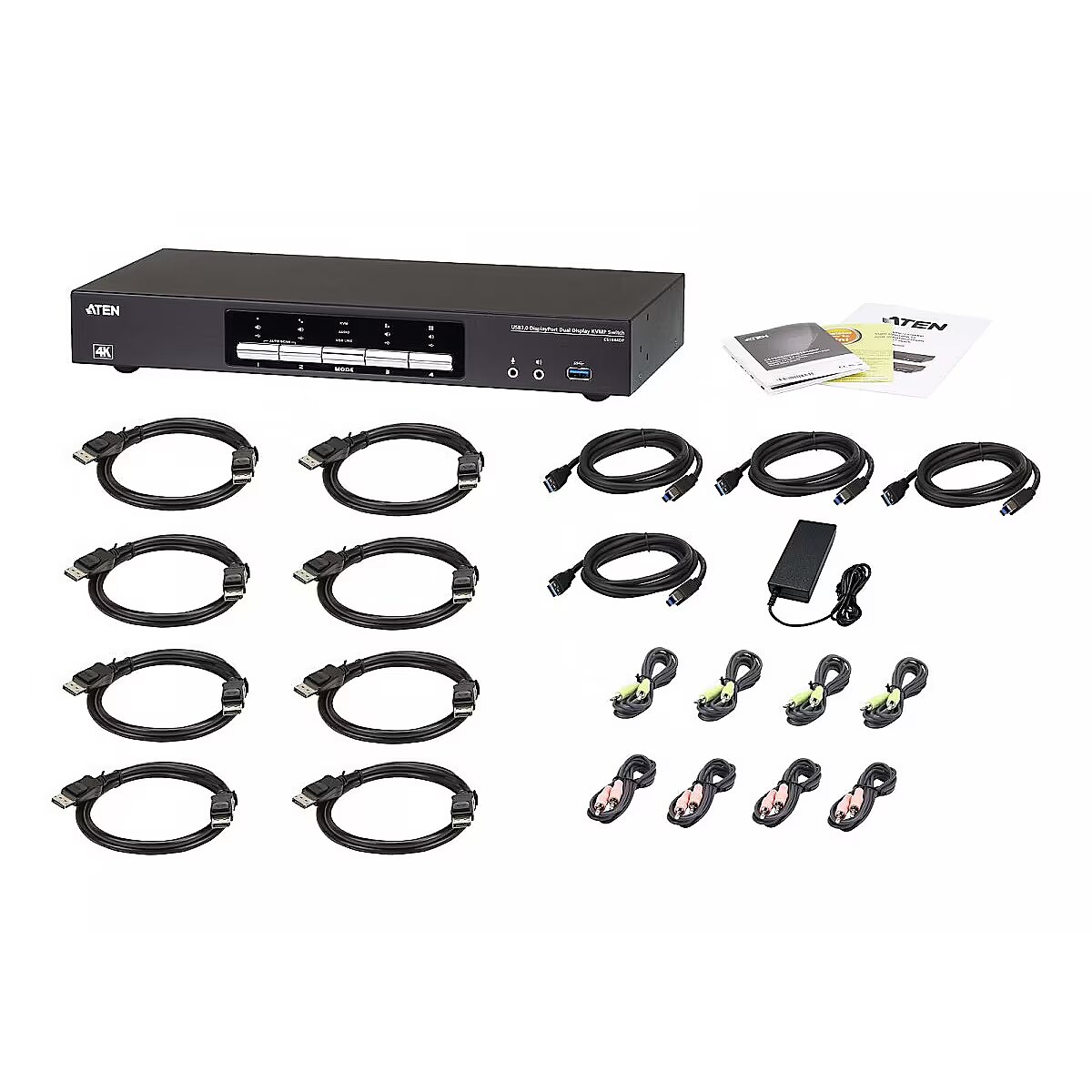

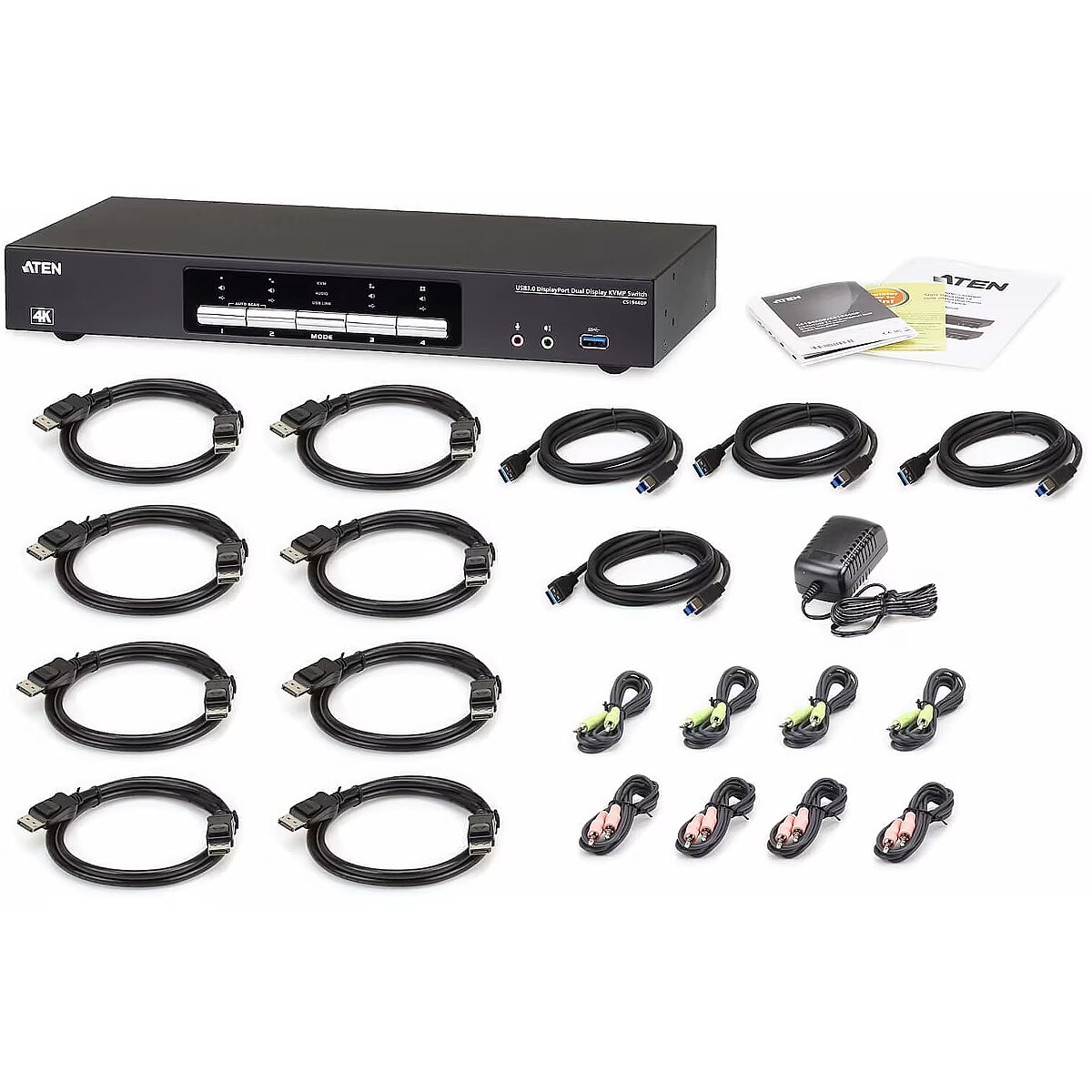

Accessories included - 4 USB 3.0 4K DisplayPort Dual Display KVMP Switch 8 x DisplayPort 1.2 cable 4 x USB 3.0 cable 8 x audio cable Charger User manual
Brand - ATEN
BrandPartCode - CS1944DP-AT-G
Category - KVM Switches
Category 1 - Kabel & Adapter
Category 2 - Computer
Category 3 - Data- / KVM-Switch
Category_1 - Network and Servers
Category_2 - Network - KVM Switches
Console Ports - 1 x RJ-45
Console Ports - 2x Audio 3,5mm minijack Female
Console Ports - 2x DisplayPort Female
Console Ports - 2x Microphone 3,5mm minijack Female
Console Ports - 3x USB Type A Female

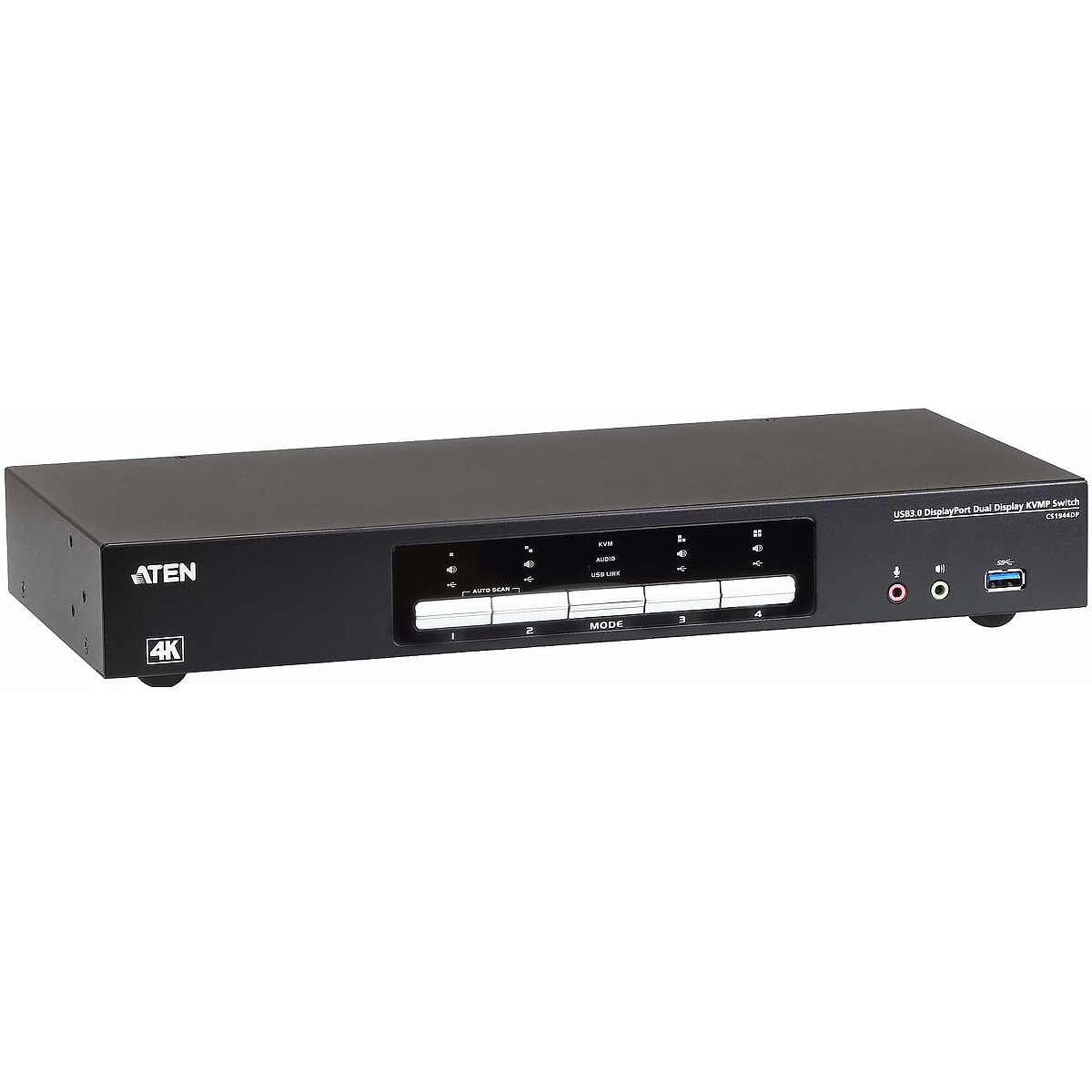

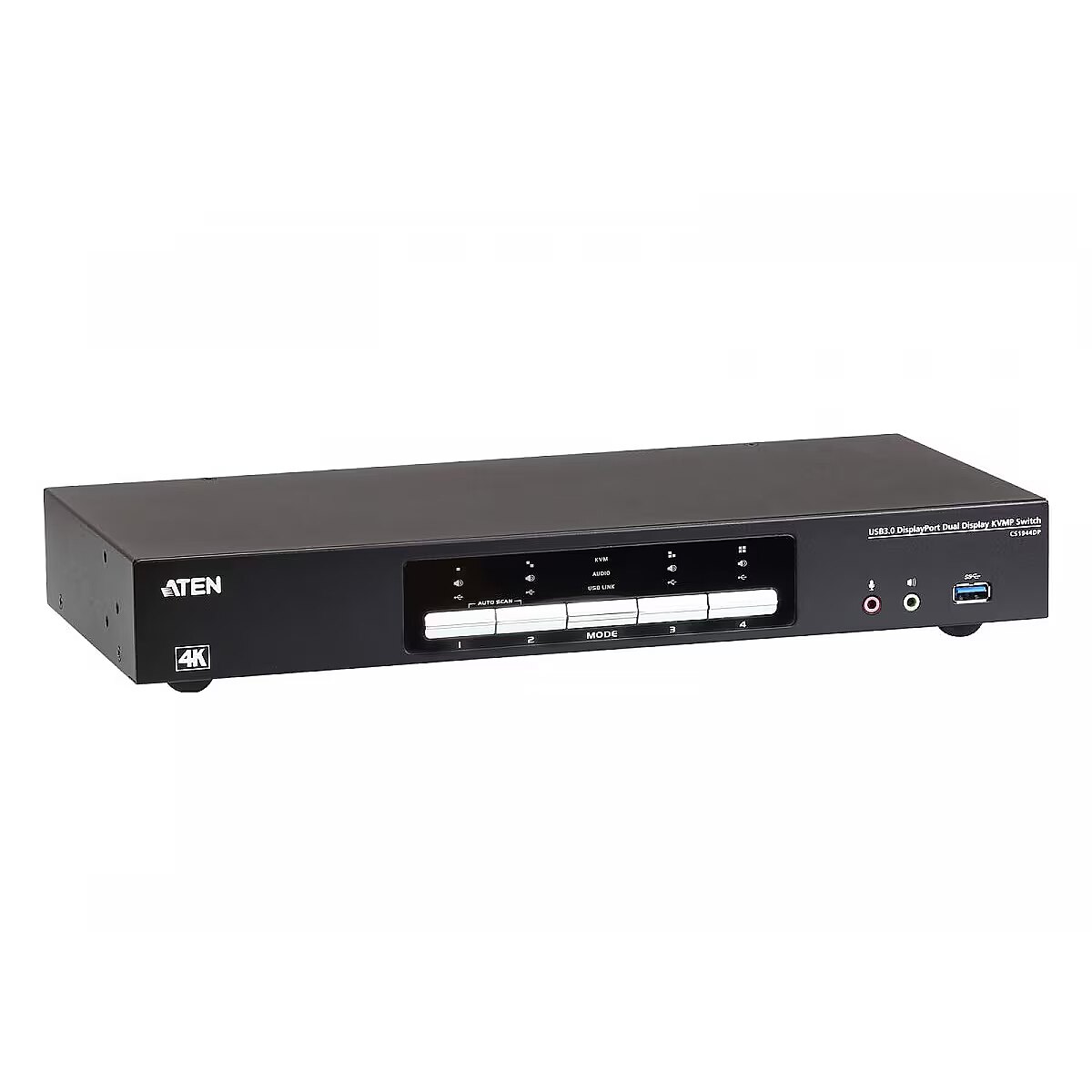

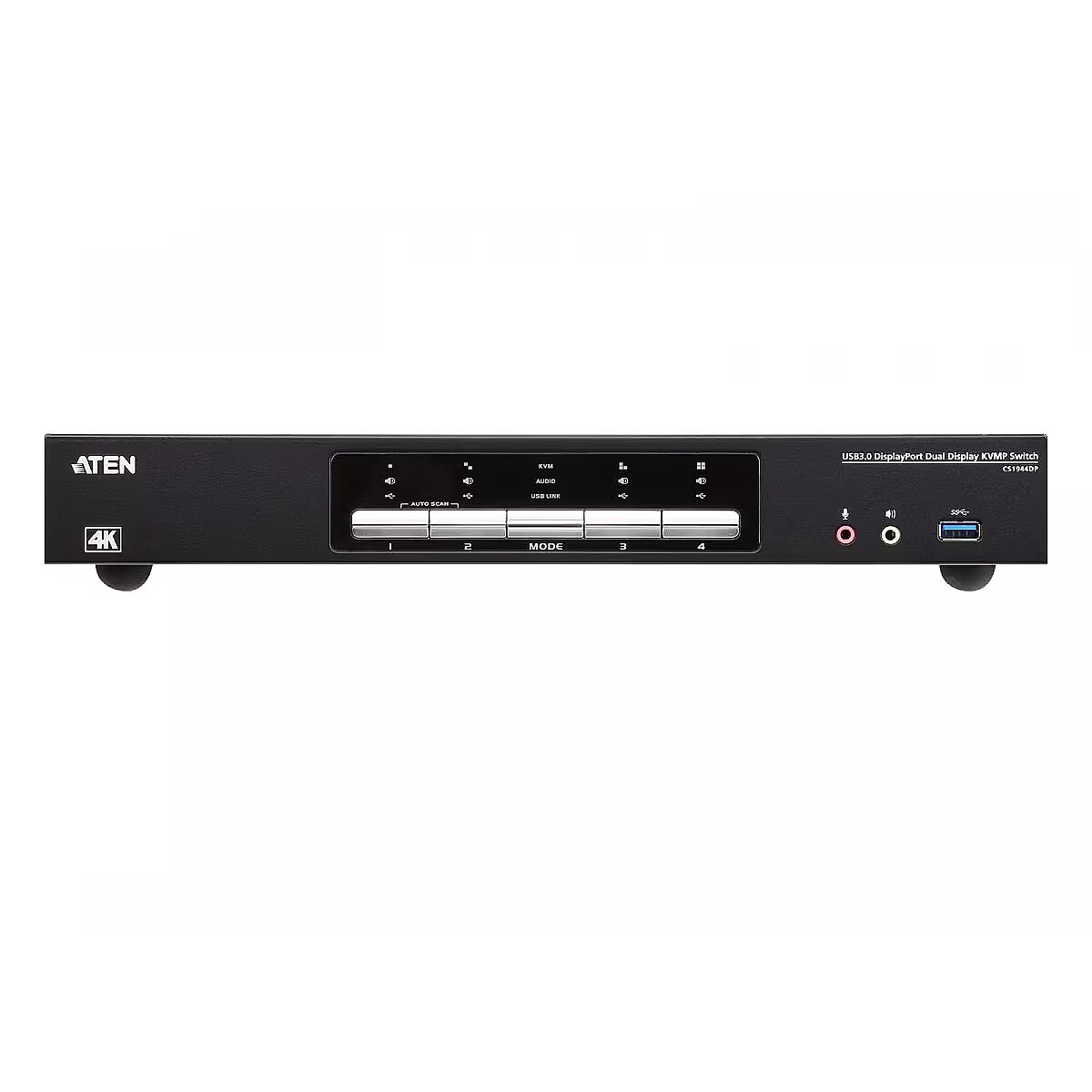

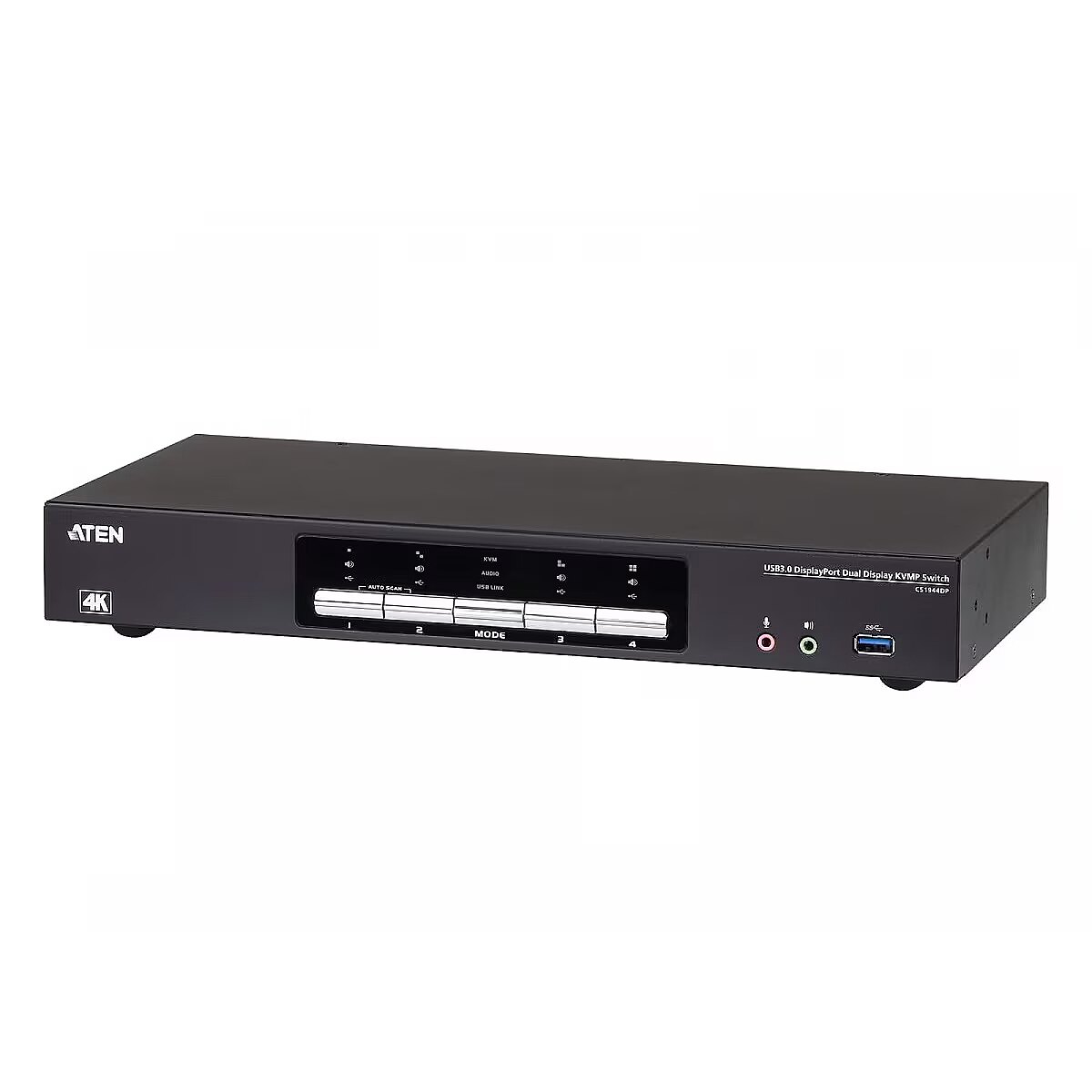

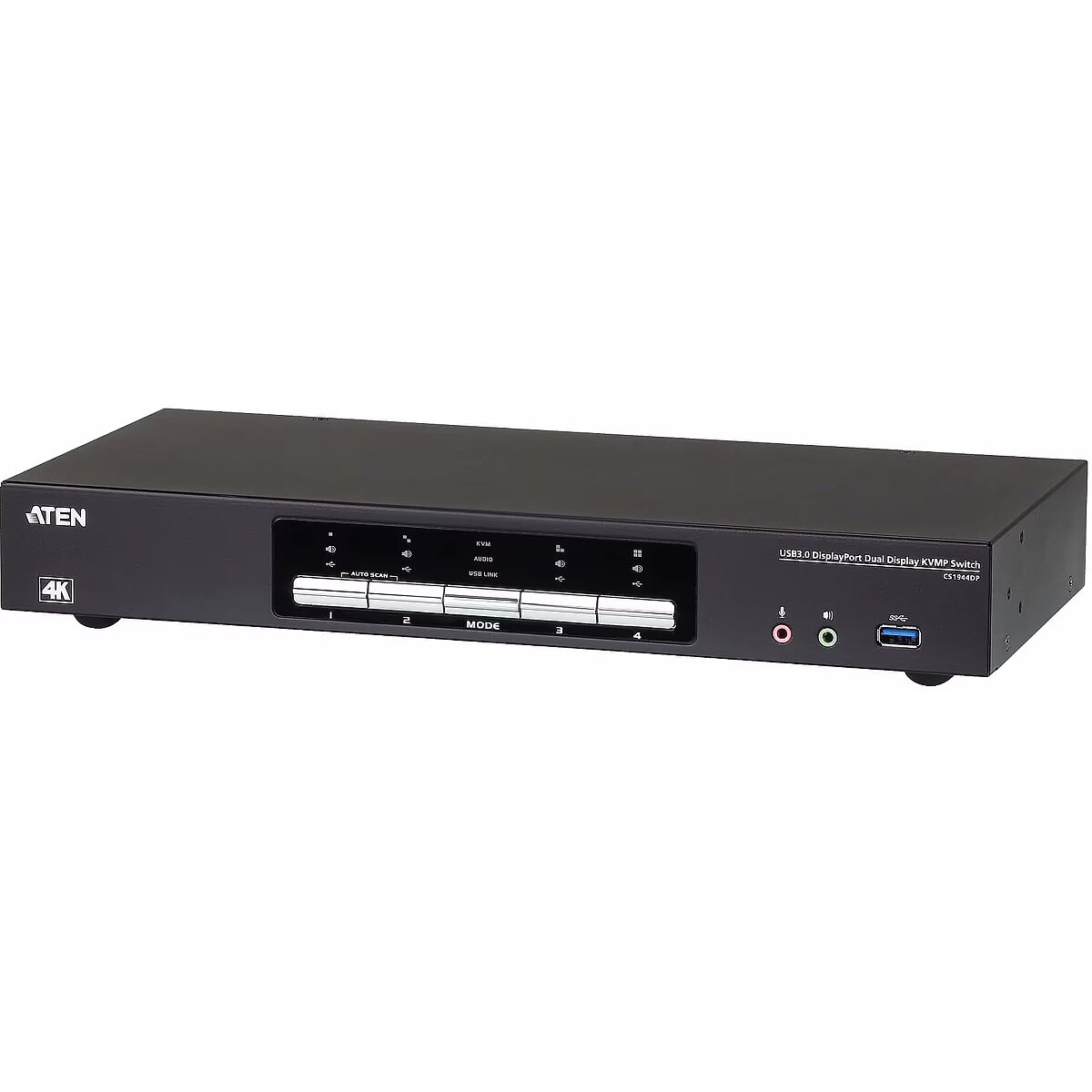

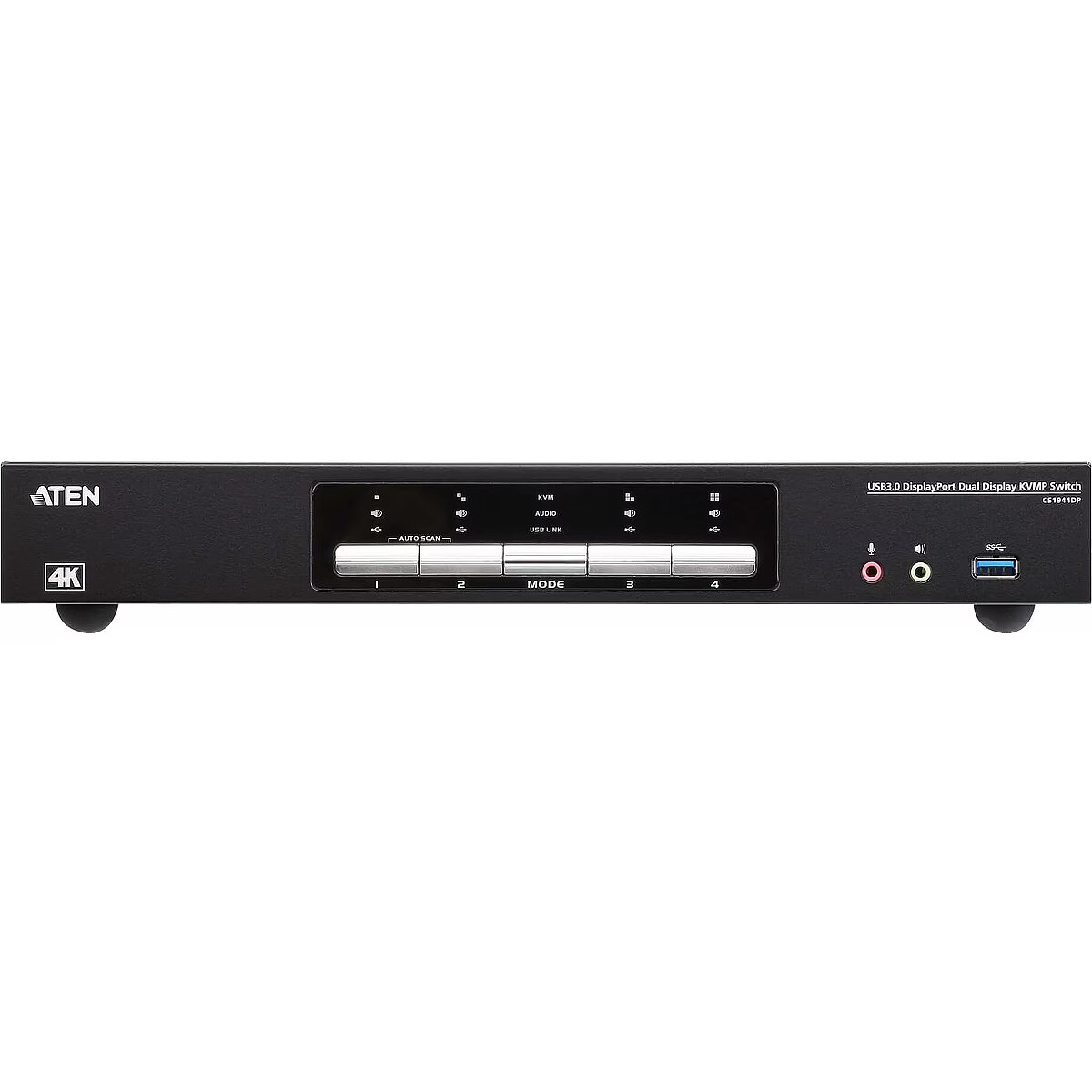

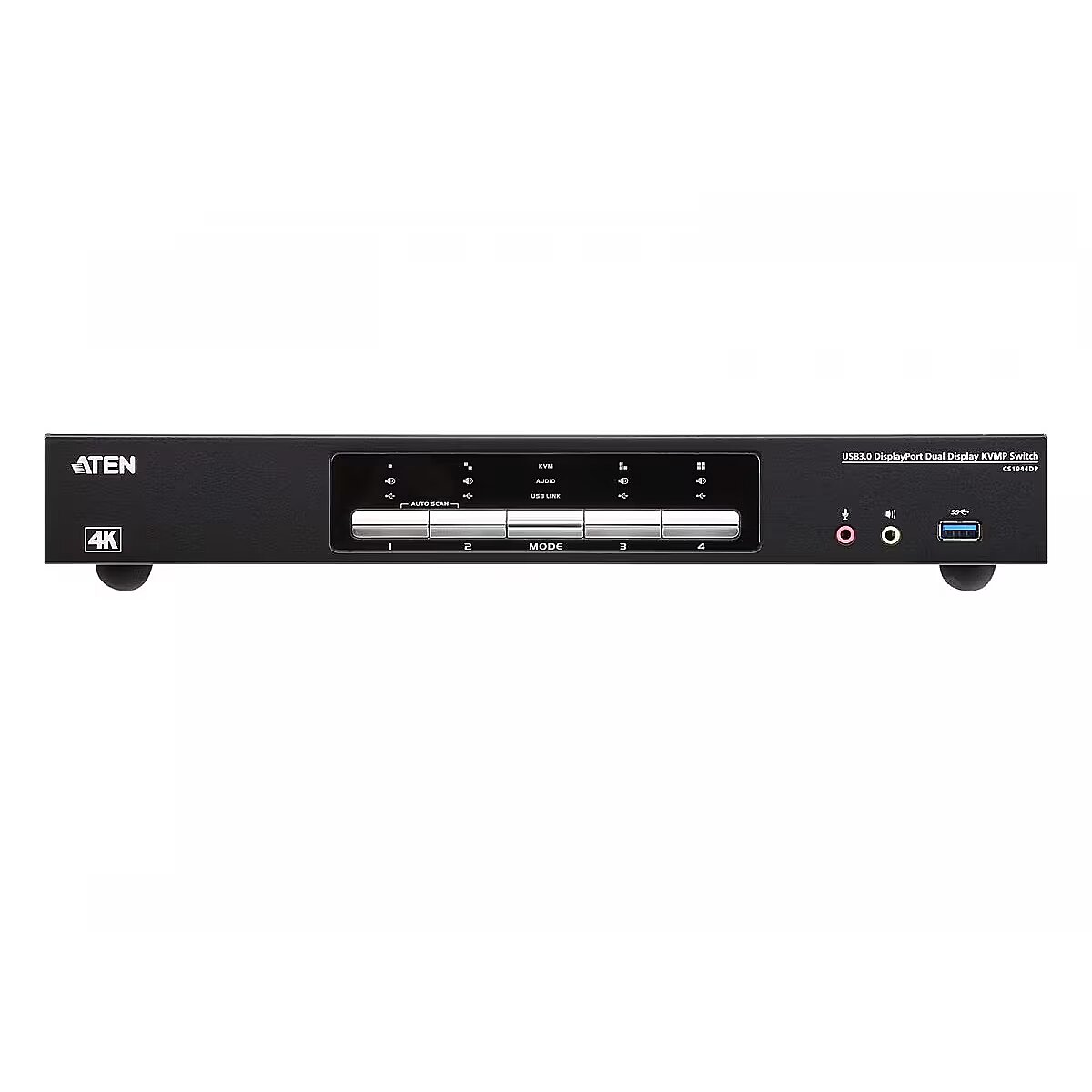

Description - The ATEN CS1944DP desktop KVM switch makes it easy to organize your desktop. Particularly when managing a multimedia workstation in a large organization, the CS1944DP provides instant access to two or four computers, all via one USB keyboard, USB mouse and two DisplayPort monitors. Advanced video support provides a more defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). With the dual display feature, you can enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, with a built-in USB 3.1 Gen 1 hub, the CS1944DP provides an unprecedented data transfer rate of up to 5Gbps to maximize your multimedia operations. Designed to meet the ever-increasing demand for dual displays, ultra-fast data rates, and lossless 4K video resolution, the CS1944DP is specifically designed for multi-tasking applications such as design, financial trading, and video post-production. Similar to DisplayPort KVM switches, switching between KVM ports in an extended desktop configuration may resize/position windows open on the extended desktop back to their default configuration on the main screen. This is due to the nature of the DisplayPort protocol and may require manual adjustment.
Design - Hot keys - Yes
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Push button - Yes
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 235 mm
Dimensions - 33.50 x 15.66 x 4.40 cm
dimension weight - 4187 g
dimension width - 545 mm
Display - Built-in display - No
ean - 4719264645969
EAN_code - 4719264645969
GTIN - 4719264645969
guarantee - 24
guarantee_type - external
Hot Swap - No
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 13.2 kg
Logistics data - Master (outer) case height - 258 mm
Logistics data - Master (outer) case length - 565 mm
Logistics data - Master (outer) case net weight - 10.4 kg
Logistics data - Master (outer) case width - 375 mm
Logistics data - Products per master (outer) case - 3 pc(s)
LongDesc - The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch8x LIN5-20K1-K13G DisplayPort 1.2 Cables4x LIN6-11C1-E12G USB 3.0 Cables8x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables1x LIN2-418K-E12G Power Adapter1x User Instructions
LongProductName - 4P USB3.0 DisplayPORT Dual View KVMP SW
LongSummaryDescription - ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 6.125 W. Compliance certificates: RoHS
Manufacturer - Aten
Manufacturer - ATEN
Manufacturer_code - CS1944DP-AT-G
MPN - CS1944DP-AT-G
name - 4-Port USB 3.0 4K DP Dual Display KVMP Switch
Name - ATEN CS1944DP, KVM Switch
Name - ATEN CS1944DP 4-Port USB 3.0 4K DP KVM
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
No. of devices (max) - 4
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Cables included - Audio (3.5mm), DisplayPort, USB
Packaging content - Manual - Yes
Packaging data - Package depth - 540 mm
Packaging data - Package height - 233 mm
Packaging data - Package weight - 4.21 kg
Packaging data - Package width - 116 mm

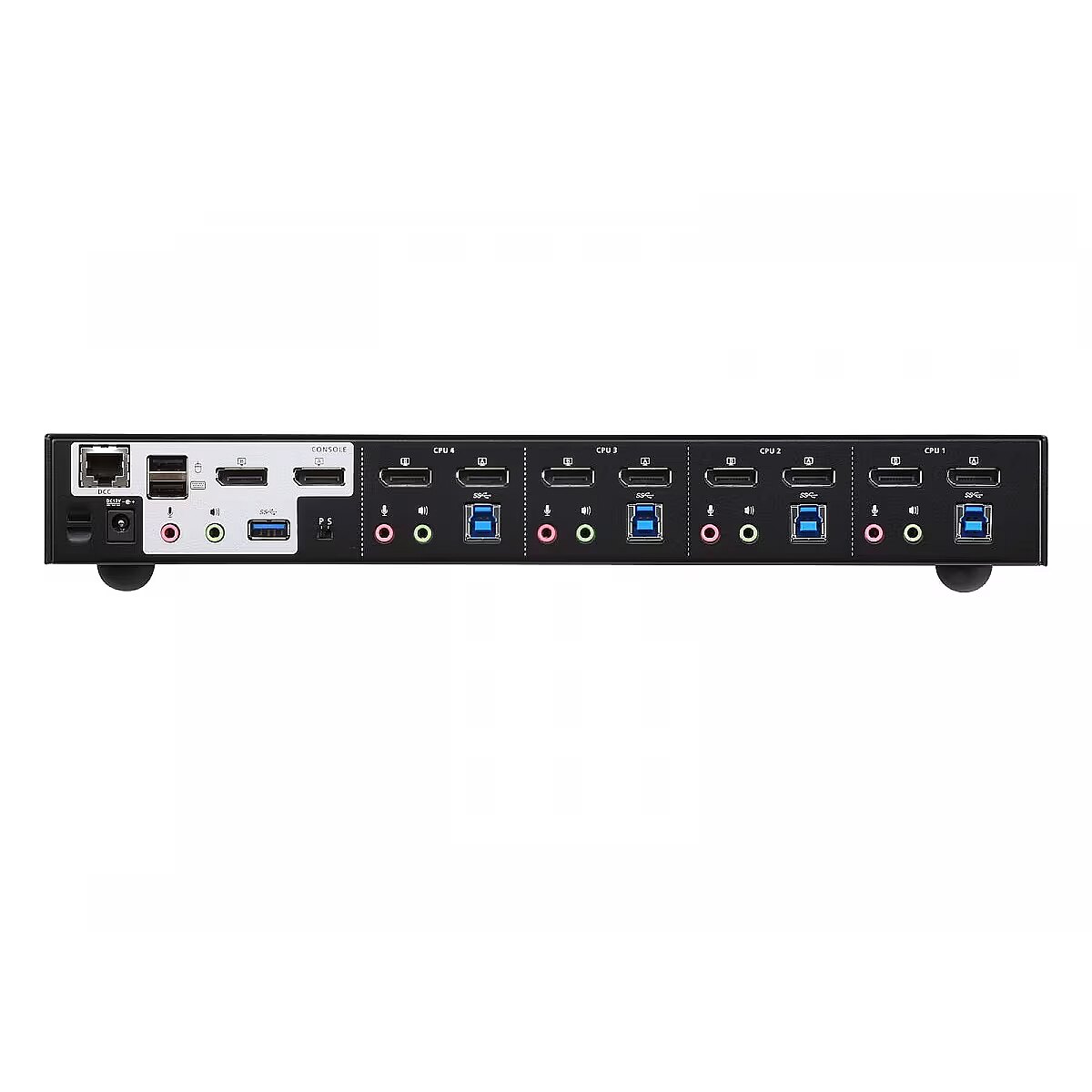

PC connectors - 4x Audio 3,5mm minijack Female
PC connectors - 4x Microphone 3,5mm minijack Żeński
PC connectors - 4x USB Type B Female
PC connectors - 8x DisplayPort Female
Performance - Firmware upgradeable - Yes
Performance - HD type - 4K Ultra HD
Performance - Maximum resolution - 4096 x 2160 pixels
Performance - Scan interval - 1,99 s
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 10
Ports & interfaces - Headphone outputs - 6
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 4
Ports & interfaces - Number of microphone inputs - 6
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity - 4
Ports & interfaces - USB hub - Yes
Ports & interfaces - Video port type - DisplayPort
Power - Input voltage - 12 V
Power - Power consumption (typical) - 6.125 W
Power - Power source - DC
producer - ATEN
ProductName - 4P USB3.0 DisplayPORT Dual View KVMP SW
Resolution - 2560 x 1440
Resolution - 4096 x 2160
ShortSummaryDescription - ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 6.125 W, Black
Supported operating systems - None
Sustainability - Compliance certificates - RoHS
Title - ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW
URL - https://www.atten.eu/
vendpn - CS1944DP
WarrantyInfo -
Weight - 1.51 kg
Weight - 4,15
Weight & dimensions - Depth - 335 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 3.46 kg
Weight & dimensions - Width - 156.6 mm
