Cooling - Cooling type - Active
Cooling - SERVER - Active
Design - Certification - CE, production according to ISO9001 in Germany
Design - Chassis type - Rack
Design - Rack mounting - 2
Design - SERVER - 2
Design - SERVER - CE, production according to ISO9001 in Germany
Design - SERVER - Rack
EAN - 4039407083671
General - Operating system - No operating system
General - Processor model - Intel Xeon E-2456 / 3.3 GHz
General - SERVER - Intel Xeon E-2456 / 3.3 GHz
General - SERVER - No operating system
Graphics - Graphics adapter ports - VGA
Graphics - Graphics card - Aspeed AST2600
Graphics - Maximum graphics adapter memory - 64 MB
Graphics - SERVER - 64 MB
Graphics - SERVER - Aspeed AST2600
Graphics - SERVER - VGA
Gross Weight Kg - 24
Keyboard - Keyboard form factor - Optional
Keyboard - SERVER - Optional
Manufacturer Code - 1100382
Manufacturer Name - WORTMANN AG
Memory - Internal memory - 32 GB
Memory - Internal memory type - DDR5 ECC UB RAM
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-Channel-Memory-Architecture
Memory - Memory slots - 4x DDR5 PC4400, UB ECC
Memory - SERVER - 4x DDR5 PC4400, UB ECC
Memory - SERVER - 32 GB
Memory - SERVER - 128 GB
Memory - SERVER - DDR5 ECC UB RAM
Memory - SERVER - Dual-Channel-Memory-Architecture
Mouse - Mouse included - Optional
Mouse - SERVER - Optional
Network - Cabling technology - 2x 1 GbE (RJ45)
Network - Ethernet LAN - Integrated
Network - LAN controller - Intel I210-AT2
Network - SERVER - 2x 1 GbE (RJ45)
Network - SERVER - Integrated
Network - SERVER - Intel I210-AT2
Operational conditions - Operating temperature (T-T) - 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Operational conditions - Recommended humidity operating range - 10-75% (non-condensing)
Operational conditions - SERVER - 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Operational conditions - SERVER - 10-75% (non-condensing)
Other features - Drive bays - 1x Slim 5.25"
Other features - Hard disk controller - Broadcom MegaRAID 9560-8i
Other features - Interface - 1x VGA 2x LAN (RJ-45) 1x Mgmt LAN 5x USB 3.2 Gen2 (1x internal) 2x USB 3.2 Gen1 (2x front) 2x USB 2.0 option: 1x serieal
Other features - Motherboard manufacturer - Asus P13R-E
Other features - Number of drive bays - Slot 1: PCIe 4.0 x8 @ x4 Slot 2: PCIe 4.0 x8 @ x4 Slot 3: PCIe 5.0 x8 @ x8 Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied
Other features - Remote administration - Yes
Other features - SERVER - 1x Slim 5.25"
Other features - SERVER - 1x VGA ¦ 2x LAN (RJ-45) ¦ 1x Mgmt LAN ¦ 5x USB 3.2 Gen2 (1x internal) ¦ 2x USB 3.2 Gen1 (2x front) ¦ 2x USB 2.0 ¦ option: 1x serieal
Other features - SERVER - Asus P13R-E
Other features - SERVER - Broadcom MegaRAID 9560-8i
Other features - SERVER - Slot 1: PCIe 4.0 x8 @ x4 ¦ Slot 2: PCIe 4.0 x8 @ x4 ¦ Slot 3: PCIe 5.0 x8 @ x8 ¦ Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied
Other features - SERVER - Yes
Performance - Channels quantity - 8
Performance - Compatible operating systems - Windows Server 2025 Windows Server 2022 Windows Server 2019
Performance - Series - SERVER 3000
Performance - SERVER - 8
Performance - SERVER - SERVER 3000
Performance - SERVER - Windows Server 2019¦
Performance - SERVER - Windows Server 2022¦
Performance - SERVER - Windows Server 2025¦
Power - AC adapter input voltage - 100-240 V~ / 50-60 Hz
Power - Maximum input power - 700 W
Power - Number of power supply units - 1 pc(s)
Power - Power source - Power supply
Power - Redundant power supply (RPS) support - Optional
Power - SERVER - 1 pc(s)
Power - SERVER - 100-240 V~ / 50-60 Hz
Power - SERVER - 700 W
Power - SERVER - Optional
Power - SERVER - Power supply
Print Text - Xeon E-2456 (18 MB cache, 6x 3.30 GHz) | Chenbro RM23808 2HE RACK, 700 Watt power supply | Incl. Rails | 1x 32 GB DDR5 UB ECC RAM, 2x 960 GB SATA SSD (RAID 1) | Broadcom MegaRAID 9560-8i with 4 GB cache | (RAID 0/1/10/5/50/6/60) | (!) w/o DVD burner | 2x 1 GbE LAN, 1x Mgmt LAN, TPM | Grafic onboard (VGA) | (!) w/o keyboard and mouse | (!) w/o operating system
Processor - L3 cache - 18 MB
Processor - Maximum number of SMP processors - 1
Processor - Motherboard chipset - Intel C266
Processor - Number of processors - 1
Processor - Processor cores - 6-Core
Processor - Processor family - 1-CPU / Xeon UP
Processor - Processor frequency - 3.3 GHz
Processor - Processor socket - LGA1700
Processor - SERVER - 1
Processor - SERVER - 1-CPU / Xeon UP
Processor - SERVER - 3.3 GHz
Processor - SERVER - 6-Core
Processor - SERVER - 18 MB
Processor - SERVER - Intel C266
Processor - SERVER - LGA1700

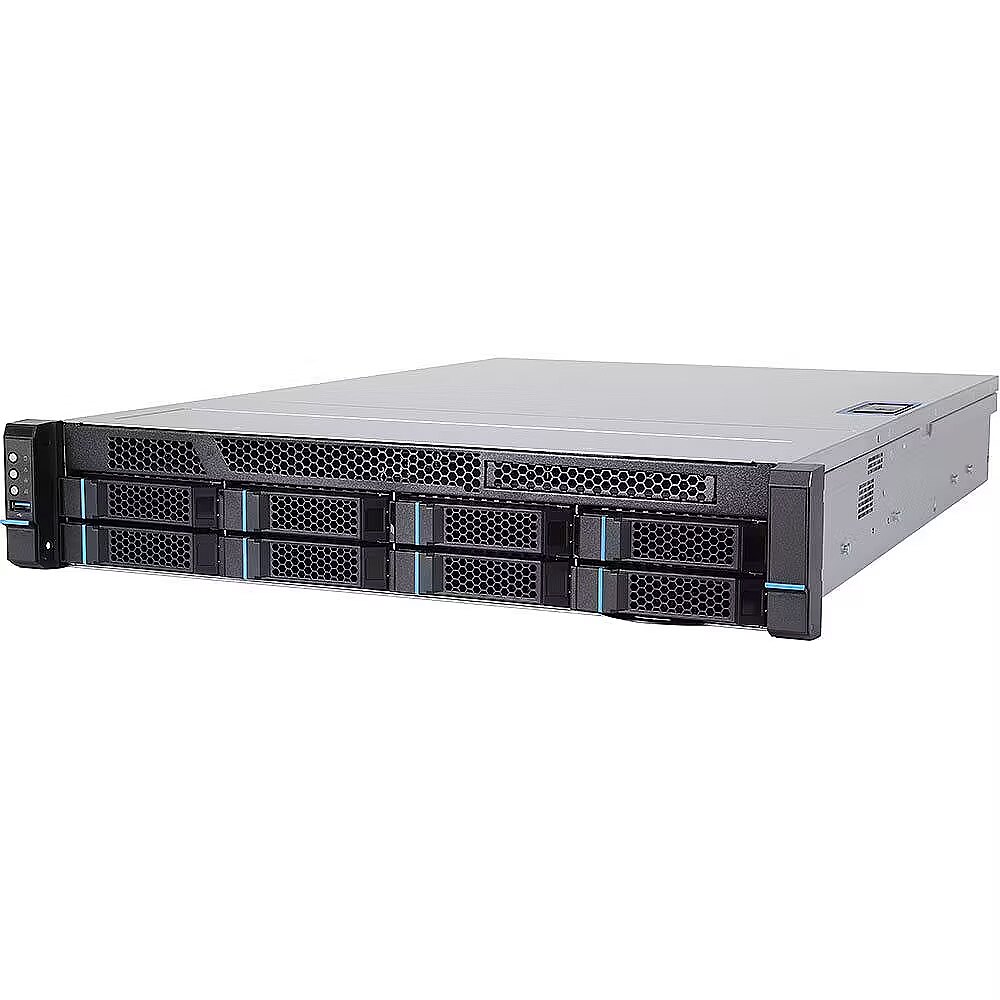

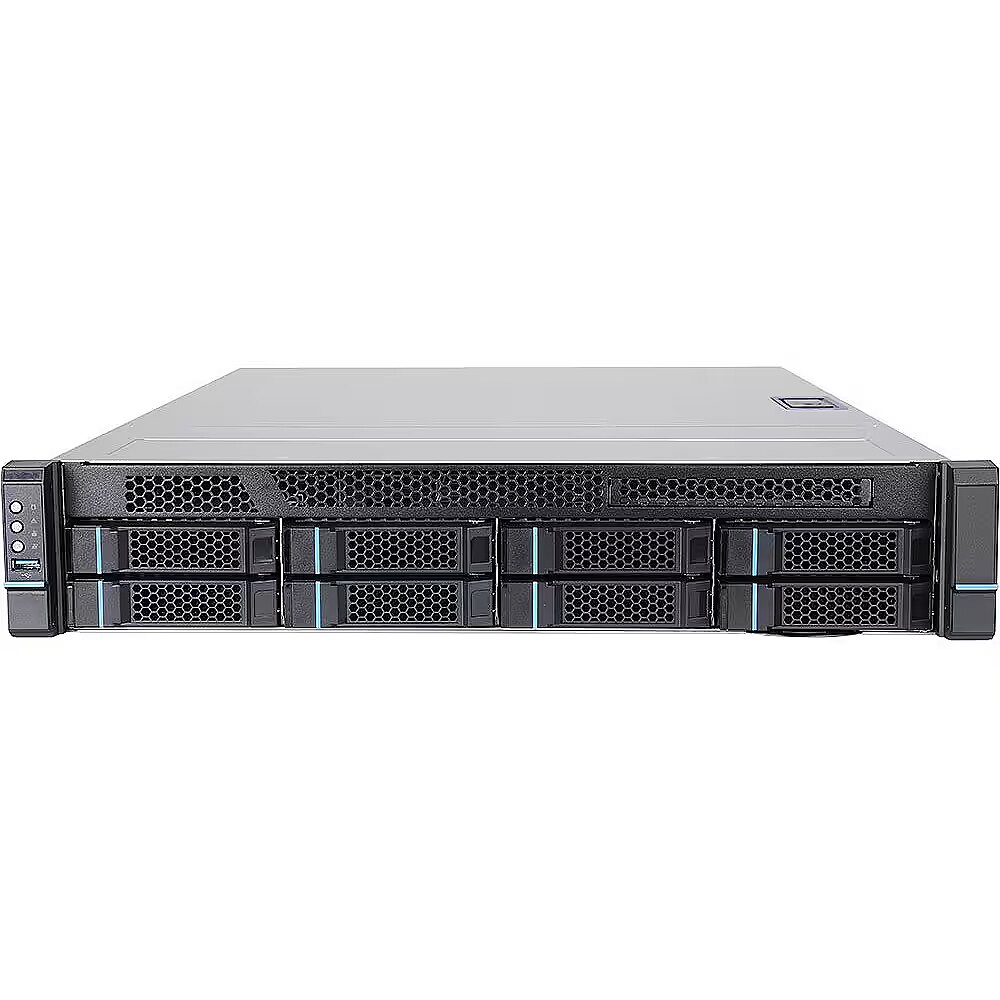

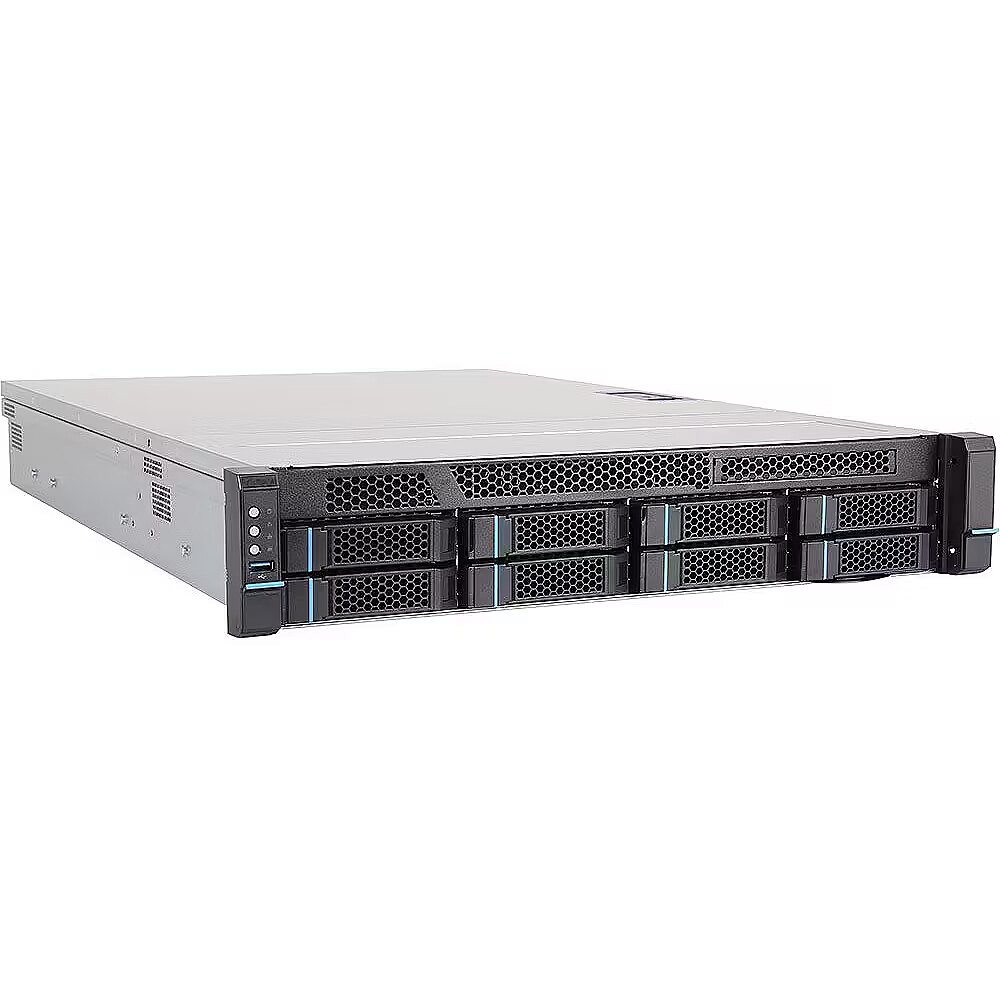

Short description - TERRA SERVER 3230 G6 E-2456/32/2x960/C
Storage - HDD capacity - 2x 960 GB SSD
Storage - Internal drive bays - 8x 3.5"/2.5"
Storage - Number of storage drives installed - 2 pc(s)
Storage - Optical drive type - Optional
Storage - RAID levels - RAID 1
Storage - SERVER - 2 pc(s)
Storage - SERVER - 2x 960 GB SSD
Storage - SERVER - 8x 3.5"/2.5"
Storage - SERVER - 1920 GB
Storage - SERVER - Optional
Storage - SERVER - RAID 1
Storage - SERVER - SATA 6Gb/s
Storage - SERVER - SSD SATA
Storage - SSD interface - SATA 6Gb/s
Storage - Storage media type - SSD SATA
Storage - Total storage capacity - 1920 GB
Technical details - Localization - International
Technical details - Optional on-site service - 24h On-Site-Service + DMR 24h On-Site-Service + DMR + Premium
Technical details - SERVER - 24h On-Site-Service + DMR + Premium¦
Technical details - SERVER - 24h On-Site-Service + DMR¦
Technical details - SERVER - International
Weight & dimensions - Depth - 66 cm
Weight & dimensions - Height - 8.7 cm
Weight & dimensions - SERVER - 8.7 cm
Weight & dimensions - SERVER - 43.8 cm
Weight & dimensions - SERVER - 66 cm
Weight & dimensions - Width - 43.8 cm
