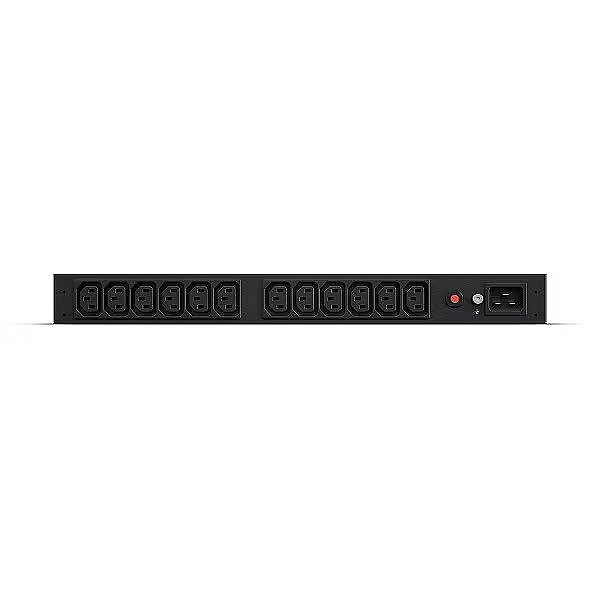

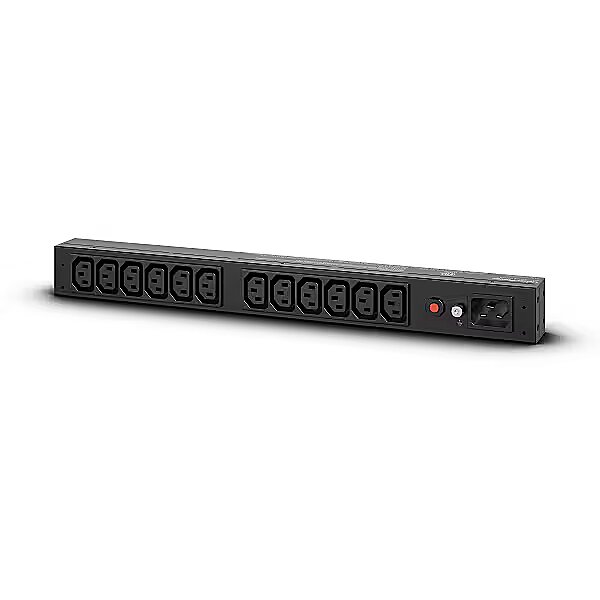

Cyberpower BASIC PDU20BHVIEC12R

Accessories included - PDU20BHVIEC12R User manual Product registration card Cable support tray Mounting brackets Headbands Screw set
Brand - CyberPower
BrandPartCode - PDU20BHVIEC12R
Cable length - 3.05 m
Category - Power Distribution Units (PDUs)
Certificates - Certification - UL60950_1 ETL, CSA C22.2
Certificates - Compliance certificates - RoHS
Color - Black
Data Act - Link and Link
Description - Basic strip PDU20BHVIEC12R 1U, 16A, 1xC20, 12xC13 The CyberPower PDU20BHVIEC12R provides output power from a UPS, generator or network, allowing you to connect multiple devices in data center environments. Designed with a durable, industrial-grade metal housing and extra-long power cord. The product can be installed in demanding environments or where only remote power sources are available. Overload protection Adjustable mounting brackets Industrial metal housing Cable tray
Design - Housing material - Steel
Design - Mounting - Horizontal/Vertical
Design - PDU types - Basic
Design - Product colour - Black
Design - Rack capacity - 1U
Design - Type - Single-phase
Designation - CE+WEEE
dimension depth - 160 mm
dimension height - 70 mm
Dimensions - 44,5 x 445 x 38,1 mm
dimension weight - 1350 g
dimension width - 510 mm
ean - 4712364144387
Features - Cable length - 3.05 m
Filters / protection - Overload
GTIN - 0012303487341
GTIN - 012303487341
GTIN - 0115971193528
GTIN - 115971193528
GTIN - 0649532901357
GTIN - 649532901357
GTIN - 4712364144387
GTIN - 5054484340577
GTIN - 6495329013574
guarantee - 24
guarantee_type - external
Logistics data - Warranty period - 2 year(s)
LongDesc - The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.- 12 IEC-320 C13 output receptacles- Single IEC-320 C20 plug- 20-amp electrical capacity with circuit breaker- 208/230V - 50/60Hz- 1U rack mount- 10-ft. power cord
LongProductName - Power Distribution Units
LongSummaryDescription - CyberPower PDU20BHVIEC12R. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 3.05 m. Nominal input voltage: 200 - 240 V, Maximum current: 16 A, AC input frequency: 50 / 60 Hz. Compliance certificates: RoHS, Certification: UL60950_1 ETL, CSA C22.2
Mounting - Base
Mounting - Wall
name - Basic strip PDU20BHVIEC12R 1U, 16A, 1xC20, 12xC13
No. of C13 sockets - 12
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Operating temperature (T-T) - 32 - 95 °F
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other I/O ports - None
Packaging content - Packaging content - PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data - Package depth - 330 mm
Packaging data - Package height - 233 mm
Packaging data - Package weight - 15 kg
Packaging data - Package width - 530 mm
Plug - C20
Ports & interfaces - AC outlets quantity - 12 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C20 coupler
Power - AC input frequency - 50 / 60 Hz
Power - Circuit breaker - Yes
Power - Maximum current - 16 A
Power - Nominal input voltage - 200 - 240 V
Power - Nominal output voltage - 200 - 240 V
Power - Power protection features - Overload
Power - Surge protection - Yes
producer - CyberPower
ProductName - PDU20BHVIEC12R
Rack dimensions - 1U
ShortSummaryDescription - CyberPower PDU20BHVIEC12R, Basic, 1U, Single-phase, Horizontal/Vertical, Steel, Black
Sustainability - Sustainability compliance - Yes
Switch - No
Title - CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black
URL - https://www.cyberpower.com/de/en/product/sku/pdu20bhviec12r
vendpn - PDU20BHVIEC12R
WarrantyInfo - 2 years
Weight - 0.9 kg
Weight & dimensions - Depth - 38.1 mm
Weight & dimensions - Dimensions (W x D x H) (imperial) - 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Weight & dimensions - Height - 44.5 mm
Weight & dimensions - Weight - 900 g
Weight & dimensions - Weight (imperial) - 0.907 kg (2 lbs)
Weight & dimensions - Width - 445 mm
