Startech 2X PCIE SATA III ESATA CARD .

ARTIKEL1 - 2X PCIE SATA III ESATA CARD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - PEXESAT322I
Breite - 0.14
Category - Interface Cards/Adapters
Design - Certification - CE, FCC, REACH
Design - Internal - Yes
EANCode - 0065030848428
Features - Chipset - ASMedia - ASM1061
Features - Logical block addressing (LBA) support - 48 bit
Features - Native Command Queuing (NCQ) - Yes
Gewicht - 0.15
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive/Opt Accs
GTIN - 0065030848428
GTIN - 065030848428
GTIN - 0172304231487
GTIN - 172304231487
GTIN - 5706998929327
HERSTELLER - STARTECH
Hoehe - 0.03
HSTNUMMER - PEXESAT322I
Laenge - 0.17
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case height - 360 mm
Logistics data - Master (outer) case length - 586 mm
Logistics data - Master (outer) case width - 307 mm
Logistics data - Products per master (outer) case - 80 pc(s)

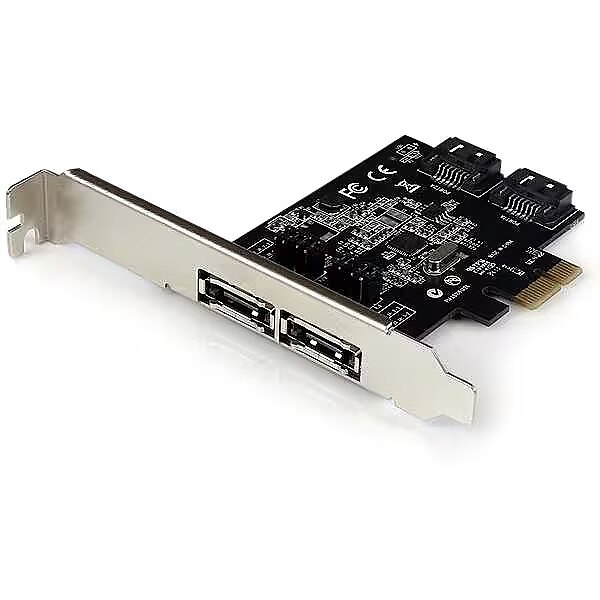

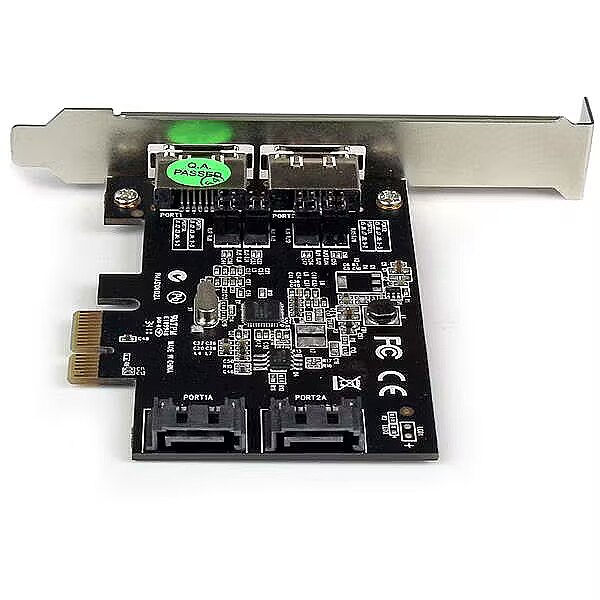

LongDesc - Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slotThe PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.The StarTech.com Advantage
LongProductName - StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I)
LongSummaryDescription - StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext. Host interface: PCIe, Output interface: SATA. Certification: CE, FCC, REACH. Chipset: ASMedia - ASM1061, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 92 mm, Depth: 121 mm, Height: 20 mm
Operational conditions - Operating relative humidity (H-H) - 5 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging data - Cables included - SATA
Packaging data - Drivers included - Yes
Packaging data - Manual - Yes
Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 144 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 152 g
Packaging data - Package width - 173 mm
Packaging data - Quantity - 1
Ports & interfaces - eSATA ports quantity - 2
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Output interface - SATA
Ports & interfaces - Port multiplier - Yes
Ports & interfaces - SATA revision - 3.0
ProductName - 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
ShortSummaryDescription - StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext, PCIe, SATA, CE, FCC, REACH, ASMedia - ASM1061, 48 bit, 0 - 50 °C
Stck_Kart - 80
Stck_Pal - 0
Storno - Y
System requirements - Server operating systems supported - Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
URL - https://www.startech.com/en-us/PEXESAT322I
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 121 mm
Weight & dimensions - Height - 20 mm
Weight & dimensions - Weight - 48 g
Weight & dimensions - Width - 92 mm
