BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1C70-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 4677
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - other
code - 90MB1C70-M0EAY0
ean - 4711387078174
EAN - 4711387078174
EAN_code - 4711387078174
Expansion slots - Number of M.2 (M) slots - 2

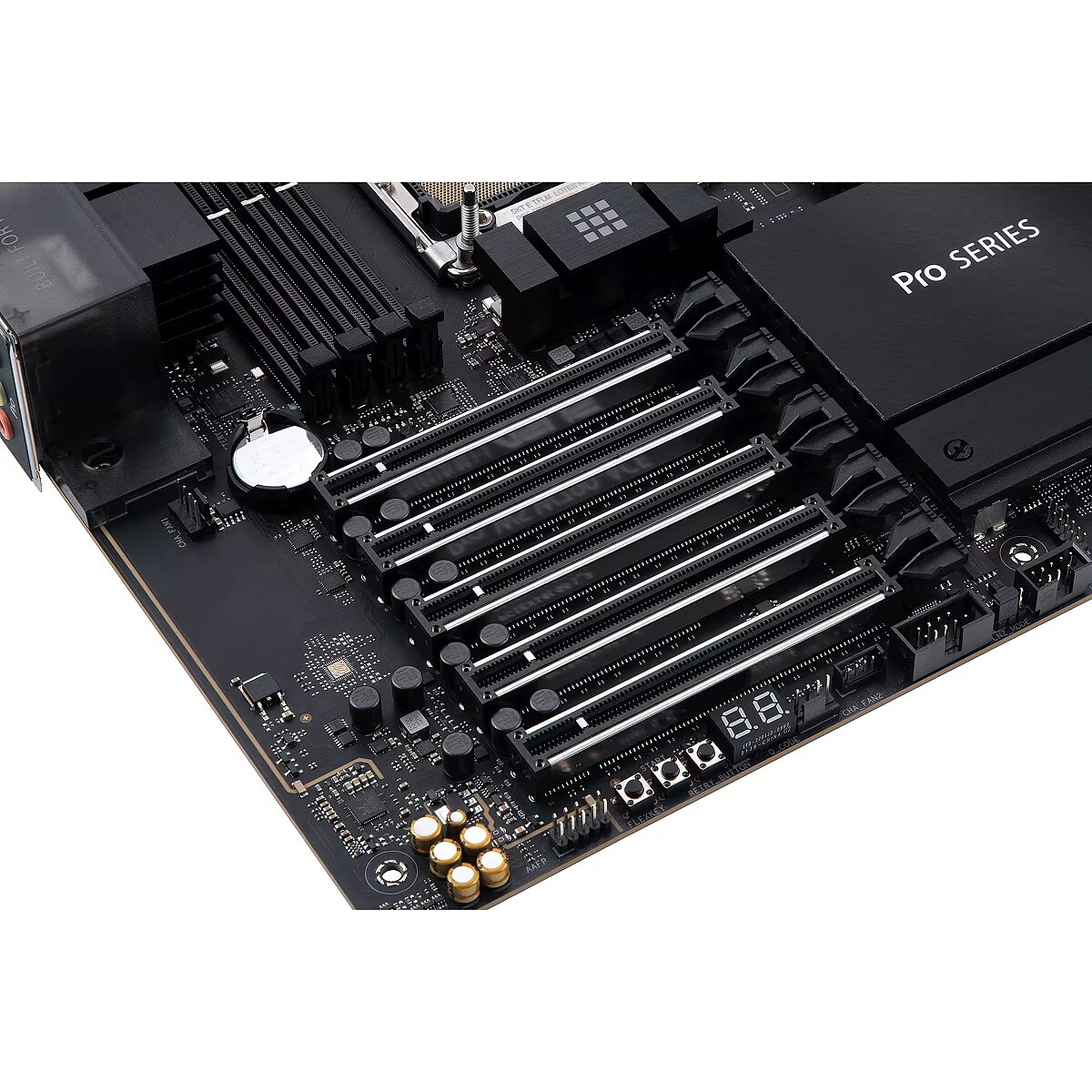

Expansion slots - PCI Express x16 (Gen 5.x) slots - 5
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - Workstation
Features - Motherboard chipset - Intel W790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - SSI CEB
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Graphics - On-board graphics card - No
Gross Weight Kg - 2,1
GTIN - 0197105078178
GTIN - 197105078178
GTIN - 4711387078174
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of COM connectors - 1

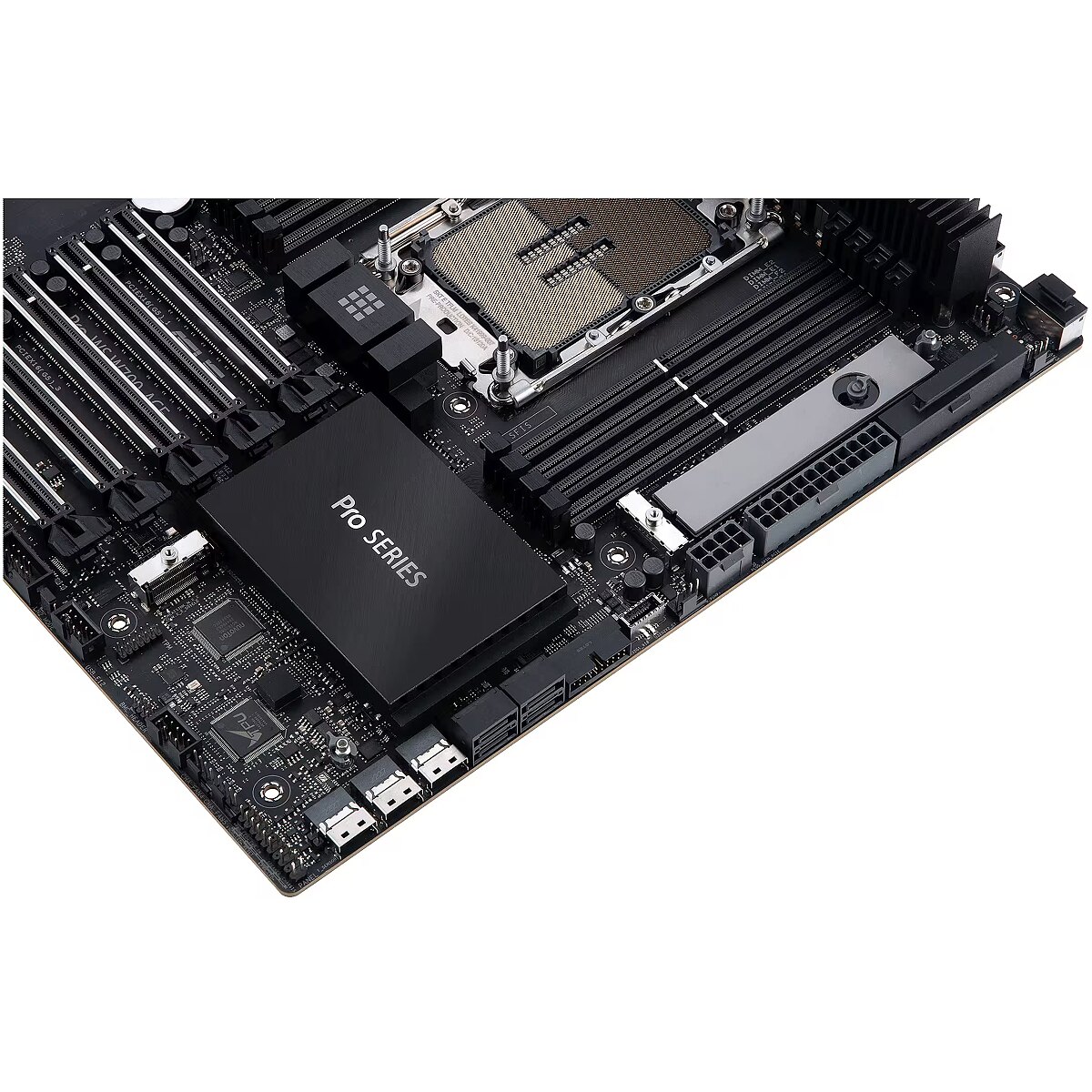

Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongSummaryDescription - ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1C70-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1C70-M0EAY0
Memory - ECC сompatibility - ECC
Memory - Maximum internal memory - 2 TB
Memory - Memory channels - Quad-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Memory - Supported memory types - DDR5-SDRAM
MPN - 90MB1C70-M0EAY0

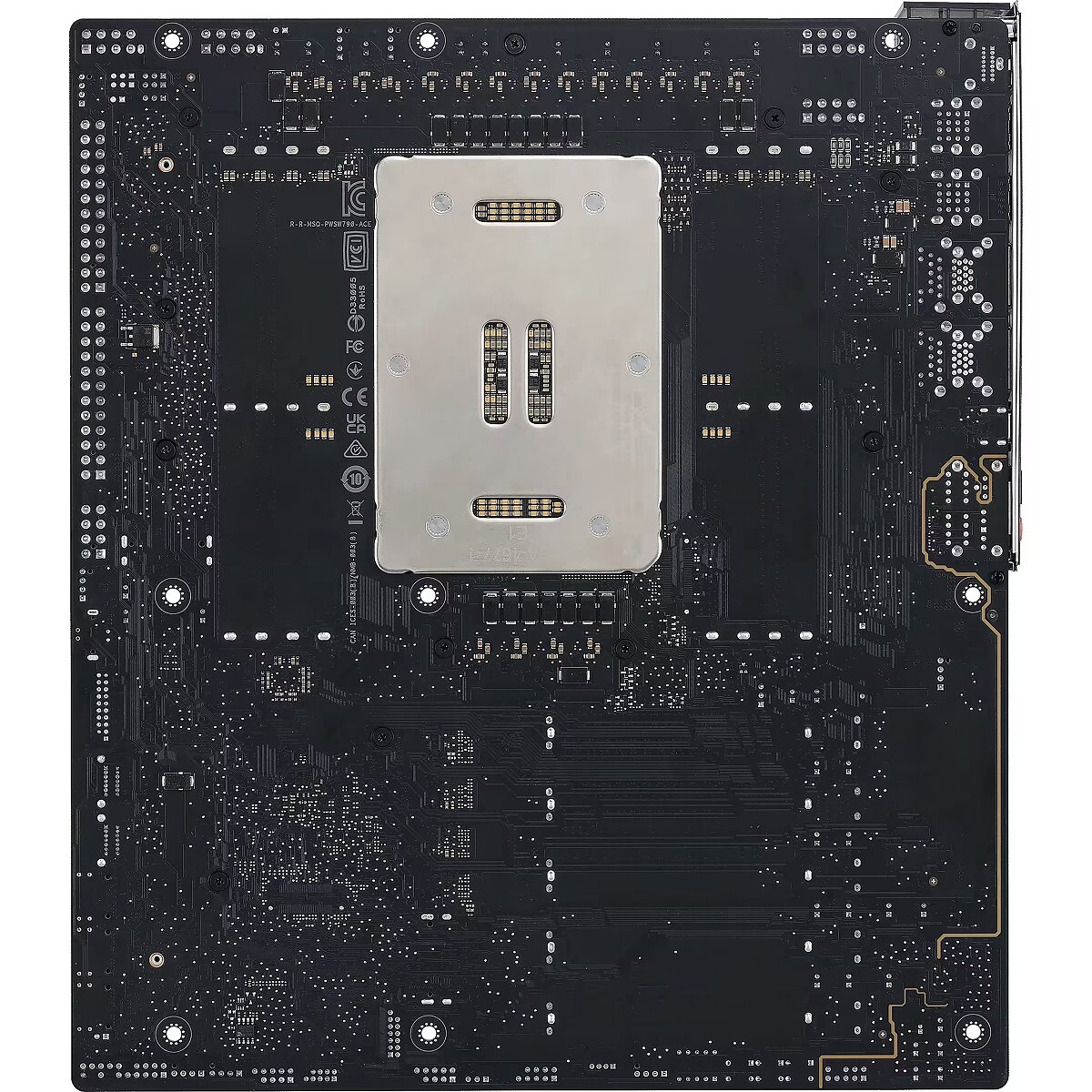

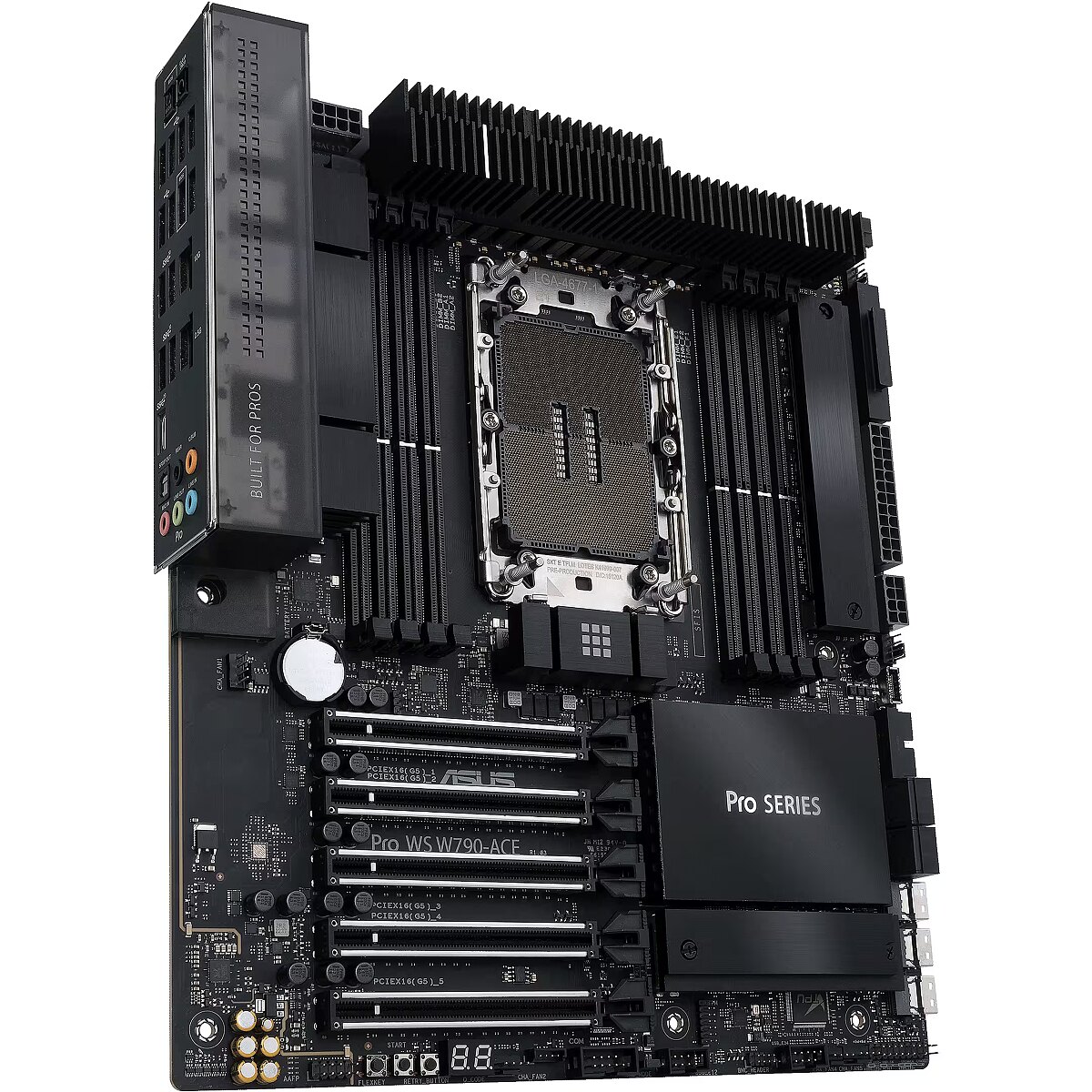

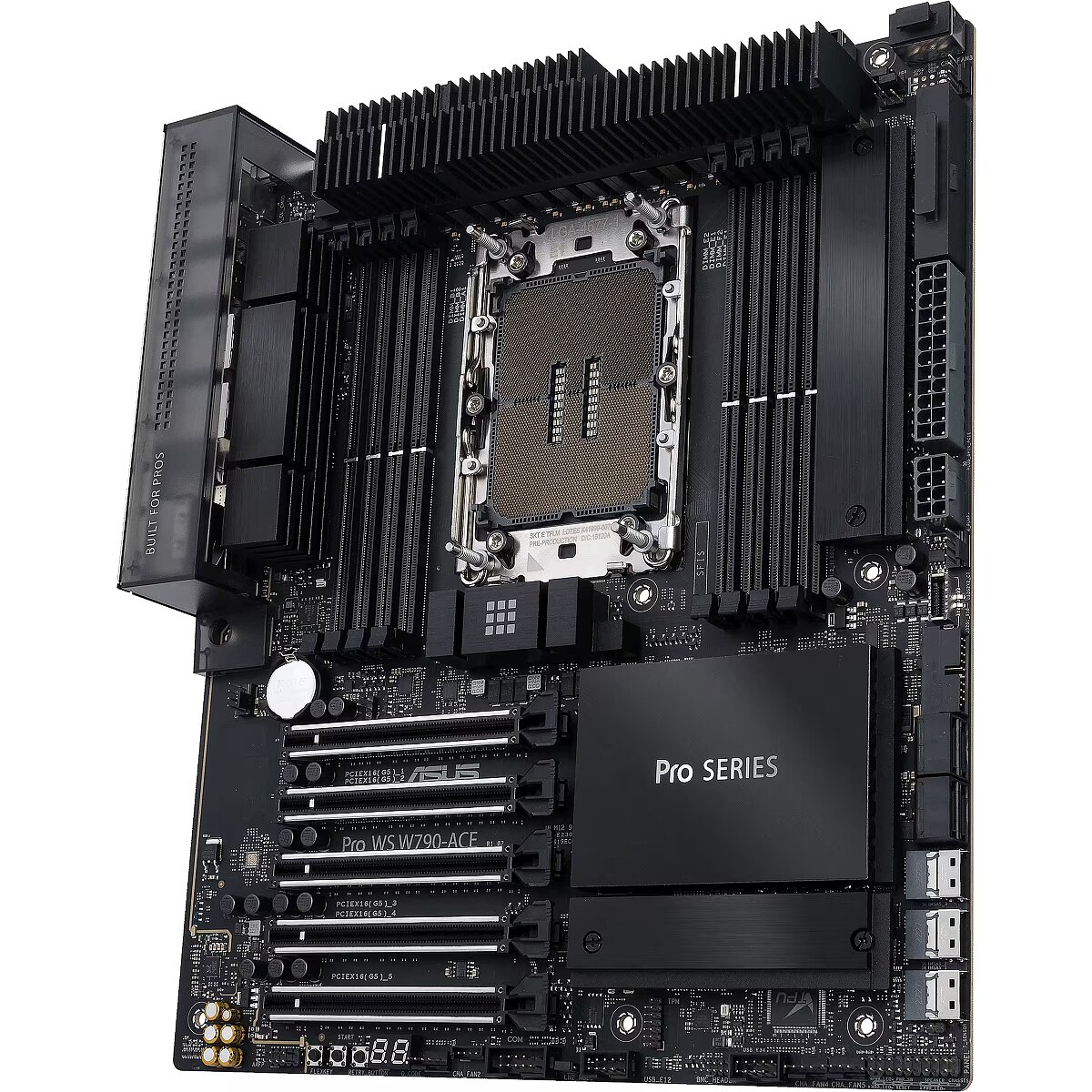

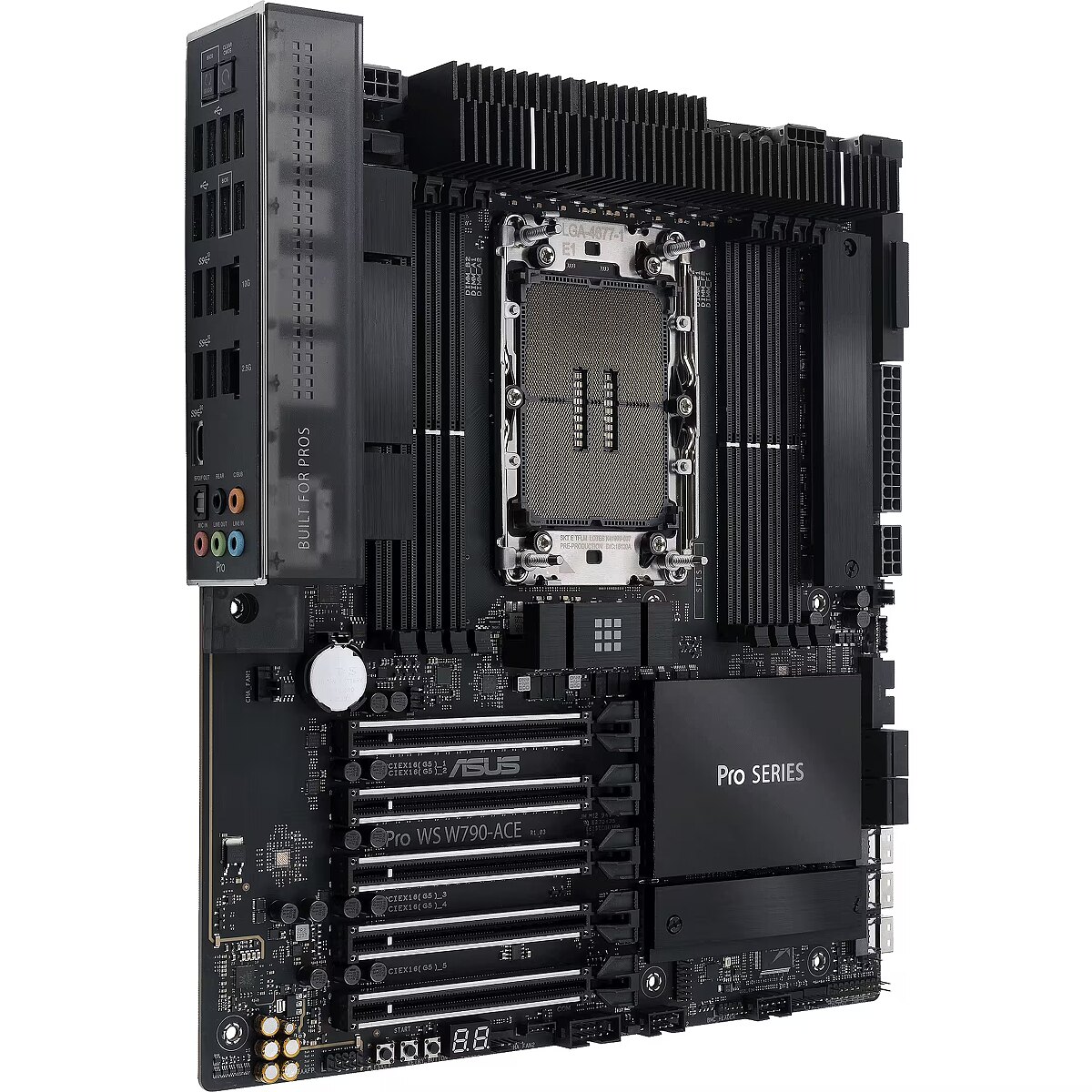

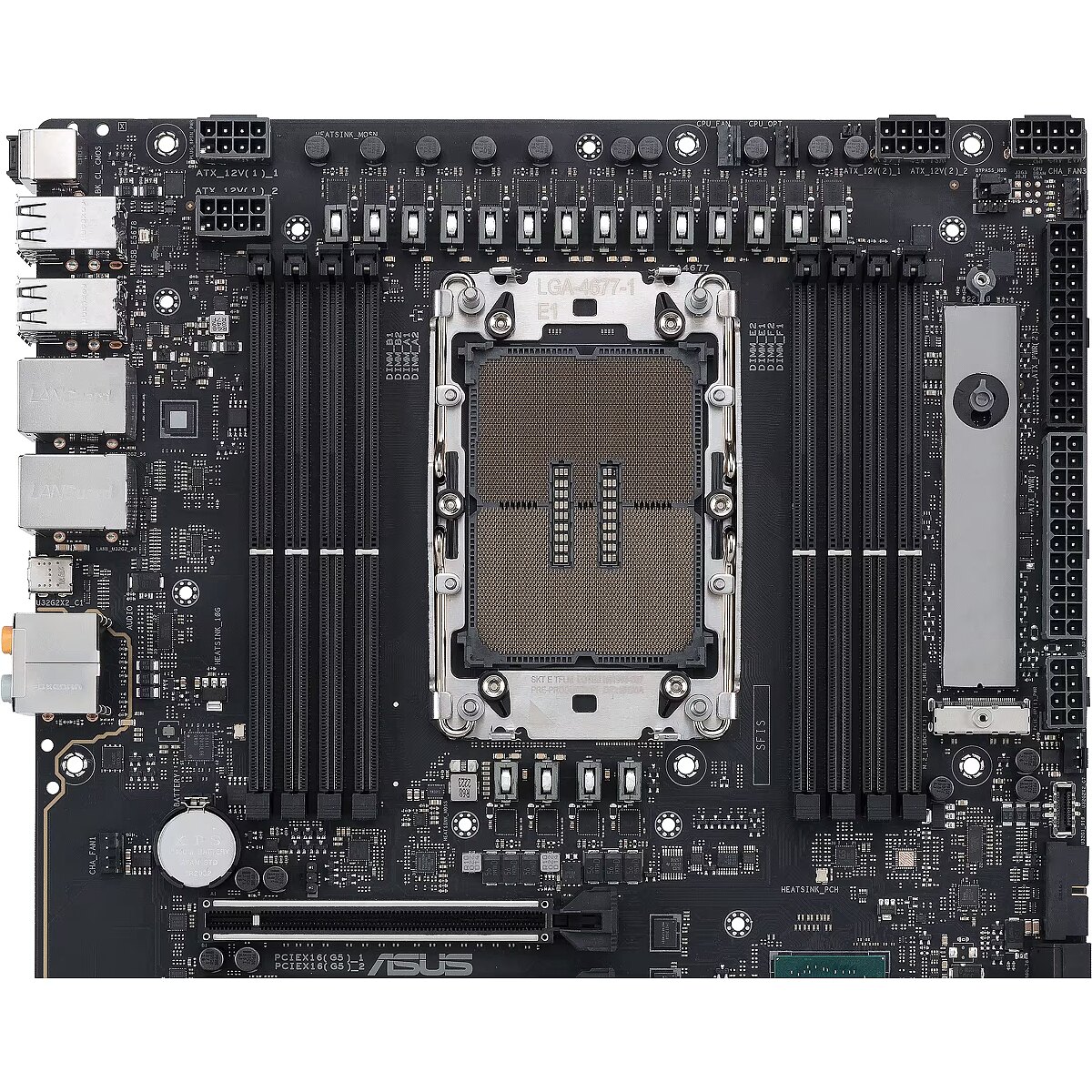

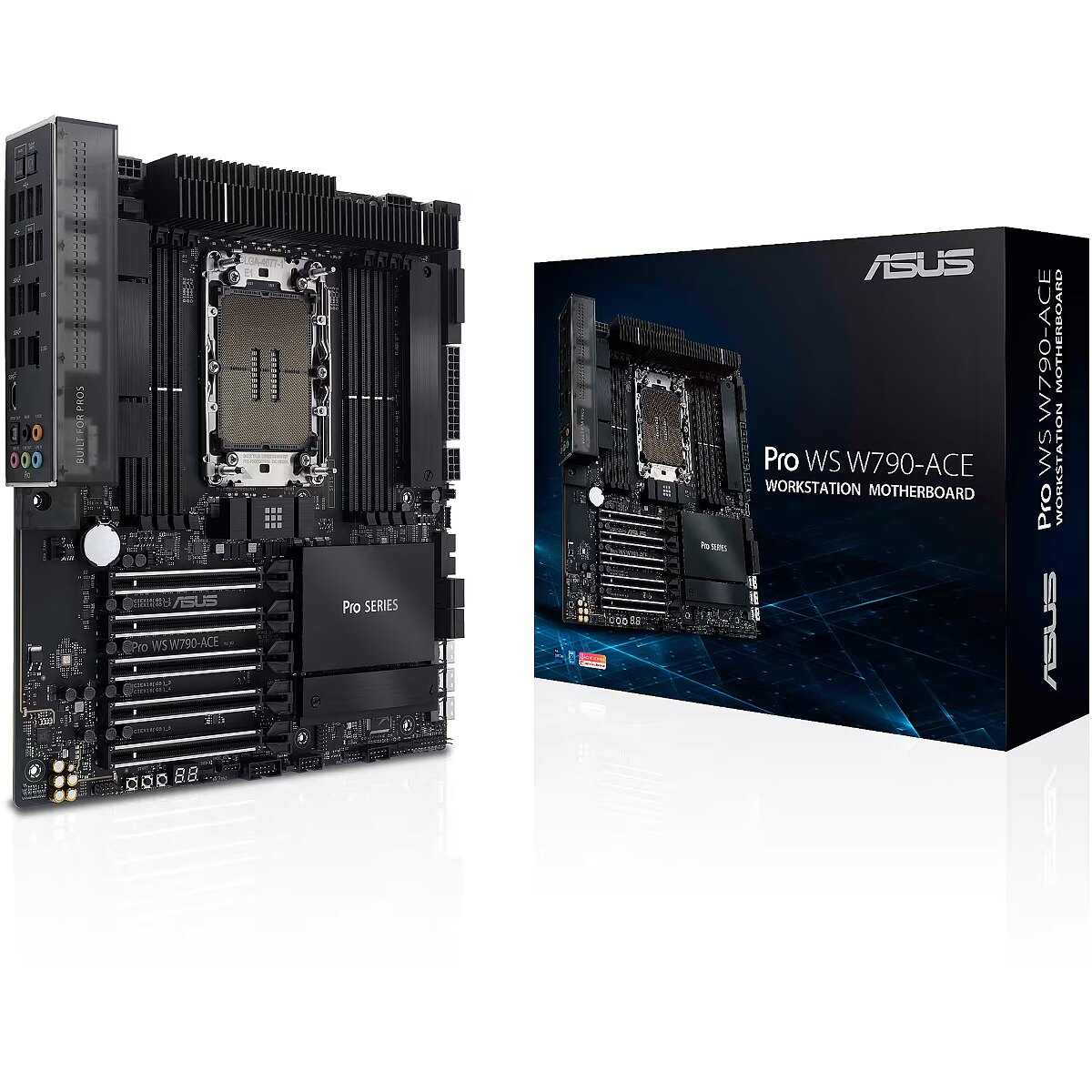

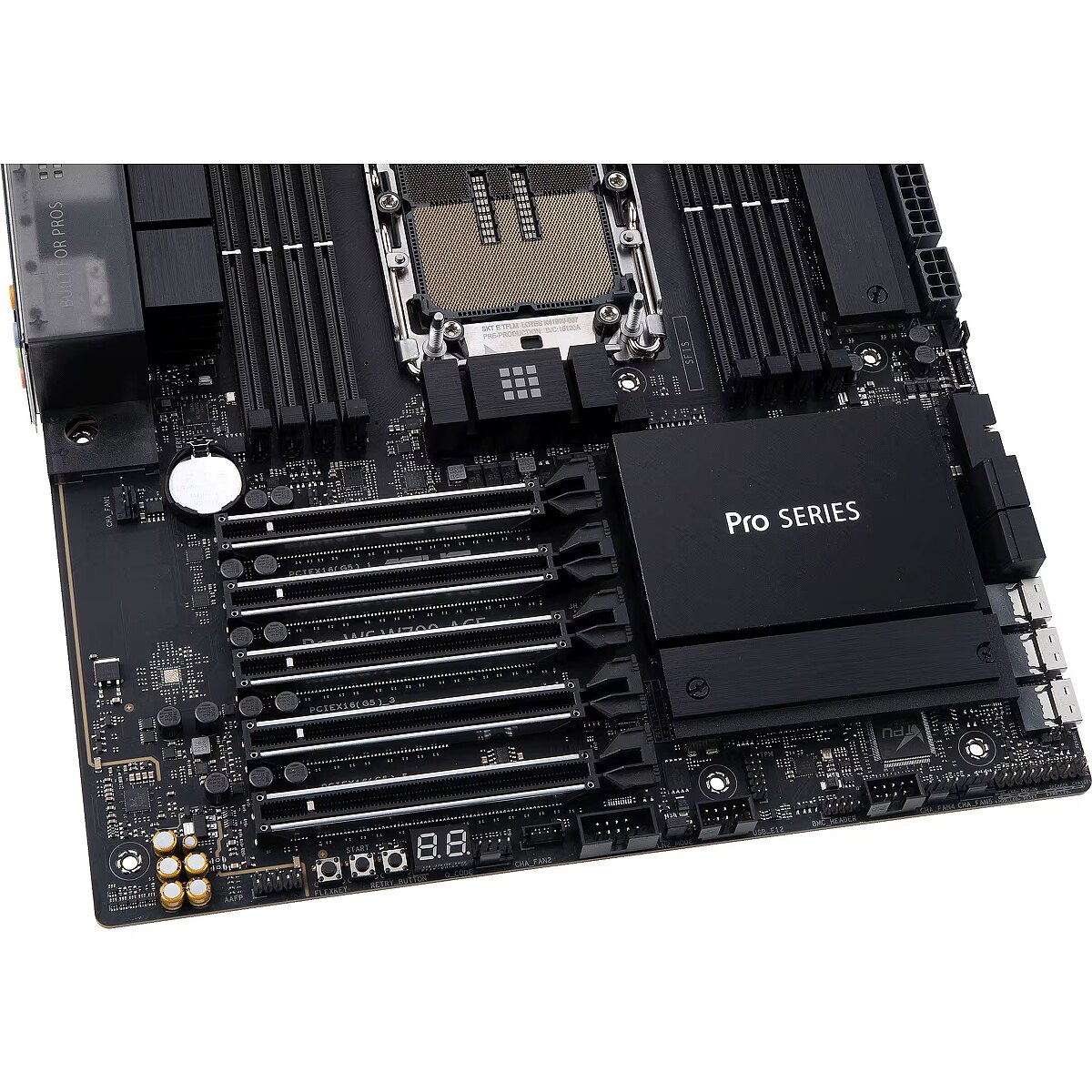

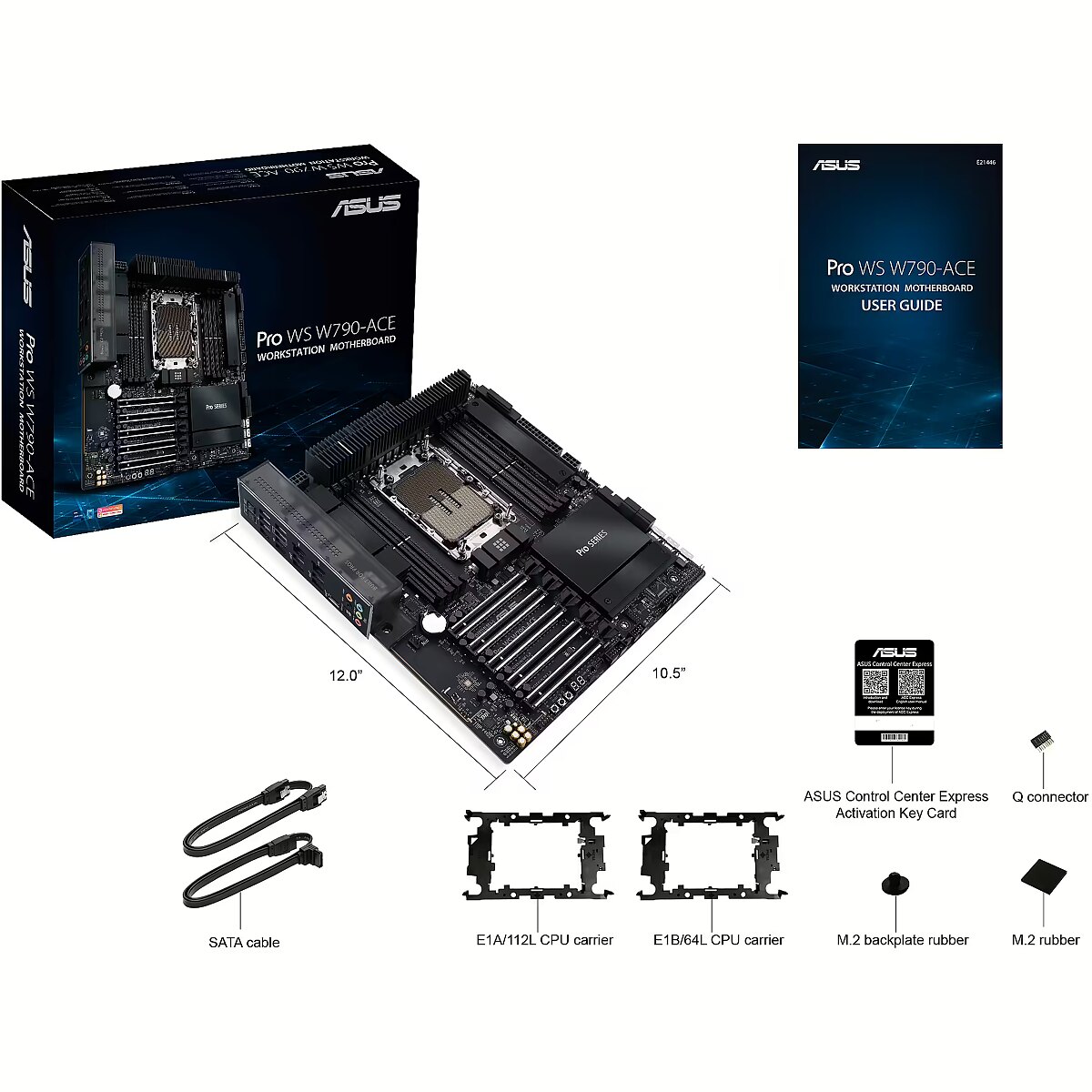

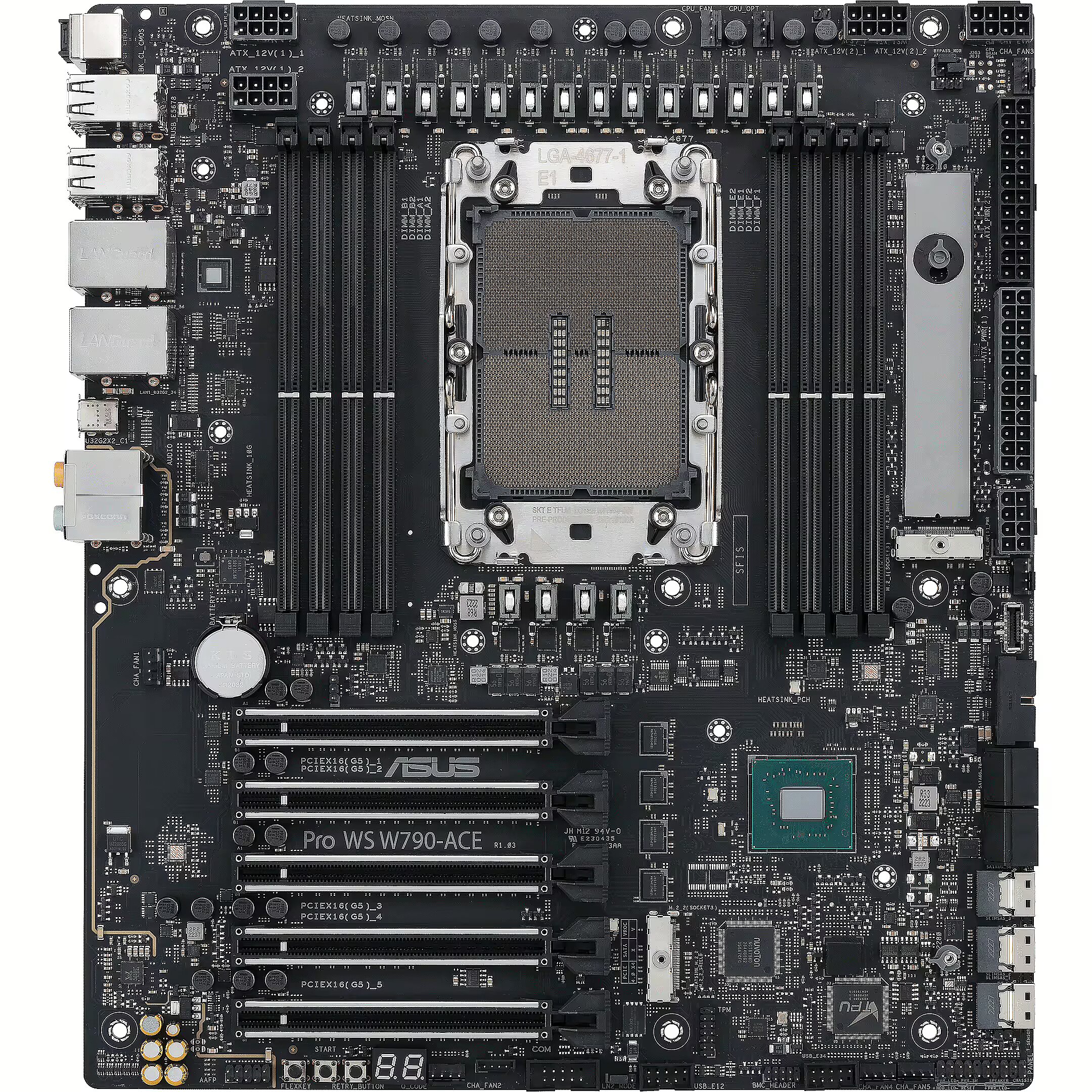

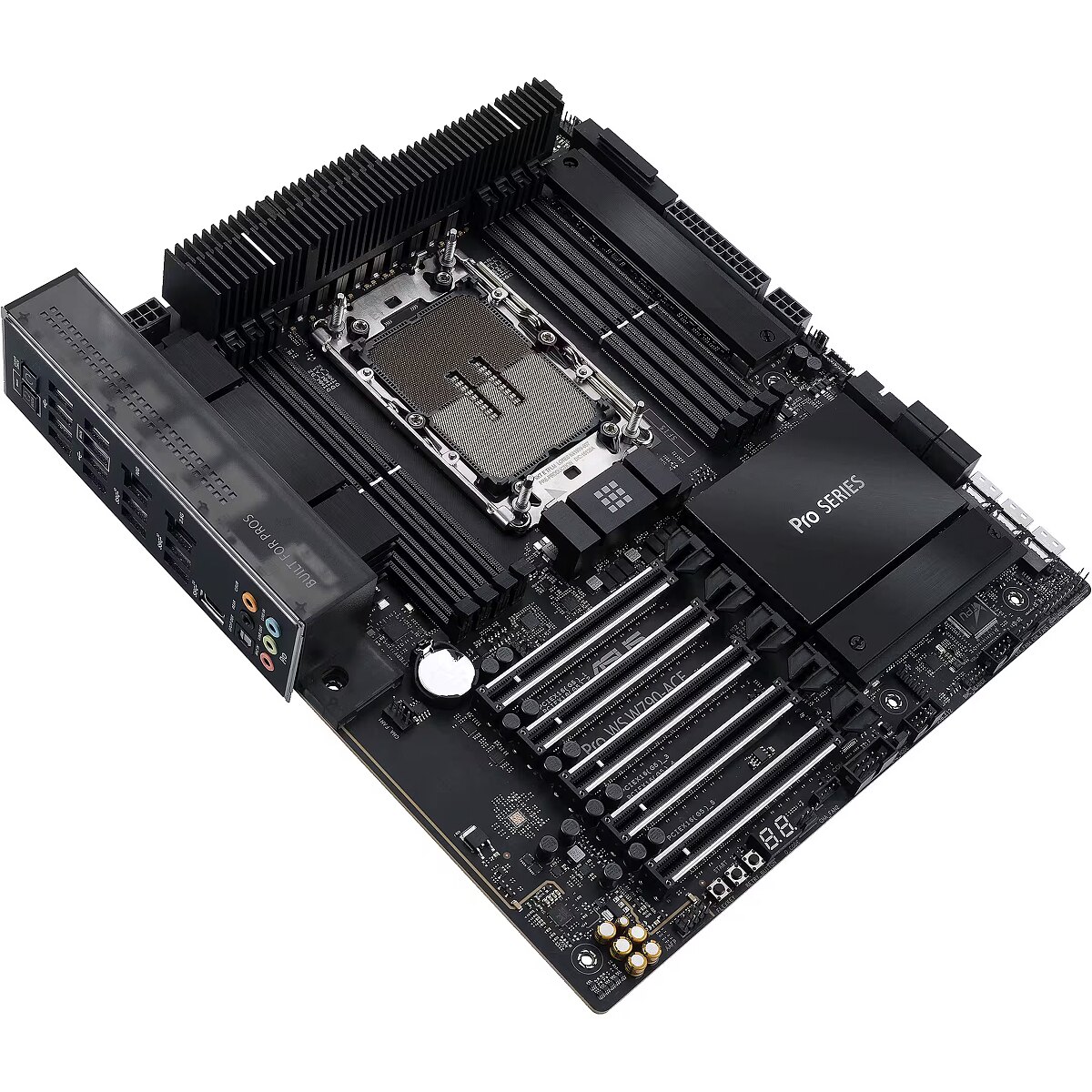

Name - ASUS PRO WS W790-ACE - Socket 4677 - motherboard
name - ASUS Pro WS W790-ACE motherboard, socket LGA 4677, Intel W790, DDR5
Name - ASUS PRO WS W790-ACE S4677 W790/DDR5/CEB
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Not available
Network - Wi-Fi - No
Other features - Weight - 1.81 kg
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 3.52 kg
Packaging data - Package width - 370 mm
Processor - Compatible processor series - Intel Xeon W
Processor - Intel Xeon series - W-3400, W-2400
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 4677 (Socket E)
ProductName - PRO WS W790-ACE

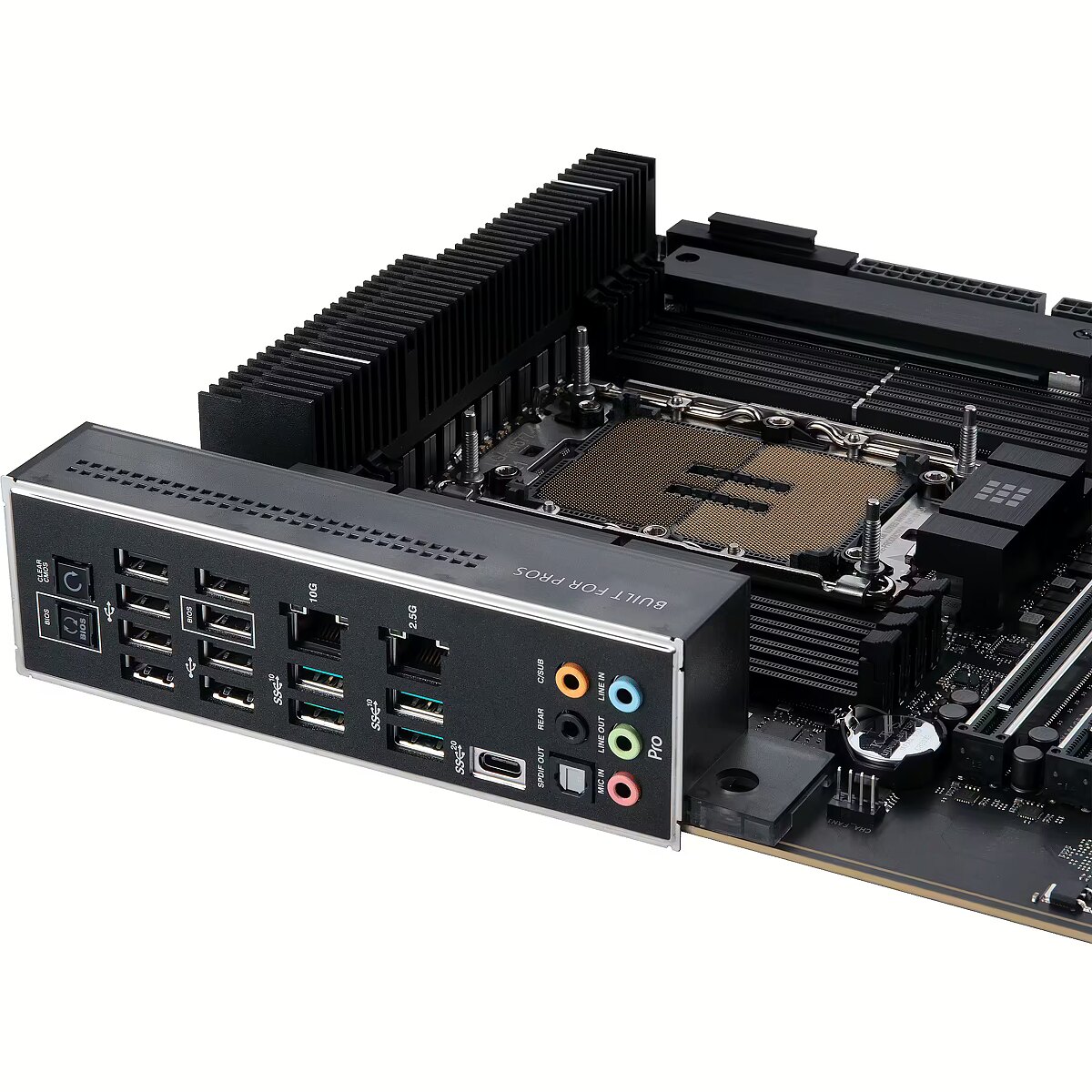

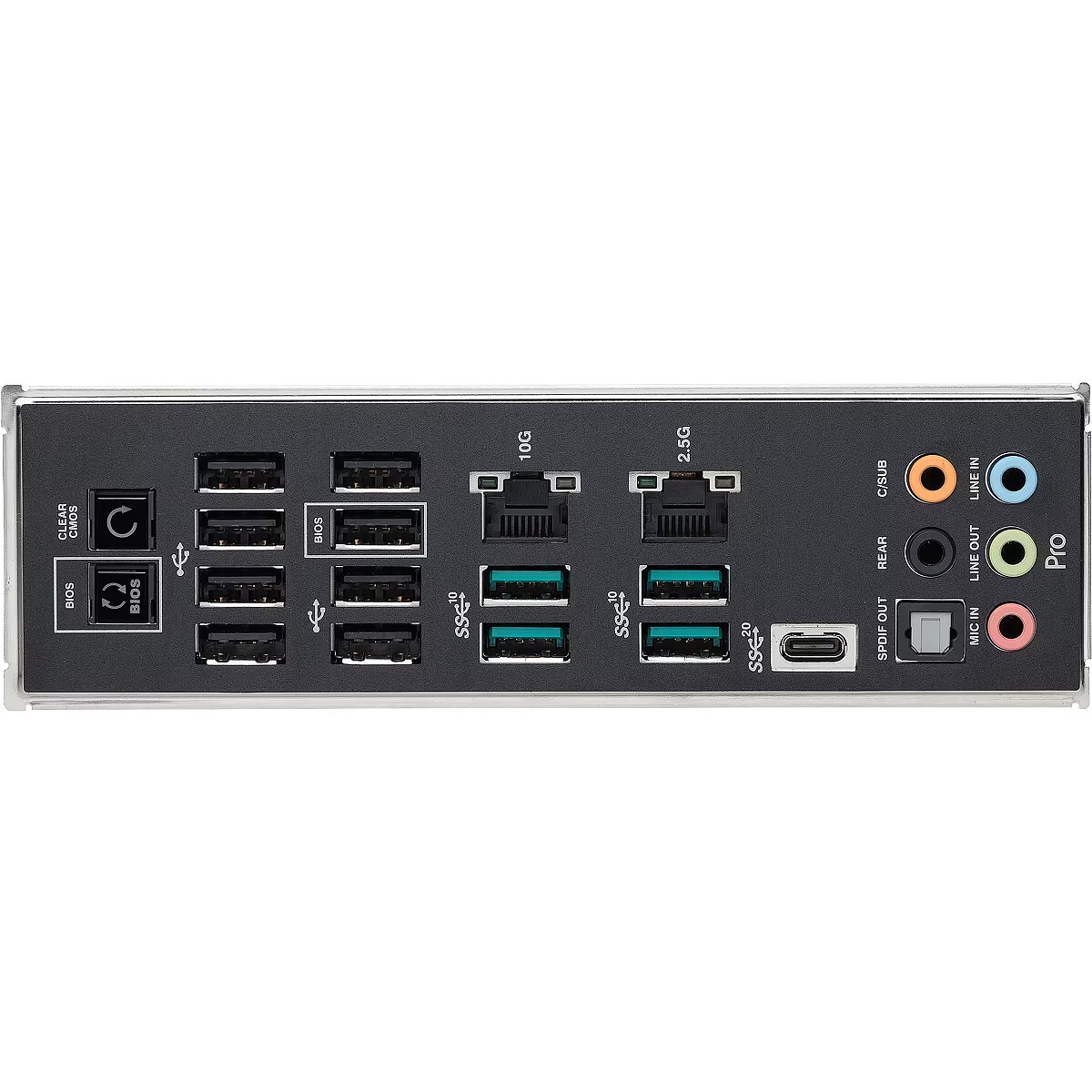

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Short description - ASUS PRO WS W790-ACE S4677 W790/DDR5/CEB
ShortSummaryDescription - ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2 TB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
Weight - 3,00
Weight - 3.094
Weight & dimensions - Depth - 277 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
