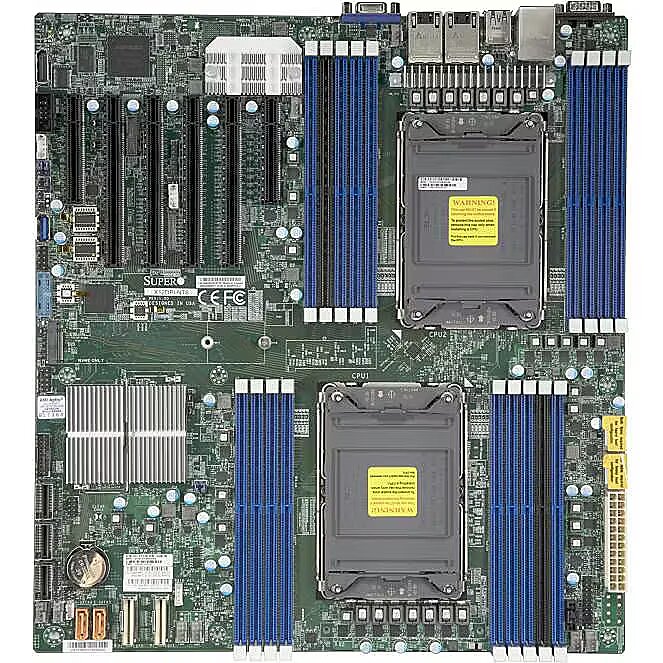

Supermicro MBD-X12DPI-N6-B motherboard Intel C621A LGA 4189 Extended ATX

BIOS - BIOS type - UEFI AMI
dimensionalWeight - 2861
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x8 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 4
Features - Component for - Server
Features - Motherboard chipset - Intel C621A
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - LED
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Graphics - On-board graphics card model - Aspeed AST2600
Internal I/O - Number of SATA III connectors - 14
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
Memory - ECC сompatibility - ECC
Memory - Maximum internal memory - 4 TB
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 18
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory types - DDR4-SDRAM
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I350
Operational conditions - Operating relative humidity (H-H) - 8 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Processor - Compatible processor series - Intel® Xeon®
Processor - Processor cores - 40
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 4189
producerCode - MBD-X12DPI-N6-B
productName - Supermicro MBD-X12DPI-N6-B motherboard Intel C621A LGA 4189 Extended ATX
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Serial ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 2
sizeX - 455
sizeY - 85
sizeZ - 370
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
warrantyLength - 12
warrantyType - G
weight - 2230
Weight & dimensions - Depth - 330.2 mm
Weight & dimensions - Width - 304.8 mm
