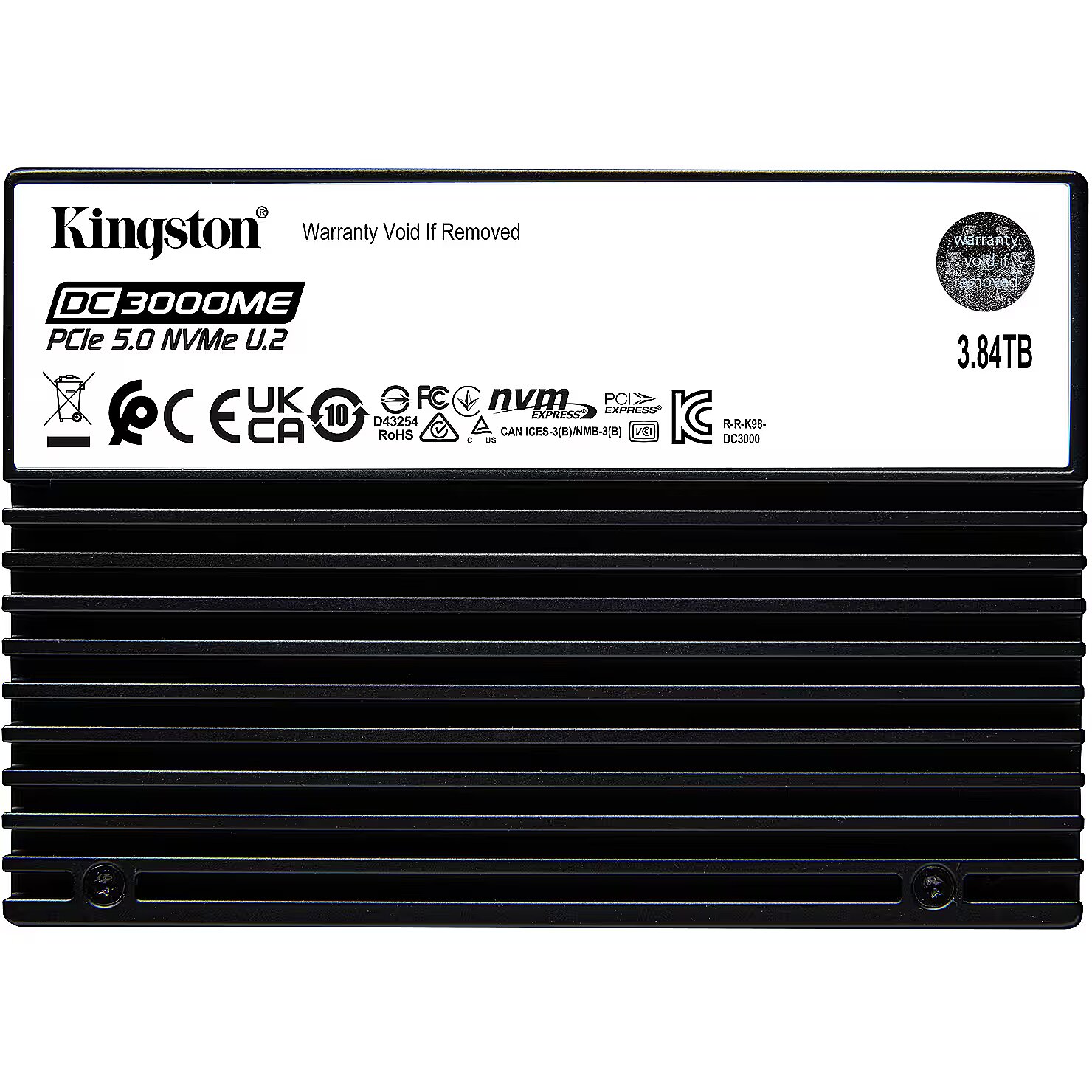

Kingston 3.84TB DC3000ME U.2 2.5IN SSD ENTERPRISE PCIE 5.0 NVME U.2 SSD

ARTIKEL1 - 3.84TB DC3000ME U.2 2.5IN SSD
ARTIKEL2 - ENTERPRISE PCIE 5.0 NVME U.2 SSD
Brand - Kingston Technology
BrandPartCode - SEDC3000ME/3T8
Category - Internal Solid State Drives
Category Code - SSP
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD
Color - Black
Component for Features - Server
Country of origin Logistics data - Malaysia
Depth - 100.5 mm
Depth Weight & dimensions - 100.5 mm
Description - PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty. Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
- AI
- HPC
- Cloud services
- Edge computing
- Software defined storage
- RAID
- General server use Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**. Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently. On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0. AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.Data Center SSD for EnterpriseGen5 PCIe NVMe U.23.84TB, 7.68TB, 15.36TBUp to 14,0000 MB/s readUp to 2,800,000 read IOPS* Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide.
** Performance measurement as defined by SNIA Solid State Storage Performance Test Specification Enterprise v1.1; Drive write cache enabled; NVMe power state 0; Sequential workloads measured using FIO with queue depth of 32; Random Read workloads using FIO with queue depth of 128 based on 4K sector size; Random Write workloads measured using FIO with queue depth of 128. Latency values measured with random workloads using FIO, 4KB transfers, queue depth = 1.
*** Measurement taken once the workload has reached steady state but including all background activities required for normal operation and data reliability.
**** Based on 15.36TB capacity.
***** Total Bytes Written (TBW) & Drives Writes Per Day (DWPD) derived from the JEDEC Enterprise Workload (JESD219A). ****** Limited warranty based on 5 years or when the usage of an NVMe SSD as indicated by Kingston’s implementation of the Health attribute “Percentage Used” reaches or exceeds a normalized value of one hundred (100) as indicated by the Kingston SSD Manager (kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches it warranty limit will show a Percentage Used value of greater than or equal to one hundred (100).
Description - The Kingston DC3000ME U.2 SSD features a high-speed PCIe 5.0 NVMe interface and 3D TLC NAND memory, making it an ideal solution for artificial intelligence workloads, high-performance computing (HPC), online transaction processing (OLTP), cloud applications, and edge computing on fourth- and fifth-generation NVMe servers. The DC3000ME is designed for system integrators, large data centers, and cloud service providers. It offers hardware-based power-loss protection, 256-bit AES encryption, TCG-Opal protocol support, low latency, and consistent I/O performance, ensuring reliability and security. Drives are available in multiple capacities, up to 15.36TB.
Designation - CE+WEEE
dimensionalWeight - 74
dimension depth - 20 mm
dimension height - 130 mm
dimension weight - 170 g
dimension width - 190 mm
Disk type - SSD
Drive type - Internal
ean - 740617347876
EANCode - 0740617347876
EAN_code - 0740617347876
Features - Component for - Server
Features - Hardware encryption - Yes
Features - Interface - PCI Express 5.0
Features - Market segment - Server
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D eTLC
Features - NVMe - Yes
Features - Power loss protection - Yes
Features - Random read (4KB) - 2700000 IOPS
Features - Random write (4KB) - 300000 IOPS
Features - Read latency - 10 µs
Features - Read speed - 14000 MB/s
Features - Security algorithms - 256-bit AES
Features - Security algorithms - 256-bit AES, TCG Opal 2.0
Features - Security algorithms - TCG Opal 2.0
Features - SSD capacity - 3.84 TB
Features - SSD form factor - U.2
Features - Write latency - 70 µs
Features - Write speed - 5800 MB/s
Form factor (width) - U.2
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0740617347876
GTIN - 740617347876
guarantee - 60
guarantee_type - normal
Hardware encryption Features - Yes
HDD capacity - 3.84 TB
HDD interface - PCIe 5.0
Height - 14.8 mm
Height Weight & dimensions - 14.8 mm
HERSTELLER - KINGSTON
HSTNUMMER - SEDC3000ME/3T8
Interface Features - PCI Express 5.0
Logistics data - Country of origin - Malaysia
Logistics data - Master (outer) case gross weight - 1.13 kg
Logistics data - Master (outer) case height - 69.8 mm
Logistics data - Master (outer) case length - 203.2 mm
Logistics data - Master (outer) case width - 135.9 mm
Logistics data - Products per master (outer) case - 6 pc(s)
LongDesc - PCIe 5.0 NVMe U.2 for Server ApplicationsKingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.Applications and workloadsDC3000ME is ideal for running a wide range of server applications and workloads including:- AI- HPC- Cloud services- Edge computing- Software defined storage- RAID- General server useEnterprise PCIe 5.0 performanceDelivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.Optimal storage and efficiencyHigh capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.On-board Power Loss Protection (PLP)Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.AES 256-bit encryptionSecure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.
LongProductName - 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
LongSummaryDescription - Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD. SSD capacity: 3.84 TB, SSD form factor: U.2, Read speed: 14000 MB/s, Write speed: 5800 MB/s, Component for: Server
Manufacturer - Kingston
Manufacturer_code - SEDC3000ME/3T8
Market segment Features - Server
Master (outer) case gross weight Logistics data - 1.13 kg
Master (outer) case height Logistics data - 69.8 mm
Master (outer) case length Logistics data - 203.2 mm
Master (outer) case width Logistics data - 135.9 mm
Mean time between failures (MTBF) Features - 2000000 h
Memory type Features - 3D eTLC
Model - DC3000ME
Model - SEDC3000ME/3T8
Name - Kingston DC3000ME 3840 GB, SSD PCIe NVMe Gen5 x4 U.2, 2.5", AES encryption
name - SSD Disk DC3000ME 3,84TB PCIe 5.0 NVMe U.2
Non-operating vibration Operational conditions - 10 G
NVMe Features - Yes
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Non-operating vibration - 10 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Package depth Packaging data - 16.8 mm
Package height Packaging data - 184.2 mm
Package weight Packaging data - 180.44 g
Package width Packaging data - 129.5 mm
Packaging data - Package depth - 16.8 mm
Packaging data - Package height - 184.2 mm
Packaging data - Package weight - 180.44 g
Packaging data - Package width - 129.5 mm
Power - Power consumption (idle) - 8 W
Power - Power consumption (read) - 8.2 W
Power - Power consumption (write) - 24 W
Power consumption (idle) Power - 8 W
Power consumption (read) Power - 8.2 W
Power consumption (write) Power - 24 W
Power loss protection Features - Yes
producer - Kingston
producerCode - SEDC3000ME/3T8
ProductName - 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
productName - Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
productSize - Normal
Products per master (outer) case Logistics data - 6 pc(s)
Random read (4KB) Features - 2700000 IOPS
Random read IOPS (max) - 2700000 K
Random write (4KB) Features - 300000 IOPS
Random write IOPS (max) - 300000 K
Reading speed - 14000 MB/s
Read latency Features - 10 µs
Read speed Features - 14000 MB/s
Security algorithms Features - 256-bit AES, TCG Opal 2.0
ShortSummaryDescription - Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD, 3.84 TB, U.2, 14000 MB/s
sizeX - 181
sizeY - 16
sizeZ - 128
SSD capacity Features - 3.84 TB
SSD form factor Features - U.2
SSD series - DC3000ME
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Summary - Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD. SSD capacity: 3.84 TB, SSD form factor: U.2, Read speed: 14000 MB/s, Write speed: 5800 MB/s, Component for: Server
TBW - 7008 TB
Title - Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
Unit Box Height - 0.015
Unit Box Length - 0.18
Unit Box Width - 0.13
Unit Calculated Volume - 0.0003267 cubm
Unit Calculated Weight - 0.183 kg
Units per Pallet - 0
Units per Shipping Box - 6
URL - https://www.kingston.com/en
Vendor Homepage - https://www.kingston.com/en
vendpn - SEDC3000ME/3T8
Warranty - 60L months
WarrantyInfo - Limited 5-year warranty with free technical support
warrantyLength - 60
warrantyType - G
Weight - 0,17
Weight - 146.2 g
weight - 170
Weight & dimensions - Depth - 100.5 mm
Weight & dimensions - Height - 14.8 mm
Weight & dimensions - Weight - 146.2 g
Weight & dimensions - Width - 69.8 mm
Weight Weight & dimensions - 146.2 g
Width - 69.8 mm
Width Weight & dimensions - 69.8 mm
Write latency Features - 70 µs
Write speed Features - 5800 MB/s
Writing speed - 5800 MB/s
