Startech 2-PORT PCI EXPRESS SERIAL CARD W/16C1050 UART-RS232 SERIAL CARD

ARTIKEL1 - 2-PORT PCI EXPRESS SERIAL CARD
ARTIKEL2 - W/16C1050 UART-RS232 SERIAL CARD
Brand - StarTech.com
BrandPartCode - PEX2S1050
Breite - 0.15
Category - Interface Cards/Adapters
Design - Certification - CE, FCC, Microsoft WHQL
Design - Internal - Yes
EANCode - 0065030868297
Features - Baud rate - 460.8 Kbit/s
Features - Chipset - SystemBase - SB16C1052PCI
Features - Data bits - 5, 6, 7, 8
Features - FIFO (First In, First Out) - 256 B
Features - Flow control support - Yes
Features - Full duplex - Yes
Gewicht - 0.15
GRUPPE1 - Network
GRUPPE2 - Firewire / Parallel / Serial
GTIN - 0065030868297
GTIN - 065030868297
HERSTELLER - STARTECH
Hoehe - 0.03
HSTNUMMER - PEX2S1050
Laenge - 0.17
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case height - 319 mm
Logistics data - Master (outer) case length - 691 mm
Logistics data - Master (outer) case width - 356 mm
Logistics data - Products per master (outer) case - 75 pc(s)
LongDesc - Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slotThis PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.Convenient system upgrades through PCIeThe PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.High-performance serial communicationThe PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.Easy installationThe serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050)
LongSummaryDescription - StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Certification: CE, FCC, Microsoft WHQL. Chipset: SystemBase - SB16C1052PCI, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 120 mm, Depth: 103 mm, Height: 20 mm
Operational conditions - Operating relative humidity (H-H) - 5 - 85%
Operational conditions - Operating temperature (T-T) - -10 - 80 °C
Operational conditions - Storage temperature (T-T) - -20 - 100 °C
Packaging data - Drivers included - Yes
Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 174 mm
Packaging data - Package height - 32 mm
Packaging data - Package weight - 149 g
Packaging data - Package width - 143 mm

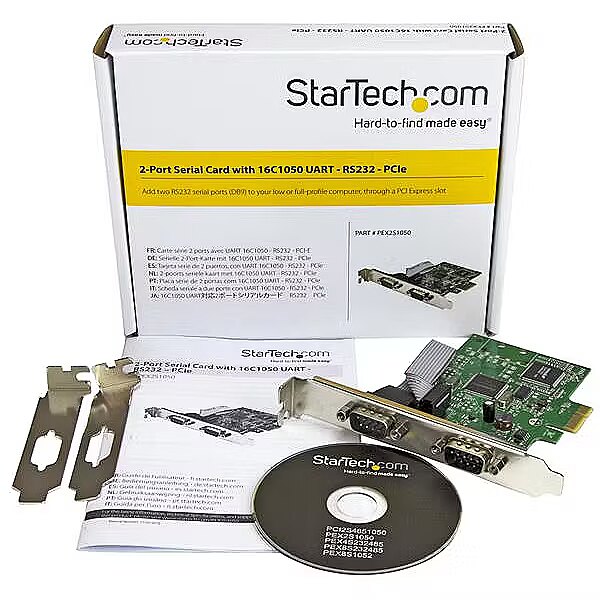

Packaging data - Quick installation guide - Yes
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - Serial
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 2
ProductName - 2-Port PCI Express Serial Card with 16C1050 UART - RS232
ShortSummaryDescription - StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232, PCIe, Serial, Full-height / Low-profile, RS-232, CE, FCC, Microsoft WHQL, SystemBase - SB16C1052PCI
Stck_Kart - 75
Stck_Pal - 150
Storno - Y
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232
URL - https://www.startech.com/en-us/PEX2S1050
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 103 mm
Weight & dimensions - Height - 20 mm
Weight & dimensions - Weight - 61 g
Weight & dimensions - Width - 120 mm
