J5create USB-C DOCK DUAL 4K HDMI GAN 140W PD3.1 POWER ADAPTER

ARTIKEL1 - USB-C DOCK DUAL 4K HDMI GAN
ARTIKEL2 - 140W PD3.1 POWER ADAPTER
Brand - j5create
BrandPartCode - JCD3199P-FN
Category - Laptop Docks & Port Replicators
EANCode - 4712795088571
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 4712795088571
HERSTELLER - J5CREATE
HSTNUMMER - JCD3199P-EN
Logistics data - Export Control Classification Number (ECCN) - EAR99
Logistics data - Master (outer) case height - 174 mm
Logistics data - Master (outer) case length - 249 mm
Logistics data - Master (outer) case net weight - 2.4 kg
Logistics data - Master (outer) case width - 186 mm
Logistics data - Products per master (outer) case - 2 pc(s)

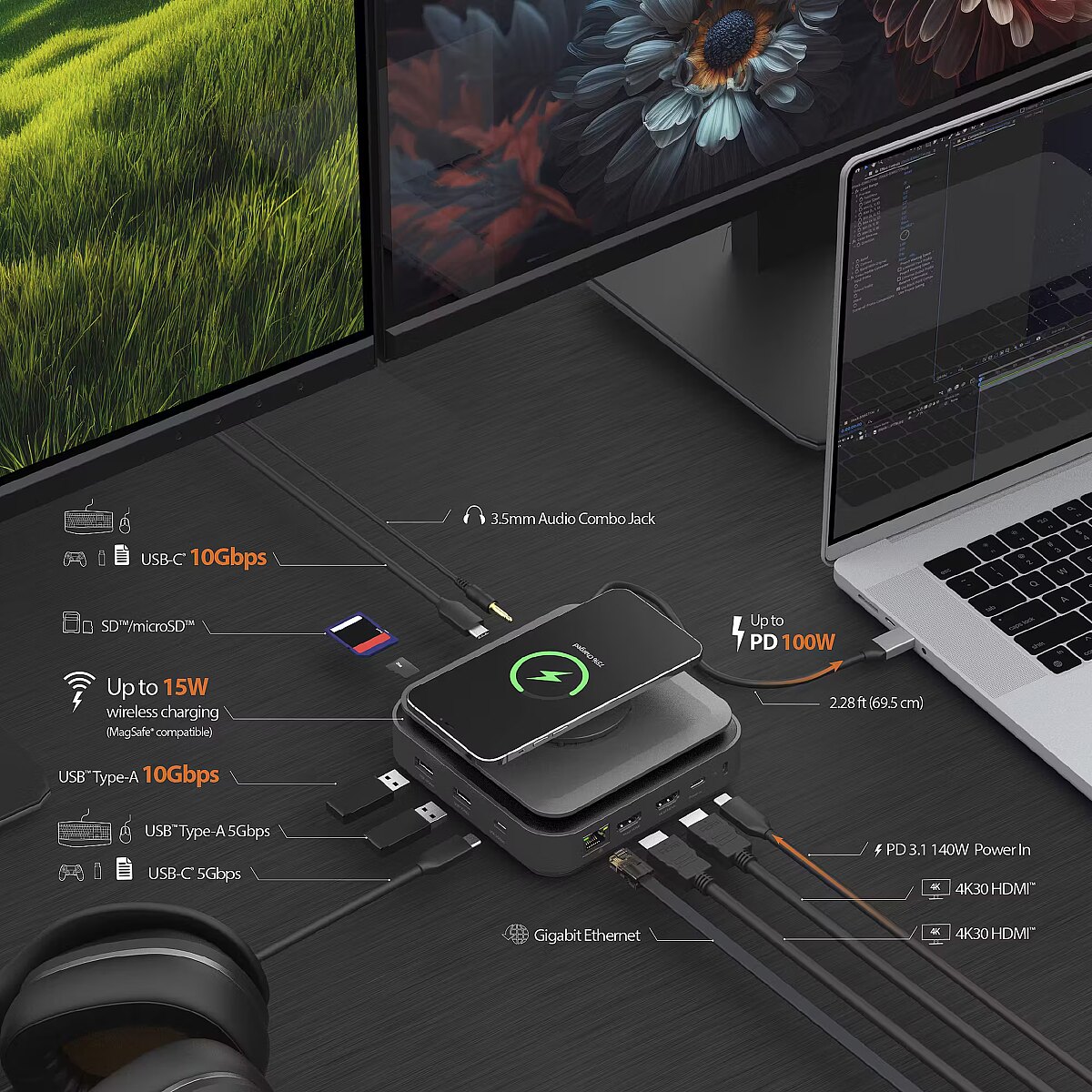

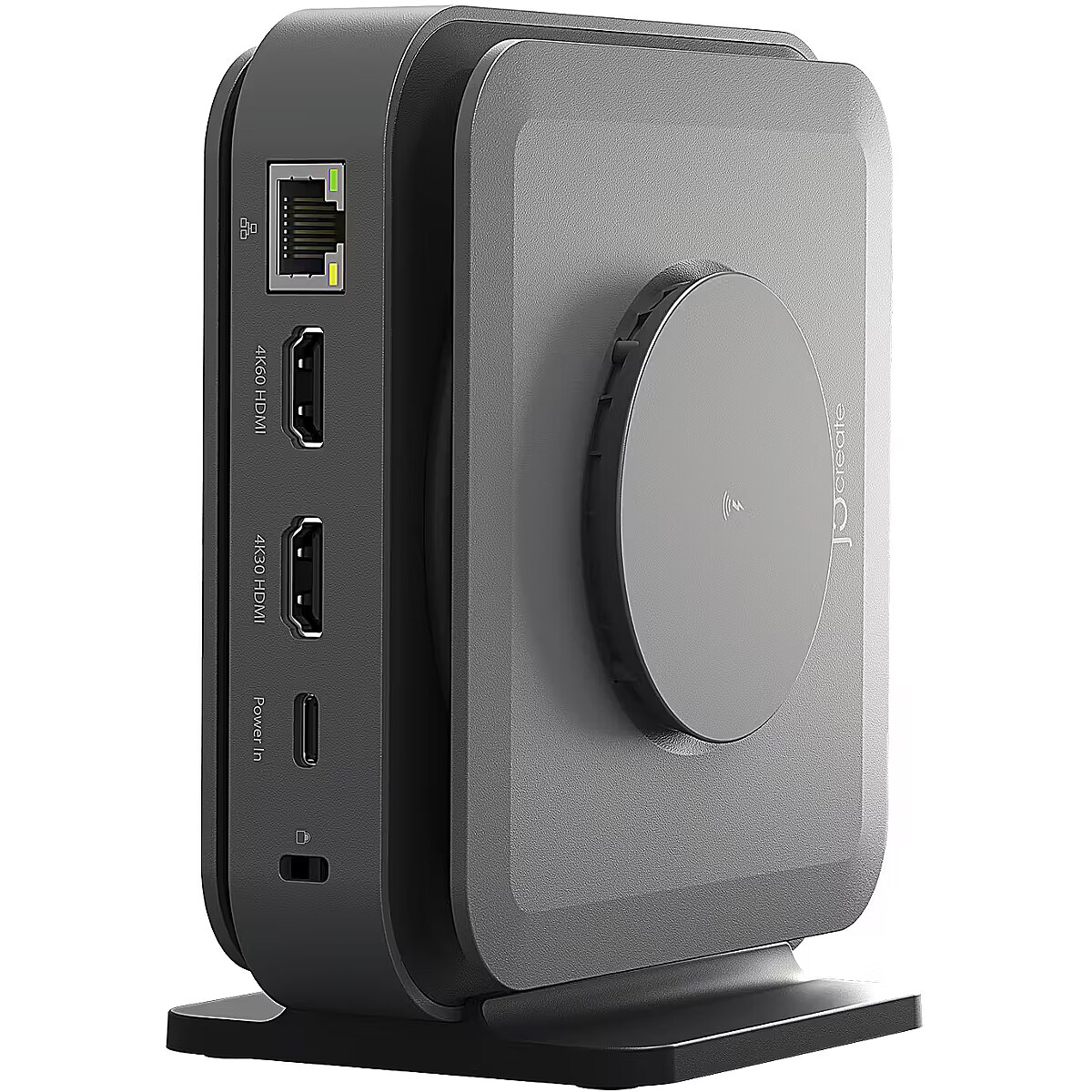

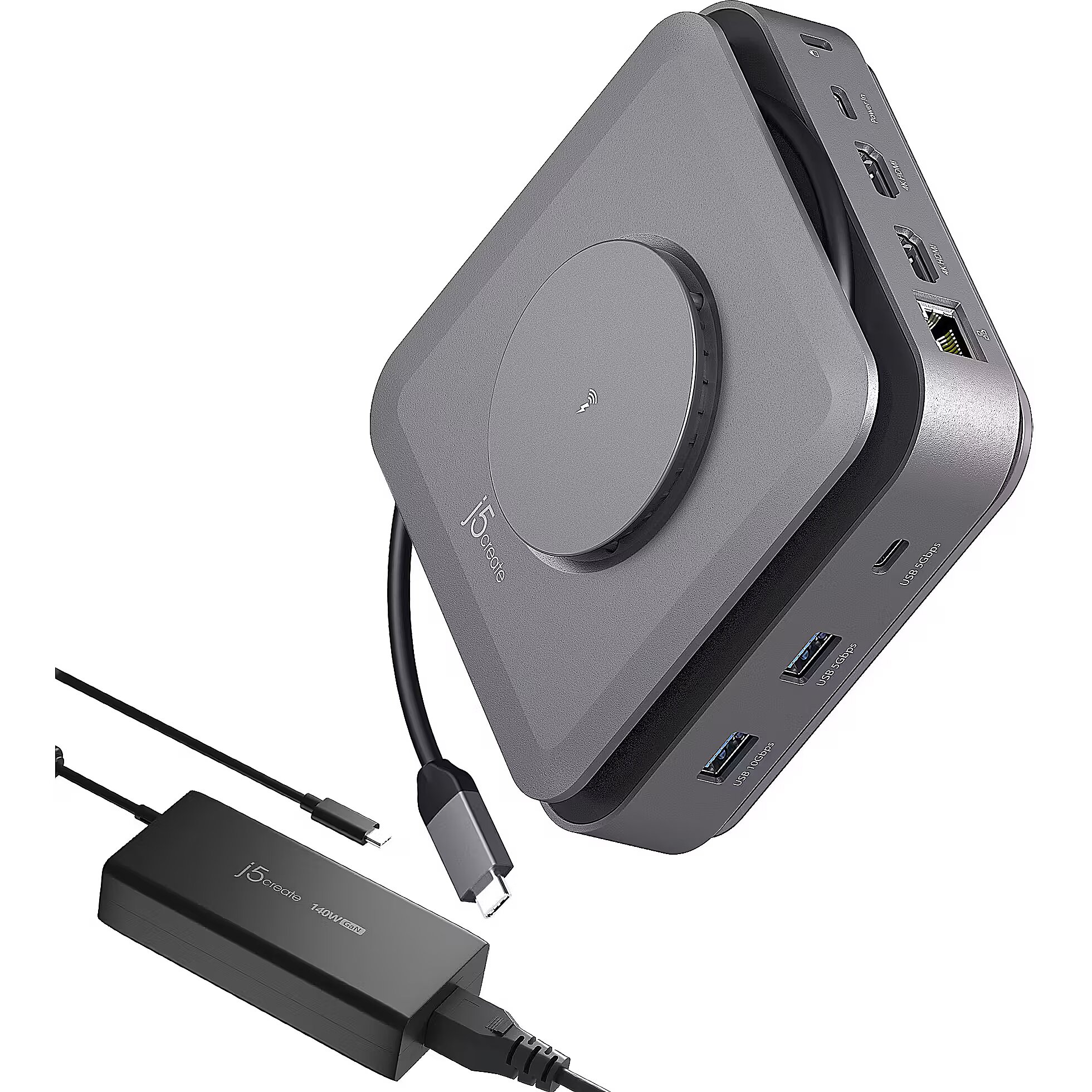

LongDesc - This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging and is also compatible with MagSafe®. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
LongProductName - USB-C Dock Dual 4K HDMI with 140W GaN PD3.1 Power Adapter-UK
LongSummaryDescription - j5create JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter-UK, Black. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Input current: 5 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1

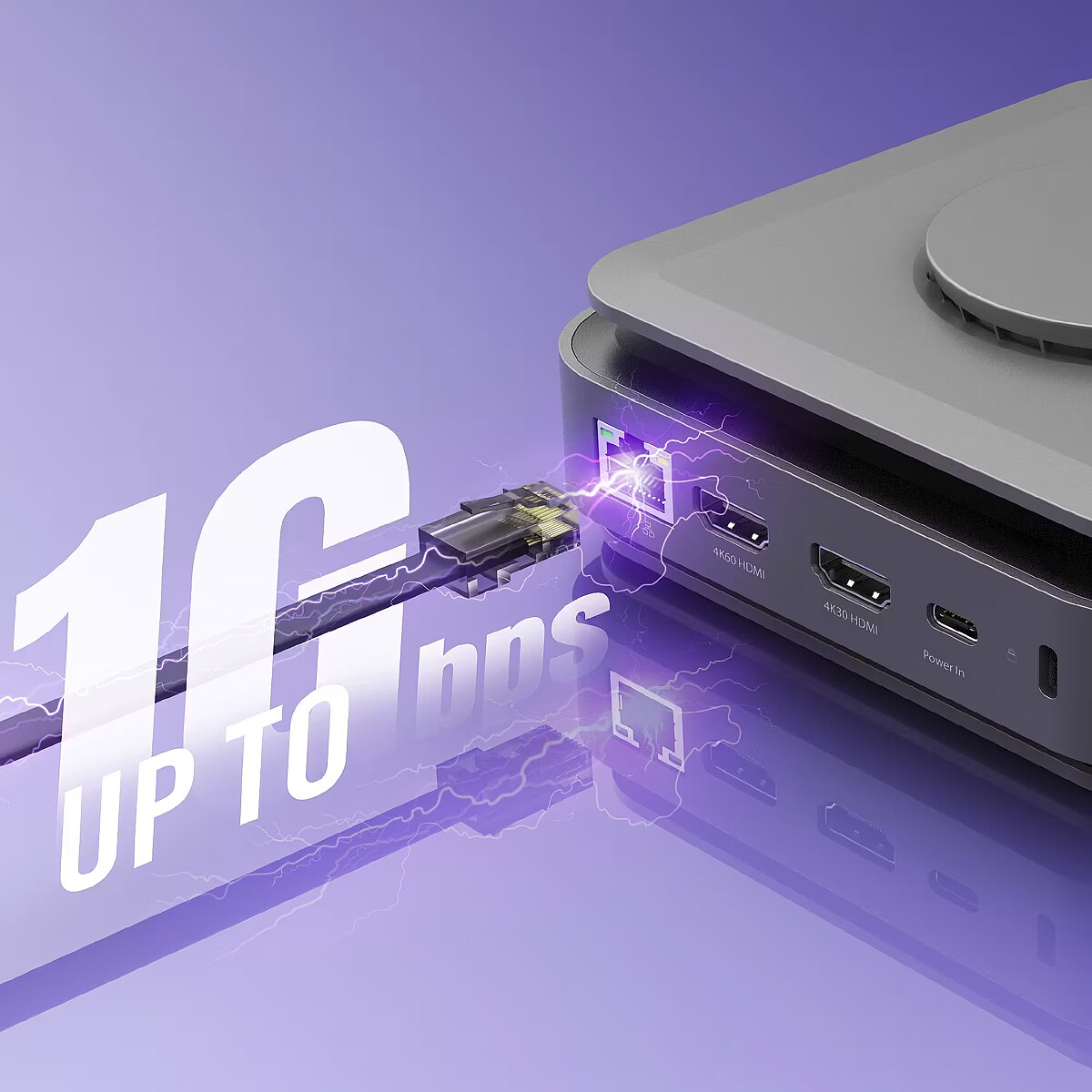

Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - -1 - 41 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -17 - 68 °C
Other features - Cable length - 0.695 m
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC
Packaging content - Packaging content - 1 - JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter
1 -140W GaN PD3.1 USB-C® 1-Port Charger
Detachable 3 Pin Power Cord (*Depends on selling area)
• 47.24 in /120 cm for US
• 39.37in / 100cm for AU/EU/UK
1 - Quick Installation Guide (QIG)
Packaging data - Package depth - 175 mm
Packaging data - Package height - 103 mm
Packaging data - Package weight - 1.01 kg
Packaging data - Package width - 154 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Cable lock slot - Yes
Performance - Card reader integrated - Yes
Performance - Colour name - Space Grey
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - Taiwan

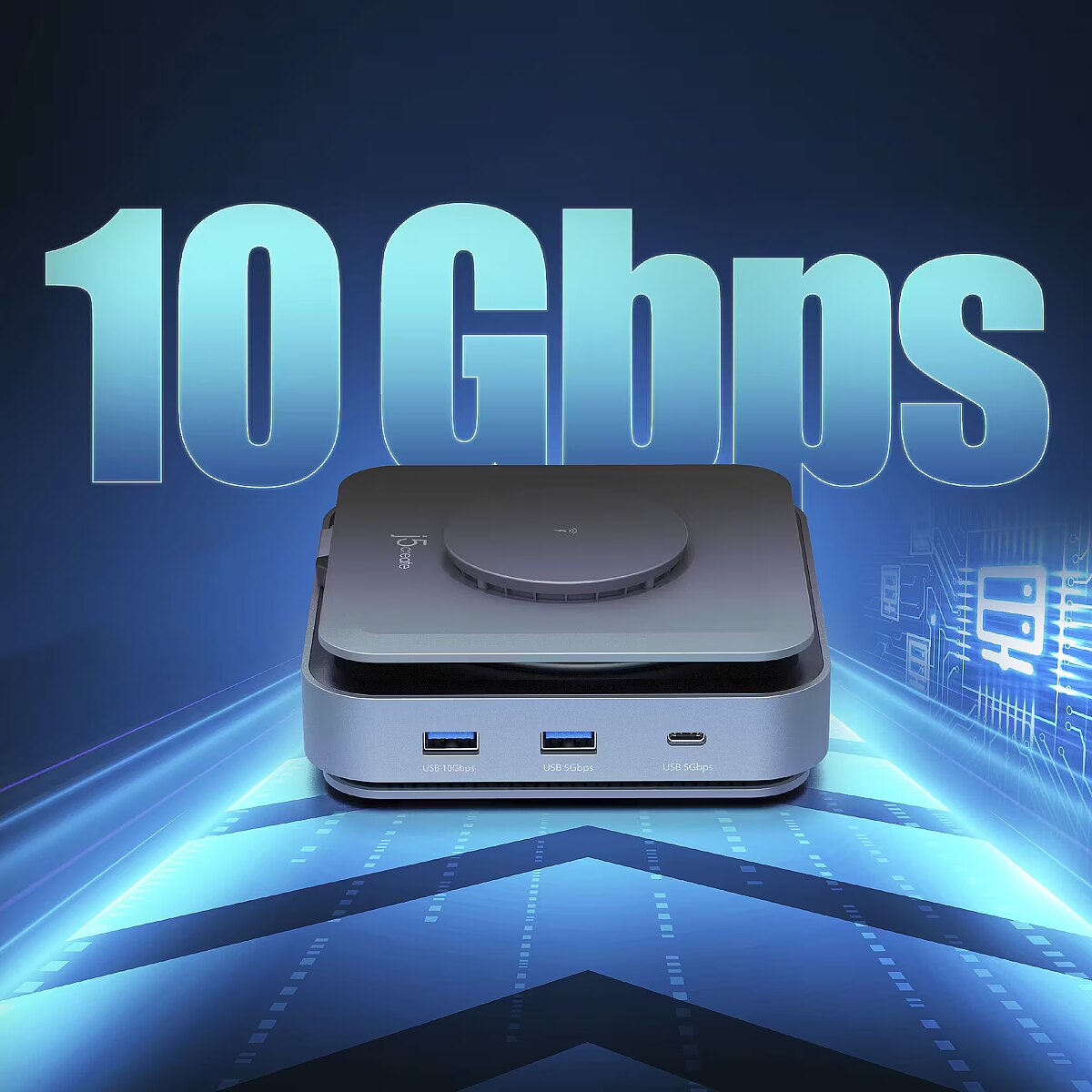

Performance - Data transfer rate - 10 Gbit/s

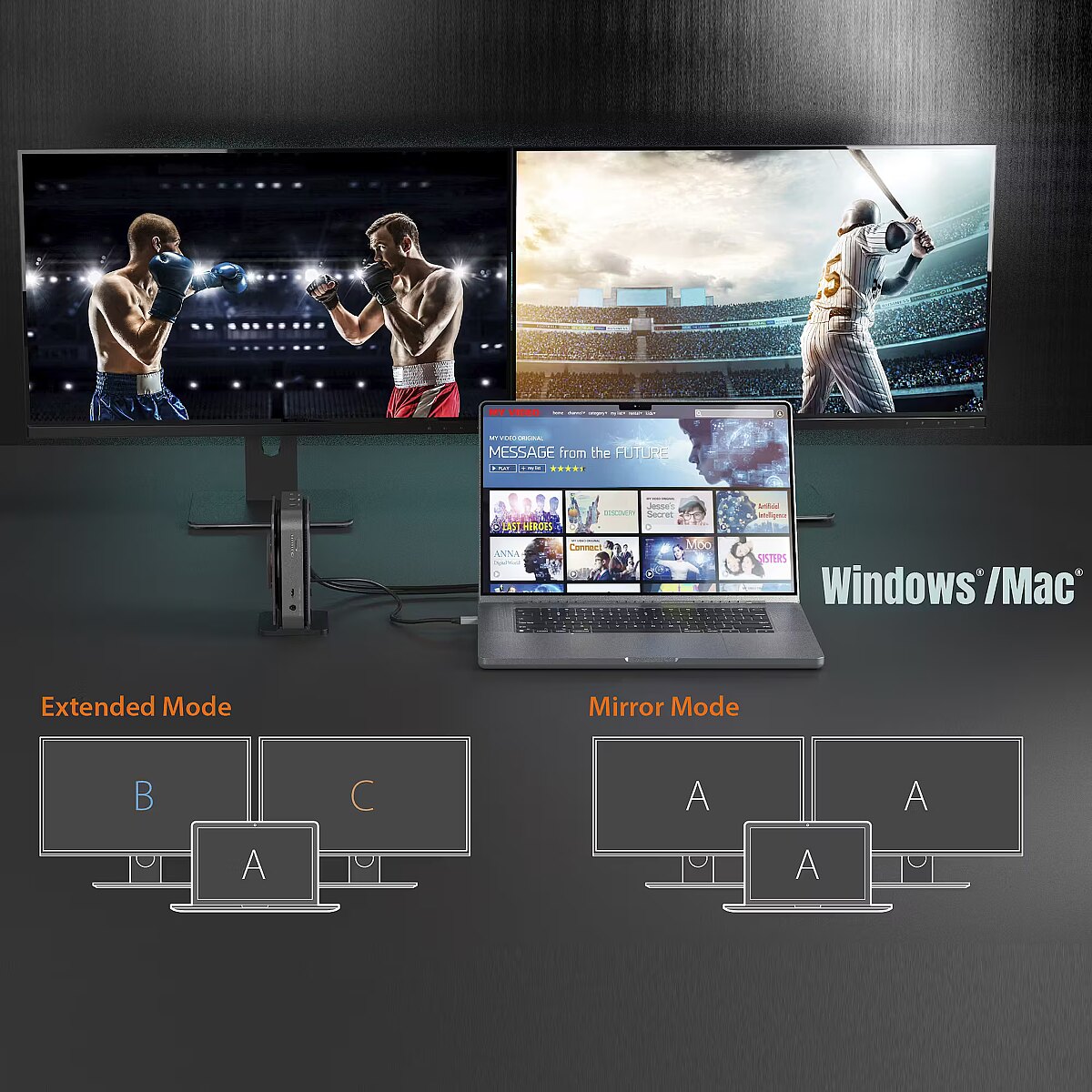

Performance - Display modes - Extended, Mirror
Performance - HD type - 4K Ultra HD
Performance - Housing material - Aluminium, Plastic

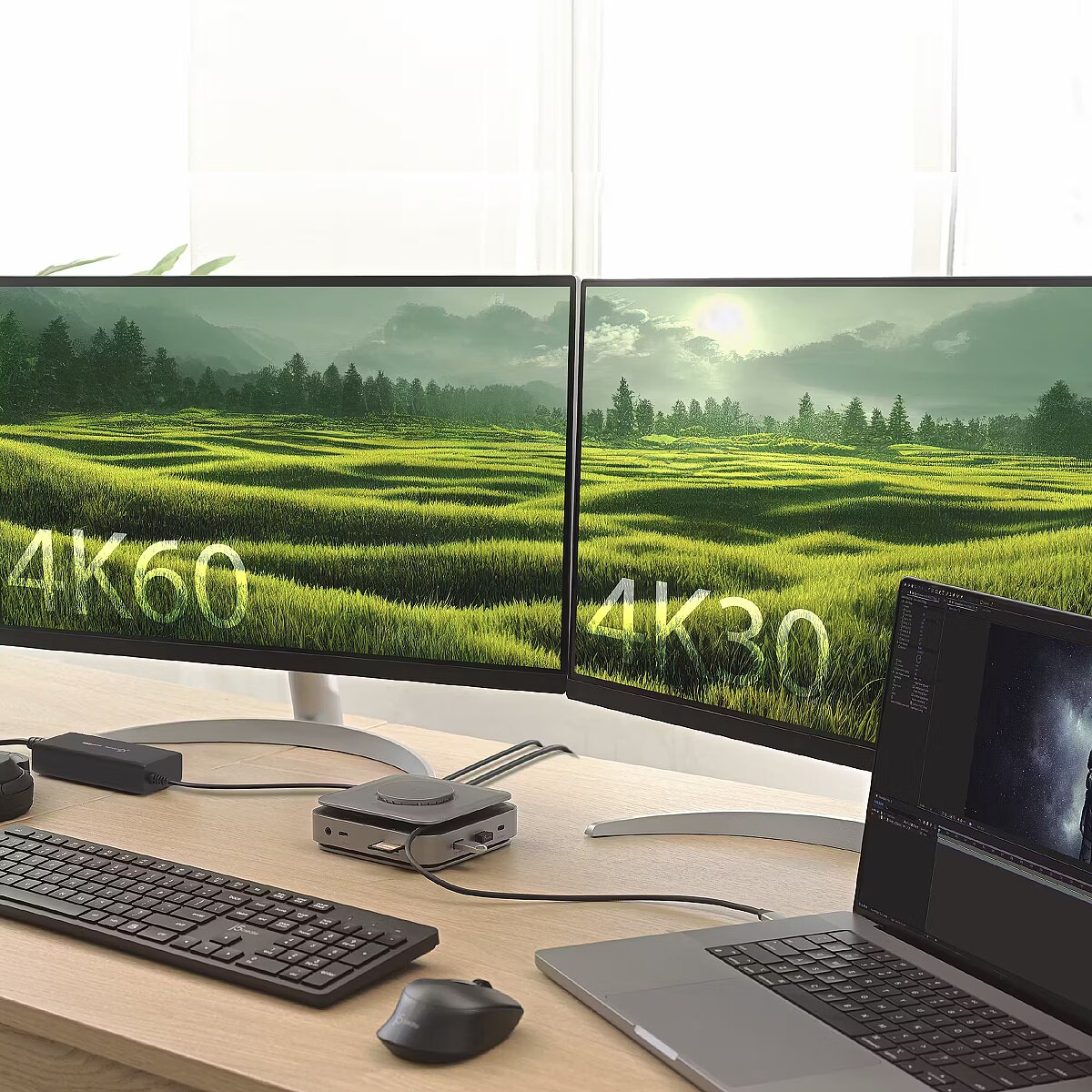

Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 2
Performance - Product colour - Grey
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Microphone in - Yes

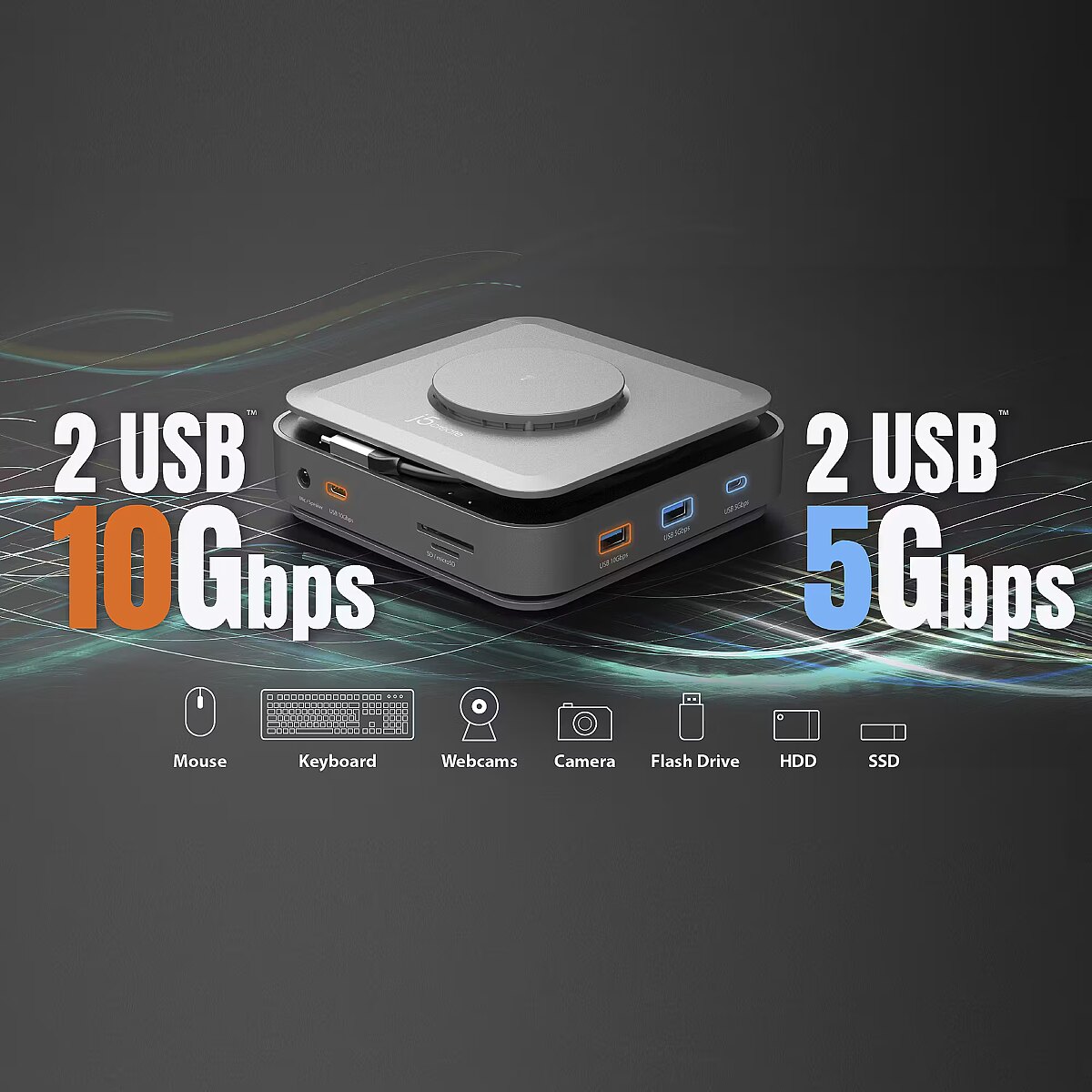

Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.1

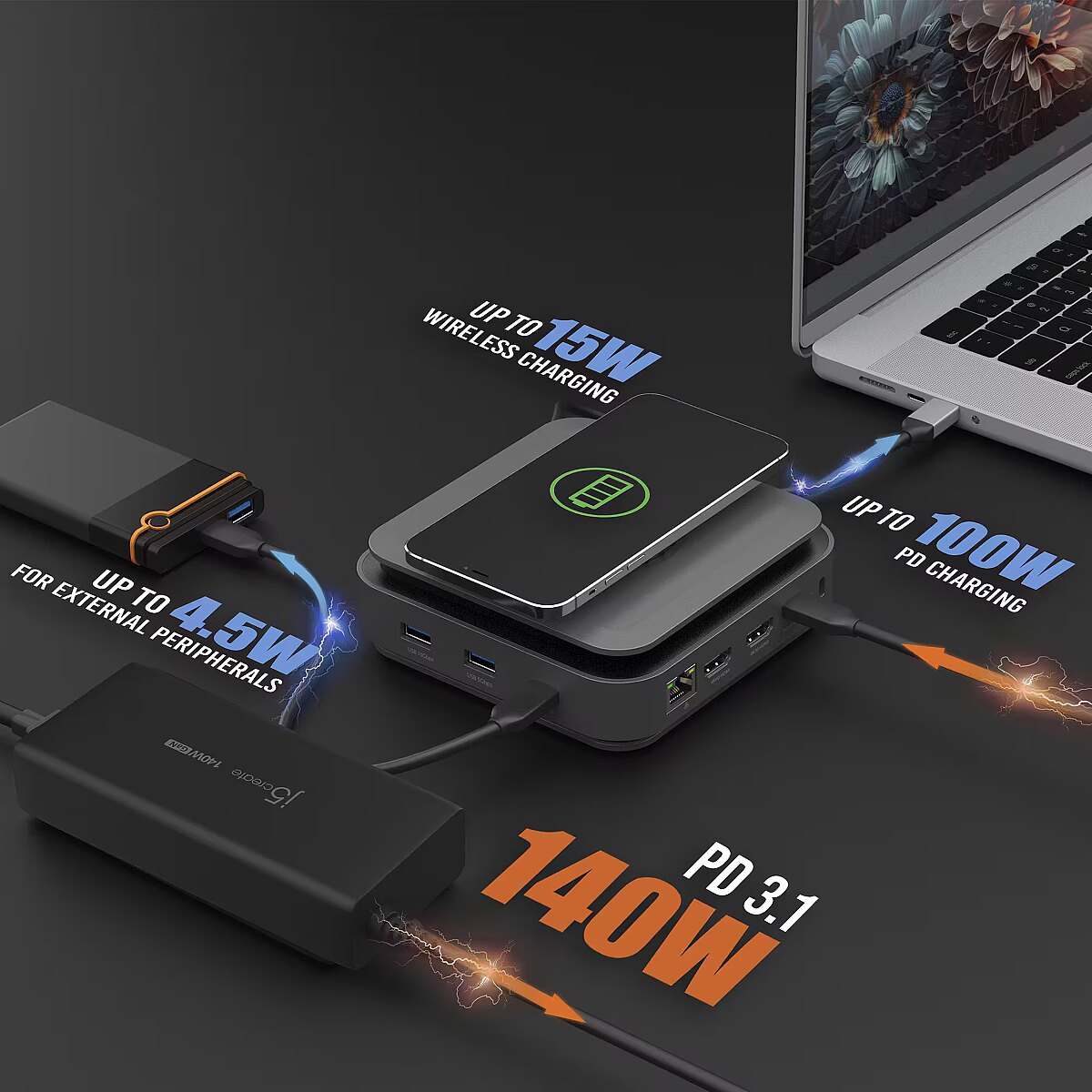

Ports & interfaces - USB Power Delivery up to - 140 W
Power - Compatible power plug types - UK
Power - Input current - 5 A
Power - Output current - 5 A
Power - Output voltage - 20 V
Power - Power connector - USB Type-C
Power - Power source type - USB
Power - Wireless charging - Yes
Power - Wireless charging power - 15 W
ProductName - JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter-UK, Black
ShortSummaryDescription - j5create JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter-UK, Black, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 140 W, 10,100,1000 Mbit/s, Grey, Space Grey
Software - Mac operating systems supported - Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Software - Windows operating systems supported - Windows 10, Windows 11
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, REACH, RoHS
Technical details - Master (outer) case GTIN (EAN/UPC) - 24712795088575
Technical details - Warranty period - 2 year(s)
Title - j5create JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter-UK, Black
URL - https://en.j5create.com/
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Weight - 877 g
