Club3D I/O HUB USB-C TO HDMI 2PORT/MST CSV-1558

Brand - CLUB3D
BrandPartCode - CSV-1558
Category - Video Splitters
Category Code - UHU

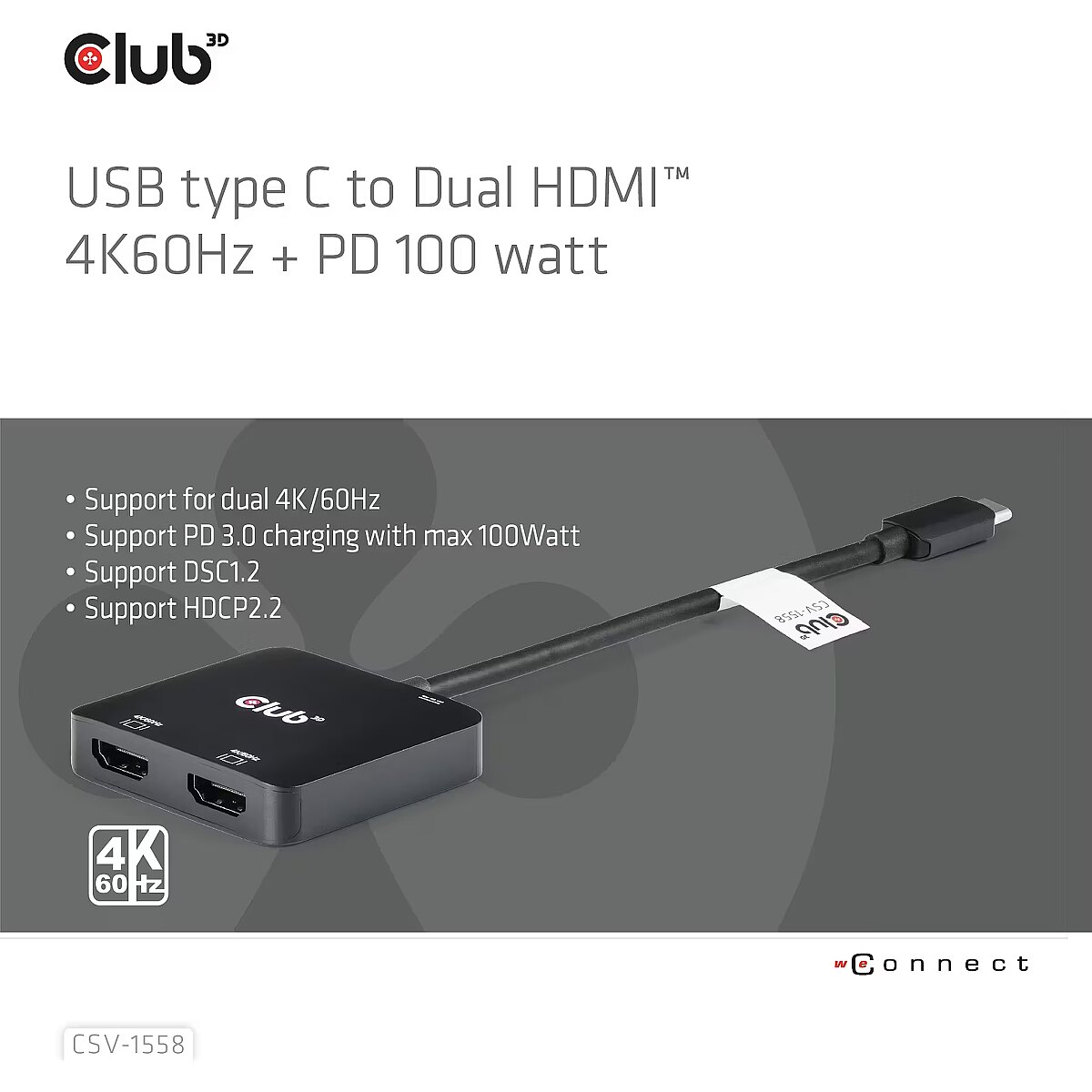

Description - USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt The Club 3D CSV-1558 USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB Type-C port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB Type-C or Thunderbolt™ devices (including Phones with an USB Type-C connetion and DP™ Alt modesupport).

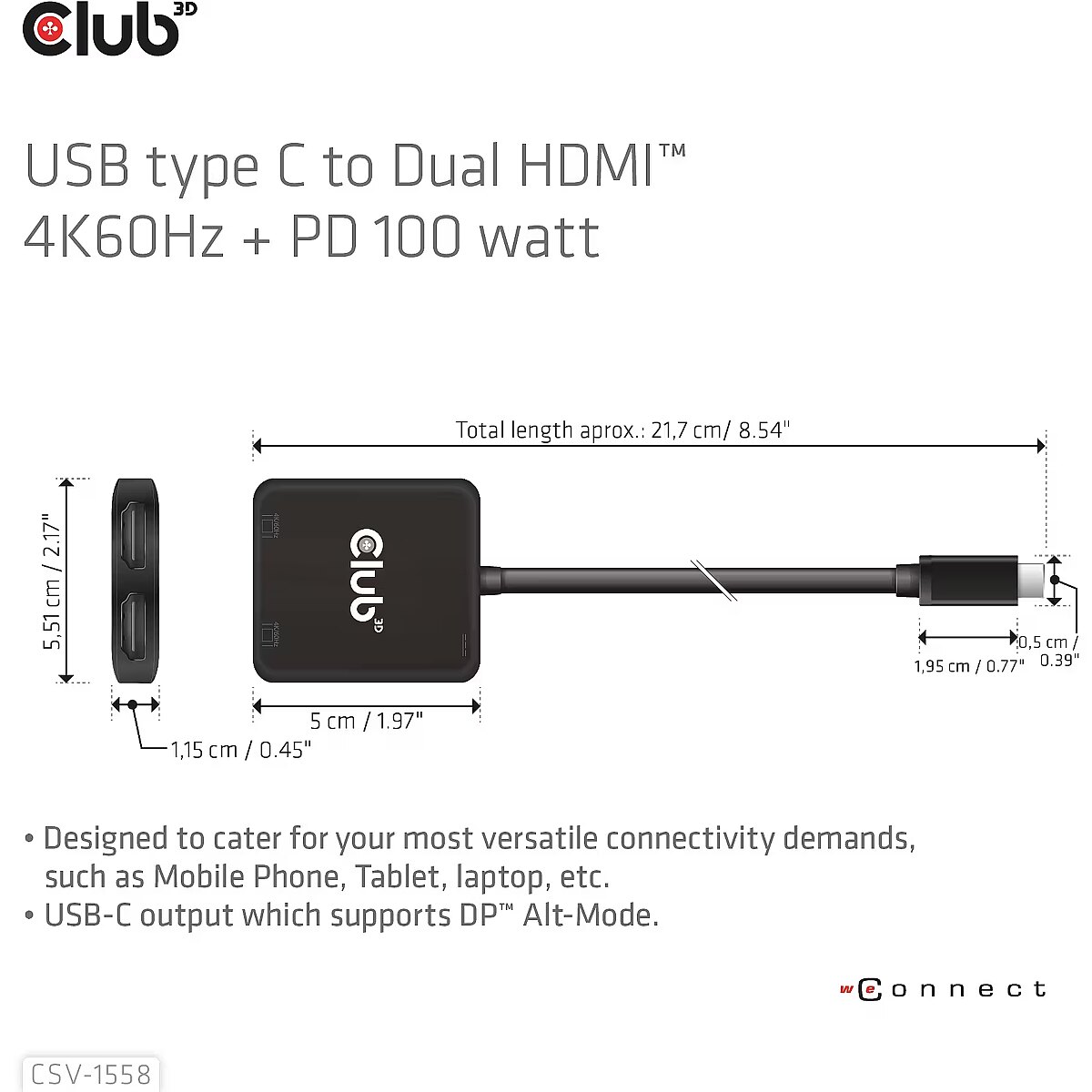

Dimensions - 5 x 5.5 x 0.9 cm
Features - Cable length - 0.15 m
Features - Data transfer rate - 32.4 Gbit/s
Features - HDCP - Yes
Features - HDCP version - 2.2
Features - HD type - 4K Ultra HD
Features - High Dynamic Range (HDR) supported - Yes
Features - Maximum resolution - 3840 x 2160 pixels
Features - Plug and Play - Yes
Features - Product colour - Black
GTIN - 8719214472979
HDMI Input/Output connectors - 2
Logistics data - Harmonized System (HS) code - 8473 3020
LongDesc - The Club 3D CSV-1558 USB-C® to Dual HDMI™ 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB-C® port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB-C® or Thunderbolt™ devices (including Phones with an USB-C® connetion and DP™ Alt modesupport).
LongProductName - USB-C MST Hub to Dual HDMI 4K60Hz M/F+PD3.0 100 Watt
LongSummaryDescription - CLUB3D USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt. Video port type: USB Type-C, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. Width: 50 mm, Depth: 55 mm, Height: 9 mm. Package width: 60 mm, Package depth: 240 mm, Package height: 35 mm. Harmonized System (HS) code: 8473 3020
Model - CSV-1558
Packaging data - Package depth - 240 mm
Packaging data - Package height - 35 mm

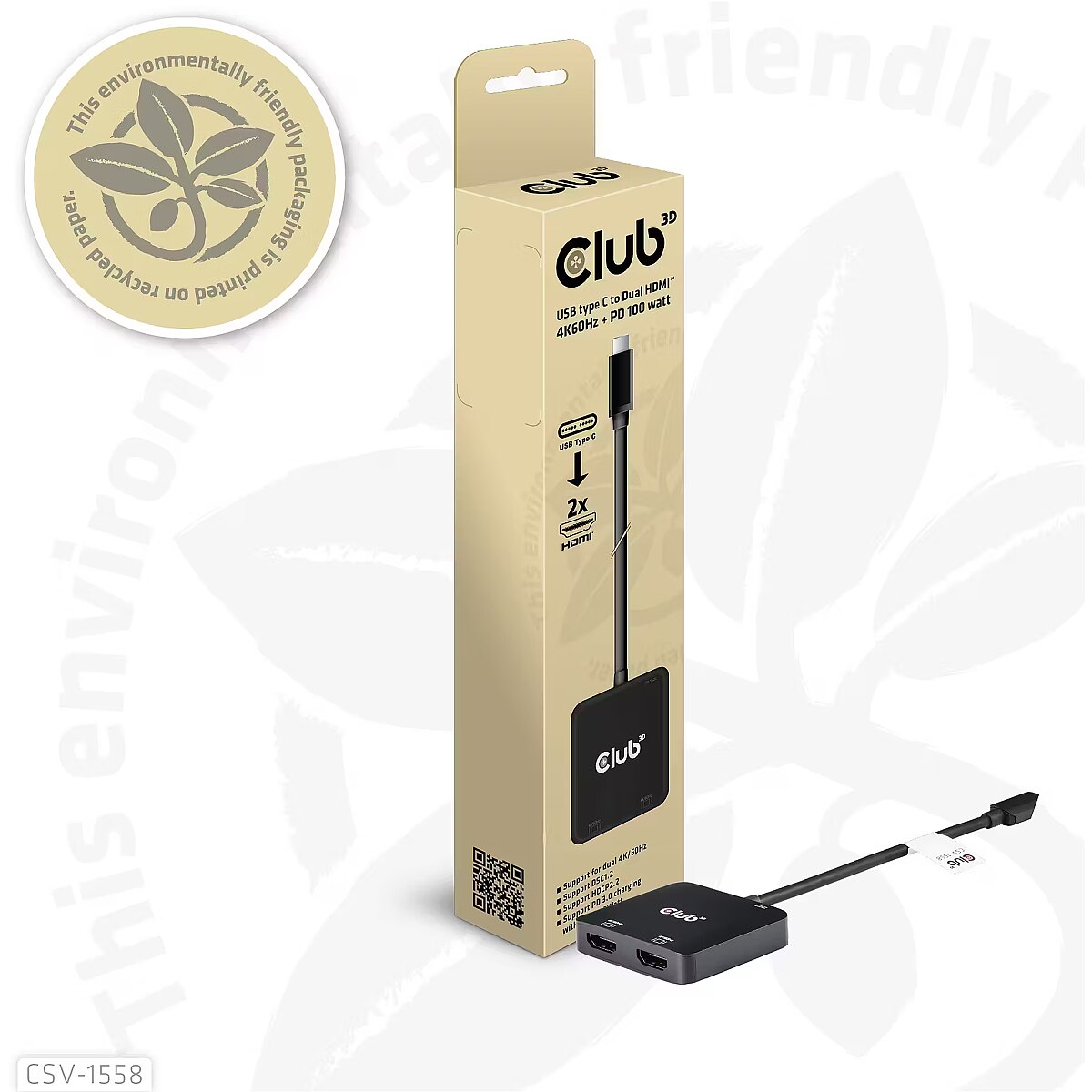

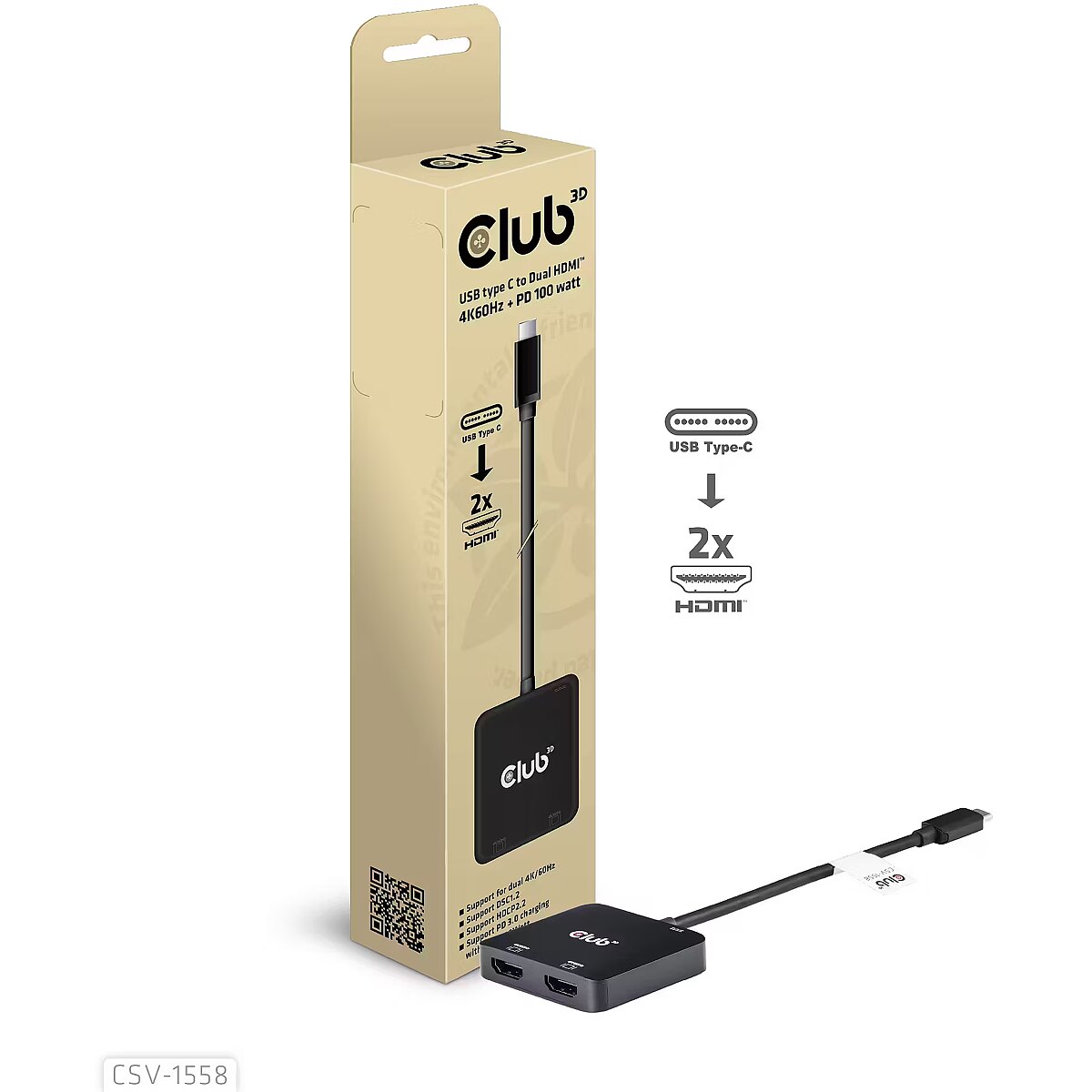

Packaging data - Package type - Box
Packaging data - Package weight - 74 g
Packaging data - Package width - 60 mm
Packaging data - Paper/cardboard packaging weight - 28 g
Packaging data - Plastic packaging weight - 1 g
Packaging data - Total paper/cardboard packaging weight - 140 g
Packaging data - Total plastic packaging weight - 5 g
Ports & interfaces - HDMI version - 1.4

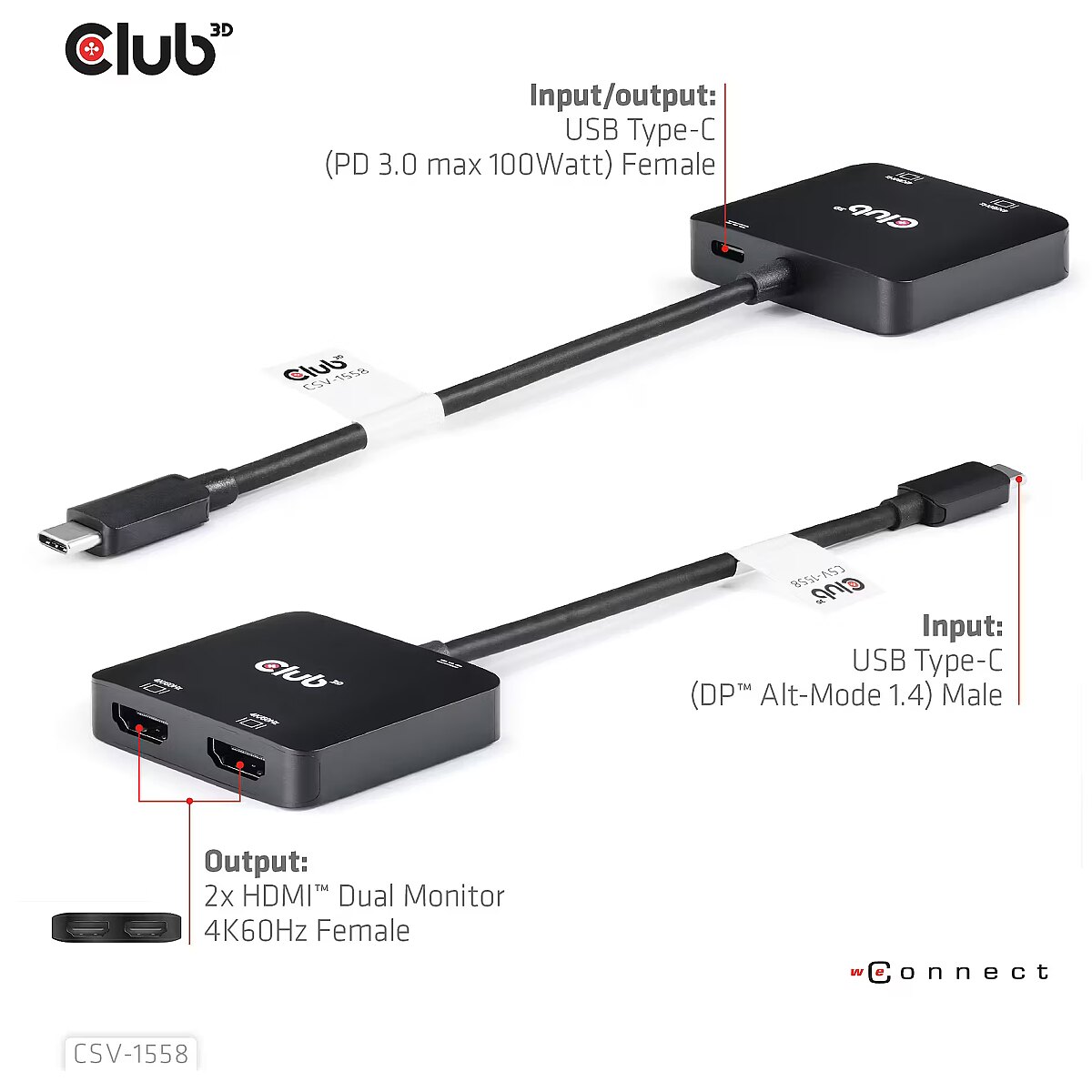

Ports & interfaces - Video out - 2x HDMI
Ports & interfaces - Video ports quantity - 2
Ports & interfaces - Video port type - USB Type-C
Power - USB powered - Yes
ProductName - USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt
Product Net Weight - 0.045 kg
Product Type - I/O Module
ShortSummaryDescription - CLUB3D USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt, USB Type-C, 2x HDMI, 3840 x 2160 pixels, Black, 4K Ultra HD, 0.15 m
Title - CLUB3D USB-C® Hub to Dual HDMI™ 4K60Hz M/F+PD3.0 100 Watt
Unit Box Height - 0.265
Unit Box Length - 0.06
Unit Box Width - 0.035
Unit Calculated Volume - 0.0005565 cubm
Unit Calculated Weight - 0.08 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.club-3d.com/shop/csv-1558-1305#attr=1704,1715,1706,1980,1708,2182,1718,1712,1709,1710,1711
USB-C Input/Output connectors - 1
Vendor Homepage - www.club-3d.com/en/detail/2650/usb_type_c_to_dual_hdmit_4k60hz_pd_100_watt/
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 55 mm
Weight & dimensions - Height - 9 mm
Weight & dimensions - Weight - 45 g
Weight & dimensions - Width - 50 mm
