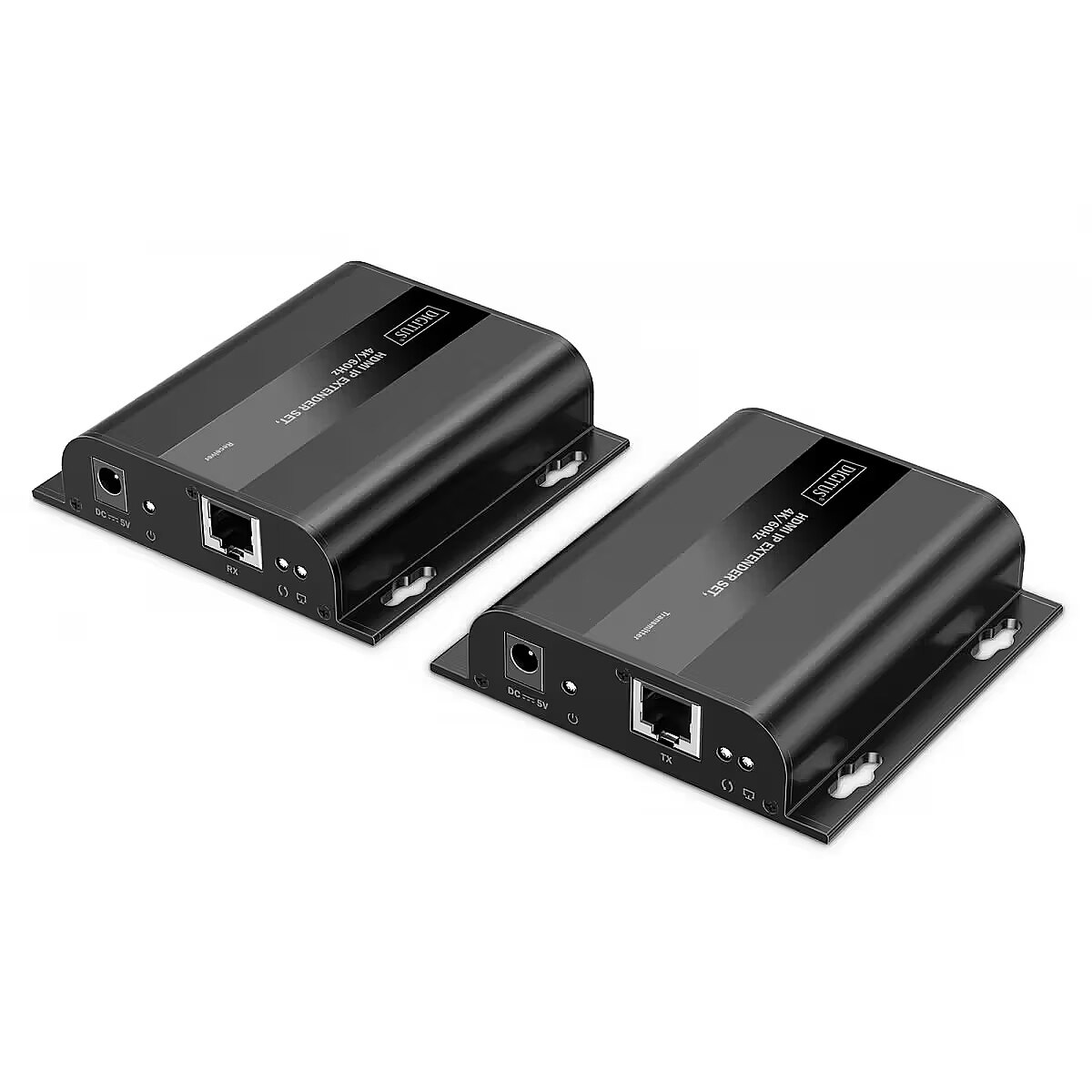

Digitus HDMI IP Extender Set DS-55351

Accessories included - 1× Transmitter (TX) 1× Receiver (RX) 2× Power adapters, EU plug (DC 5V/1A, 1.5 m) 2× IR cables/extensions (1.0 m) 1× User manual
ARTIKEL1 - HDMI IP EXTENDER SET 4K/60HZ
ARTIKEL2 - 120/200M ONETOMANY CAT BLK
Breite - 0
Color - Black
Connectors #1 - 3,5mm IR Female
Connectors #1 - HDMI Type A Female
Connectors #1 - RJ45 Female
Connectors #1 - USB Micro-B Female
Connectors #2 - 3,5mm IR Female
Connectors #2 - HDMI Type A Female
Connectors #2 - RJ45 Female
Connectors #2 - USB Micro-B Female

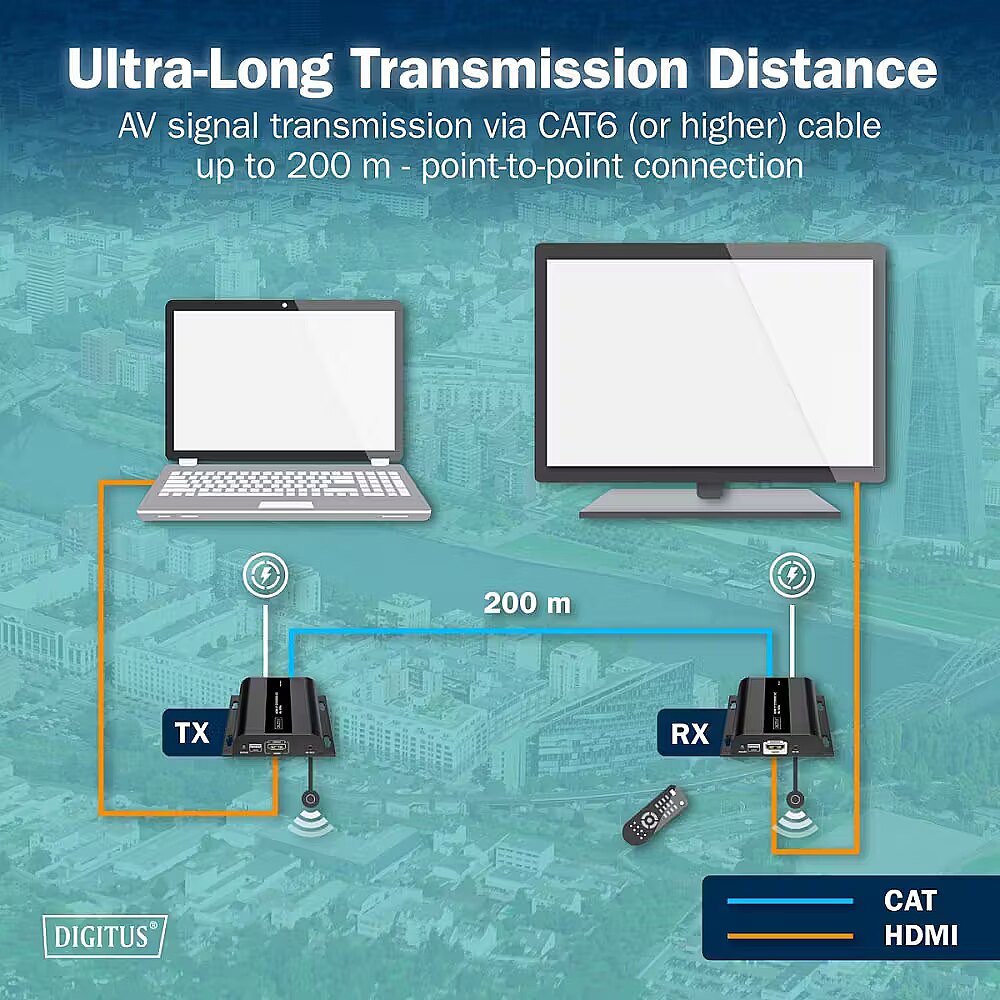

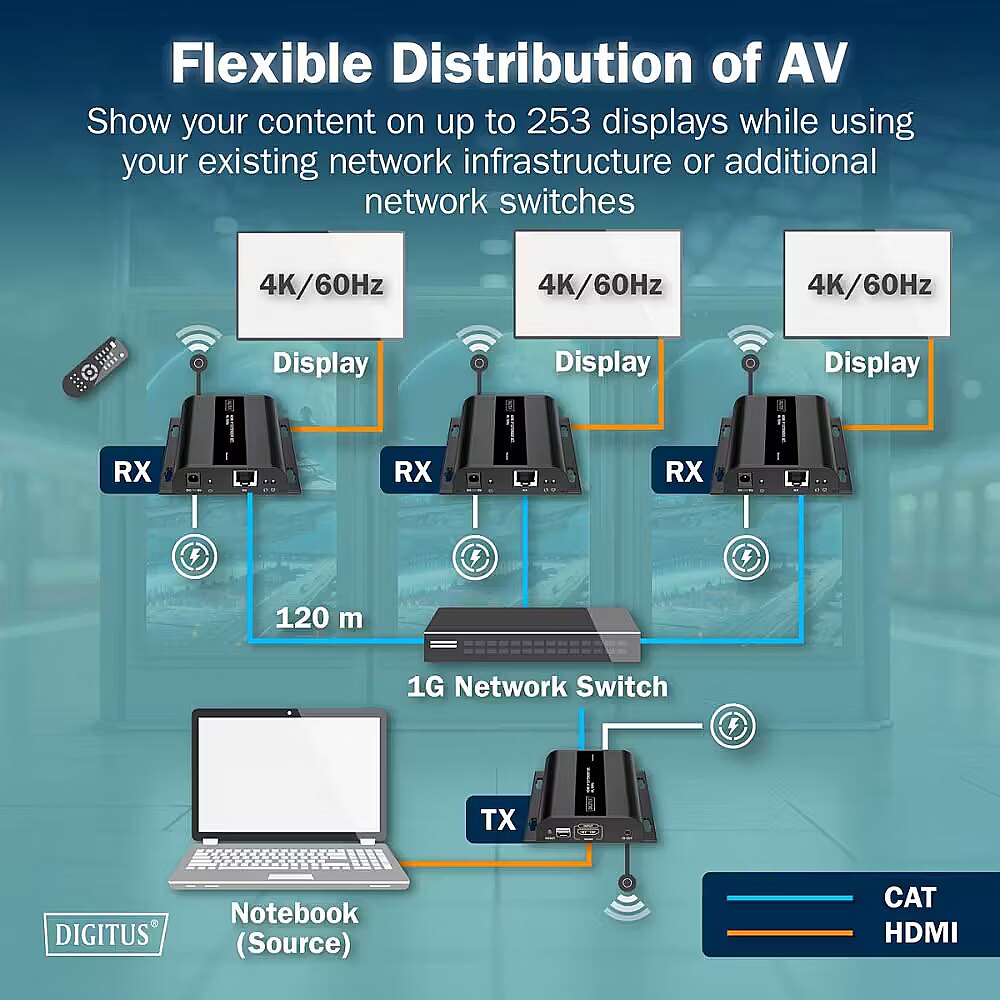

Description - HDMI 4K/60Hz Cat.6 Extender over IP 1G, up to 120m / 200m, max. 253 receivers, IR control - Kit (Transmitter/Receiver) This HDMI IP Extender Set enables UHD (4K/60Hz, 4096×2160p at 60Hz) AV signal transmission over long distances using standard Cat.6 or higher network cables. It supports point-to-point connections up to 200m and point-to-multipoint setups with up to 253 receivers, offering flexible and scalable distribution for professional AV, digital signage, or corporate installations. Key Features: Long-distance transmission: Point-to-point HDMI AV signal via Cat.6 (or higher) cable up to 200m IP scalability: Supports up to 253 receivers (displays) for point-to-multipoint distribution Flexible network use: Leverages existing 1G network infrastructure or additional 1G switches for virtually unlimited signal reach via cascading Expandable system: Additional receivers (RX) available separately (model: DS-55352) High-quality UHD image: 4K/60Hz (4096×2160p) with ultra-low latency of 150220ms for smooth, sharp video IR remote control: Integrated IR interface allows controlling the input source directly from the output display Network cable support: Compatible with Cat.6 or higher cables Wall-mountable: Space-saving installation option This kit combines professional-grade HDMI 4K transmission with maximum flexibility, making it ideal for AV installations, home theaters, or enterprise use.
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 200 mm
Dimensions - (1 sztuka): L 9.7 x W 9.4 x H 2.4 cm Weight: TX 156 g, RX 154 g
dimension weight - 541 g
dimension width - 150 mm
ean - 4016032501893
EANCode - 4016032501893
Gewicht - 0
GRUPPE1 - Cables
GRUPPE2 - Hdmi Cable
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55351
Laenge - 0
name - HDMI 4K/60Hz Cat.6 Extender

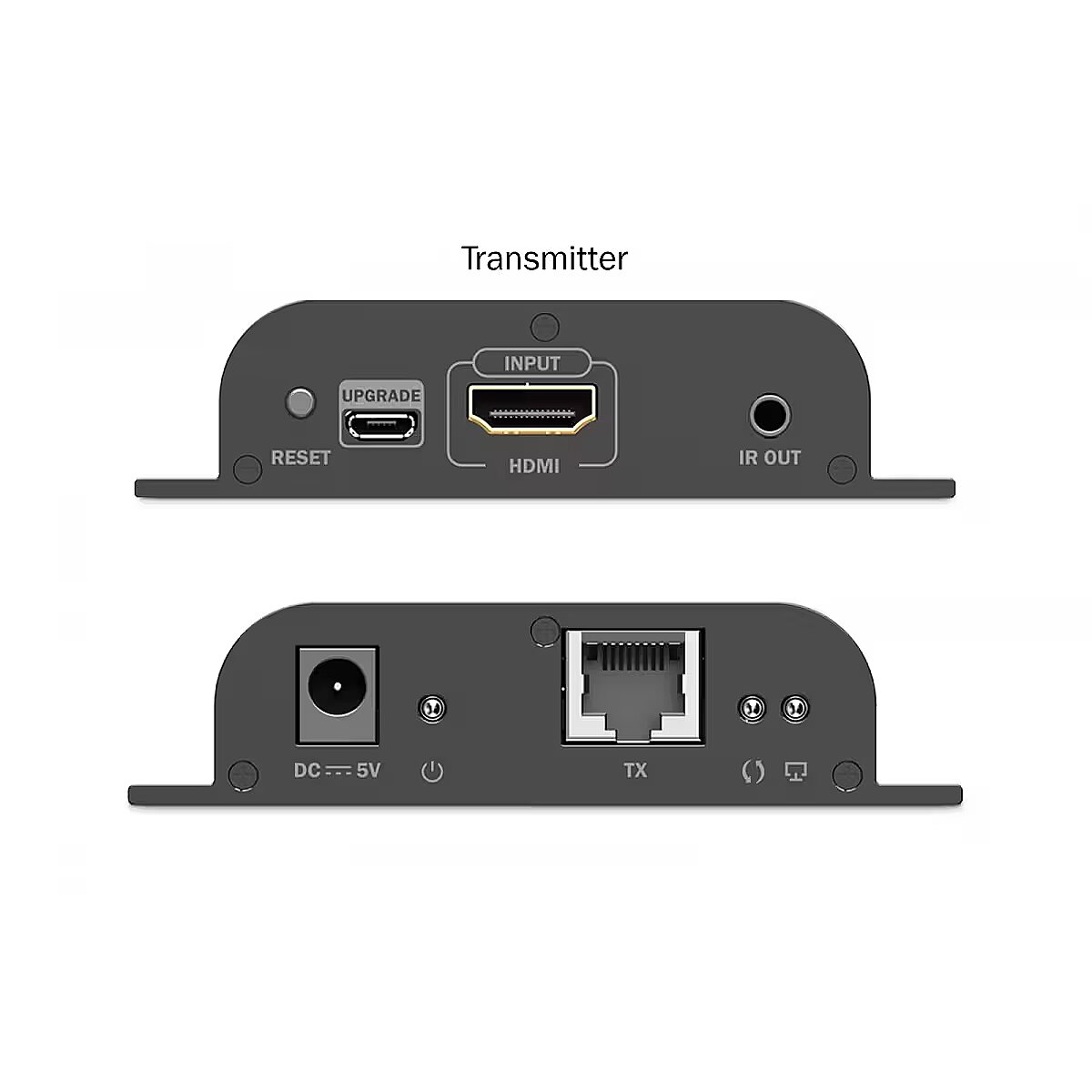

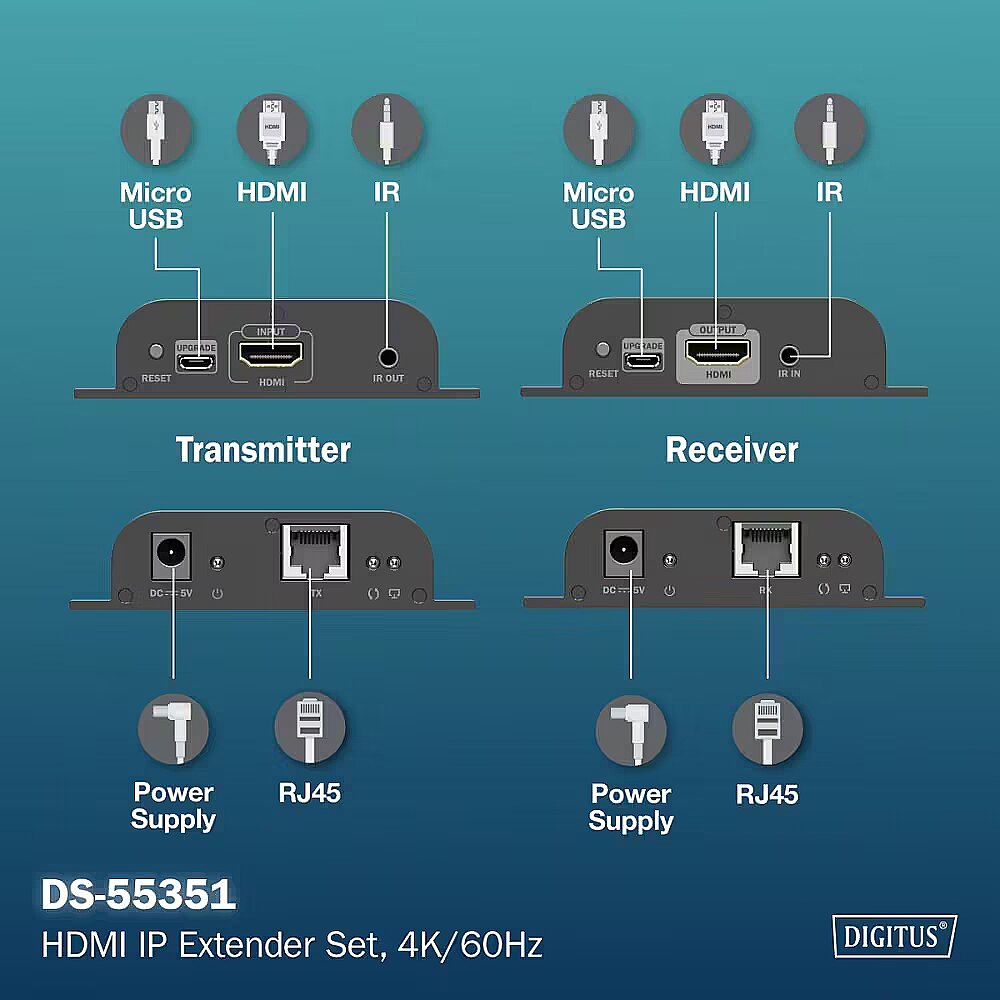

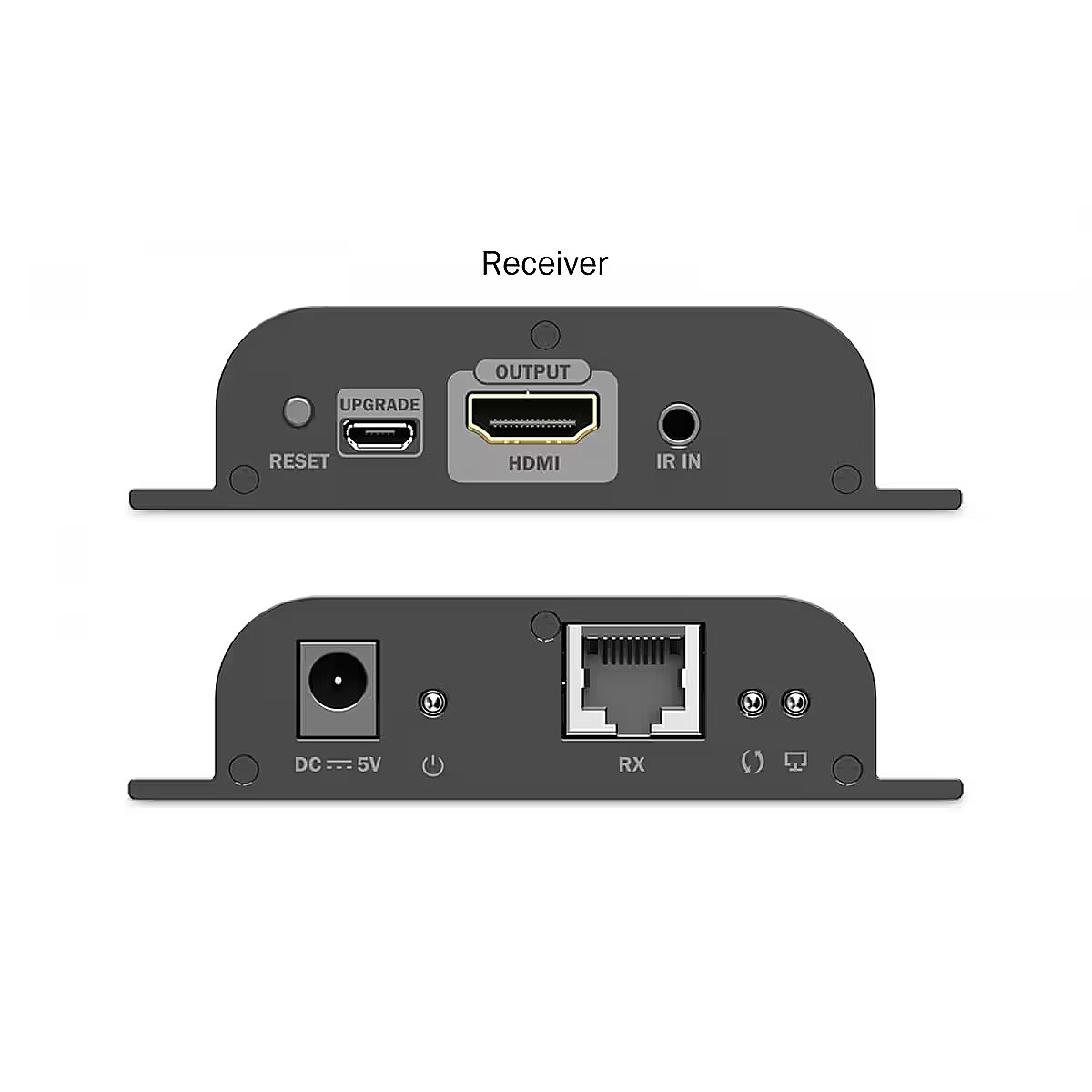

Other features - Transmitter (TX) connections: 1× HDMI input (4K/60Hz) - connect signal source 1× RJ45 output (Gigabit Ethernet) - connect to CAT cable 1× IR output - for IR signal transmission 1× Power connector (DC 5V/1A) - external power input 1× Micro USB - firmware update port 1× Reset button 3× Status LEDs Receiver (RX) connections: 1× HDMI output (4K/60Hz) - connect display 1× RJ45 input (Gigabit Ethernet) - connect CAT cable 1× IR input - receive and forward IR signal 1× Power connector (DC 5V/1A) - external power input 1× Micro USB - firmware update port 1× Reset button 3× Status LEDs Performance: Maximum resolution: Ultra HD 4K/60Hz (4096×2160p) Maximum point-to-point distance: 200 m Maximum point-to-multipoint distance: 120 m Maximum cascade distance per section: 120 m Supports Cat6 or higher network cables HDMI 2.0 HDCP 2.2 / 1.4 Maximum video bandwidth: 18 Gb/s Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD) Additional features: Wall-mountable Supports up to 253 receivers Protections: short circuit, surge, ESD (electrostatic discharge) Operating temperature: -20° - 60° C Power consumption: TX ~3.5 W, RX ~2.5 W Housing: metal
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Type - Extension cord
Usage - Video
vendpn - DS-55351
