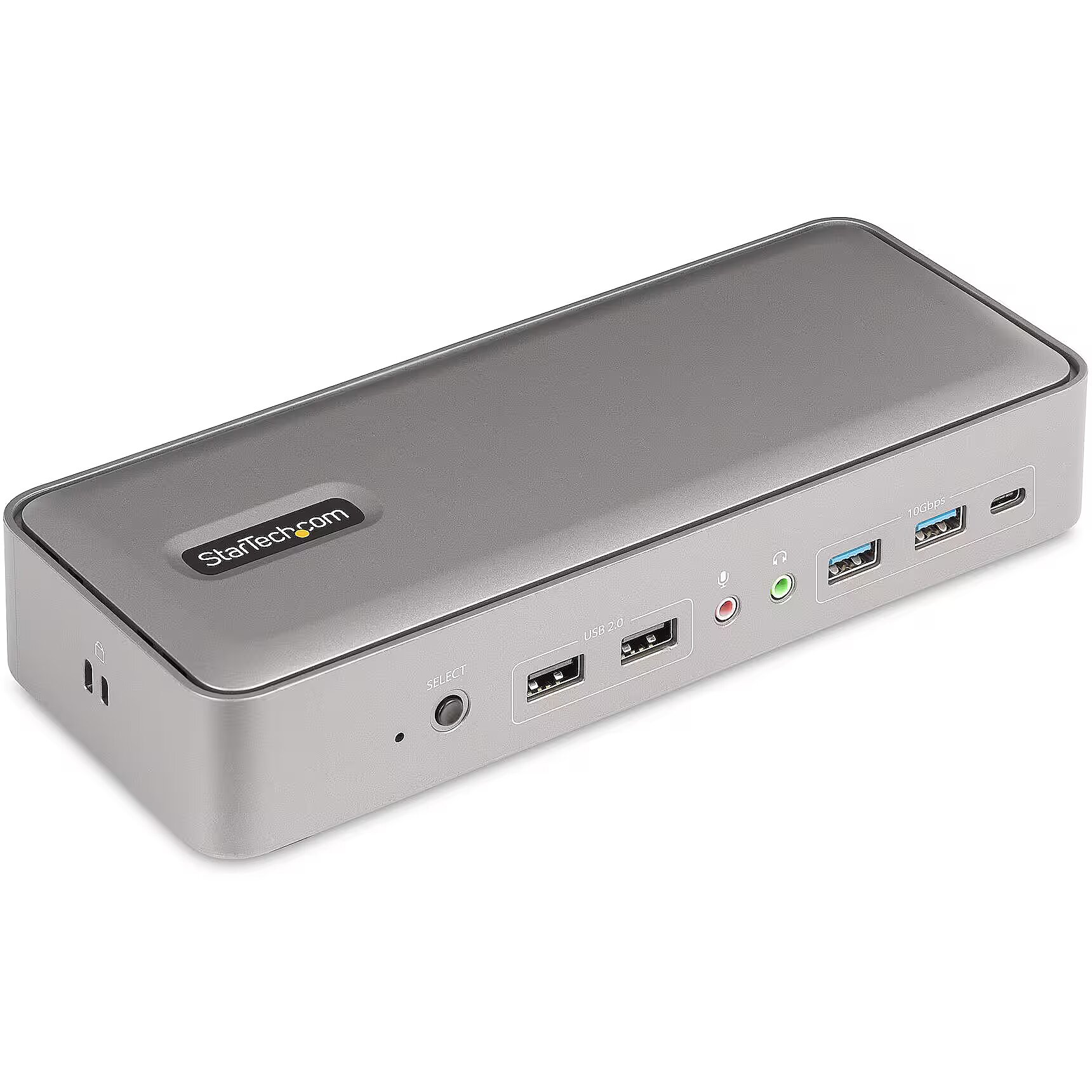

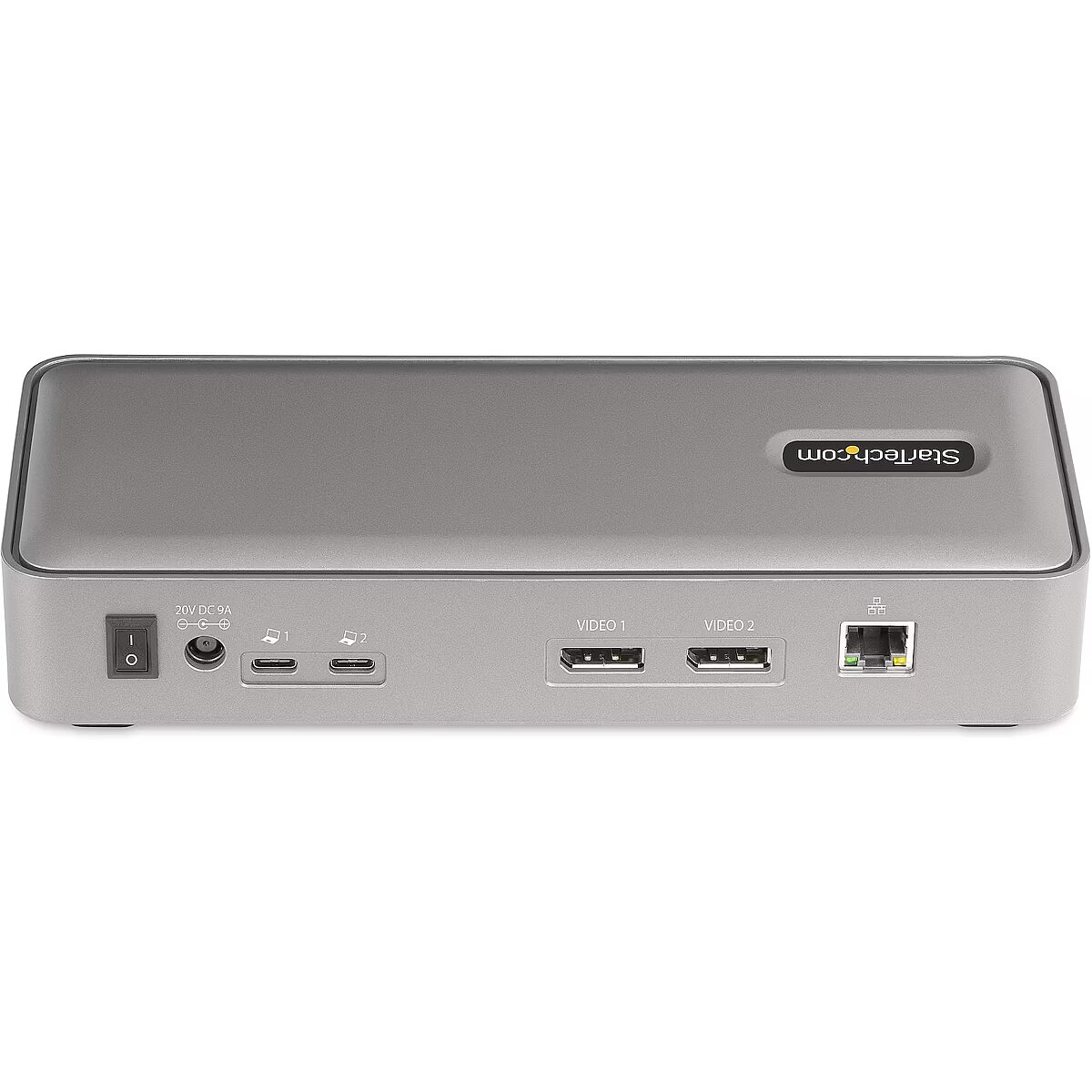

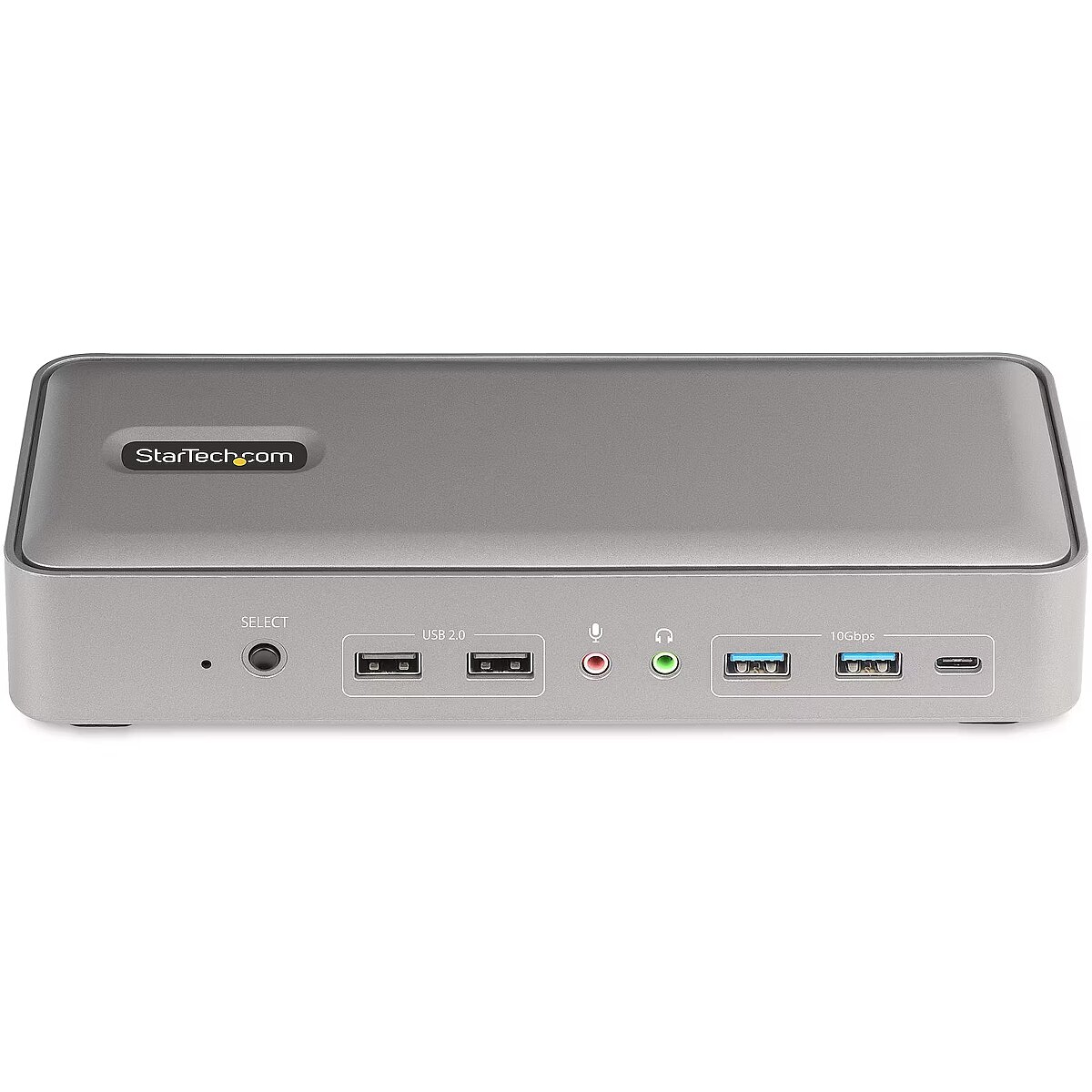

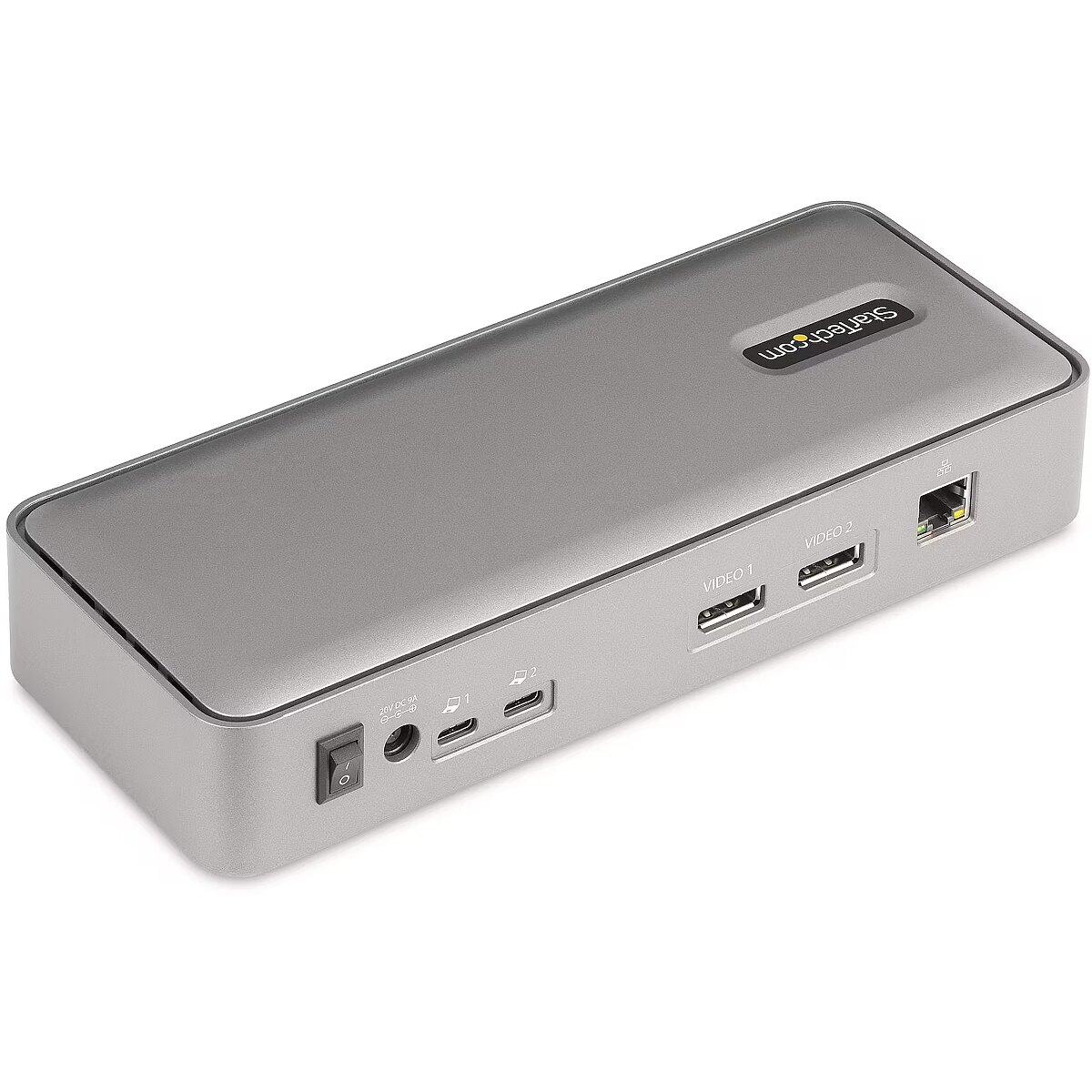

Startech 129UE-USBC-KVM-DOCK USB-C KVM DOCKING STATION

ARTIKEL1 - 129UE-USBC-KVM-DOCK
ARTIKEL2 - USB-C KVM DOCKING STATION
Brand - StarTech.com
BrandPartCode - 129UE-USBC-KVM-DOCK
Breite - 0
Category - KVM Switches

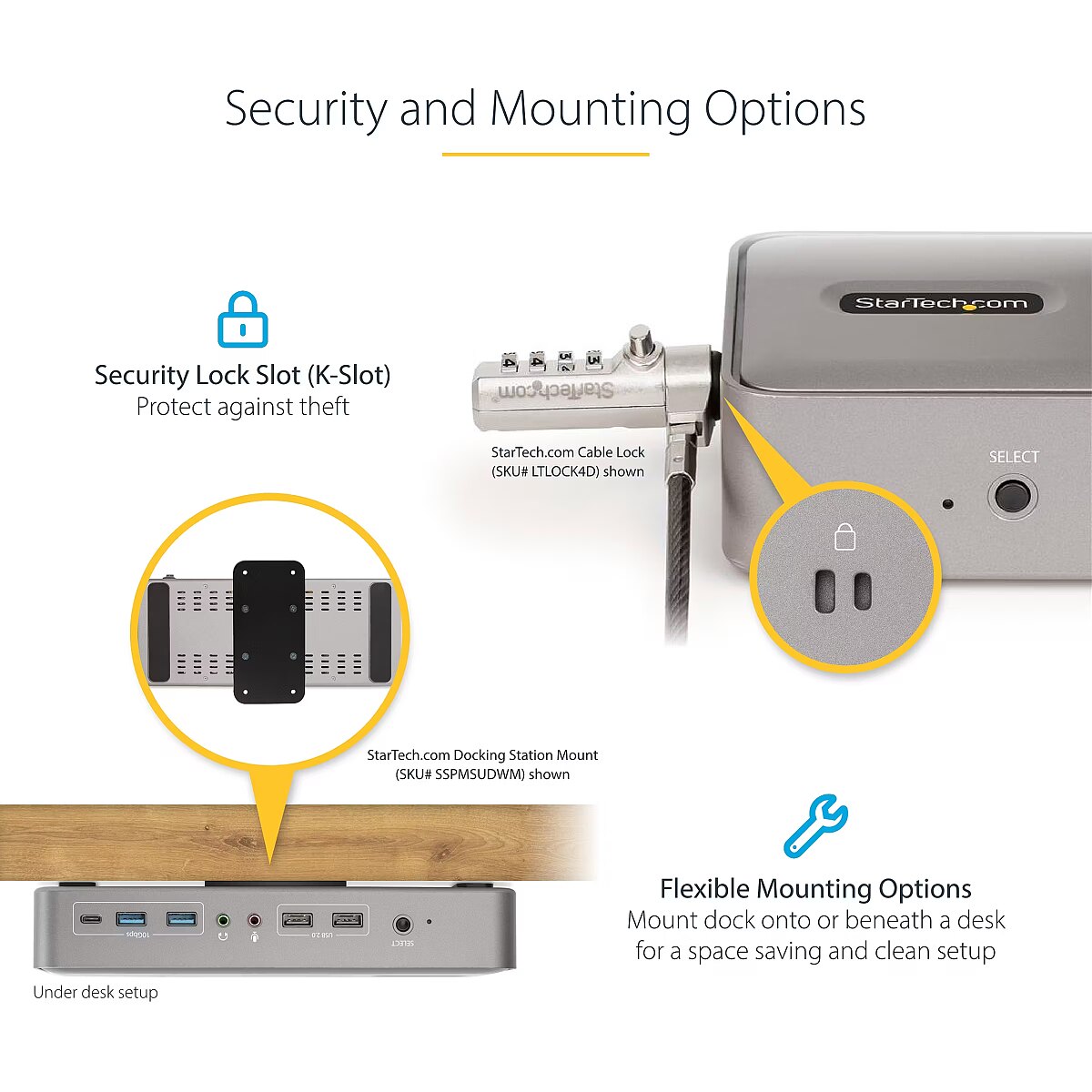

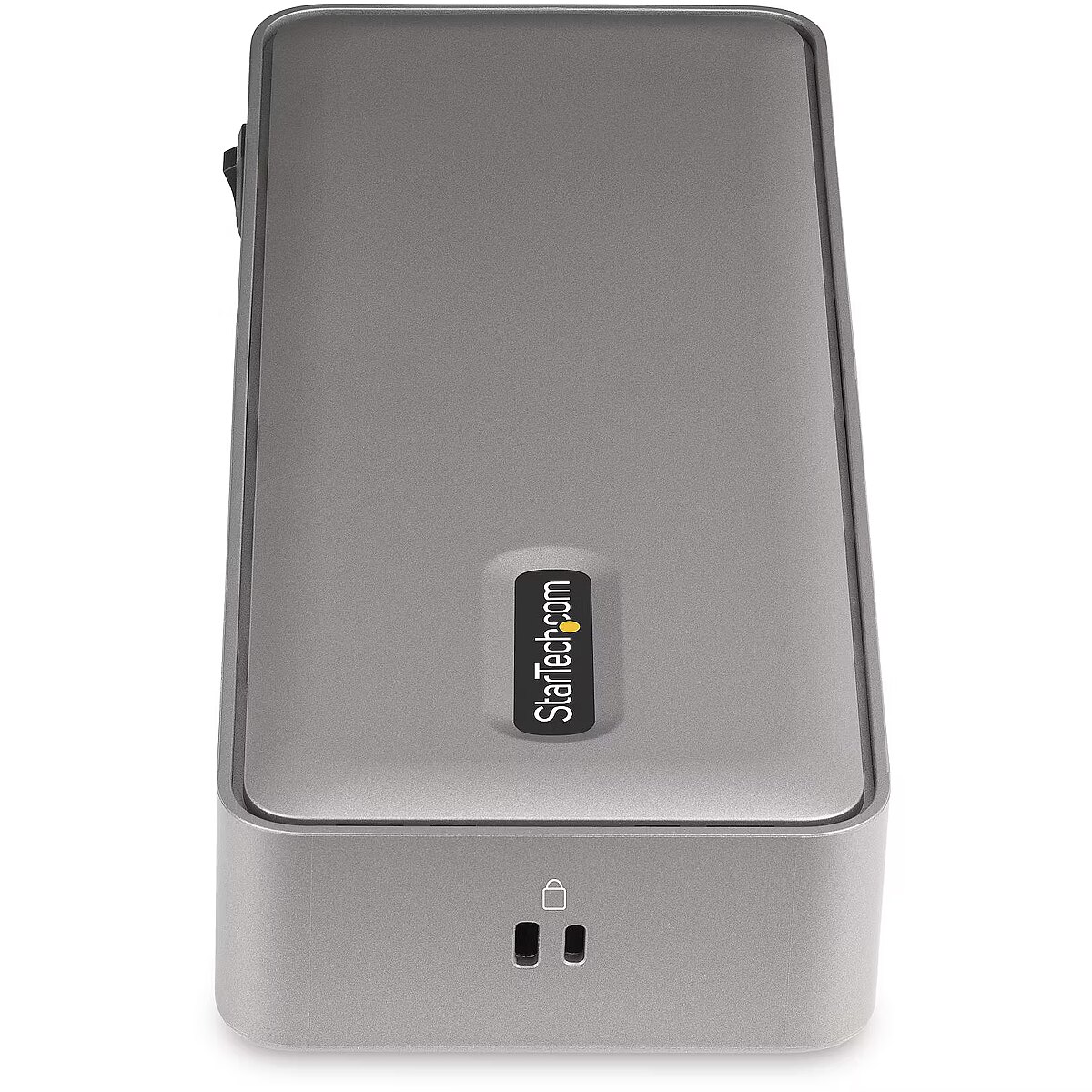

Design - Cable lock slot - Yes
Design - Housing material - Plastic
Design - LED indicators - LAN, Power
Design - Product colour - Silver
Display - Built-in display - No
EANCode - 0065030898492
Gewicht - 1.6
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 0065030898492
GTIN - 065030898492
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 129UE-USBC-KVM-DOCK
Laenge - 0
Logistics data - Master (outer) case height - 340 mm
Logistics data - Master (outer) case length - 380 mm
Logistics data - Master (outer) case width - 395 mm
Logistics data - Products per master (outer) case - 6 pc(s)

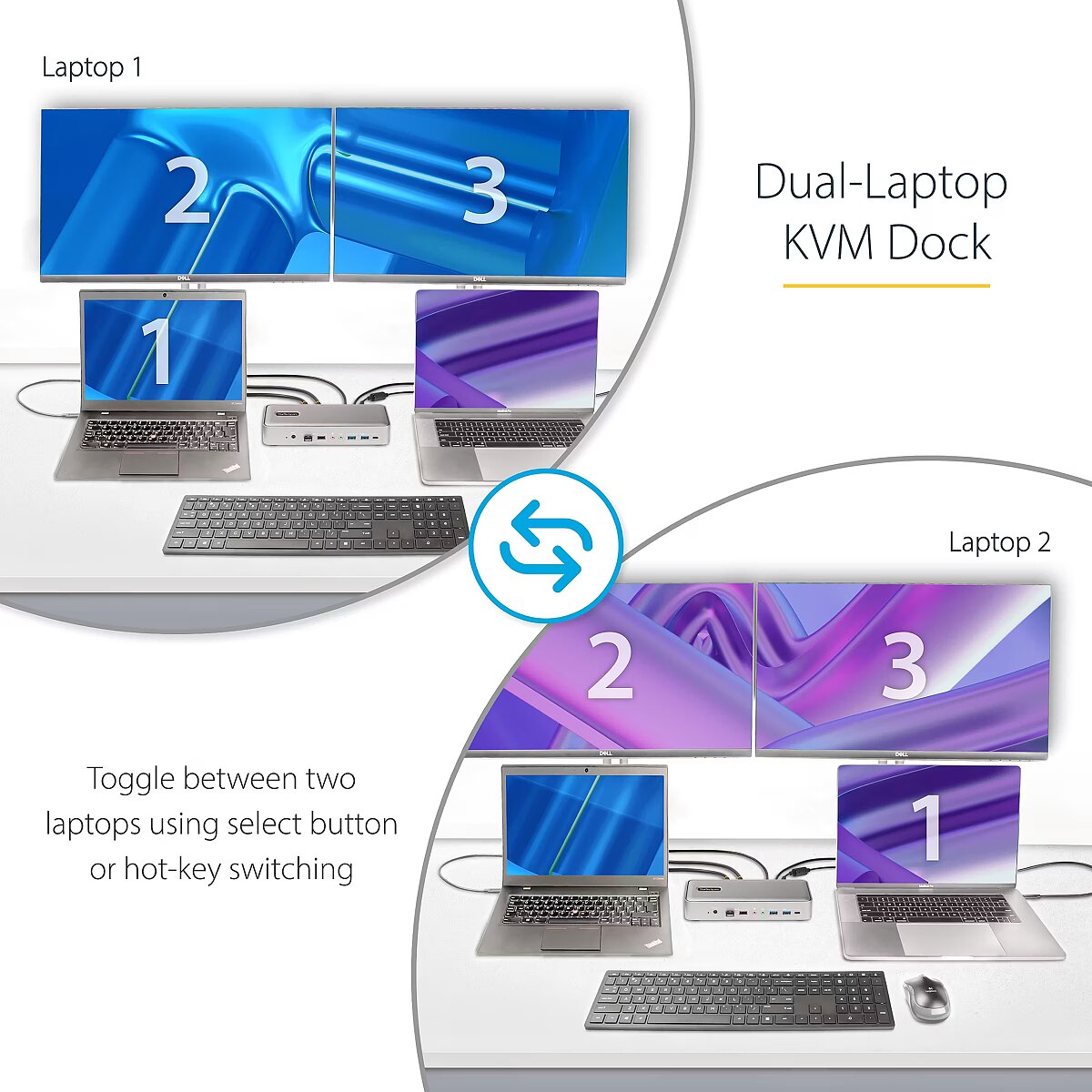

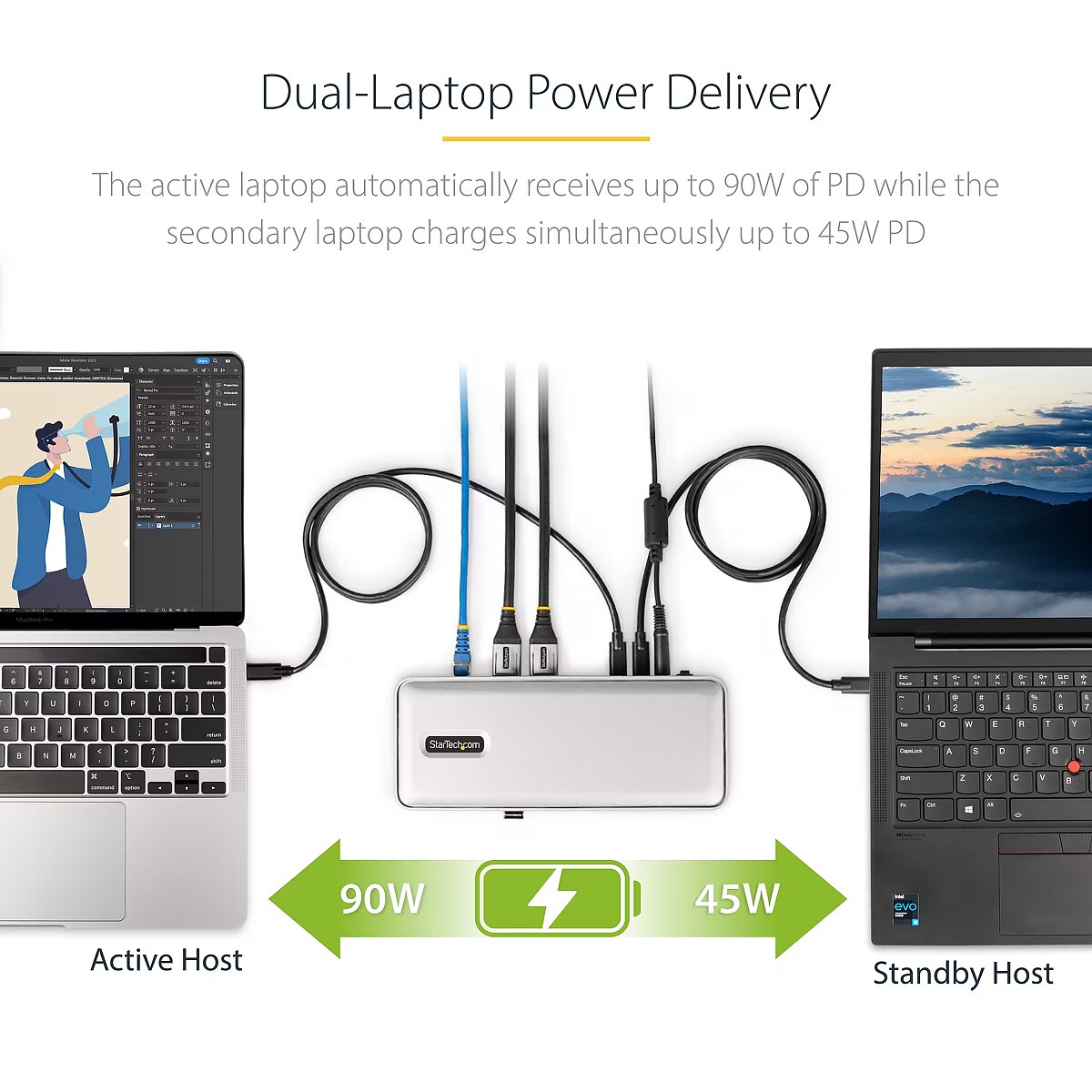

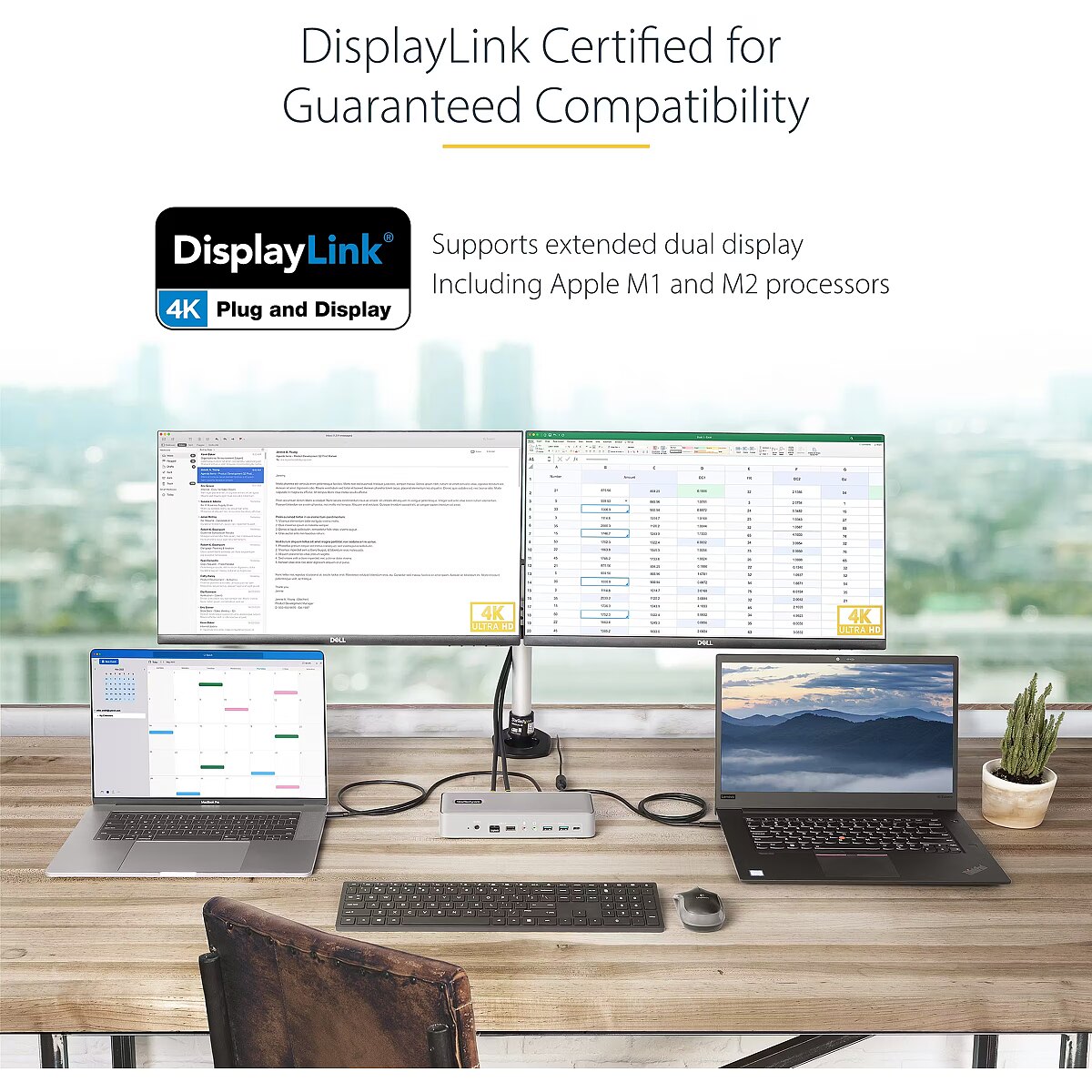

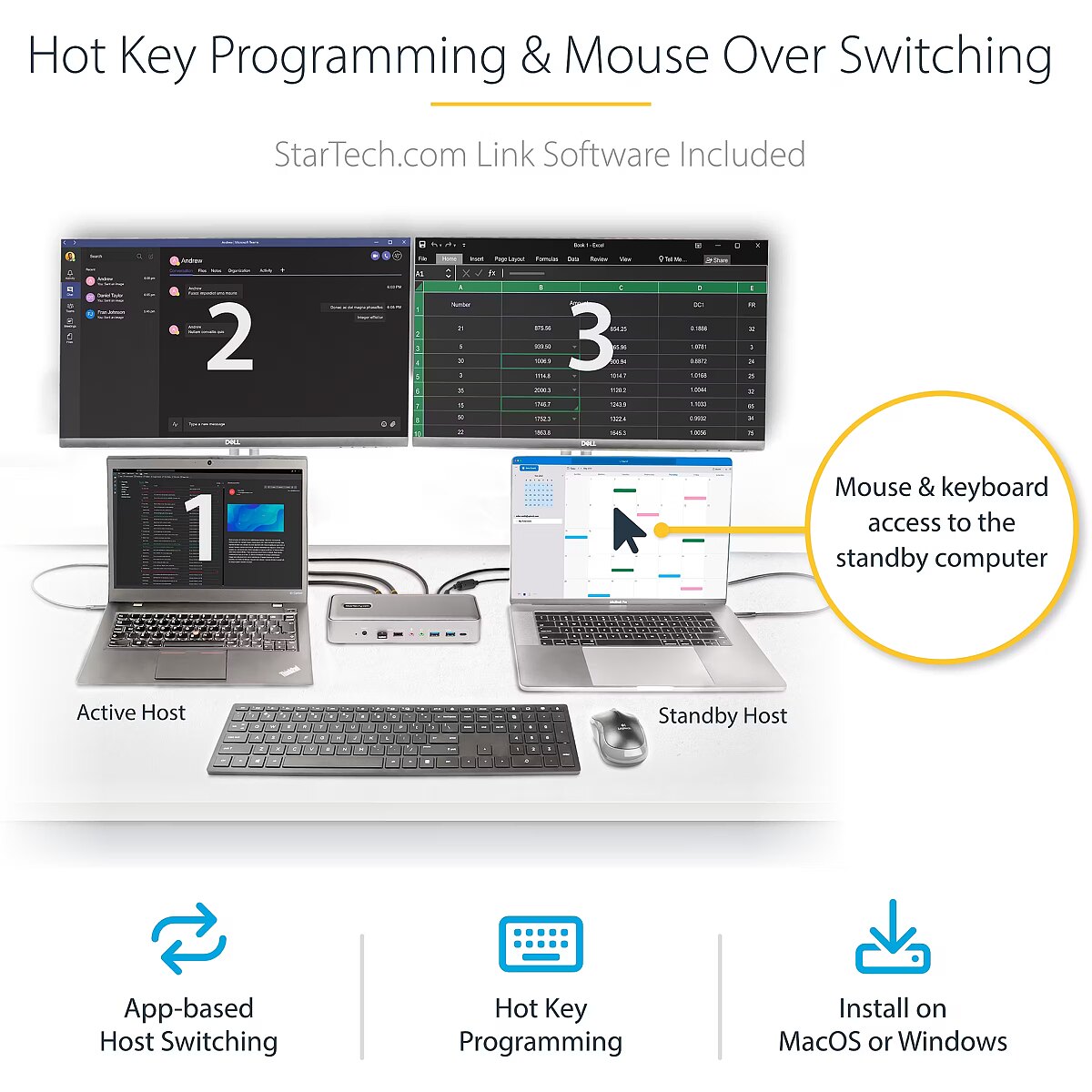

LongDesc - Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connectionDock and Switch between two laptops to access your workstation peripherals including dual monitors, seamlessly switching between laptop computers with the push of a button. The downloadable Hot-Key software (available for Windows and macOS), enables users to switch between computers using key combinations from a keyboard.DisplayLink CertifiedThe Dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The DisplayLink Certification ensures support for resolutions up to 4K 60Hz on both external displays.Simultaneously Charge Two LaptopsThe KVM Dock supports Power Delivery (PD) 3.0 and charges both connected computers over USB-C. The Dock supplies 90W of power to the active host computer and 45W of power to the second PC, ensuring both laptops can charge simultaneously.Full-Featured Docking StationConnect two USB-C computers to this Dock to access a wide range of port connectivity, options and features. The Dock features:• 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz.• 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse.• 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage.• 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.• 1x 3.5mm 3-position TRRS jack for stereo audio output.• 1x 3.5mm 2-position microphone jack for mono audio input.• 2x K-Slots (regular/nano) to tether the Dock with a cable lock (sold separately) for security.The Dock features a mounting pattern so it can be mounted when paired with StarTech.com mounting accessories (sold separately). Our mounting accessories enable mounting to the VESA pattern on the back of a monitor or to any flat surface. The following mounts are compatible with this product:• SSPMSUDWM - Dock Surface Mount• SSPMSVESA - Dock VESA MountEnhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : Setup and save custom windows layouts.•Mac Address Pass-Through Utility : Improve network security.•USB Event Monitoring Utility : Track and log connected USB devices.•Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsNote: The StarTechLink software is not compatible with Linux; however, the base hardware KVM functionality is supported. Linux users will not have access to the following software features:• Set Laptop Screen Location for Mouse Cursor/Keyboard Edge Scrolling.• Switch UFP (Upstream Facing Port).• Ctrl-Alt-Del Functionality.• Change Hot-Key for Switching.• KM Master for Mouse Cursor/Keyboard Edge Scrolling.The StarTech.com Advantage
LongProductName - StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual-Monitor 4K 60Hz DisplayPort Dock, 5x USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/macOS, 2-Host KVM Dock , TAA (129UE-USBC-KVM-DOCK)
LongSummaryDescription - StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Chipset: DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek -.... Product colour: Silver, Housing material: Plastic, LED indicators: LAN, Power. Input voltage: 100 - 240 V, Input current: 2.4 A, Output voltage: 20 V
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C

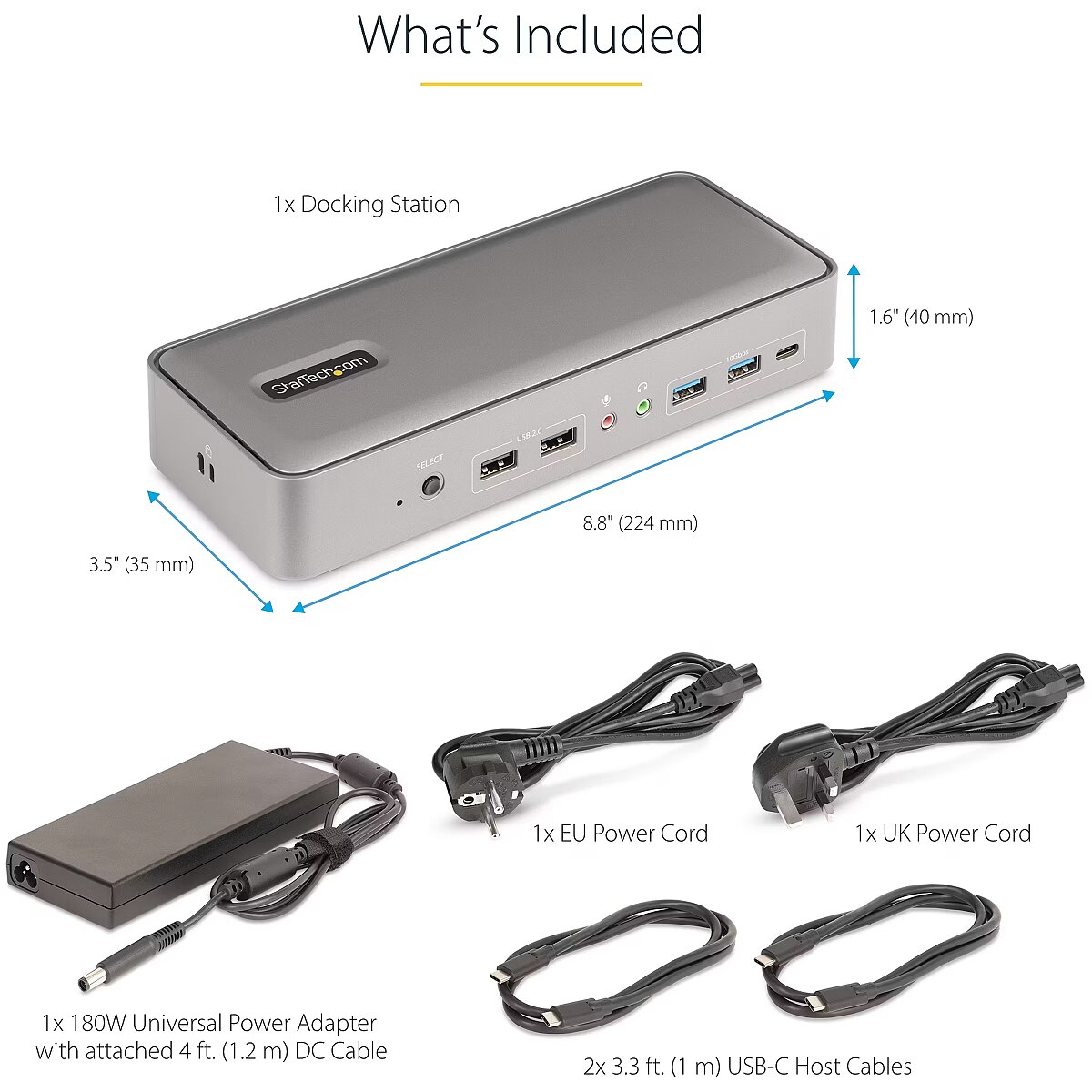

Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC, USB Type-C
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 285 mm
Packaging data - Package height - 90 mm
Packaging data - Package weight - 1.8 kg
Packaging data - Package width - 160 mm
Performance - Chipset - DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F
Performance - HD type - 4K Ultra HD

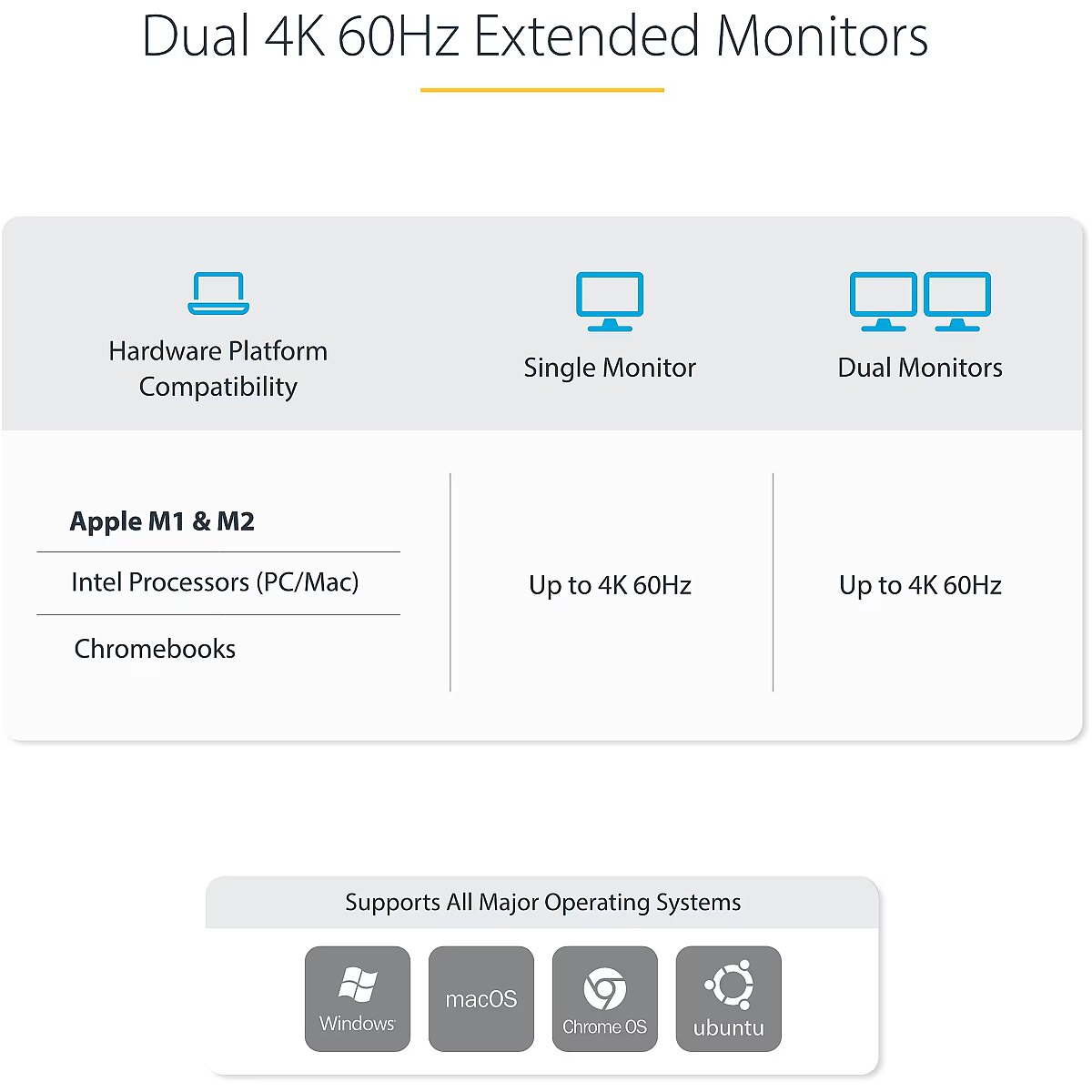

Performance - Maximum resolution - 3840 x 2160 pixels

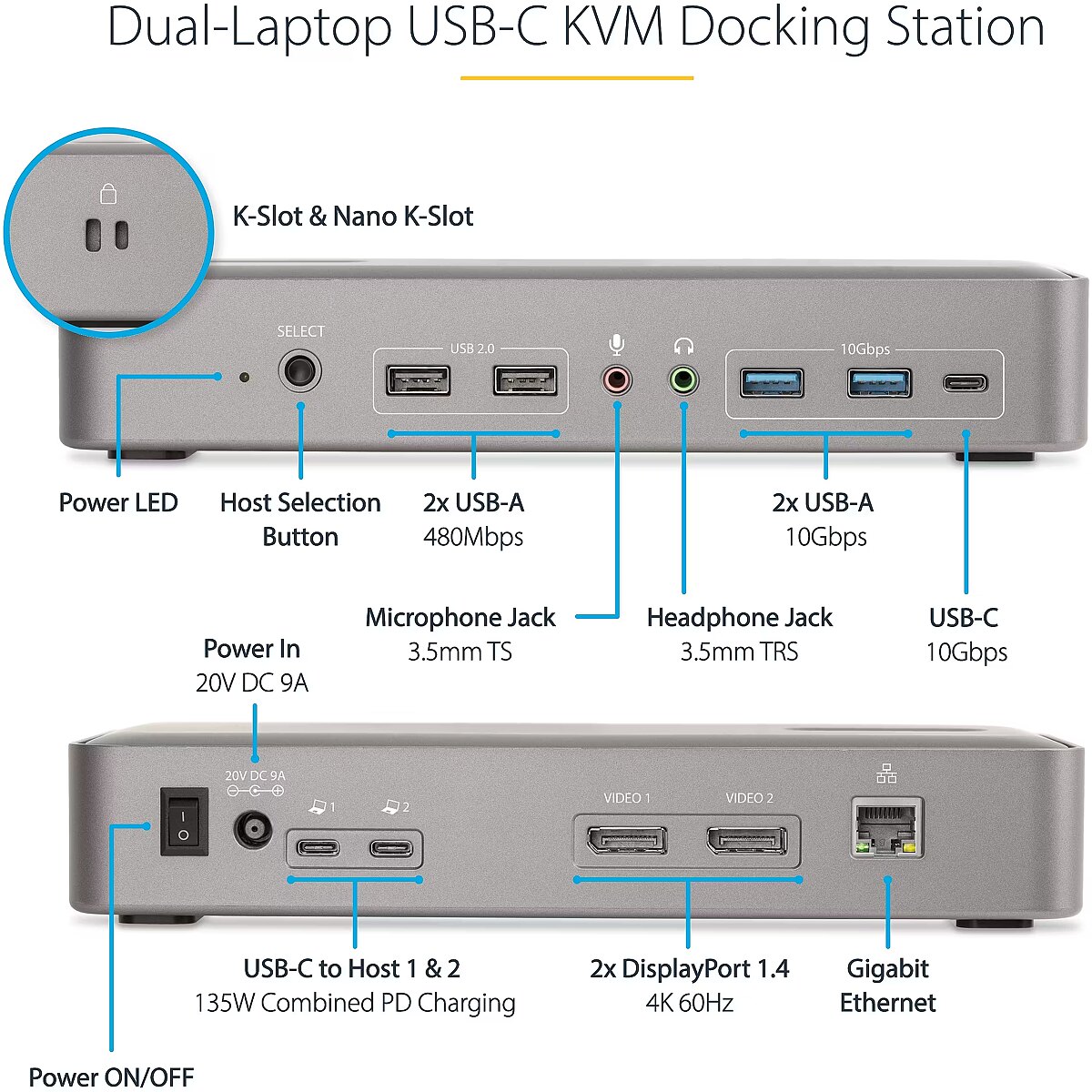

Ports & interfaces - Audio connections - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Number of microphone inputs - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 3
Ports & interfaces - Video port type - DisplayPort
Power - Compatible power plug types - EU, UK
Power - External power adapter - Yes
Power - Input current - 2.4 A
Power - Input voltage - 100 - 240 V
Power - Output current - 9 A
Power - Output voltage - 20 V
Power - Power consumption (typical) - 180 W
Power - USB Power Delivery (USB PD) - Yes
Power - USB Power Delivery up to - 90 W
ProductName - Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA
ShortSummaryDescription - StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA, 3840 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 180 W, Silver
Stck_Kart - 6
Stck_Pal - 0
Storno - Y
Sustainability - Compliance certificates - RoHS
Sustainability - Sustainability compliance - Yes
System requirements - Linux operating systems supported - Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
System requirements - Mac operating systems supported - Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
System requirements - Other operating systems supported - ChromeOS
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Title - StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA
URL - https://www.startech.com/en-us/129UE-USBC-KVM-DOCK
WarrantyInfo - 3 Years
Weight & dimensions - Depth - 224 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 402 g
Weight & dimensions - Width - 90 mm
