ID: 1172715
Tuotekoodi: CFO-MDOM4-LC/LC-10M
Voidaan tilata 30 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

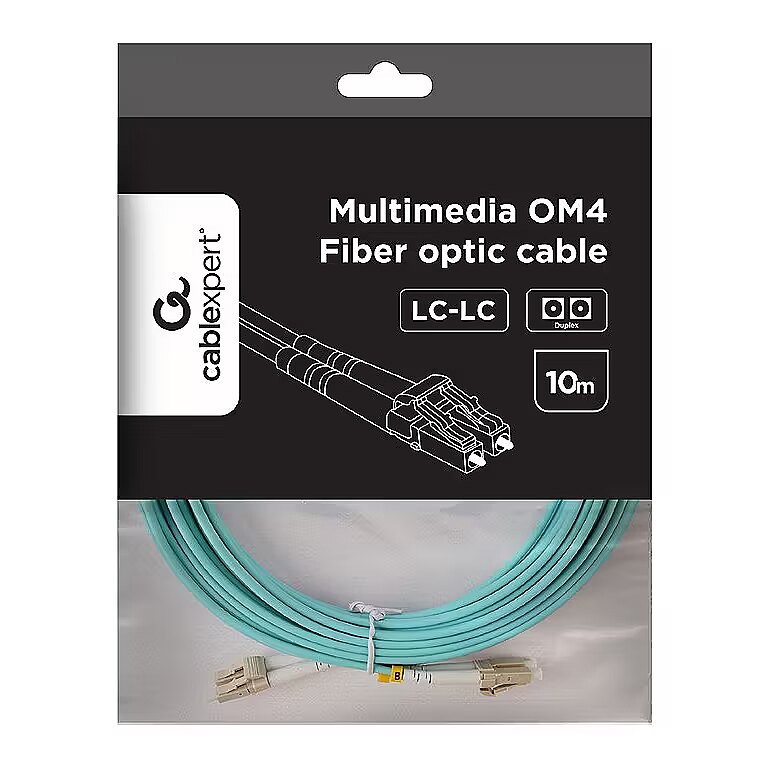

Gembird Multimode Duplex OM4 Fiber Optic Patch Cable, 10m
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Pituus: 10m
- Tyyppi: Kuituoptinen kaapeli
Kaikki parametrit
Pituus
: 10m
Tyyppi
: Kuituoptinen kaapeli
Väri
: Harmaa, Sininen
Yksityiskohtaisempi erittely
Cable length - 10 m
Color - Turquoise
Connectors #1 - Fiber LC/UPC
Connectors #2 - Fiber LC/UPC
Description - OM4 50/125,LC/LC,10m multi-mode duplex fibre optic cable
OM4 multimode patch cable provides optimum performance for 10/40/100G network applications. Multimode duplex fibre optic cable (50/125 OM4) Supports data rates up to 100 Gbps Ideal for high-speed data transfer with minimal signal loss Integrated LC/LC connectors ensure easy and reliable connection
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 180 mm
Dimensions -
dimension weight - 130 g
dimension width - 170 mm
ean - 8716309131520
Environment requirements - Operating temperature -20°C to 60°C
Fiber type - Multi-mode
guarantee - 24
guarantee_type - normal
name - Multimode cable duplex OM4 50/125,LC/LC,10m
Other features - Fiber: 50/125 micrometers Insertion Loss: Less than/Equal to 0.3 dB Return Loss: Greater than/Equal to 20 dB Wavelength: 850/1300 nm Attenuation at 850 nm: 3.0 dB/km Attenuation at 1300 nm: 1.0 dB/km Network Compatibility: 1 Gb/s (gigabit); 10 Gb/s; 25 Gb/s; 40 Gb/s; 100 Gb/s Pull-in and Pull-out Test (1000 times) Less than 0.3 dB Fire Rating: LSZH
producer - Gembird
Transmission - Duplex
Type - Cable
Usage - Fiber
vendpn - CFO-MDOM4-LC/LC-10M
