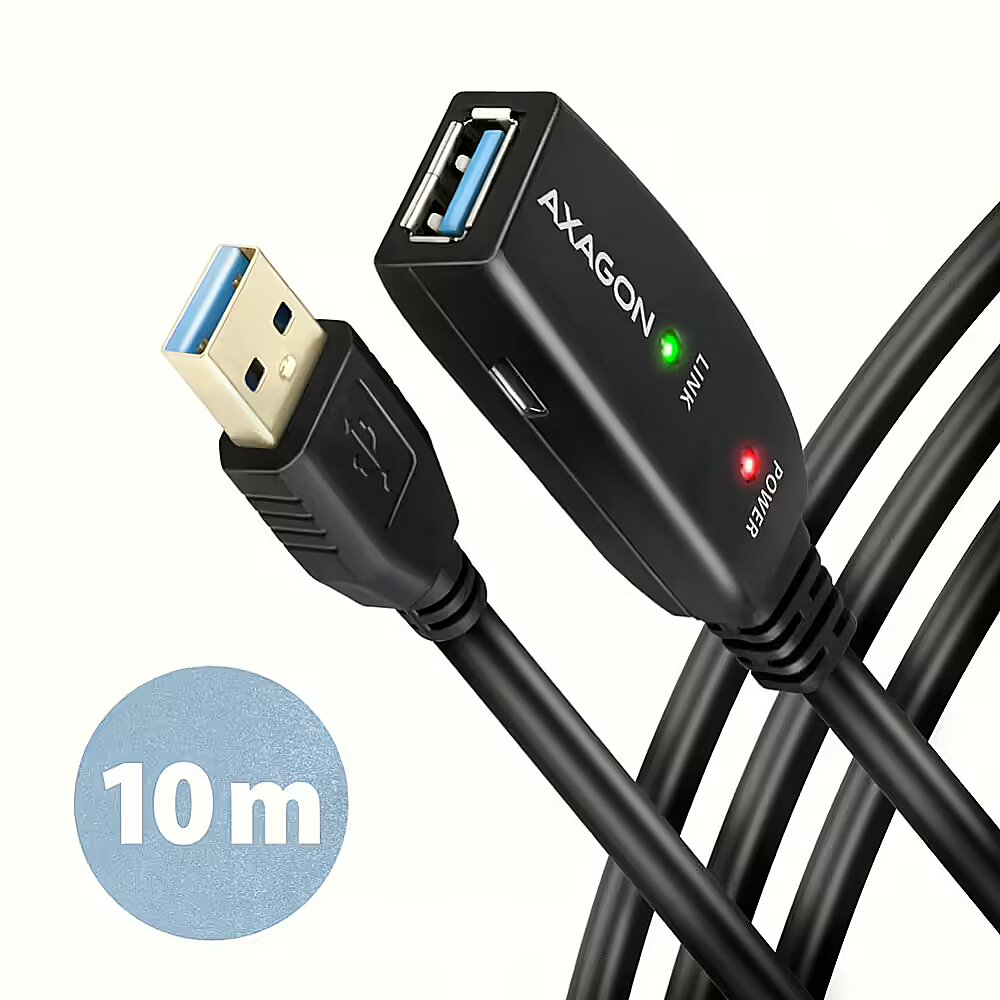

Axagon ADR-310, USB-A Repeater, 10m

Accessories included - USB 3.2 Gen 1 A-M > A-F active repeater 10 m long,
USB-A / Micro USB power cable,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Box Weight Brutto (kg) - 10.4 kg
Brand - Axagon
BrandPartCode - ADR-310
Buttons > Input type - USB 3.2 Gen 1
Cable Features - LED Indicator Plug&Play
Cable Functionality - USB 3.0 Cable
Cable Length - 10 m
Cable length - 10 m
Cable length - 10m
Cable Technology - Shielded
category - PC Components|Cables & Adapters|External Cables|USB|Extension Cables
Category - USB Cables
Category Code - VCB
Certificates - Certification - CE
Certificates - Compliance certificates - RoHS
CnCode CnCode - 85444290
code - ADR-310
Code - ADR-310
Color - Black
Colour - Black
Connectors #1 - USB Type A Male
Connectors #2 - USB Type A Female
Description - Active extension AXAGON ADR-310 USB 3.2 Gen 1 cable 10 m long. Ideal for connecting your computer to a USB device such as a mouse, keyboard, webcam, printer, scanner, plotter and others. The active USB repeater cable strengthens the passing signal and allows you to connect a significantly more distant USB device than passive cable. The range of the cable can be further extended by using several cables in a row. Thanks to the used USB 3.2 Gen 1 (formerly USB 3.0) interface, you can enjoy a data transfer speed of up to 5 Gbps.  So, you can use the cable for devices that require higher speed, such as backup systems, NAS data storage and others.  A great advantage of the ADR-310 cable is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.  The remarkably compact body of the repeater allows for trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.  Input:
USB 3.2 Gen 1 for connection to a computer
USB Type A (M) male connector Output:
USB 3.2 Gen 1 for connecting a remote USB device
USB Type A (F) female connector
Transmission rate 5000 / 480 / 12 / 1.5 Mbit/s (high / full / low speed) Power supply:
Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.
The active part of the cable includes a Micro USB connector for additional external power supply of 5V/1-2 A.
The power cable USB A-M / Micro USB, 1.2 m long is included.  The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.
When powering the repeater cable with the power adapter, an external 2.5" disk can be connected without the need for own power supply to the disk.
For longer USB route with multiple repeater cables connected in a row, the USB bus supply may be inadequate for USB devices with lower power consumption than an external 2.5" drive. Also, in this case it can help to boost the power supply by connecting a power adapter. Other features:
Fully compatible with USB 3.2 Gen 1 (USB 3.0) and backward compatible with USB 2.0 and USB 1.1.
Full Plug and Play and Hot Plug support.
Two LEDs indicating power and USB connection.
Behind the active USB cable, a common passive USB cable can also be used.
Dimensions of active part with are 75 x 24 x 13mm, cable length 10 m.
Weight 408 g. Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available. Package contains:

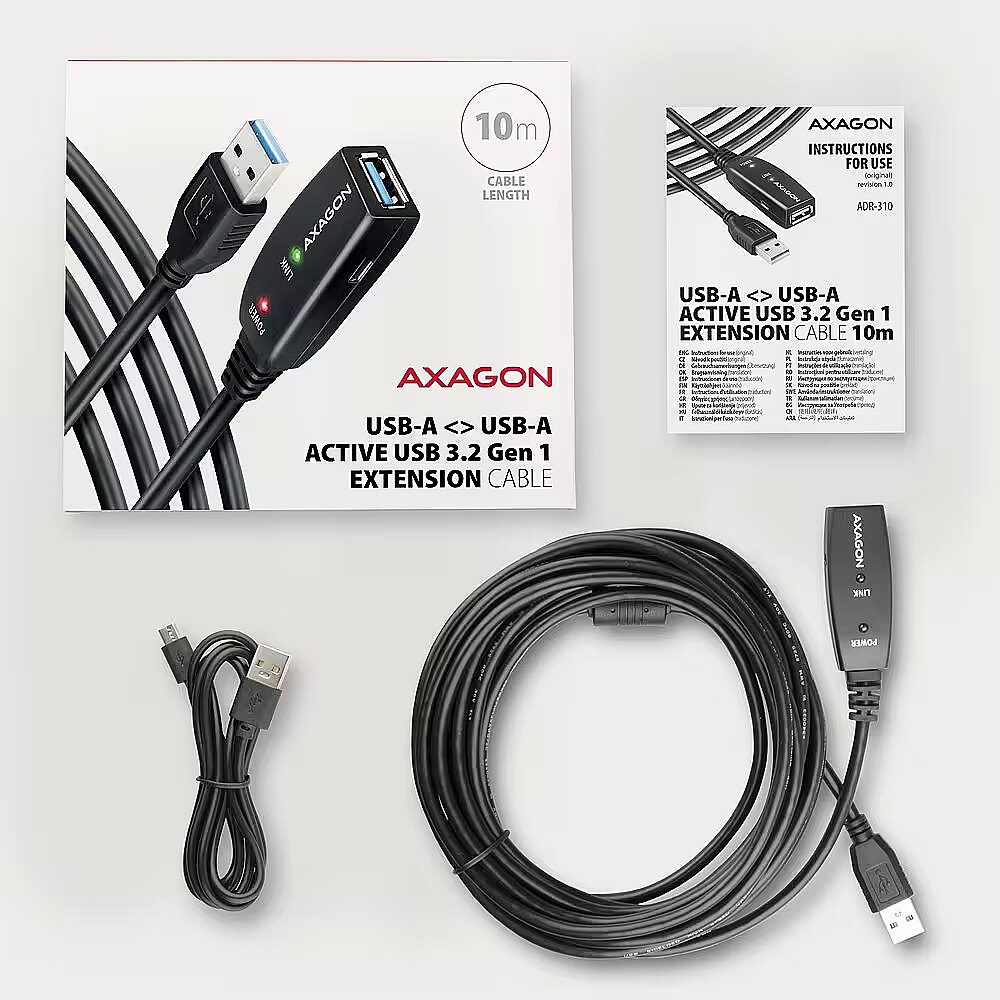

USB 3.2 Gen 1 A-M > A-F active repeater 10 m long,
USB-A / Micro USB power cable,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Description - ADR-310 USB repeater cable 10 m Active extension USB 3.2 Gen 1 A-M > A-F cable, 10 m long. Power supply option.
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 150 mm
Dimensions - 75 x 24 x 13 mm
dimension weight - 540 g
dimension width - 170 mm
EAN - 8595247907257
ean - 8595247907257
EAN Code - 8595247907257
External Color - Melna
Features - Connector 1 - USB A
Features - Connector 1 gender - Female
Features - Connector 2 - USB A
Features - Connector 2 gender - Male
Features - Maximum data transfer rate - 5 Gbit/s
Features - Plug and Play - Yes
Features - Product colour - Black
Features - USB version - USB 3.2 Gen 1 (3.1 Gen 1)
Features > Cable length - 10 m
Full Description Line - Cable length 10m|1xUSB 3.0|1xUSB 3.2|Colour Black
GTIN - 8595247907257
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230620160010651871.jpg
Left Connector - USB 3.2 Type A (Male)
Link - https://www.axagon.eu/en/produkty/adr-310
Logistics data - Country of origin - China
LongDesc - Active extension AXAGON ADR-310 USB 3.2 Gen 1 cable 10 m long. Ideal for connecting your computer to a USB device such as a mouse, keyboard, webcam, printer, scanner, plotter and others. The active USB repeater cable strengthens the passing signal and allows you to connect a significantly more distant USB device than passive cable. The range of the cable can be further extended by using several cables in a row.Thanks to the used USB 3.2 Gen 1 (formerly USB 3.0) interface, you can enjoy a data transfer speed of up to 5 Gbps. So, you can use the cable for devices that require higher speed, such as backup systems, NAS data storage and others. A great advantage of the ADR-310 cable is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem. The remarkably compact body of the repeater allows for trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference. Input:• USB 3.2 Gen 1 for connection to a computer• USB Type A (M) male connectorOutput:• USB 3.2 Gen 1 for connecting a remote USB device• USB Type A (F) female connector • Transmission rate 5000 / 480 / 12 / 1.5 Mbit/s (high / full / low speed)Power supply:• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.• The active part of the cable includes a Micro USB connector for additional external power supply of 5V/1-2 A.• The power cable USB A-M / Micro USB, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16. • When powering the repeater cable with the power adapter, an external 2.5" disk can be connected without the need for own power supply to the disk.• For longer USB route with multiple repeater cables connected in a row, the USB bus supply may be inadequate for USB devices with lower power consumption than an external 2.5" drive. Also, in this case it can help to boost the power supply by connecting a power adapter.Other features:• Fully compatible with USB 3.2 Gen 1 (USB 3.0) and backward compatible with USB 2.0 and USB 1.1. • Full Plug and Play and Hot Plug support. • Two LEDs indicating power and USB connection. • Behind the active USB cable, a common passive USB cable can also be used.• Dimensions of active part with are 75 x 24 x 13mm, cable length 10 m. • Weight 408 g.Supported OS: • MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher. • Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.Package contains:• USB 3.2 Gen 1 A-M > A-F active repeater 10 m long,• USB-A / Micro USB power cable,• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box.
LongProductName - ADR-310 USB repeater cable 10 m
LongSummaryDescription - Axagon ADR-310 USB repeater cable 10 m. Cable length: 10 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black
Model - ADR-310
Name - AXAGON Active extension USB 3.2 Gen 1, 10 m | ADR-310
name - AXAGON ADR-310 USB 3.0 A-M -> A-F act 10m cabl
name - AXAGON ADR-310 USB 3.2 Gen 1 Verlängerungskabel, aktiv - 10m
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 65.00 mm
Package features > Gross width (mm) - 170.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1043 pc(s)
Package features > Paper/Pasteboard - 89.60 g
Package features > Plastic (No PET) - 22.40 g
Package features > Tare weight (kg) - 0.11 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 152 mm
Packaging data - Package height - 66 mm
Packaging data - Package type - Box
Packaging data - Package weight - 540 g
Packaging data - Package width - 172 mm
Packs in Box - 20
Pack Weight Brutto (kg) - 0.54 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230620062152847395&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - ADR-310
ProductDescription - Axagon Active extension USB 3.2 Gen 1 A-M > A-F cable, 10 m long. Power supply option.
ProductName - ADR-310 USB repeater cable 10 m
Product Net Weight - 0.408 kg
ProductType - Adaptors
Product Type - Cable
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Right Connector - USB 3.2 Type A (Female)Micro USB (Female)
Shipping Box Depth Shipping/Package Box Dimensions - 6.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 15 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 17 cm
ShortSummaryDescription - Axagon ADR-310 USB repeater cable 10 m, 10 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black
Standard - USB 1.1
Standard - USB 2.0
Standard - USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1
System Requirements -
Technical details > Gross weight - 0.54 kg
Technical details > Net weight - 0.43 kg
Technical details > Output type - USB 3.2 Gen 1, USB type A-F
Technical details > Producer - AXAGON
Technical details > Producer product family - Active extension USB 3.2 Gen 1, 10 m
Technical details > Producer product name - ADR-310
Terminator Type - Active
Title - Axagon ADR-310 USB repeater cable 10 m
Type - Adapter
Type - Cable
Type - Extension cord
Unit Calculated Volume - 0.001657 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/adr-310
Usage - Computer
USB 3.0 Input/Output connectors - 1
USB 3.2 Input/Output connectors - 1
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/adr-310?ami=211
vendpn - ADR-310
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 408 g
Weight & dimensions - Cable length - 10 m
Weight & dimensions - Weight - 408 g
