ID: 1490362
Product code: PPA5506103
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 3 years

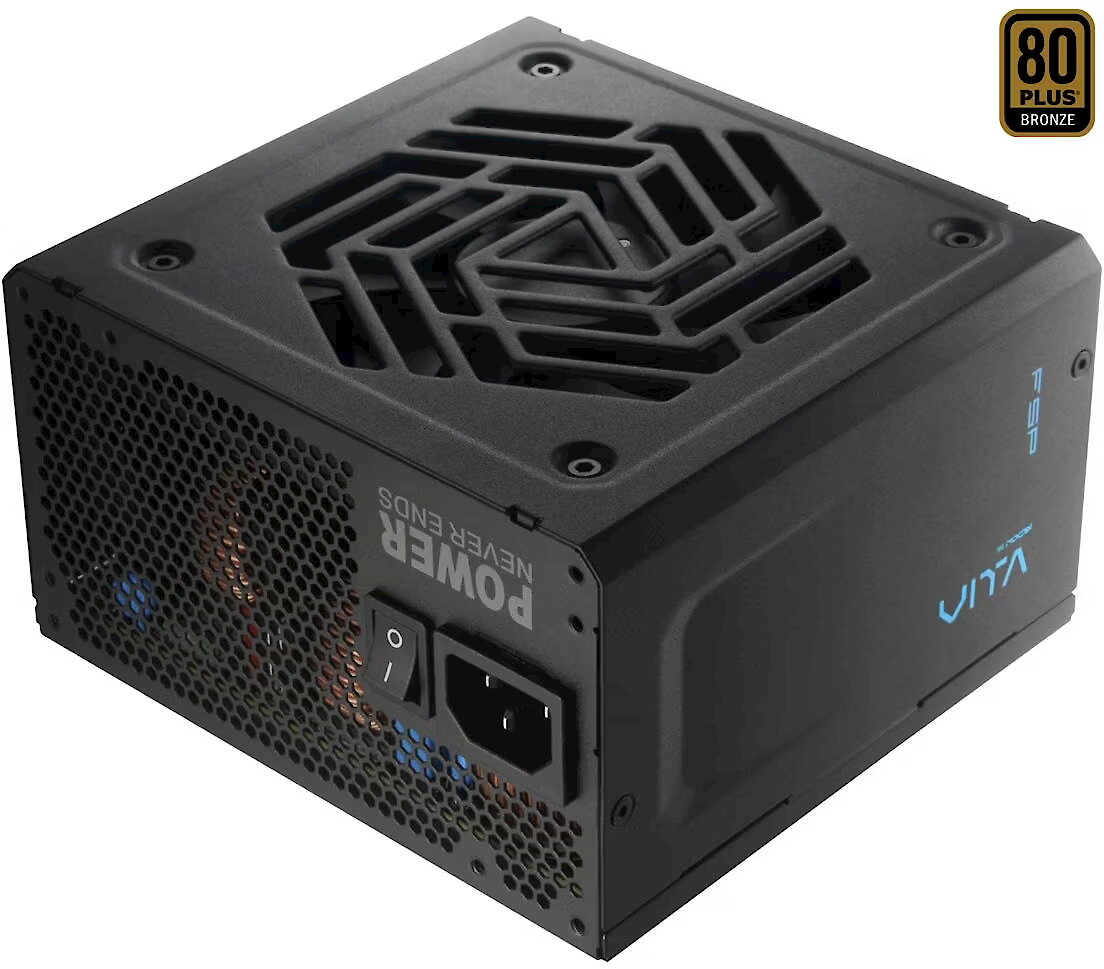

FSP VITA BD, 550W, 80PLUS Bronze, ATX 3.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: FSP
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: None
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This FSP brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 550W.
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: There isn't
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 45.8A
Fan size
: 120 mm
Functionality
Cable colour
: Black
Lighting
: None
Color
: Black
Modular cables
: None
Ports and equipment
PCI-E 5.0/5.1
: There is no
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
Brand - FSP
BrandPartCode - PPA5506103
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN_code - 4711498480231
GTIN - 4711498480231
LongDesc - The Future is Now：ATX 3.1 ReadyFollowing the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades.+5V & 3.3V DC to DC Circuit DesignIncrease the efficiency and stabilize the output voltage to ensure system stability.Powerful Single +12V RailModern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.Premium, Black Flat CablesFeaturing improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.105˚C Japanese Bulk CapacitorThe bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.Compact PSU size：140 x 150 x 86mm140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
LongProductName - 550W, 240V, 50/60Hz
LongSummaryDescription - FSP VITA BD 550W Power supply unit ATX ATX3.1 Black. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, Peripheral (Molex), SATA
Manufacturer - Fortron
Manufacturer_code - PPA5506103
Name - FSP VITA BD 550W, PC power supply (2x PCIe, 550 Watt)
Packaging content - Cables included - CPU, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 550 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 550 W
ProductName - VITA BD 550W Power supply unit ATX ATX3.1 Black
ShortSummaryDescription - FSP VITA BD 550W Power supply unit ATX ATX3.1 Black, 550 W, 200 - 240 V, 50/60 Hz, 4 A, Active, 100 W
Title - FSP VITA BD 550W Power supply unit ATX ATX3.1 Black
URL - https://www.fsplifestyle.com/en/product/VITAGD550W.html
WarrantyInfo - 5 years
Weight - 1,95
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
