10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
brand - Ubiquiti
category - Ubiquiti > UniFi komutatori > Aggregation
Category1 - Network
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Rack
Code - USW-Pro-Aggregation
Console port - No
Data transmission - Forwarding rate - 565.44 Mpps
Data transmission - Static route - Yes
Data transmission - Switching capacity - 760 Gbit/s
Data transmission - Throughput - 380 Mpps
Description - 32-portowy przełącznik warstwy 3 przeznaczony do połączeń 10G SFP+ i 25G SFP28 o dużej przepustowości.
Description1 - Ubiquiti UniFi Switch Pro Aggregation - switch - rack-mountable

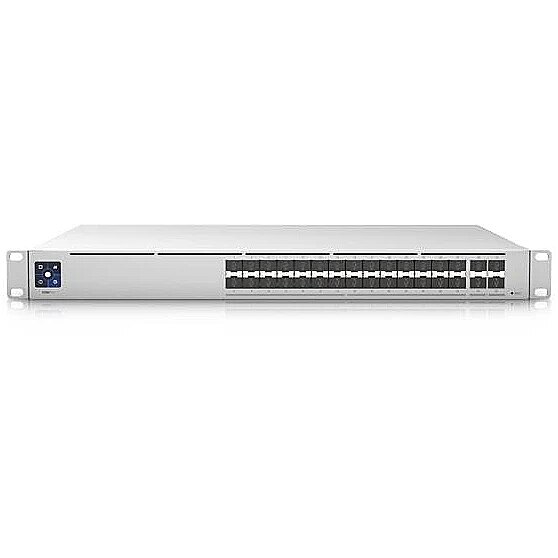

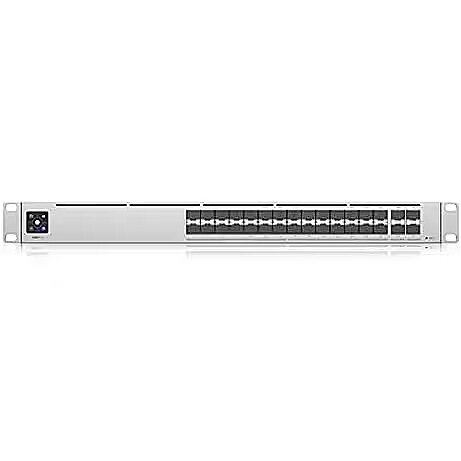

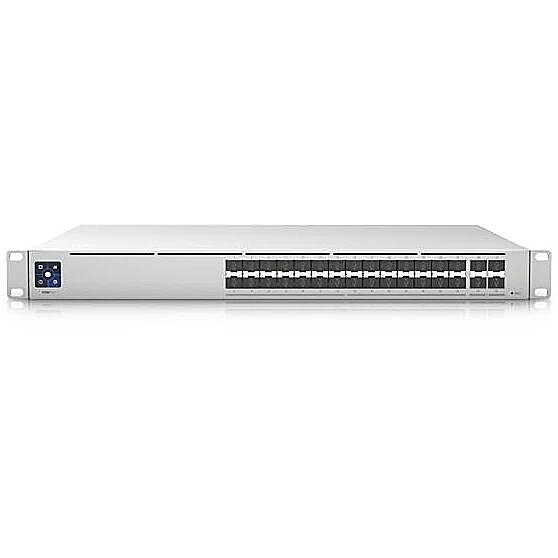

Description2 - Build and expand your network with the UniFi Switch, part of the Ubiquiti Networks UniFi Enterprise System. The UniFi Switch, model USW-Aggregation-Pro is a configurable 10G fiber Laver-3 switch. It offers 28 10G SFP+ fiber links to your devices and 4 25G SFP2B fiber uplink options to your enterprise network.The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for quick diagnosis.Managed and configured by the UniFi Controller with UniFi mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.RPS DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input. When the switch's internal PSU is Off, the switch function can keep working by backup power from the USP-RPS input port.
Design - Housing material - Steel
Design - LED indicators - Yes

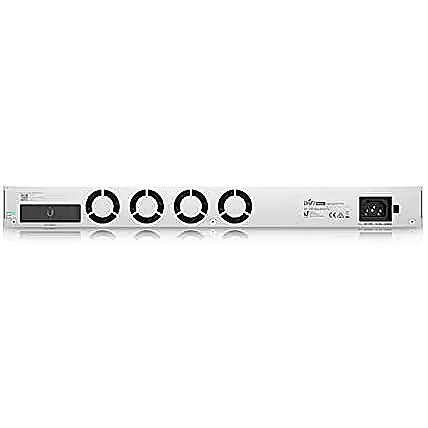

Design - Number of fans - 4 fan(s)
Design - Product colour - Grey
Designation - CE+WEEE
dimensionalWeight - 5961
dimension depth - 480 mm
dimension height - 120 mm
Dimensions - 442 x 325 x 44 mm
dimension weight - 6000 g
dimension width - 540 mm
EAN - 810010072603
ean - 810010072603
EAN - 0810010072603
EAN_code - 0810010072603
Fan - Yes
Forwarding rate - 565 MB/s
Gross Weight Kg - 4,9
guarantee - 24
guarantee_type - normal
height - 0.15 m
L2 features -
L3 features -
length - 0.54 m
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Management features - Switch layer - L3
Management features - Switch type - Managed
Manufacturer - Ubiquiti
Manufacturer Code - USW-PRO-AGGREGATION
ManufacturerID - USW-PRO-AGGREGATION
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - USW-Pro-Aggregation
mpn - USW-Pro-Aggregation
MPN - USW-PRO-AGGREGATION
name - %UBIQUITI Uni 28x10GbE 2 x25G USW-PRO-AGGREGATIO
Name - 28+4P UbiQuiti UniFi Hi-Capacity Aggregation M RM - USW-Pro-Aggregation
Name - Ubiquiti Switch Aggregation | Ubiquiti
Name - Ubiquiti USW-Pro Aggregation, Switch (silver)
Network - 10G support - Yes
Network - Link aggregation - Yes
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 28
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Other features - Temperatura robocza: od -5 do 40°C (od 23 do 104°F) Wilgotność robocza: od 10 do 90% bez kondensacji
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 250 mm
Package features > Gross height (mm) - 20 mm
Package features > Gross width (mm) - 150 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 427 pc(s)
Package features > Paper/Pasteboard - 700 g
Package features > Plastic (No PET) - 70 g
Package features > Tare weight (kg) - 0.77 kg
Package features > Volume (m3) - 0.00075 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 460
PackageLength - 540
PackageWeight - 6550.5
PackageWidth - 125
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 28
Ports & interfaces - SFP28 ports quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC input voltage - 11.5 V
Power - Input current - 2 A
Power - Power consumption (max) - 100 W
Power - Power supply included - Yes
Power consumption - 100 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 1 x Wejście uniwersalne, 100240 V AC, maks. 2 A, 50/60 Hz 1 x Wejście prądu stałego USP RPS, 11,5 V prądu stałego, 8,7 A Zasilacz:AC/DC, wewnętrzny, 100W
Power supply - Internal
producer - UBIQUITI
producerCode - USW-Pro-Aggregation
productName - Ubiquiti UniFi Switch Pro Aggregation Managed L3 Grey
productSize - Normal
QoS -
Safety warning - Warnings - Follow the safety guidelines for electrical current.
Security -
Security - DHCP features - DHCP server
SFP28 ports - 4
Short description - Ubiquiti Switch UniFi 28xSFP+ 10GBit/4xSFP28 25GBit Managed 19" Rack-Mountable, 1,3" Touchscreen
sizeX - 120
sizeY - 460
sizeZ - 540
Supported protocols and standards -
Switch class - Managed
Switch layer - L3
Technical details > Gross weight - 2.34 kg
Technical details > Net weight - 1.57 kg
Technical details > Producer - Ubiquiti
Throughput - 380 GB/s
title - Ubiquiti UniFi Switch Hi-Capacity Aggregation
UPC - 810010072603
vendpn - USW-PRO-AGGREGATION
VLAN -
Warranty - 12
Warranty - 12 month(s)
warrantyLength - 24
warrantyType - G
WEEE - DE83654239
Weight - 4,70
Weight - 4.7 kg
Weight - 6.02
weight - 6.7 kg
weight - 5995
Weight & dimensions - Depth - 325 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.6 kg
Weight & dimensions - Width - 442 mm
width - 0.46 m
