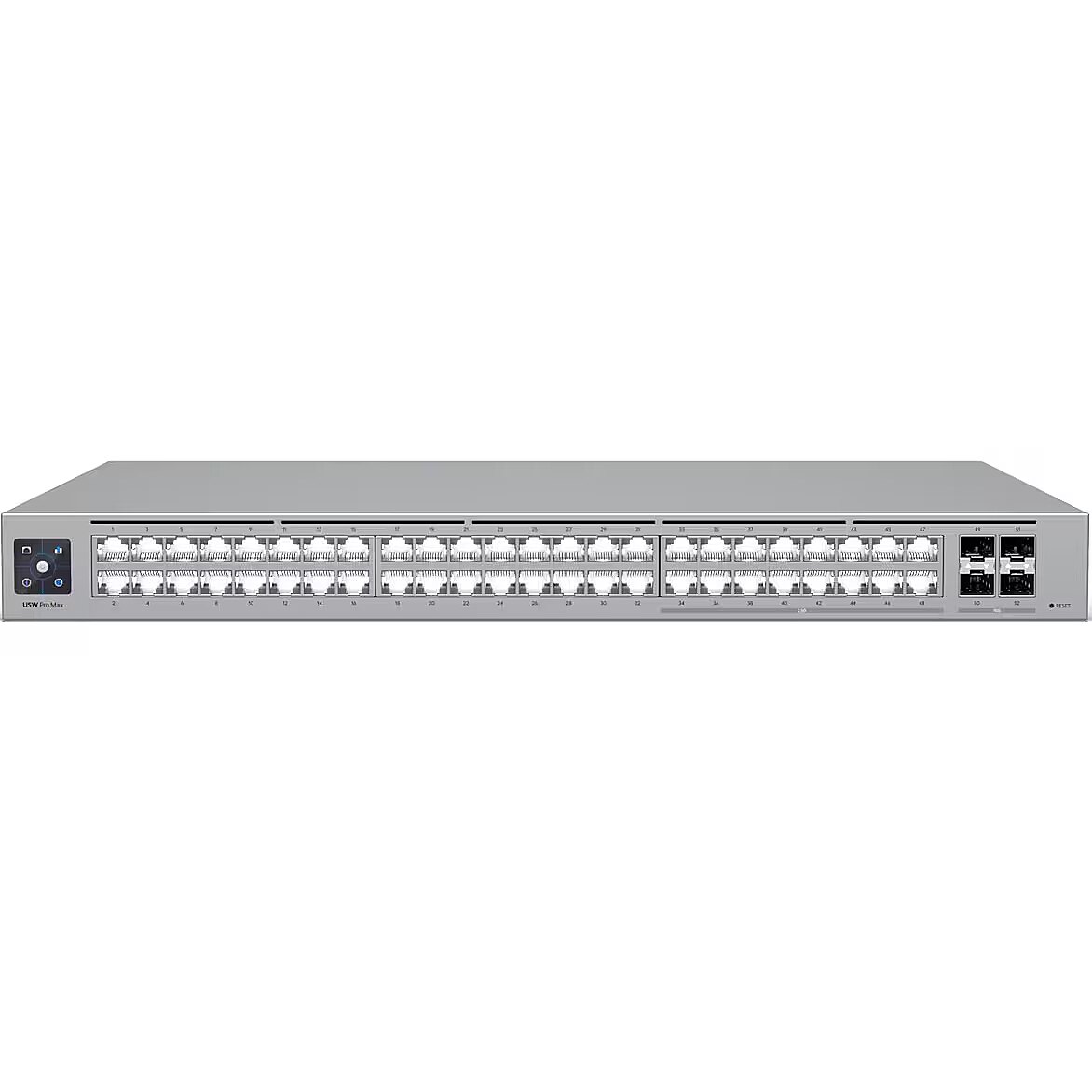

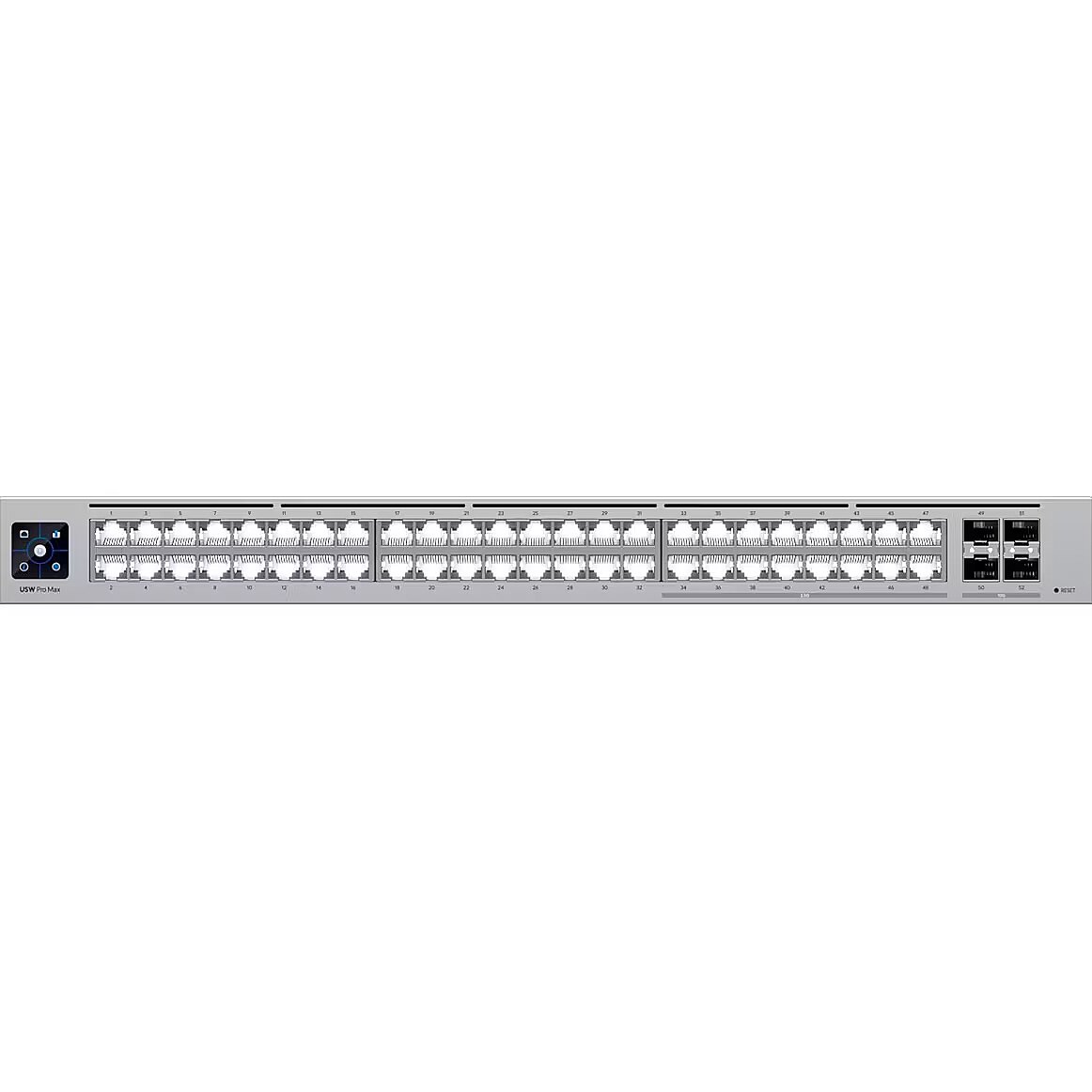

Ubiquiti Switch UniFi 32xRJ45 GBit/16xRJ45 2.5G/4xSFP+ Managed Max 19" Rack-Mountable, 1,3" Touchscreen

10/100/1000/2500 Mbps ports - 16
Accessories included -
Application - Medium and large companies
brand - Ubiquiti
category - Ubiquiti > UniFi komutatori > Professional Max
Category1 - Network
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - CE FCC IC
Chassis type - Rack
Console port - No
Data transmission - Forwarding rate - 166.656 Mpps
Data transmission - Jumbo frames support - Yes
Data transmission - Static route - Yes
Data transmission - Switching capacity - 224 Gbit/s
Data transmission - Throughput - 112 Gbit/s
Description - Pro Max 48 48-portowy przełącznik Layer 3 Etherlighting z przepustowością 2,5 GbE. Porty Etherlighting świecą, wskazując lokalizację portu, prędkość/łącze i natywną sieć VLAN/sieć. 16 portów 2,5 GbE RJ45 Porty 32 GbE RJ45 4 porty 10G SFP+ Możliwość zamontowania dodatkowego zasilacza DC Zarządzane za pomocą UniFi Network 8.0.24 i nowszych wersji
Description1 - Ubiquiti Switch Pro Max 48 - 48 Ports - 32x GE (10/100/1000) - 16x GE (100/1000/2500) - 4x SFP+
Description2 - A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Design - Display type - LCM
Design - Form factor - 1U
Design - Housing material - SGCC
Design - LED indicators - Link
Design - LED indicators - Network
Design - LED indicators - Speed
Design - LED indicators - Status
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Reset button - Yes
Design - Stackable - Yes
Designation - CE+WEEE
dimensionalWeight - 5345
dimension depth - 120 mm
dimension height - 520 mm
Dimensions - 442 x 325 x 44 mm
dimension weight - 5000 g
dimension width - 440 mm
ean - 810084692745
EAN - 0810084692745
EAN_code - 0810084692745
Environment requirements - Temperatura pracy: -5 do 40° C (23 do 104° F) Wilgotność robocza: 10 do 90%, bez kondensacji
Fan - No
Forwarding rate - 166.656 Mpps
Gross Weight Kg - 5,4
guarantee - 24
guarantee_type - normal
height - 0.14 m
L2 features - IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
L3 features - DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
length - 0.52 m
Management, monitoring, configuration - UniFi Network wersja 8.0.24 i późniejsze
Management features - Switch layer - L3
Manufacturer - Ubiquiti
Manufacturer Code - USW-PRO-MAX-48
ManufacturerID - USW-PRO-MAX-48
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - USW-Pro-Max-48
mpn - USW-Pro-Max-48
MPN - USW-PRO-MAX-48
Name - 48+4P Ubiquiti UniFi USW-PRO-Max-48 M RM
name - Switch USW-Pro-Max-48 48-ports, layer 3, Etherlighting
Name - Ubiquiti UniFi Switch Pro 48
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.1x
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 32
Number of 10Gb ports - 4
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Other features - Wyświetlacz LCM: 1.3" dotykowy
Other functions -
PackageHeight - 128
PackageLength - 521
PackageWeight - 6625
PackageWidth - 435
Packaging data - Cables included - Power
Packaging data - Mounting brackets included - Yes
Ports & interfaces - 2.5G Ethernet (copper) ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 32
Ports & interfaces - Power connector - AC/DC
Ports & interfaces - SFP+ module slots quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 100 W
Power - Power source - AC/DC
Power - Power supply included - Yes
Power - Redundant power supply (RPS) support - Yes
Power consumption - 100 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - AC/DC 100-240V AC
Power supply - Internal
producer - UBIQUITI
producerCode - USW-Pro-Max-48
productName - Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Grey
productSize - Normal
QoS -
Safety warning - Warnings - Avoid contact of the device with liquid.
Safety warning - Warnings - Follow the safety guidelines for electrical current.
Safety warning - Warnings - Make sure the ventilation of the equipment is not blocked.
Security -
Security - DHCP features - DHCP relay
Security - DHCP features - DHCP snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Short description - Ubiquiti Switch UniFi 32xRJ45 GBit/16xRJ45 2.5G/4xSFP+ Managed Max 19" Rack-Mountable, 1,3" Touchscreen
sizeX - 518
sizeY - 430
sizeZ - 120
Stackability - No
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - SMART
Switch layer - L3
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - Industry Canada (IC)
Throughput - 224 Gb/s
title - Ubiquiti UniFi Switch Pro Max 48
UPC - 810084692745
vendpn - USW-Pro-Max-48
VLAN -
warrantyLength - 24
warrantyType - G
WEEE - DE83654239
Weight - 4.8 kg
Weight - 5.94
Weight - 6,00
weight - 6.2 kg
weight - 5970
Weight & dimensions - Depth - 325 mm
Weight & dimensions - Height - 43.7 mm
Weight & dimensions - Weight - 4.8 kg
Weight & dimensions - Width - 442.4 mm
width - 0.44 m
