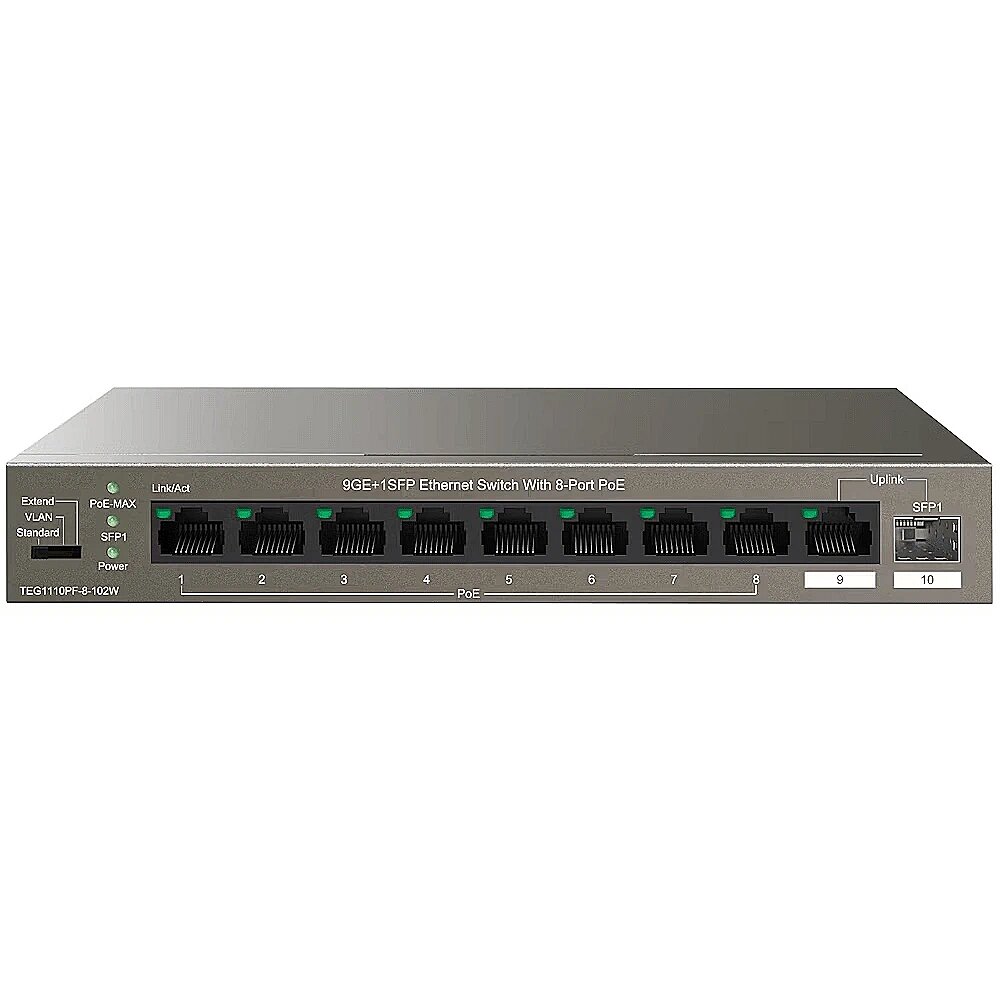

Tenda TEG1110PF-8-120W, 9x1G PoE

Name: Tenda TEG1110PF-8-120W, 9x1G PoE
Brand: Tenda
SKU: 1204468
Price: 79.13 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1204468 Product code: TEG1110PF-8-120W

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Base-T speed: 10/100/1000
RJ-45 Ports: 9

Similar Products

Ports and equipment
	This product Tenda TEG1110PF-8-120W, 9x1G PoE	TP-LINK TL-SG105-M2, 5x 100Mbps/1Gbps/2.5Gbp Ports	TP-LINK TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch	Ubiquiti USW-LITE-8-POE, 8x1Gb PoE	TP-LINK TL-SF1008LP 8-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE
Show similar specs. Hide similar specs.	79.13 €	54.32 €	41.37 €	115.10 €	35.11 €
Base-T speed	10/100/1000	2,5GbE	10/100	10/100/1000	10/100
PoE Ports	8	N/A	N/A	4	4
RJ-45 Ports	9	5	16	Eight Core	Eight Core
SFP Ports	1	N/A	N/A	N/A	N/A
Specifikācija
Number of fans	Fanless	Fanless	Fanless	Fanless	Fanless
PoE Per-Port Power Budget	30 W	N/A	N/A	30 W	12 W
PoE Support	Ir	Nav	Nav	Ir	Ir
PoE Total Power Budget	120 W	N/A	N/A	52 W	41 W
Weight (g)	930 g	870 g	500 g	300 g	600 g

Ports and equipment

Base-T speed : 10/100/1000

PoE Ports : 8

RJ-45 Ports : 9

SFP Ports : 1

Specifikācija

Number of fans : Fanless

PoE Per-Port Power Budget : 30 W

PoE Support : Ir

PoE Total Power Budget : 120 W

Weight (g) : 930 g

More detailed specification

Certificates - Certification - FC, CE, RoHS
Data transmission - Forwarding rate - 14.9 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Black
Design - Wall mountable - Yes
dimensionalWeight - 504
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Performance - Mean time between failures (MTBF) - 100000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 120 W
Power - Power source - DC/PoE
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 15.4 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 92 W
producerCode - TEG1110PF-8-120W
productName - Tenda TEG1110PF-8-120W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
sizeX - 240
sizeY - 140
sizeZ - 75
warrantyLength - 24
warrantyType - G
weight - 935
Weight & dimensions - Depth - 104 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 177.5 mm
