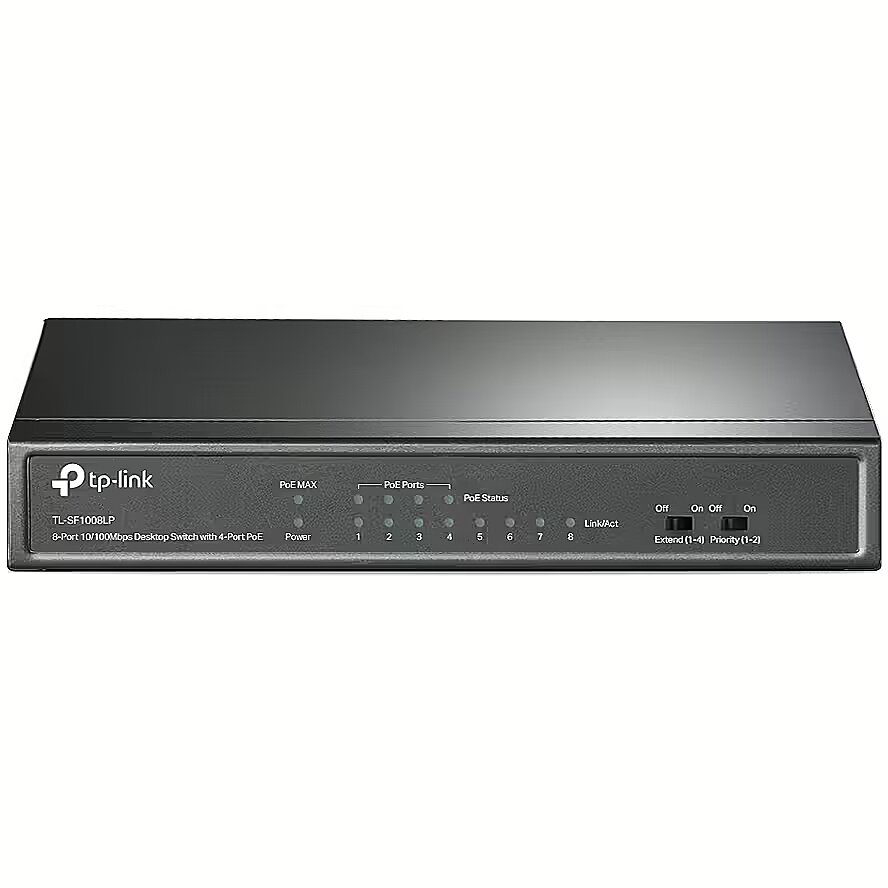

TP-LINK TL-SF1008LP 8-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

10G support Network - No
AC adapter included Packaging data - Yes
AC input frequency Power - 50 Hz
AC input voltage Power - 220 V
ARTIKEL1 - 4-PORT POE FE DESKTOP SWITCH
ARTIKEL2 - .
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Bandwidth Other features - 1.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 8
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Fast Ethernet (10/100)
Brand - TP-Link
BrandPartCode - TL-SF1008LP
Breite - 0.23
Cables included Packaging content - AC
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Code - TL-SF1008LP
Compliance certificates Certificates - CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology Network - 10GBASE-T, 100BASE-TX
Data transmission - Forwarding rate - 1.1904 Mpps
Data transmission - Jumbo frames - 2000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1.6 Gbit/s
DC input voltage Power - 53.5 V
Depth Weight & dimensions - 98 mm
Description - Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. Intelligent Power Management

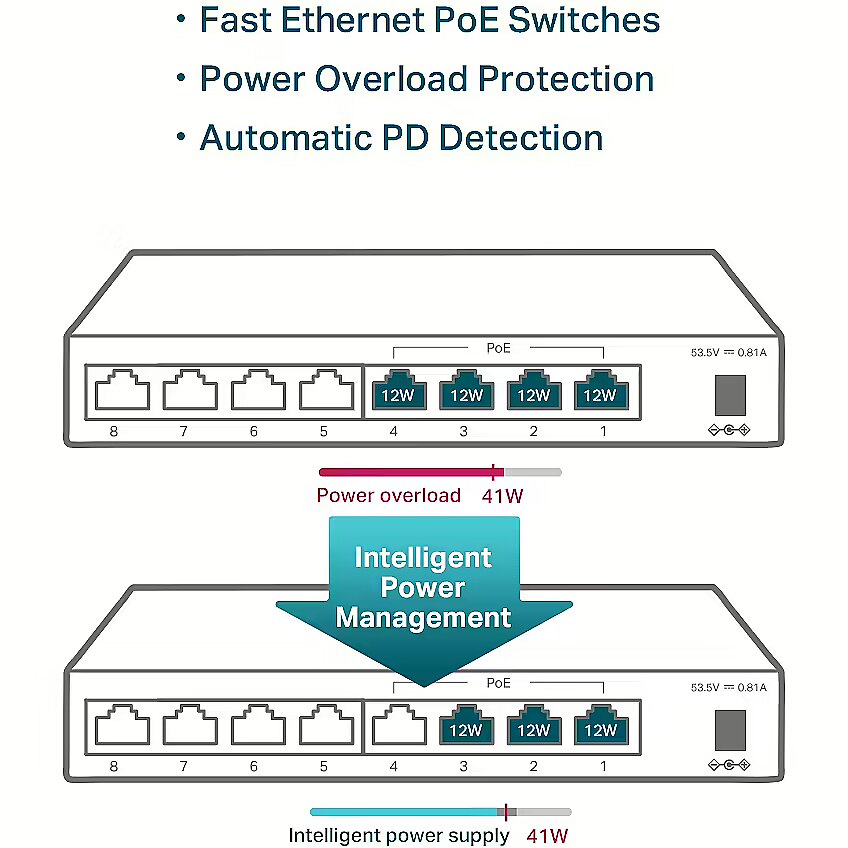

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Design > Form factor - Desktop
DHCP features Security - DHCPv6 relay
EAN - 6935364052768
EANCode - 6935364052768
Eans - 6935364052768
Fanless Performance - Yes
Fast Ethernet (copper) ports quantity Ports & interfaces - 8
Flow control support Network - Yes
Forwarding rate Data transmission - 1.1904 Mpps
Full duplex Network - Yes
Gewicht - 0.93
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 6935364052768
GTIN - 6935364052775
Half duplex Network - Yes
Harmonized System (HS) code Logistics data - 85176990
Heat dissipation Operational conditions - 160.61 BTU/h
Height Weight & dimensions - 27 mm
HERSTELLER - TP-LINK
Hoehe - 0.08
Housing material Design - Metal
HSTNUMMER - TL-SF1008LP
Input current Power - 0.81 A
IPv4 & IPv6 features Protocols - IPv6 portal
Jumbo frames Data transmission - 2000
Jumbo frames support Data transmission - Yes
Laenge - 0.29
LED indicators Design - Yes
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional Fast Ethernet Switch with 4 PoE PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mDedicated 4-Port PoE Switch (41 W Budget) for Numerous ApplicationsCompliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Priority VideoQuality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
LongProductName - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
LongSummaryDescription - TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
MAC address auto-aging supported Network - Yes
MAC address auto-learning supported Network - Yes
MAC address table Data transmission - 2000 entries
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Model - TL-SF1008LP
Name - TP-Link TL-SF1008LP
Name - TP-LINK | Switch | TL-SF1008LP | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 8 | Power over Ethernet (PoE) ports quantity 4 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 10GBASE-T, 100BASE-TX
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3x
Networking standards Network - IEEE 802.3af, IEEE 802.3x
Number of fans Design - 0 fan(s)
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 160.61 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Bandwidth - 1.6 Gbit/s
Other features > Power supply type - External
Package depth Packaging data - 280 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 280 mm
Package features > Gross depth master carton - 580 mm
Package features > Gross height (mm) - 223.00 mm
Package features > Gross height master carton - 230 mm
Package features > Gross weight - 0.921 kg
Package features > Gross width (mm) - 65 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 11.052 kg
Package features > Packing quantity - 12 pc(s)
Package features > Palette Qty - 324 pc(s)
Package features > Paper/Pasteboard - 184.00 g
Package features > Plastic (No PET) - 46.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Tare weight master carton - 1.055 kg
Package features > Volume (m3) - 0.0040586 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package weight Packaging data - 750 g
Package width Packaging data - 223 mm
Packaging content - Cables included - AC
Packaging content - User guide - Yes
Packaging data - Package depth - 280 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 750 g
Packaging data - Package width - 223 mm
Performance - Fanless - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 8
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > POE - PoE 802.3 af
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 0.81 A
Power - Power consumption (max) - 47.1 W
Power - Power source - DC/PoE
Power - Power supply included - No
Power connector Ports & interfaces - DC-in jack
Power consumption (max) Power - 47.1 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 41 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) > Power over Ethernet (PoE) power per port - 15.4 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 4
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power source Power - DC/PoE
Power supply included Power - No
Producer - TP-Link
ProducerCode - TL-SF1008LP
Producer product family - Switch
Producer product name - TL-SF1008LP
Product colour Design - Black
ProductName - TL-SF1008LP
Protocols - IPv4 & IPv6 features - IPv6 portal
Protocols - Routing protocols - OSPF
Rack mounting Design - No
Routing protocols Protocols - OSPF
Security - DHCP features - DHCPv6 relay
ShortDescription -
ShortSummaryDescription - TP-Link TL-SF1008LP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
Stackable Design - No
Stck_Kart - 12
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Sustainability - Sustainability compliance - Yes
Sustainability compliance Sustainability - Yes
Switching capacity Data transmission - 1.6 Gbit/s
Switch type Management features - Unmanaged
Technical details > Net weight - 0.691 kg
Technical details > Producer - TP-LINK
Title - TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 41 W
Unit Box Height - 0.226
Unit Box Length - 0.282
Unit Box Width - 0.068
Unit Calculated Volume - 0.004334 cubm
Unit Calculated Weight - 0.93 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/#overview
User guide Packaging content - Yes
Vendor Homepage - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/#overview
Wall mountable Design - Yes
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
Width Weight & dimensions - 171 mm
