ID: 172985
Product code: DN-170074
In stock 3 units
Warranty: 2 years

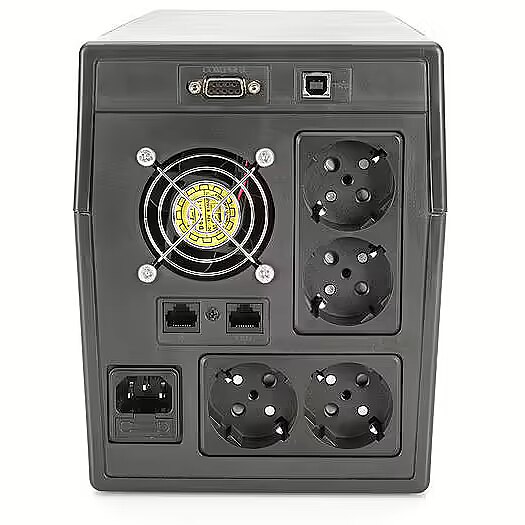

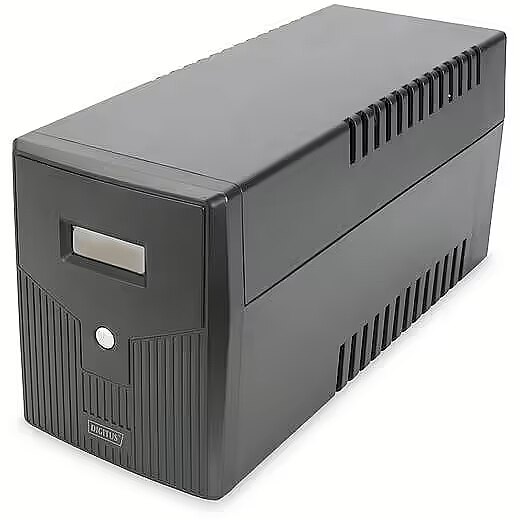

Digitus DN-170074 Line-Ineractive, 1000VA 600W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 600
Description
This UPS Digitus DN-170074 Line-Ineractive, 1000VA 600W with an output power of 600 W and a battery capacity of 1000 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
The use of Schuko connection type in a UPS device ensures a stable electrical connection and grounding protection for the connected equipment. This standard simplifies cable attachment and replacement, reduces the risk of accidental disconnection, and maintains reliable device performance under typical load.
Warranty
Digitus provides a 2 year warranty for this model at all certified service centres.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: 8
Output power (W)
: 600
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: Schuko
USB
: 0
More detailed specification
Active power - 600 W
Apparent power - 1000 VA
ARTIKEL1 - LINE-INTERACT.UPS 1000 VA/600W
ARTIKEL2 - 12V/7AH X2 4X CEE7/7 AVR USB IN
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category1 - UPS systems
Charging time - 8 h
Chassis type - Desktop
Code - DN-170074
Color - Black
Description - Zasilacz awaryjny UPS Line-Interactive LCD, 1000VA/600W Wysokowydajna ochrona domowych lub biurowych systemów komputerowych przed utratą i uszkodzeniem danych. UPS Line-Interactive firmy DIGITUS posiadają kompaktowe rozmiary oraz gwarantują wysoką niezawodność i wydajność dzięki zastosowaniu sterowania mikroprocesorowego. Są łatwe w obsłudze oraz zapewniają skuteczne zabezpieczenie domowych lub biurowych systemów komputerowych przed utratą i uszkodzeniem danych. Cechy szczególne, takie jak zabezpieczenie przed przeciążeniem, wyładowaniem i przeładowaniem, funkcja zimnego startu oraz energooszczędność i akustyczny system alarmowy, to tylko niektóre zalety UPS Line-Interactive firmy DIGITUS.
Description1 - Digitus UPS Line-Interactive DN-170074 - 1000 VA - 600 W
Description2 - Provides reliable protection against data loss and voltage damage in the office and home office- Buck/boost converter to stabilize the voltage- Fast bridging time in the event of power failures- Compact housing for space-saving installation in your IT infrastructure- Fast loading time- Generates a low noise level of less than 40 dBThe DIGITUS® Line-Interactive UPS systems provide uninterruptible power supply in a compact size and with excellent microprocessor control, which guarantees high reliability. Protect your office or business equipment against data loss and damage caused by faults in the power grid or power failures. The UPS devices are easy to use and offer maximum performance and security. Features such as overload, discharge and overcharge protection, a cold start function and energy-saving properties as well as an acoustic alarm system are just some of the advantages of the DIGITUS® Line-Interactive UPS systems.
Design > Form factor - Wallmount
Designation - CE+WEEE
dimension depth - 195 mm
dimension height - 235 mm
Dimensions - 162 x 150 x 338 mm (wysokość x szerokość x głębokość)
dimension weight - 9000 g
dimension width - 405 mm
EAN - 4016032441366
ean - 4016032441366
EANCode - 4016032441366
Eans - 4016032441366
Environment requirements - Temperatura pracy: 0-40°C Wilgotność: do 95% (bez kondensacji)
Filters / protection - Overcharging
Filters / protection - Overdischarge
Filters / protection - Overload
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
HSTNUMMER - DN-170074
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - Type F Schuko
Link - https://www.assmann.com/en/products/network-and-server-cabinets/power-supply/uninterruptible-power-supplies/dn-170074/
Manufacturer - Digitus
ManufacturerID - DN-170074
Name - Digitus DN-170074
Name - Digitus | Line-Interactive UPS | Line-Interactive UPS DN-170074, 1000VA, 600W, 2x 12V/7Ah battery, 4x CEE 7/7 outlet, 2x RJ45, 1x USB 2.0 type B, 1x RS232, LCD, Simulated Sine Wave, 338x150x162mm, 7.8kg | 1000 VA | 600 W
name - UPS Line-Ineractive 1000VA/600W LCD
No. of batteries - 2
Number of phases input - 1 (230V)
Other features - Napięcie wejściowe: 230 VAC Zakres napięcia: 162-290 VAC Częstotliwość wejściowa: 50Hz/60Hz (automatyczne wykrywanie) Napięcie wyjściowe: 230 V AC 10% Regulacja prądu zmiennego (tryb bateryjny): 10% Częstotliwość wyjściowa (Tryb bateryjny): 50 Hz 1% Kształt fali wyjściowej (tryb bateryjny): Symulowana sinusoida Standardowy czas ładowania: 6-8 godzin dla uzyskania 90% naładowania Alarmy dźwiękowe: tryb bateryjny (co 10 sekund), niski poziom baterii (co sekundę), przeciążenie (co 0,5 sekundy), usterka (dźwięk ciągły) Poziom hałasu: poniżej 40dB Układ automatycznej regulacji napięcia sieciowego Boost and Back AVR Automatyczny restart po wznowieniu zasilania sieciowego Wyświetlacz LCD
Output power ports - 4 x C/F type (Schuko)
Package features > Classification of battery - CL126:NEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 405.00 mm
Package features > Gross depth master carton - 425 mm
Package features > Gross height (mm) - 192 mm
Package features > Gross height master carton - 260 mm
Package features > Gross width (mm) - 235 mm
Package features > Gross width master carton - 405 mm
Package features > Net weight master carton - 17 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 76 pc(s)
Package features > Paper/Pasteboard - 366 g
Package features > Plastic (No PET) - 41 g
Package features > Tare weight (kg) - 0.41 kg
Package features > Tare weight master carton - 0.761 kg
Package features > TI weight (kg) - 4.37 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0182736 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 300
PackageLength - 450
PackageWeight - 12360
PackageWidth - 230
Performance > Capacity - 1000 VA
Performance > UPS topology - Line-Interactive
Performance > Waveform - Simulated Sine Wave
Ports & interfaces > AC outlets quantity - 4
producer - Digitus
Producer - Digitus
ProducerCode - DN-170074
Producer product family - Line-Interactive UPS
Producer product name - Line-Interactive UPS DN-170074, 1000VA, 600W, 2x 12V/7Ah battery, 4x CEE 7/7 outlet, 2x RJ45, 1x USB 2.0 type B, 1x RS232, LCD, Simulated Sine Wave, 338x150x162mm, 7.8kg
ShortDescription -
Stck_Kart - 2
Stck_Pal - 0
Storno - Y
Technical details > Capacity - 600 W
Technical details > Gross weight - 8.507 kg
Technical details > Net weight - 8.1 kg
Technical details > Other features - 1000 VA Line-Interactive UPS; 230 VAC 50Hz nominal output; LCD display; Noise level: Less than 40 dB; Overload, Discharge and Overcharge protection
Technical details > Producer - Digitus
UPS Architecture - line-interactive
vendpn - DN-170074
Voltage - 12 V
Warranty - 24
Warranty - 24 month(s)
Warranty - Gwarancja producenta: 24 miesiące.
Uwaga: Gwarancja na baterię wynosi 6 miesięcy.
WEEE - DE83654239
Weight - 7.8 kg
Apparent power - 1000 VA
ARTIKEL1 - LINE-INTERACT.UPS 1000 VA/600W
ARTIKEL2 - 12V/7AH X2 4X CEE7/7 AVR USB IN
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category1 - UPS systems
Charging time - 8 h
Chassis type - Desktop
Code - DN-170074
Color - Black
Description - Zasilacz awaryjny UPS Line-Interactive LCD, 1000VA/600W Wysokowydajna ochrona domowych lub biurowych systemów komputerowych przed utratą i uszkodzeniem danych. UPS Line-Interactive firmy DIGITUS posiadają kompaktowe rozmiary oraz gwarantują wysoką niezawodność i wydajność dzięki zastosowaniu sterowania mikroprocesorowego. Są łatwe w obsłudze oraz zapewniają skuteczne zabezpieczenie domowych lub biurowych systemów komputerowych przed utratą i uszkodzeniem danych. Cechy szczególne, takie jak zabezpieczenie przed przeciążeniem, wyładowaniem i przeładowaniem, funkcja zimnego startu oraz energooszczędność i akustyczny system alarmowy, to tylko niektóre zalety UPS Line-Interactive firmy DIGITUS.
Description1 - Digitus UPS Line-Interactive DN-170074 - 1000 VA - 600 W
Description2 - Provides reliable protection against data loss and voltage damage in the office and home office- Buck/boost converter to stabilize the voltage- Fast bridging time in the event of power failures- Compact housing for space-saving installation in your IT infrastructure- Fast loading time- Generates a low noise level of less than 40 dBThe DIGITUS® Line-Interactive UPS systems provide uninterruptible power supply in a compact size and with excellent microprocessor control, which guarantees high reliability. Protect your office or business equipment against data loss and damage caused by faults in the power grid or power failures. The UPS devices are easy to use and offer maximum performance and security. Features such as overload, discharge and overcharge protection, a cold start function and energy-saving properties as well as an acoustic alarm system are just some of the advantages of the DIGITUS® Line-Interactive UPS systems.
Design > Form factor - Wallmount
Designation - CE+WEEE
dimension depth - 195 mm
dimension height - 235 mm
Dimensions - 162 x 150 x 338 mm (wysokość x szerokość x głębokość)
dimension weight - 9000 g
dimension width - 405 mm
EAN - 4016032441366
ean - 4016032441366
EANCode - 4016032441366
Eans - 4016032441366
Environment requirements - Temperatura pracy: 0-40°C Wilgotność: do 95% (bez kondensacji)
Filters / protection - Overcharging
Filters / protection - Overdischarge
Filters / protection - Overload
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
HSTNUMMER - DN-170074
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - Type F Schuko
Link - https://www.assmann.com/en/products/network-and-server-cabinets/power-supply/uninterruptible-power-supplies/dn-170074/
Manufacturer - Digitus
ManufacturerID - DN-170074
Name - Digitus DN-170074
Name - Digitus | Line-Interactive UPS | Line-Interactive UPS DN-170074, 1000VA, 600W, 2x 12V/7Ah battery, 4x CEE 7/7 outlet, 2x RJ45, 1x USB 2.0 type B, 1x RS232, LCD, Simulated Sine Wave, 338x150x162mm, 7.8kg | 1000 VA | 600 W
name - UPS Line-Ineractive 1000VA/600W LCD
No. of batteries - 2
Number of phases input - 1 (230V)
Other features - Napięcie wejściowe: 230 VAC Zakres napięcia: 162-290 VAC Częstotliwość wejściowa: 50Hz/60Hz (automatyczne wykrywanie) Napięcie wyjściowe: 230 V AC 10% Regulacja prądu zmiennego (tryb bateryjny): 10% Częstotliwość wyjściowa (Tryb bateryjny): 50 Hz 1% Kształt fali wyjściowej (tryb bateryjny): Symulowana sinusoida Standardowy czas ładowania: 6-8 godzin dla uzyskania 90% naładowania Alarmy dźwiękowe: tryb bateryjny (co 10 sekund), niski poziom baterii (co sekundę), przeciążenie (co 0,5 sekundy), usterka (dźwięk ciągły) Poziom hałasu: poniżej 40dB Układ automatycznej regulacji napięcia sieciowego Boost and Back AVR Automatyczny restart po wznowieniu zasilania sieciowego Wyświetlacz LCD
Output power ports - 4 x C/F type (Schuko)
Package features > Classification of battery - CL126:NEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 405.00 mm
Package features > Gross depth master carton - 425 mm
Package features > Gross height (mm) - 192 mm
Package features > Gross height master carton - 260 mm
Package features > Gross width (mm) - 235 mm
Package features > Gross width master carton - 405 mm
Package features > Net weight master carton - 17 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 76 pc(s)
Package features > Paper/Pasteboard - 366 g
Package features > Plastic (No PET) - 41 g
Package features > Tare weight (kg) - 0.41 kg
Package features > Tare weight master carton - 0.761 kg
Package features > TI weight (kg) - 4.37 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0182736 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 300
PackageLength - 450
PackageWeight - 12360
PackageWidth - 230
Performance > Capacity - 1000 VA
Performance > UPS topology - Line-Interactive
Performance > Waveform - Simulated Sine Wave
Ports & interfaces > AC outlets quantity - 4
producer - Digitus
Producer - Digitus
ProducerCode - DN-170074
Producer product family - Line-Interactive UPS
Producer product name - Line-Interactive UPS DN-170074, 1000VA, 600W, 2x 12V/7Ah battery, 4x CEE 7/7 outlet, 2x RJ45, 1x USB 2.0 type B, 1x RS232, LCD, Simulated Sine Wave, 338x150x162mm, 7.8kg
ShortDescription -
Stck_Kart - 2
Stck_Pal - 0
Storno - Y
Technical details > Capacity - 600 W
Technical details > Gross weight - 8.507 kg
Technical details > Net weight - 8.1 kg
Technical details > Other features - 1000 VA Line-Interactive UPS; 230 VAC 50Hz nominal output; LCD display; Noise level: Less than 40 dB; Overload, Discharge and Overcharge protection
Technical details > Producer - Digitus
UPS Architecture - line-interactive
vendpn - DN-170074
Voltage - 12 V
Warranty - 24
Warranty - 24 month(s)
Warranty - Gwarancja producenta: 24 miesiące.
Uwaga: Gwarancja na baterię wynosi 6 miesięcy.
WEEE - DE83654239
Weight - 7.8 kg
