ID: 157325
Product code: EL1200USBDIN
In stock 2 units
Warranty: 2 years

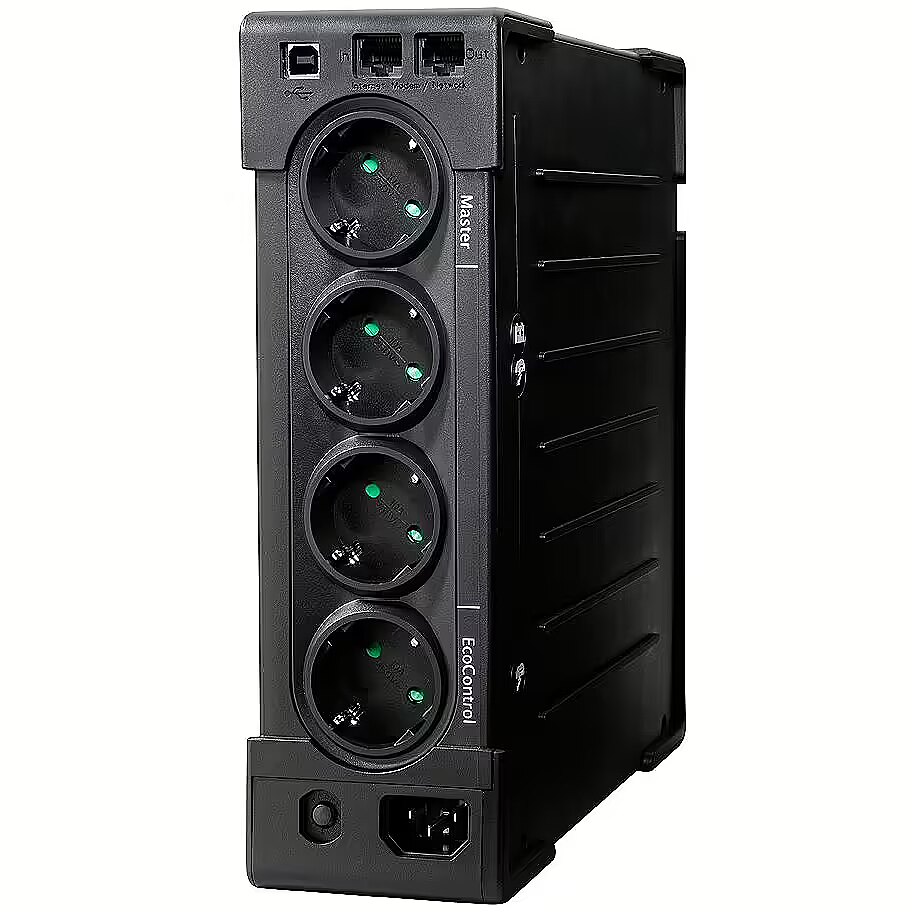

Eaton EL1200USBDIN, 1200VA 750W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 1200 VA
- Output power (W): 750 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
1200 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 8h
Output power (W)
: 750 W
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: Schuko
USB
: 0
More detailed specification
Alarm - -
ARTIKEL1 - EATON ELLIPSE ECO 1200 USB DIN
ARTIKEL2 - IN
BatteryType - Replaceable sealed lead acid
Category Code - UPW
Color - -
Colour - Black
ControlPanel - -
Depth - 312 mm
Description - Eaton Ellipse ECO 1200 DIN USB The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Desktop/pedestal Mounting Type - Yes
Dimensions - 305 x 81 x 312mm
EANCode - 3553340621222
FormFactor - Tower
Gewicht - 7.63
GrossWeight - 7.750 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Height - 305 mm
HERSTELLER - EATON
Hoehe - 0.14
HSTNUMMER - EL1200USBDIN
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input ports - Single, IEC320 C14
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
Laenge - 0.4
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE
OutputConnections - 8
OutputFrequency - -
Output power capacity, VA - 1200 VA
Output power capacity, W - 750 Watts
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
PowerVAW - 1200 VA
PowerW - 750 W
ProdDesc - 1200VA/750W UPS, offline, DIN 4+4, Windows/MacOS/Linux support, USB
Product Net Weight - 7 kg
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack Mounting Type - Yes
RechargeTime - -
RJ45 - -
Runtime - 10/6
SmartSlot - -
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Topology - Offline
Unit Box Height - 0.39
Unit Box Length - 0.36
Unit Box Width - 0.14
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 8 kg
Units per Shipping Box - 1
USB - Yes
USB Communication ports - 1
Vendor Homepage - powerquality.eaton.com/EL1200USBDIN.aspx?cx=175
Warranty - 2 years
Warranty - 24 months
WaveformType - -
Weight - 6.700 Kg
Width - 81 mm
