ID: 128380
Product code: EL800USBIEC
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years

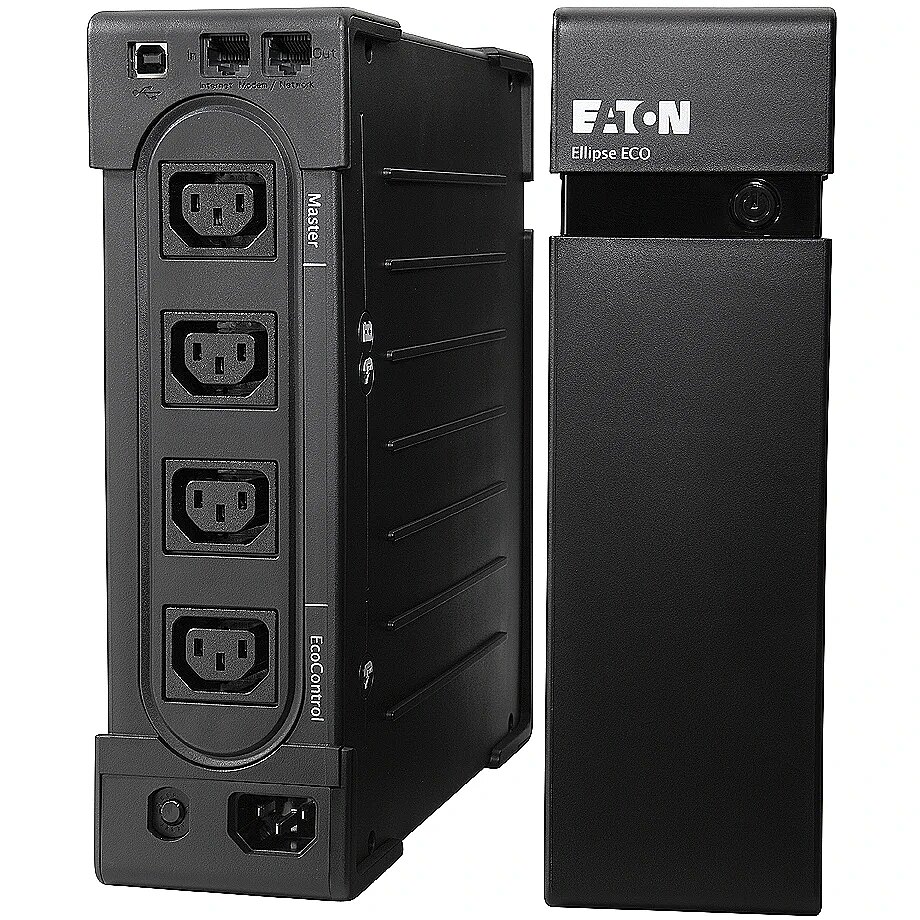

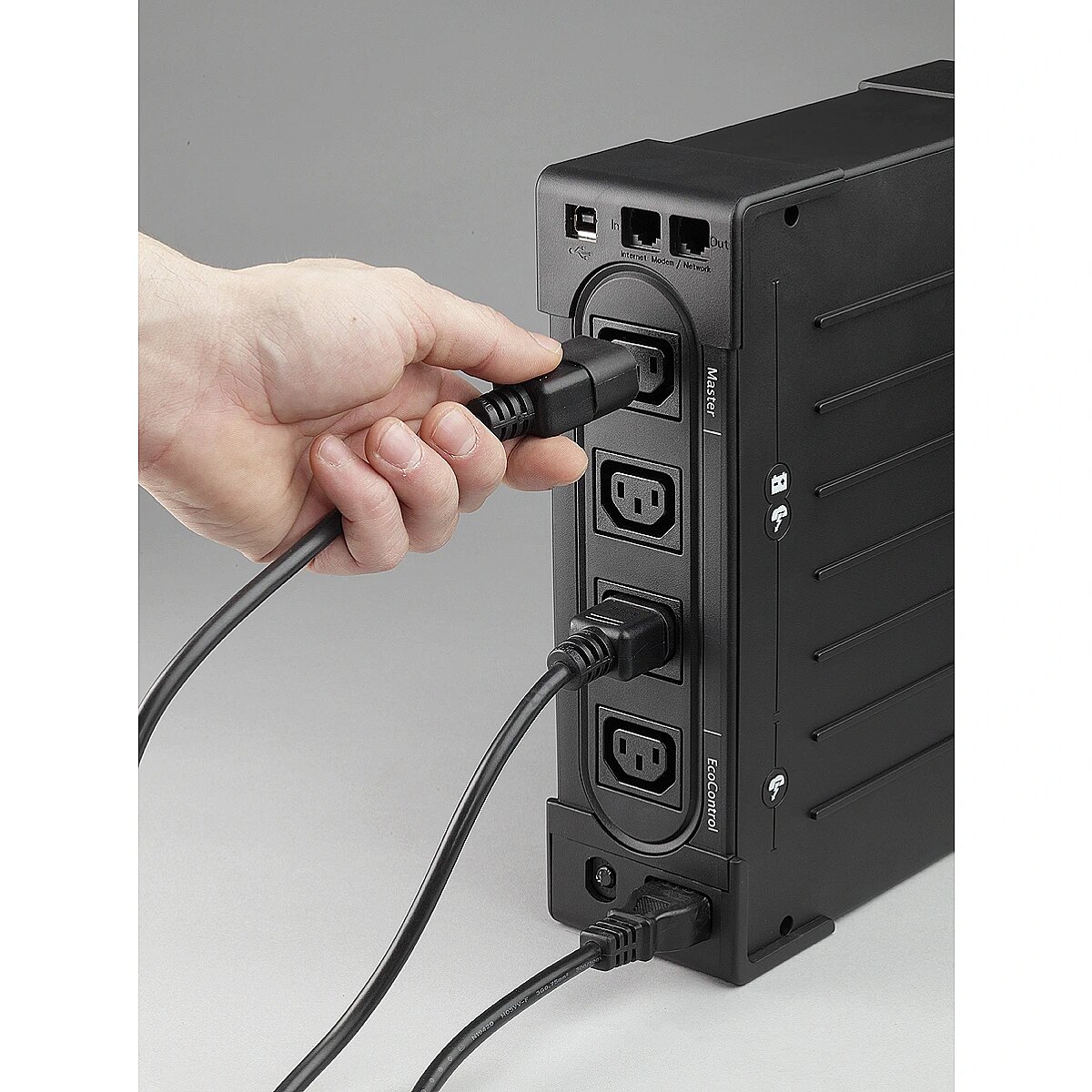

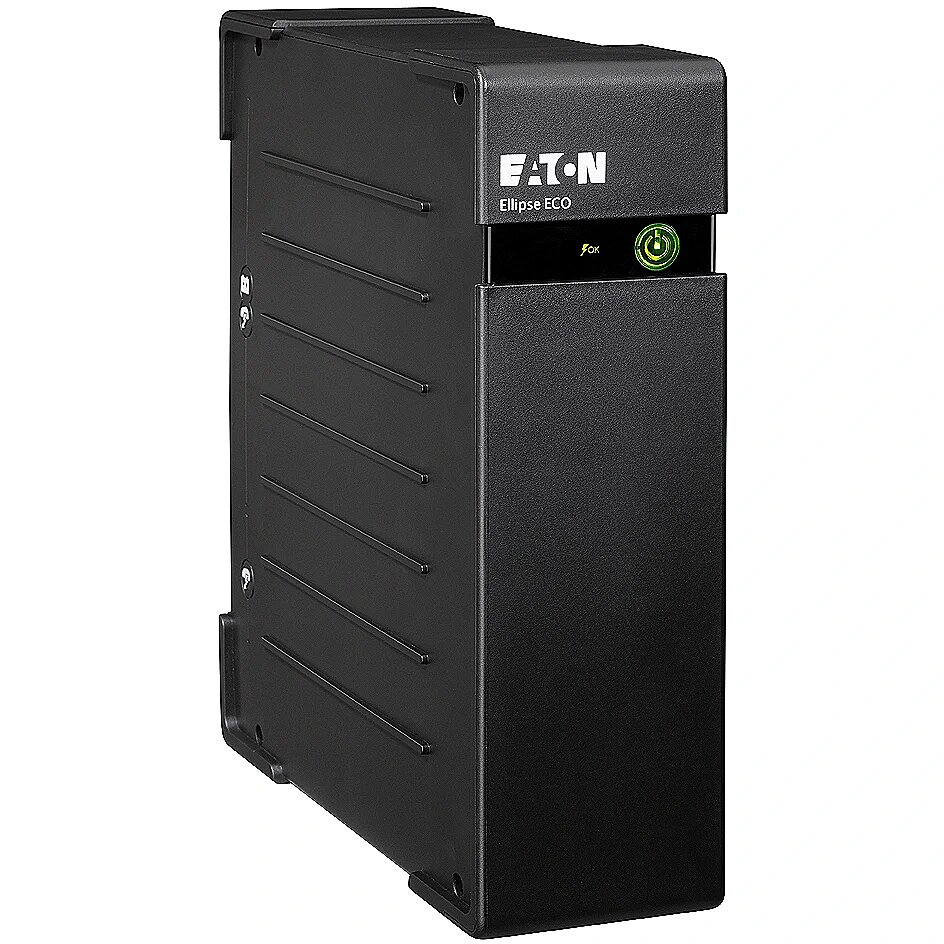

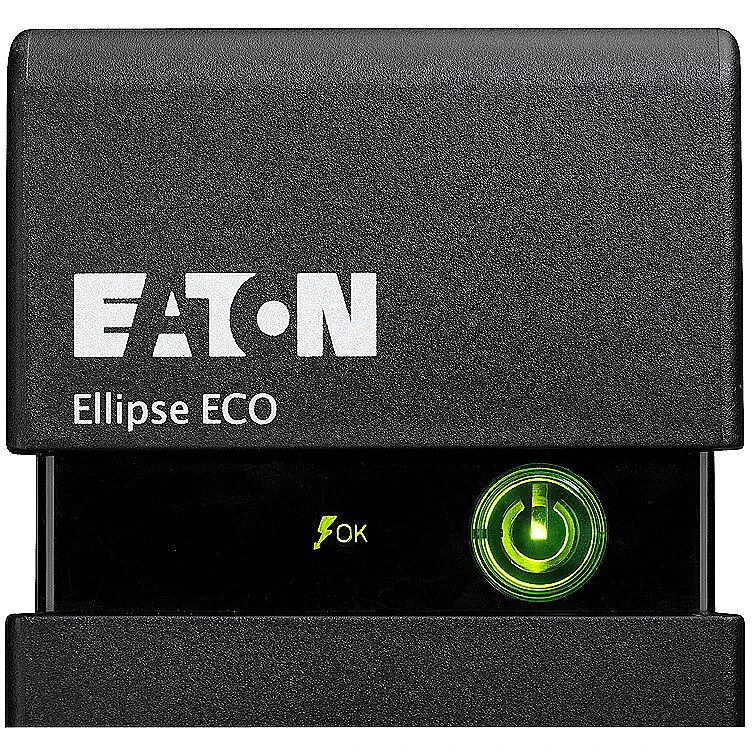

Eaton EL800USBIEC, 800VA 500W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 800
- Output power (W): 500
Description
This UPS Eaton EL800USBIEC, 800VA 500W, IEC with an output power of 500 W and a battery capacity of 800 VA is suitable for workstations with moderate load. It maintains voltage stability and ensures safe system shutdown.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: EL800USBIEC
Display characteristics
Display
: There isn't
Basic information
Battery capacity (VA)
800
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 500
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 11 min
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
dimensionalWeight - 2593
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 500 W
Features - Output power capacity - 0.8 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Logistics data - Harmonized System (HS) code - 85078000
Other features - Compatible operating systems - Windows 7/Vista/XP\r\nMac OS X\r\nLinux
Other features - Input connection type - IEC
Other features - Mac compatibility - Yes
Other features - Nominal input voltage - 220 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
Packaging data - Bundled software - Eaton Intelligent Power
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
producerCode - EL800USBIEC
productName - Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
productSize - Normal
sizeX - 140
sizeY - 285
sizeZ - 325
warrantyLength - 24
warrantyType - F
weight - 4840
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 4.1 kg
Weight & dimensions - Width - 81 mm
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 11 min
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
dimensionalWeight - 2593
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 500 W
Features - Output power capacity - 0.8 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Logistics data - Harmonized System (HS) code - 85078000
Other features - Compatible operating systems - Windows 7/Vista/XP\r\nMac OS X\r\nLinux
Other features - Input connection type - IEC
Other features - Mac compatibility - Yes
Other features - Nominal input voltage - 220 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
Packaging data - Bundled software - Eaton Intelligent Power
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
producerCode - EL800USBIEC
productName - Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
productSize - Normal
sizeX - 140
sizeY - 285
sizeZ - 325
warrantyLength - 24
warrantyType - F
weight - 4840
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 4.1 kg
Weight & dimensions - Width - 81 mm
