Active power - 6000
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery capacity - 5
Brand - Legrand
BrandPartCode - 311348
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 4

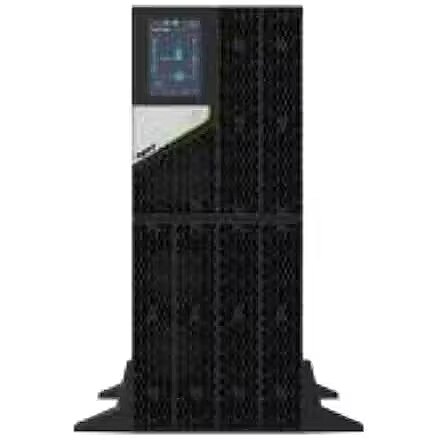

Description - The Legrand Keor DK UPS is an uninterruptible power supply featuring high-frequency PWM technology, online double conversion, a fixed neutral conductor, and a rated power of 5000 or 6000 VA with a power factor (PF) of 1. It is equipped with valve-regulated, sealed batteries, housed in a dedicated compartment inside the UPS or in one or more external cabinets. Both the electronics and batteries are contained within just four rack-type units.
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - Modular - No
Design - Product colour - Black
dimension depth - 310 mm
dimension height - 580 mm
Dimensions - 440 x 176 x 700 mm
dimension weight - 65000 g
dimension width - 910 mm
ean - 3414972944809
Environment requirements - Operating temperature: 0 - 40°C Ingress protection rating: IP20 Relative humidity: 0-95%, non-condensing
Features - ECO mode - Yes
Features - Efficiency - 95.1%
Features - Efficiency (ECO mode) - 99%
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 27.5 A
Features - Noise level - 45 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 5000 W
Features - Output power capacity - 5 kVA
Features - Output power factor - 1
Features - UPS topology - Double-conversion (Online)
GTIN - 3414972944809
guarantee - 24
guarantee_type - external
LongDesc - Keor DK is a single phase uninterruptible power supply UPS with high frequency PWM tecnology, online double conversion.It delivers a rated power from 1 to 20 kVA with VRLA and lithium batteries, designed for critical application.
LongProductName - Online, 5 kW, 5 kVA, 8x IEC C13, 2x IEC C19, IP20
LongSummaryDescription - Legrand Keor DK. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA). Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 440 mm, Depth: 700 mm, Height: 176 mm
name - UPS Keor DK 5kVA 6min 311348
No. of batteries - 20
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -10 - 50 °C
Packaging content - Manual - Yes
Ports & interfaces - Number of output IEC jumpers - 10
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB port - Yes
producer - Legrand
ProductName - Keor DK
ShortSummaryDescription - Legrand Keor DK, Double-conversion (Online), 5 kVA, 5000 W, 176 V, 280 V, 45/65 Hz
Title - Legrand Keor DK uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W
URL - https://www.legrand.co.ke/en/catalog/products/ups-keor-dk-5000va-with-battery-8-iec-c13-2-iec-c19-terminal-strips-311348
vendpn - 311348
Voltage - 12
WarrantyInfo -
Weight - 54
Weight & dimensions - Depth - 700 mm
Weight & dimensions - Height - 176 mm
Weight & dimensions - Weight - 54 kg
Weight & dimensions - Width - 440 mm
