ID: 1295975
Product code: 311340
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

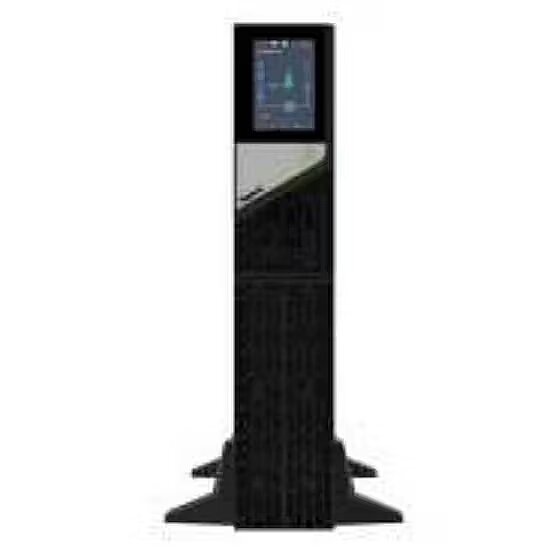

Legrand UPS Keor DK 1kVA 9 min
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Post OfficeWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days15.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 1000
Description
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Legrand provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 5
Output power (W)
: 1000
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 1
More detailed specification
Active power - 1000 kW
Apparent power - 1000 VA
Battery - Battery capacity - 7200 mAh
Battery - Battery recharge time - 4 h
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of batteries included - 3 pc(s)
Battery capacity - 7.2 Ah
Brand - Legrand
BrandPartCode - 311340
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 5 h
Color - Black
Data Act - Link
Description - The Legrand Keor DK UPS is an uninterruptible power supply featuring high-frequency PWM technology, online double conversion, a fixed neutral conductor, a rated power of 1000 VA, and a power factor (PF) of 1. It is equipped with valve-regulated, sealed batteries, housed in a dedicated compartment inside the UPS or in one or more external cabinets. Both the electronics and batteries are contained within just two rack-type cabinets.
Design - Control type - Touch
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 220 mm
dimension height - 570 mm
Dimensions - 440 x 88 x 454 mm
dimension weight - 19000 g
dimension width - 650 mm
ean - 3414972944724
Environment requirements - Operating temperature: 0 - 40°C Relative humidity: 0-95%, non-condensing Noise level at 1m: 41-50dB with intelligent noise control Ingress protection rating: IP20
Features - Crest factor - 3:1
Features - Efficiency - 92%
Features - Efficiency (ECO mode) - 98.3%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 176 V
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 1000 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Power factor - 0.99
Features - UPS topology - Double-conversion (Online)
guarantee - 24
guarantee_type - external
I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
LongDesc - Keor DK is a single-phase UPS with online double conversion technology, designed to ensure uninterrupted operation for even the most critical applications. With a power range from 1 to 20 kVA and compatibility with both VRLA and lithium batteries, it delivers flexibility and reliability in any environment.Thanks to advanced AC-AC technology, Keor DK achieves up to 96% energy efficiency (reaching 98% in ECO mode) helping to significantly reduce operating costs and environmental impact.Available in both tower and 19" rack configurations, Keor DK is the ideal solution for those who demand high performance, energy efficiency, and versatility in one powerful system.
LongProductName - Keor DK 1000VA On-Line Monofase Convertibile
LongSummaryDescription - Legrand Keor DK. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 7200 mAh, Battery voltage: 12 V, Number of batteries included: 3 pc(s). Form factor: Rackmount, Product colour: Black, Control type: Touch. Width: 440 mm, Depth: 454 mm, Height: 88 mm
name - UPS Keor DK 1kVA 9 min 311340
No. of batteries - 3
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Network card slot - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - USB port - Yes
producer - Legrand
ProductName - Keor DK
ShortSummaryDescription - Legrand Keor DK, Double-conversion (Online), 1 kVA, 1000 W, 176 V, 280 V, 50/60 Hz
The shape of the output voltage - Full sine wave
Title - Legrand Keor DK uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 6 AC outlet(s)
UPS Architecture - on-line double conversion
URL - https://ups.legrand.com/en/products/keor-dk
vendpn - 311340
WarrantyInfo -
Weight - 14.8 kg
Weight & dimensions - Depth - 454 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 14.8 kg
Weight & dimensions - Width - 440 mm
Apparent power - 1000 VA
Battery - Battery capacity - 7200 mAh
Battery - Battery recharge time - 4 h
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of batteries included - 3 pc(s)
Battery capacity - 7.2 Ah
Brand - Legrand
BrandPartCode - 311340
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 5 h
Color - Black
Data Act - Link
Description - The Legrand Keor DK UPS is an uninterruptible power supply featuring high-frequency PWM technology, online double conversion, a fixed neutral conductor, a rated power of 1000 VA, and a power factor (PF) of 1. It is equipped with valve-regulated, sealed batteries, housed in a dedicated compartment inside the UPS or in one or more external cabinets. Both the electronics and batteries are contained within just two rack-type cabinets.
Design - Control type - Touch
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 220 mm
dimension height - 570 mm
Dimensions - 440 x 88 x 454 mm
dimension weight - 19000 g
dimension width - 650 mm
ean - 3414972944724
Environment requirements - Operating temperature: 0 - 40°C Relative humidity: 0-95%, non-condensing Noise level at 1m: 41-50dB with intelligent noise control Ingress protection rating: IP20
Features - Crest factor - 3:1
Features - Efficiency - 92%
Features - Efficiency (ECO mode) - 98.3%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 176 V
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 1000 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Power factor - 0.99
Features - UPS topology - Double-conversion (Online)
guarantee - 24
guarantee_type - external
I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
LongDesc - Keor DK is a single-phase UPS with online double conversion technology, designed to ensure uninterrupted operation for even the most critical applications. With a power range from 1 to 20 kVA and compatibility with both VRLA and lithium batteries, it delivers flexibility and reliability in any environment.Thanks to advanced AC-AC technology, Keor DK achieves up to 96% energy efficiency (reaching 98% in ECO mode) helping to significantly reduce operating costs and environmental impact.Available in both tower and 19" rack configurations, Keor DK is the ideal solution for those who demand high performance, energy efficiency, and versatility in one powerful system.
LongProductName - Keor DK 1000VA On-Line Monofase Convertibile
LongSummaryDescription - Legrand Keor DK. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 7200 mAh, Battery voltage: 12 V, Number of batteries included: 3 pc(s). Form factor: Rackmount, Product colour: Black, Control type: Touch. Width: 440 mm, Depth: 454 mm, Height: 88 mm
name - UPS Keor DK 1kVA 9 min 311340
No. of batteries - 3
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Network card slot - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - USB port - Yes
producer - Legrand
ProductName - Keor DK
ShortSummaryDescription - Legrand Keor DK, Double-conversion (Online), 1 kVA, 1000 W, 176 V, 280 V, 50/60 Hz
The shape of the output voltage - Full sine wave
Title - Legrand Keor DK uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 6 AC outlet(s)
UPS Architecture - on-line double conversion
URL - https://ups.legrand.com/en/products/keor-dk
vendpn - 311340
WarrantyInfo -
Weight - 14.8 kg
Weight & dimensions - Depth - 454 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 14.8 kg
Weight & dimensions - Width - 440 mm
