ID: 1148347
Product code: VIDI-ZBF-100PB
In stock 1 units
Warranty: 2 years
Genway POWER SUPPLY 12VDC 10A/VIDI-ZBF-100PB

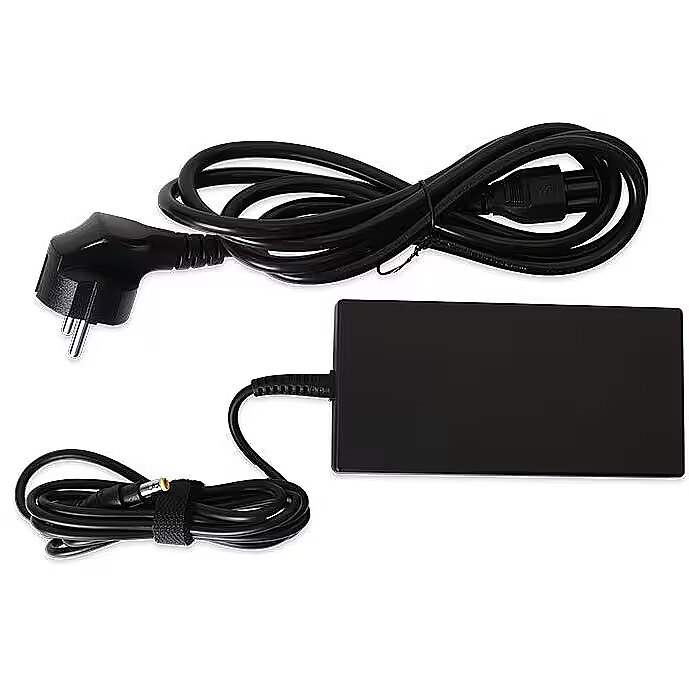

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): N/A
- Output power (W): 142
All parameters
Model
: VIDI-ZBF-100PB
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
N/A
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 142
Ports and equipment
Number of nests (total)
: 1
Number of sockets (Battery Backup)
: 1
RJ-45
: 0
Socket type
: Hard wire
USB
: 0
More detailed specification
Category Code - SPS
Description - VIDI-ZBF-100PB 10A buffer power supply (can be considered as UPS - Uninterruptible Power Supply with a 12V output). The device is characterized by very compact dimensions, but despite this we can fit a 17Ah or 18Ah battery inside. Smooth voltage regulation in the range of 12...14V. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz; Output voltage 12...14V DC; Total power: 142W; Output current: 10A; Battery charging current 1.8A; Indicator lights AC input, DC output, Charging, Low battery; Overcurrent protection; Short circuit protection, Battery overcharge protection; Battery overdischarge protection; battery - not included
Product Net Weight - 0.3 kg
Unit Box Height - 0.115
Unit Box Length - 0.315
Unit Box Width - 0.325
Unit Calculated Volume - 0.01177 cubm
Unit Calculated Weight - 1.8 kg
Units per Shipping Box - 1
Vendor Homepage - www.genway.pl/vidi-zbf-100pb-zasilacz-buforowy-13-8v-10a-18ah.html
Warranty - 24 months
Description - VIDI-ZBF-100PB 10A buffer power supply (can be considered as UPS - Uninterruptible Power Supply with a 12V output). The device is characterized by very compact dimensions, but despite this we can fit a 17Ah or 18Ah battery inside. Smooth voltage regulation in the range of 12...14V. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz; Output voltage 12...14V DC; Total power: 142W; Output current: 10A; Battery charging current 1.8A; Indicator lights AC input, DC output, Charging, Low battery; Overcurrent protection; Short circuit protection, Battery overcharge protection; Battery overdischarge protection; battery - not included
Product Net Weight - 0.3 kg
Unit Box Height - 0.115
Unit Box Length - 0.315
Unit Box Width - 0.325
Unit Calculated Volume - 0.01177 cubm
Unit Calculated Weight - 1.8 kg
Units per Shipping Box - 1
Vendor Homepage - www.genway.pl/vidi-zbf-100pb-zasilacz-buforowy-13-8v-10a-18ah.html
Warranty - 24 months
