ID: 1148344
Product code: VIDI-ZBF-015P
In stock 5 units
Warranty: 2 years

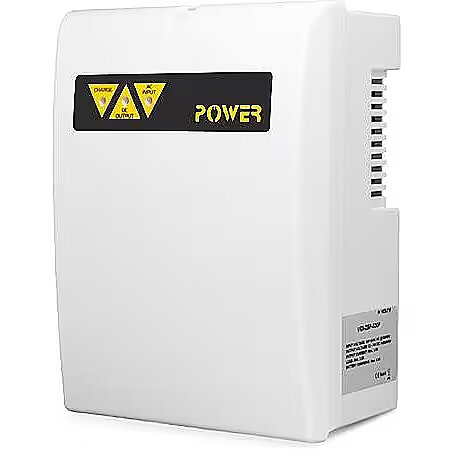

Genway POWER SUPPLY 12VDC 1.5A/VIDI-ZBF-015P
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): N/A
- Output power (W): 32
All parameters
Model
: VIDI-ZBF-015P
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
N/A
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Nav norādīts
Charging time (hours)
: Not specified
Output power (W)
: 32
Ports and equipment
Number of nests (total)
: 1
Number of sockets (Battery Backup)
: 1
RJ-45
: 0
Socket type
: Hard wire
USB
: 0
More detailed specification
Category Code - SPS
Description - VIDI-ZBF-015P 1.5A buffer power supply (can be considered as UPS - Uninterruptible Power Supply with a 12V output). The device is characterized by very compact dimensions, but despite this we can fit a 7Ah or 7.2Ah battery inside. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz. Output voltage when powered from the mains: 13.8V DC. Output voltage when powered from a battery: 10.0-12.5V DC. Total power: 32W. Output current: 1.5A. Battery charging current: 0.8A. Indicator lights: AC input, DC output, Charging. overvoltage protection, short circuit protection, battery overcharge protection, overdischarge protection. Battery not included.
Product Net Weight - 0.3 kg
Unit Box Height - 0.105
Unit Box Length - 0.23
Unit Box Width - 0.185
Unit Calculated Volume - 0.004468 cubm
Unit Calculated Weight - 0.62 kg
Units per Shipping Box - 1
Vendor Homepage - www.genway.pl/vidi-zbf-015p-zasilacz-buforowy-13-8v-1-5a-7ah.html
Warranty - 24 months
Description - VIDI-ZBF-015P 1.5A buffer power supply (can be considered as UPS - Uninterruptible Power Supply with a 12V output). The device is characterized by very compact dimensions, but despite this we can fit a 7Ah or 7.2Ah battery inside. The power supply has lights informing about its operating status. The housing is made of plastic and equipped with ventilation holes and brackets for wall mounting. Input voltage: 190-240V AC 50/60Hz. Output voltage when powered from the mains: 13.8V DC. Output voltage when powered from a battery: 10.0-12.5V DC. Total power: 32W. Output current: 1.5A. Battery charging current: 0.8A. Indicator lights: AC input, DC output, Charging. overvoltage protection, short circuit protection, battery overcharge protection, overdischarge protection. Battery not included.
