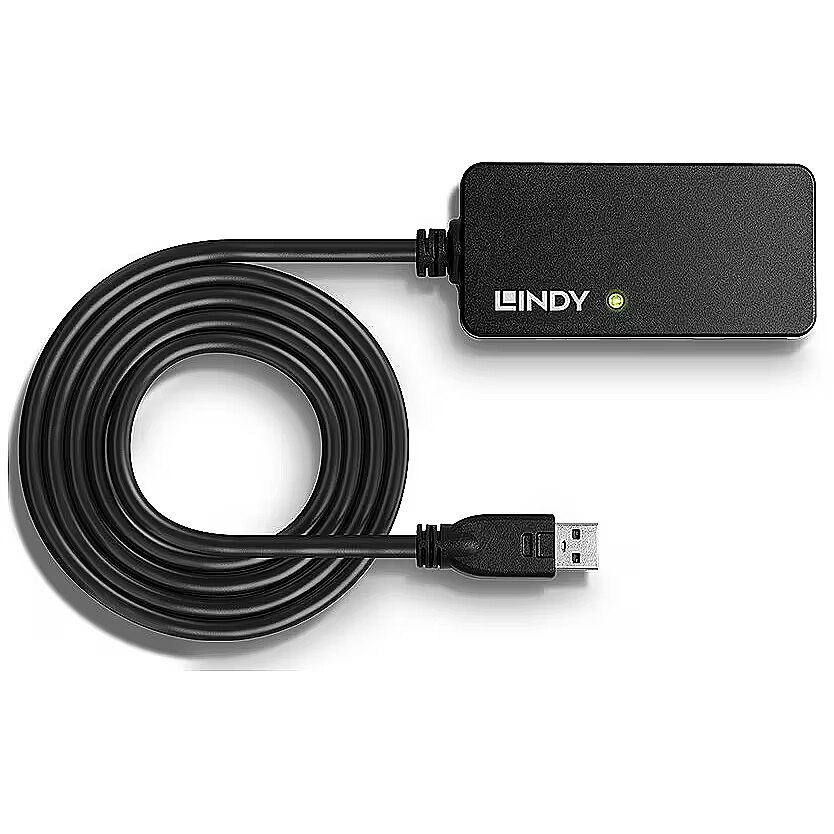

Lindy CABLE USB3 EXTENSION HUB 10M/ACTIVE

Brand - Lindy
BrandPartCode - 43159
Category - Interface Hubs
Category Code - UCB
Category_1 - Cables
Category_2 - Network Cables
CnCode - 85444290
Colour - Black
Connectors - USB / USB
Description - 10m USB 3.0 Active Extension Pro Hub Extend USB 3.0 connections up to 40m
Design - Cable shielding - Aluminum mylar foil
EAN_code - 4002888431590
Features - AWG wire size - 24/24/20
Features - Bend radius (min) - 3.6 cm
Features - Cable diameter - 7 mm
Features - Cable jacket material - Polyvinyl chloride (PVC)
Features - Cable length - 10 m
Features - Cable type - Round cable
Features - Certification - CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Features - Conductor material - Tinned copper
Features - Connector contacts plating - Gold
Features - Contact material - Brass
Features - Data transfer rate - 5000 Mbit/s
Features - Housing material - Plastic
Features - LED indicators - Yes
Features - Nominal attenuation - 0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB
Features - Plating material - Nickel
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Transmission medium - Twisted pair
GTIN - 4002888431590
GTIN - 5053866596458
Length - 10 m
Logistics data - Harmonized System (HS) code - 84719000

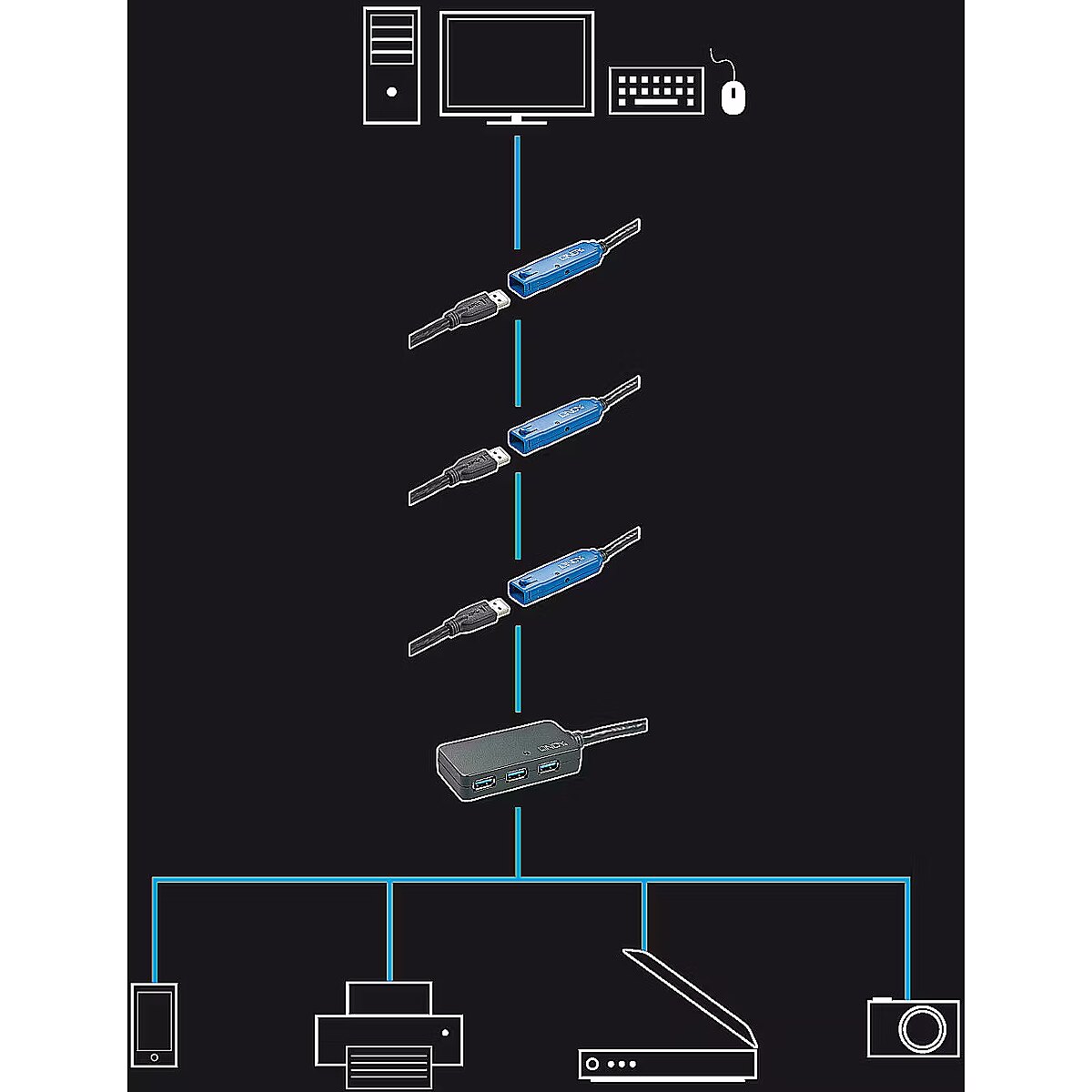

LongDesc - The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).Using this hub as part of the USB 3.0 Active Extension System ProIf you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.This Active Extension Hub Pro must be installed as the final part of the extension system.The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.The final part of the extension can be any cable or hub from the Extension System Pro range.If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.Information about USB 3.0, 3.1 and 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
LongProductName - 10m USB 3.0 Active Extension Pro Hub
LongSummaryDescription - Lindy 10m USB 3.0 Active Extension Pro Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm
Manufacturer - Lindy
Manufacturer_code - 43159
Name - Lindy active extension cable hub Pro USB 3.0 10m - 43159
Operational conditions - Operating temperature (T-T) - -20 - 60 °F
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Packaging content - Manual - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 70 mm
Packaging data - Package type - Box
Packaging data - Package weight - 900 g
Packaging data - Package width - 240 mm
Packaging data - Quantity per pack - 1 pc(s)
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports & interfaces - Hub interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports & interfaces - Ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Power - Power note - 3.5/1.35mm DC
ProductName - 10m USB 3.0 Active Extension Pro Hub
Product Net Weight - 0.29 kg
Product Type - Cable
ShortSummaryDescription - Lindy 10m USB 3.0 Active Extension Pro Hub, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Plastic, Round cable
Title - Lindy 10m USB 3.0 Active Extension Pro Hub
Unit Box Height - 0.067
Unit Box Length - 0.235
Unit Box Width - 0.2
Unit Calculated Volume - 0.003149 cubm
Unit Calculated Weight - 1.15 kg
Units per Shipping Box - 1
URL - https://www.lindy.co.uk/usb-c4/10m-usb-3-0-active-extension-pro-hub-p7313
USB/Lightning cable type - USB to USB
USB 3.0 Input/Output connectors - 3
Vendor Homepage - www.lindy-international.com/10m-USB-3-0-Active-Extension-Pro-Hub-.htm?websale8=ld0101.ld021102&pi=43159&ci=50
Warranty - 24 months
WarrantyInfo -
Weight - 1,18
Weight & dimensions - Connector 1 dimensions (WxDxH) - 15 x 42 x 8 mm
Weight & dimensions - Depth - 38 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Weight - 790 g
Weight & dimensions - Width - 80 mm
