Iiyama ProLite TF1515MC-B2, 15"

Name: Iiyama ProLite TF1515MC-B2, 15"
Brand: Iiyama
SKU: 938940
Price: 418.93 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 938940 Product code: TF1515MC-B2

Can be ordered 5 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Ready for dispatch

26.11.2025

starting from 19.99 €

Delivery options

Delivery with Posti courier mail

Within 1-2 working days

19.99 €

Main product parameters All parameters

Curved: Nav
Panel Type: TN
Refresh rate: 75 Hz
Response time: 8ms
Contrast ratio: 800:1
Brightness: 350cd/m2
Size: 15"
Resolution: WXGA 1024x768

Description

We offer to buy Iiyama 15" a monitor with WXGA 1024x768 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.

All parameters

Model : TF1515MC-B2

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : YES

VESA DisplayHDR : Nav

Response time 8ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.

Contrast ratio 800:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 4:3

Color : Black

Size 15"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution WXGA 1024x768

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

VESA wall mount : 100x100 mm

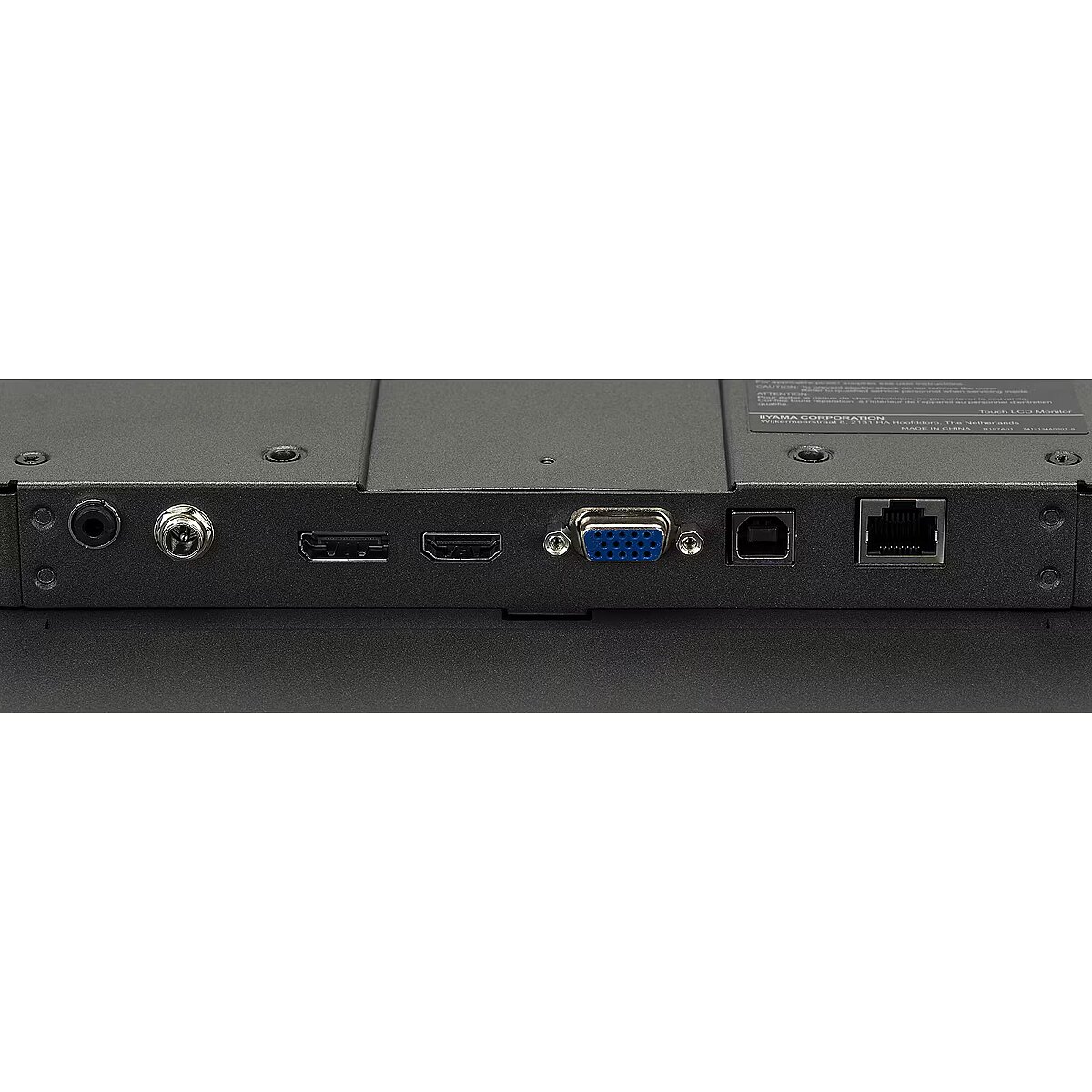

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website Iiyama ProLite TF1515MC-B2, 15"

ARTIKEL1 - TF1515MC-B2 38.1CM 15IN TN
ARTIKEL2 - 1024X768 350CD 10P PCAP-TOUCH
Brand - iiyama
BrandPartCode - TF1515MC-B2
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category 1 - Displays
Category 2 - Monitore
Category_1 - Monitors and TV
Category_2 - Touchscreen
Dane fizyczne: Głębokość - 41.5 mm
Dane fizyczne: Kolor obudowy - czarny
Dane fizyczne: Standard VESA - 100 x 100
Dane fizyczne: Szerokość - 364 mm
Dane fizyczne: Waga - 2.9 kg
Dane fizyczne: Wysokość - 291 mm
Dane techniczne: Czas reakcji - 8 ms
Dane techniczne: Grupa produktowa - Monitory iiyama
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Jasność - 350 cd/m²
Dane techniczne: Producent - iiyama
Dane techniczne: Przekątna - 15 cali (38 cm)
Dane techniczne: Rodzaj podświetlenia - LED
Dane techniczne: Rozdzielczość nominalna - 1024 x 768 piksele
Dane techniczne: Rozmiar plamki - 0.297 mm
Dane techniczne: Standard portów wideo - D-Sub
Dane techniczne: Standard portów wideo - DisplayPort
Dane techniczne: Standard portów wideo - HDMI
Dane techniczne: Typ - interaktywny
Dane techniczne: Typ - reklamowy
Dane techniczne: Typ ekranu - dotykowy
Dane techniczne: Typ matrycy - TN
Design - Front bezel colour - Black
Design - Glass thickness - 6 mm
Design - Product colour - Black
Display - Aspect ratio - 4:3
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 350 cd/m²
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 38.1 cm (15")
Display - Display diagonal (metric) - 38 cm
Display - Display number of colours - 16.2 million colours
Display - Display resolution - 1024 x 768 pixels
Display - Display technology - LED
Display - HD type - XGA
Display - Horizontal scan range - 31.4 - 60 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 4:3
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.297 x 0.297 mm
Display - Response time - 8 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 30.4 cm
Display - Viewable size, vertical - 22.8 cm
Display - Viewing angle, horizontal - 160°
Display - Viewing angle, vertical - 150°
Dodatkowe informacje o matrycy: Format obrazu - 4:3
Dodatkowe informacje o matrycy: Kontrast - 800:1
Dodatkowe informacje o matrycy: Kąt widzenia w pionie - 150 °
Dodatkowe informacje o matrycy: Kąt widzenia w poziomie - 160 °
EAN - 4948570116751
EANCode - 4948570116751
Eans - 4948570116751
EAN_code - 4948570116751
Efektywność energetyczna: Klasa energetyczna (2021) - E
Efektywność energetyczna: Zużycie energii w trybie pracy - 16 W
Ergonomics - LED indicators - Yes
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570116751
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - TF1515MC-B2
Logistics data - Harmonized System (HS) code - 85285210
Logistics data - Pallet net height - 97 cm
Logistics data - Pallet net length - 12 cm
Logistics data - Pallet net width - 86 cm
Logistics data - Products per pallet - 44 pc(s)
LongDesc - The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
LongProductName - Open Frame PCAP 10 point touch screen equipped with touch through glass function
LongSummaryDescription - iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 160°, Viewing angle, vertical: 150°. VESA mounting. Product colour: Black
Manufacturer - Iiyama
Manufacturer - iiyama
Manufacturer_code - TF1515MC-B2
MPN - TF1515MC-B2
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Name - IIYAMA 38.0cm (15") TF1515MC-B2 4:3 M-Touch HDMI+DP
Name - iiyama ProLite TF1515MC-B2
Name - iiyama TF1515MC-B2, LED monitor (black, WVGA, HDMI, touchscreen)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Certification - CB, CE, TÜV-Bauart, EAC, cULus
Other features - Display viewable area (HxV) - 304.1 x 228.1 mm
Other features - International Protection (IP) code - IP65
Other features - Placement supported - Horizontal/Vertical
Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 460 mm
Packaging data - Package height - 470 mm
Packaging data - Package weight - 4.6 kg
Packaging data - Package width - 460 mm
Performance - AMD FreeSync - No
Performance - Linux operating systems supported - Yes
Performance - NVIDIA G-SYNC - No
Performance - Windows operating systems supported - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 10 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 378636
Power - Power consumption (off) - 1.2 W
Power - Power consumption (standby) - 1.2 W
Power - Power consumption (typical) - 16 W
Power - Power supply type - External
Pozostałe cechy: Akcesoria - kabel DisplayPort
Pozostałe cechy: Akcesoria - kabel HDMI
Pozostałe cechy: Akcesoria - kabel zasilający
Pozostałe cechy: Dodatkowe informacje - stopień ochrony: IP65
Pozostałe cechy: Model - Iiyama ProLite TF15MC-B2
Producent: Nazwa producenta / importera - iiyamaiiyama CorporationWijkermeerstraat 82131 HA HoofddropThe NetherlandsEmail: www.iiyama.com
Producer - iiyama
ProducerCode - TF1515MC-B2
ProductName - Open Frame PCAP 10 point touch screen equipped with touch through glass function
ShortDescription -
ShortSummaryDescription - iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function
URL - https://iiyama.com/
WarrantyInfo -
Weight - 5,35
Weight - 5.2
Weight & dimensions - Depth (without stand) - 291 mm
Weight & dimensions - Depth (with stand) - 41.5 mm
Weight & dimensions - Height (without stand) - 41.5 mm
Weight & dimensions - Height (with stand) - 291 mm
Weight & dimensions - Weight (without stand) - 2.9 kg
Weight & dimensions - Weight (with stand) - 2.9 kg
Weight & dimensions - Width (without stand) - 364 mm
Weight & dimensions - Width (with stand) - 364 mm
Złącza: Złącza - 1 x D-Sub 15-pin
Złącza: Złącza - 1 x DisplayPort
Złącza: Złącza - 1 x HDMI
Złącza: Złącza - 1 x USB 2.0 Type-B
Złącza: Złącza - 1 x wyjście audio
