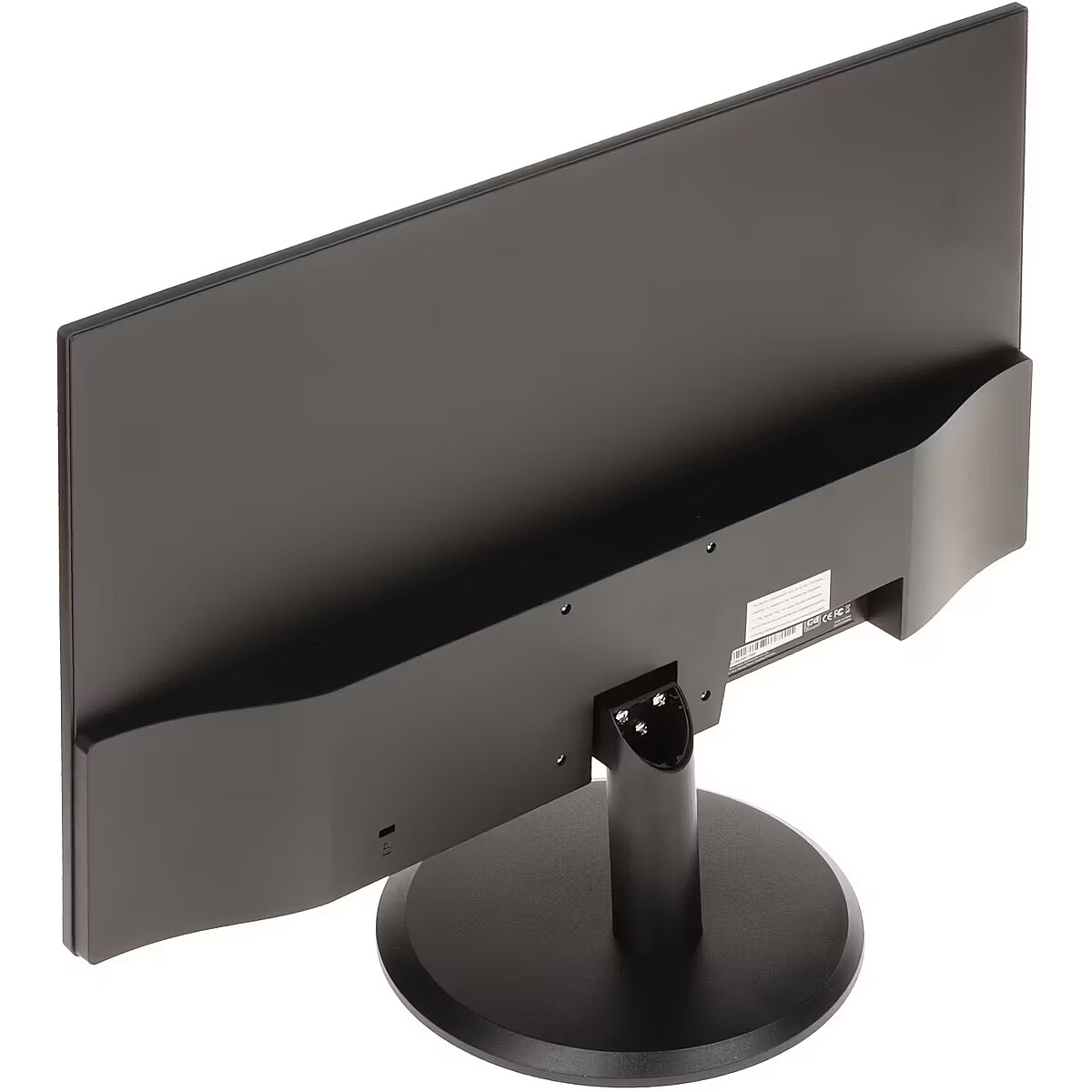

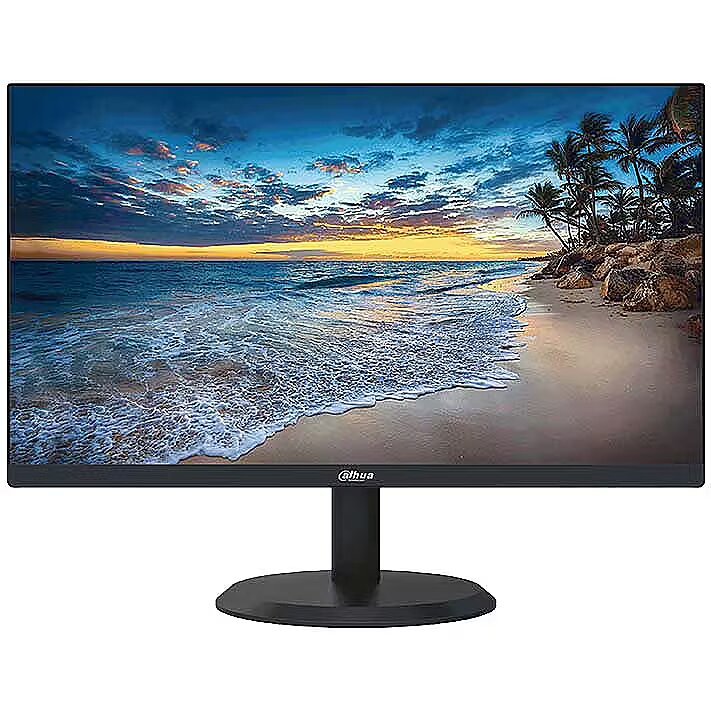

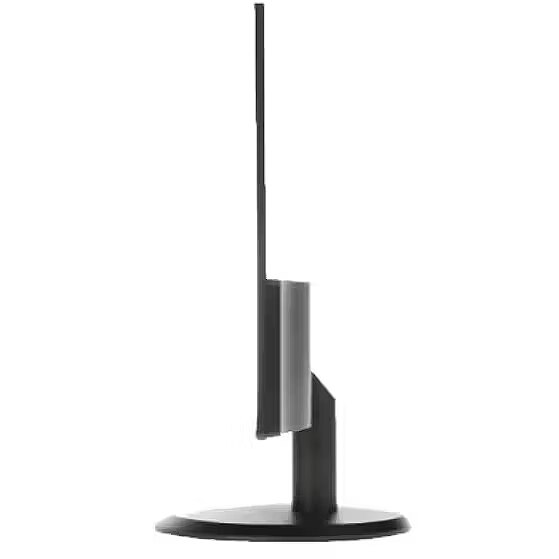

Dahua LM22-H200, 21.45"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 736012 Product code: LM22-H200
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: N/A
  • Refresh rate: 60 Hz
  • Response time: 6.5ms
  • Contrast ratio: 1000:1
  • Brightness: 250cd/m2
  • Size: 21.5"
  • Resolution: FHD 1920x1080
Similar Products
This product Dahua LM22-H200, 21.45"
Dahua LM22-B201S, 21.45"
Dahua LM22-B200S, 21.45"
Dahua LM22-L200N, 21,4"
Dahua DHI-LM24-A221Y, 23.8"
Show similar specs. Hide similar specs.
73.21 €
65.49 €
66.80 €
68.10 €
79.85 €
Model LM22-H200 LM22-B201S LM22-B200S LM22-L200N DHI-LM24-A221Y
Display characteristics
AMD FreeSync Nav Nav Nav Nav Nav
Curved Nav Nav Nav Nav Nav
NVIDIA G-SYNC Nav Nav Nav Nav Nav
Panel Type N/A IPS VA VA IPS
Refresh rate 60 Hz 75 Hz 100 Hz 100 Hz 144 Hz
Touchscreen NO NO NO NO NO
VESA DisplayHDR Nav Nav Nav Nav Nav
Response time 6.5ms 4ms 5ms 5ms 1ms
Contrast ratio 1000:1 1000:1 3000:1 3000:1 1200:1
Brightness 250cd/m2 250cd/m2 250cd/m2 250cd/m2 250cd/m2
Basic information
Application Home & Office Home & Office Home & Office Home & Office Home & Office
Aspect ratio 16:9 16:9 16:9 16:9 16:9
Color Black Black Black Black Black
Size 21.5" 21.4" 21.4" 21.4" 23.8"
Resolution FHD 1920x1080 FHD 1920x1080 FHD 1920x1080 FHD 1920x1080 FHD 1920x1080
Functionality
Flicker-free Nav norādīts Nav Nav norādīts Nav Ir
Height adjustment Nav Nav Nav Nav Nav
Pivot Nav Nav Nav Nav Nav
Swivel None None None None None
Tilt YES NO YES YES YES
VESA wall mount 75x75mm 75x75mm NO 100x100 mm 100x100 mm
Ports and equipment
D-SUB 1 1 1 1 1
DisplayPort Nav Nav Nav Nav Nav
DVI Nav Nav Nav Nav Nav
HDMI port 1 1 1 1 1
Speakers Ir Ir Ir Ir Nav
USB Hub NO NO NO NO NO
USB-C Power Delivery Nav Nav Nav Nav Nav
USB-C video input 0 0 0 0 0
Description

This Dahua LM22-H200, 21.45" monitor with FHD 1920x1080 resolution ensures comfortable conditions for prolonged work and online activities. It offers a clear image, extensive usage possibilities and fits perfectly in a home or office working environment.

This monitor with a 60 Hz refresh rate ensures proper motion portrayal and minimal flickering, which is essential for prolonged use. Such a refresh speed is suitable for most domestic and professional scenarios, guaranteeing smooth frame renewal and comfortable image perception even over extended use periods.

The Tilt function ensures flexible adjustment of the panel's vertical tilt, allowing for precise adaptation of the screen to the working position. This reduces the risk of discomfort during prolonged use, maintains an optimal viewing angle, and helps avoid image distortion in various lighting conditions.

VESA wall mount allows you to install a monitor on the wall, adhering to a uniform industrial standard. It facilitates the choice of mount, increases the flexibility of workspace organization, and allows you to adjust the height and angle of placement, regardless of the desk or tripod.

Built-in speakers allow the monitor to independently process and play audio signals, reducing the need for additional devices. This makes the workplace more compact and facilitates connection. The speakers provide basic sound support for multimedia and communication applications.

The D-Sub interface makes the monitor compatible with analog signal sources, ensuring the use of older generation equipment without adapters. Such an approach guarantees a stable image, precise detail transmission, and device versatility for various operating systems, facilitating connection to various configurations.

HDMI provides video and audio transmission with a single cable, which enhances connection stability and reduces the risk of interference. The interface reduces the number of connections and maintains the integrity of the digital signal. HDMI supports modern formats and ensures reliable operation with a wide range of devices.

Warranty

Dahua provides this model with a 3 year warranty at all certified service centres.

All parameters
Model : LM22-H200
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type N/A

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 6.5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 21.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav norādīts
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 75x75mm
Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website Dahua LM22-H200, 21.45"
Audio input Ports & interfaces - Yes
Backlight type Display - W-LED
Brand - Dahua Technology
BrandPartCode - DHI-LM22-H200
Built-in camera Multimedia - No
Built-in speaker(s) Multimedia - Yes
Built-in USB hub Ports & interfaces - No
Cables included Packaging content - AC/HDMI
Category - Computer Monitors
Category Code - LC3
Certification Other features - CE, FCC
Contrast ratio (typical) Display - 1000:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/619532/fiches?language=EN
Depth (without stand) Weight & dimensions - 38 mm
Depth (with stand) Weight & dimensions - 200 mm
Description - Suitable for continuous 24/7 operationUltra-thin body with metal housingMicro bezel design, elegant appearance, ultra-light base6.5ms fast response time with no image blurring or ghosting178°H/178°V extra-wide viewing angle for overall viewing performanceSupport multiple signal inputs including HDMI and VGALow energy consumption, long service life
Design - Market positioning - Home
Design - Product colour - Black
Display - Backlight type - W-LED
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 54.5 cm (21.4")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Response time - 6.5 ms
Display - Screen shape - Flat
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 250 cd/m²
Display diagonal Display - 21.45 "
Display number of colours Display - 16.7 million colours
Display resolution Display - 1920 x 1080 pixels
Display technology Display - LED
Energy consumption (SDR) per 1000 hours Power - 18 kWh
Energy efficiency class (SDR) Power - F
Energy efficiency class Energy Efficiency - E
Energy efficiency scale Power - A to G
EPREL Registration Number Energy Efficiency - 619532
EPREL Version Number Energy Efficiency - 7
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - VESA mounting - Yes
European Product Registry for Energy Labelling (EPREL) code Power - 619532
GTIN - 6923172508317
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 1
HD type Display - Full HD
Headphone out Ports & interfaces - No
Height (without stand) Weight & dimensions - 285.1 mm
Height (with stand) Weight & dimensions - 369.4 mm
Input current Power - 2 A
LongDesc -
LongProductName - 21.45", 16:9, 1920 x 1080px, W-LED, 250 cd/㎡, 1000:1, 6.5ms, 60 Hz, VGA, HDMI, 2 x 1.5W RMS, 2.1 kg
LongSummaryDescription - Dahua Technology LM22-H200. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
Market positioning Design - Home
Maximum refresh rate Display - 60 Hz
Model - DHI-LM22-H200
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 3 W
Native aspect ratio Display - 16:9
Number of speakers Multimedia - 2
Operating relative humidity (H-H) Operational conditions - 10 - 85 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Certification - CE, FCC
Package depth Packaging data - 548 mm
Package height Packaging data - 108 mm
Package width Packaging data - 355 mm
Packaging content - Cables included - AC, HDMI
Packaging content - Stand included - Yes
Packaging data - Package depth - 548 mm
Packaging data - Package height - 108 mm
Packaging data - Package width - 355 mm
Panel mounting interface Ergonomics - 75 x 75 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone out - No
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Energy consumption (SDR) per 1000 hours - 18 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 619532
Power - Input current - 2 A
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 24 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 24 W
Product colour Design - Black
ProductName - LM22-H200
Product Net Weight - 2.1 kg
Response time Display - 6.5 ms
RMS rated power Multimedia - 3 W
Screen shape Display - Flat
ShortSummaryDescription - Dahua Technology LM22-H200, 54.5 cm (21.4"), 1920 x 1080 pixels, Full HD, LED, 6.5 ms, Black
Stand included Packaging content - Yes
Summary - Dahua Technology LM22-H200. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
Title - Dahua Technology LM22-H200 computer monitor 54.5 cm (21.4") 1920 x 1080 pixels Full HD LED Black
Touchscreen Display - No
Unit Box Height - 0.363
Unit Box Length - 0.555
Unit Box Width - 0.111
Unit Calculated Volume - 0.02236 cubm
Unit Calculated Weight - 3.6 kg
URL - https://www.dahuasecurity.com/products/productDetail/61627?from=rss
Vendor Homepage - https://www.dahuasecurity.com/products/productDetail/61627?from=rss
VESA mounting Ergonomics - Yes
VGA (D-Sub) ports quantity Ports & interfaces - 1
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 38 mm
Weight & dimensions - Depth (with stand) - 200 mm
Weight & dimensions - Height (without stand) - 285.1 mm
Weight & dimensions - Height (with stand) - 369.4 mm
Weight & dimensions - Weight (without stand) - 3.3 kg
Weight & dimensions - Width (without stand) - 491.7 mm
Weight & dimensions - Width (with stand) - 491.7 mm
Weight (without stand) Weight & dimensions - 3300 g
Width (without stand) Weight & dimensions - 491.7 mm
Width (with stand) Weight & dimensions - 491.7 mm
73.21 €
Dahua LM22-H200, 21.45"
Intel technology provider Platinum 2020
All categories
