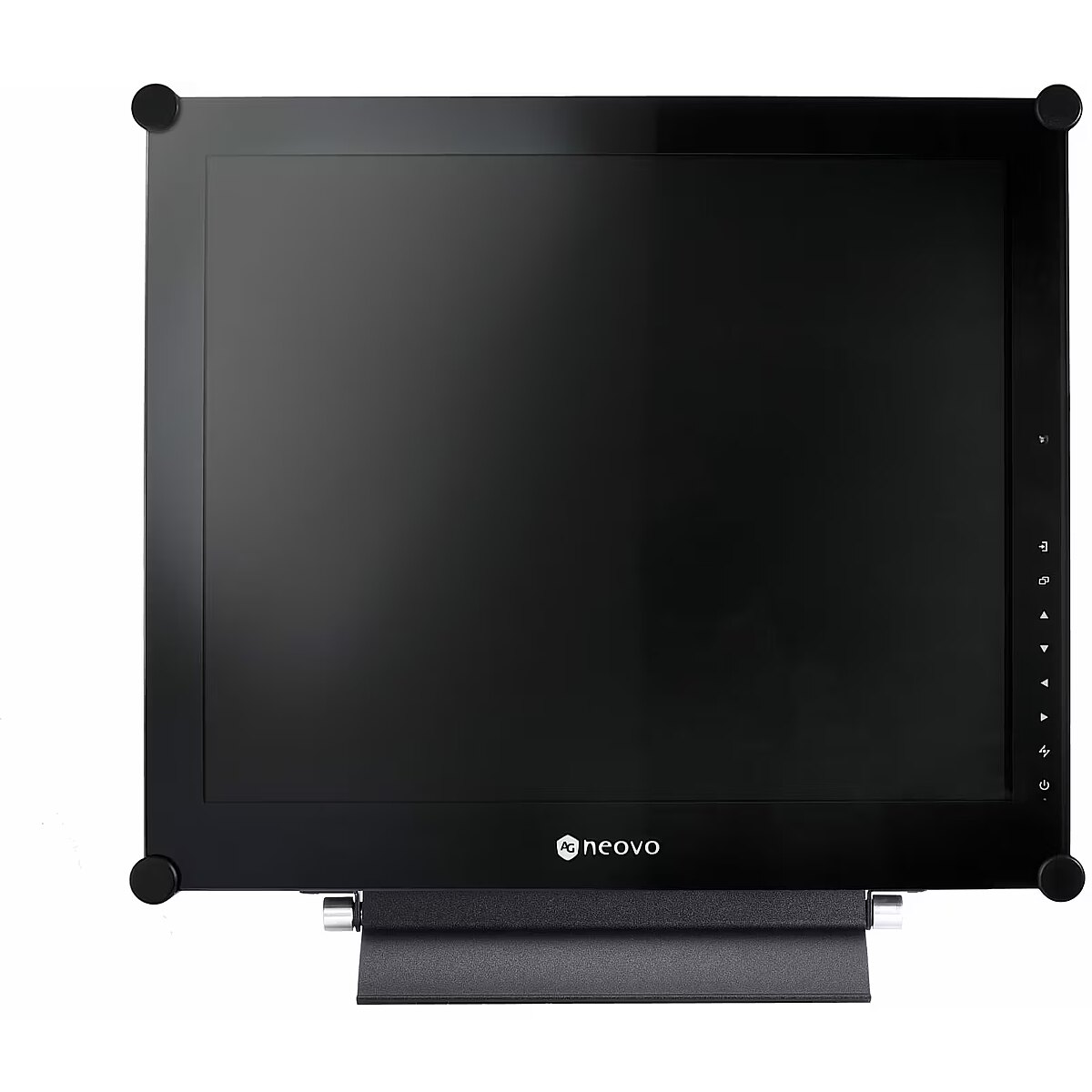

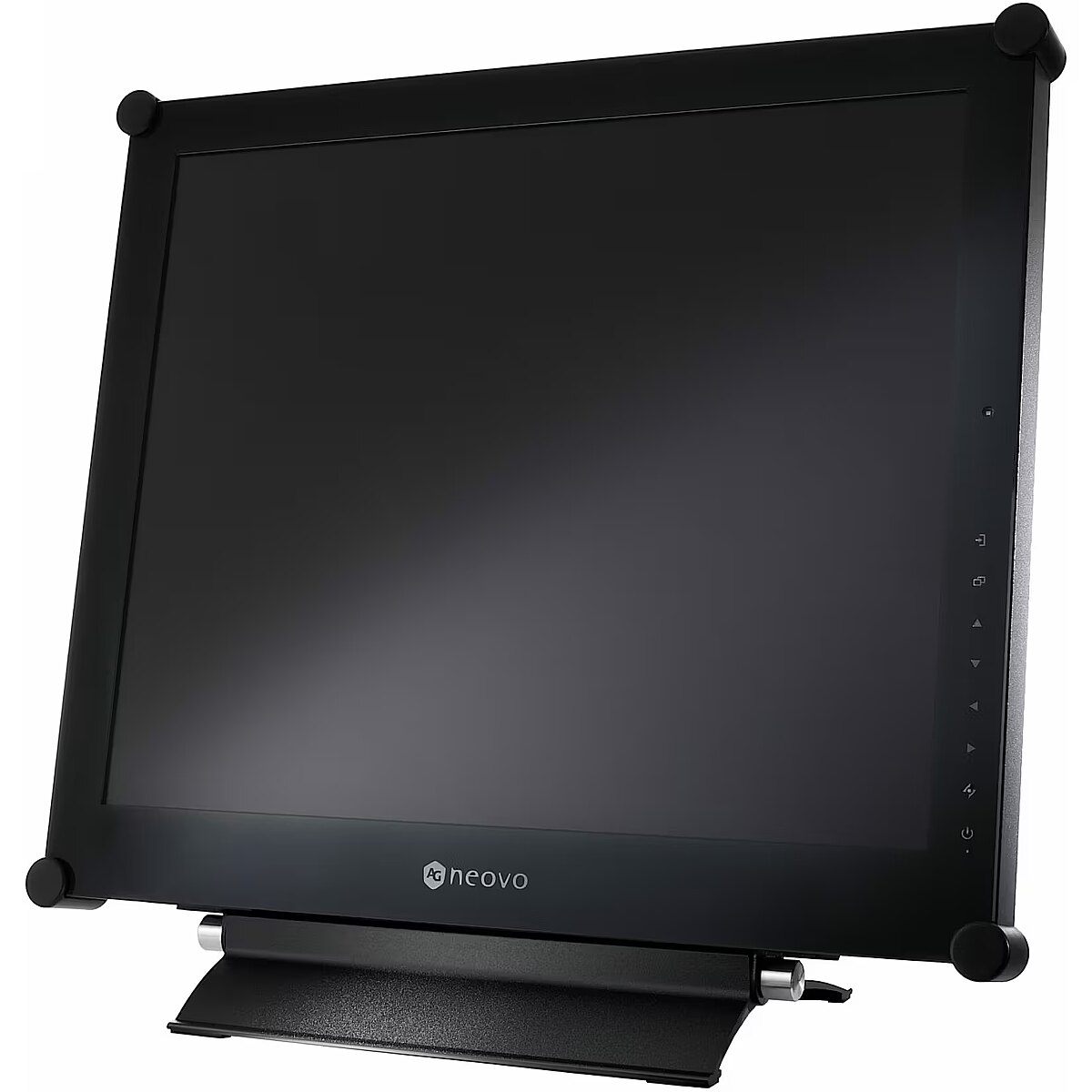

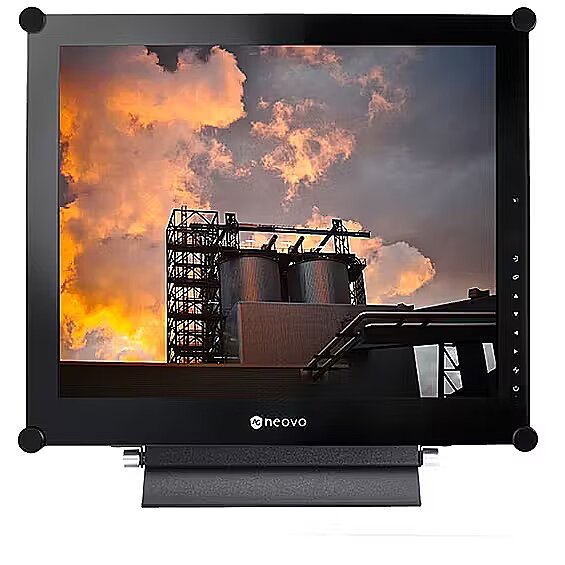

AG NEOVO SX-19G, 19"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1430415 Product code: SX9G0011E0100
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
684.61 €
Ready for dispatch
06.07.2026
starting from 6.99 € with VAT
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    12.99 €
Main product parameters All parameters
  • Curved: None
  • Panel Type: TN
  • Refresh rate: 75 Hz
  • Response time: 3ms
  • Contrast ratio: 20000000:1
  • Brightness: 250cd/m2
  • Size: 19"
  • Resolution: SXGA 1280x1024
Description

TN technology is based on vertical crystal orientation, which allows for lower switching delay. As a result, the monitor quickly responds to movement and effectively displays dynamic content. This approach provides one of the best response times among the most common display types.

This monitor with a 75 Hz refresh rate ensures predictable pixel operation and sufficient motion smoothness for standard tasks. It is suitable for document work, image processing and video viewing, guaranteeing stable frame updates without unnecessary system or user load.

The D-Sub interface makes the monitor compatible with analog signal sources, ensuring the use of older generation equipment without adapters. Such an approach guarantees a stable image, precise detail transmission, and device versatility for various operating systems, facilitating connection to various configurations.

DVI is a digital interface that ensures monitor connection to both modern and older video cards. The interface transmits images with high accuracy and minimal distortion, supports stable operation in various resolutions and maintains graphic quality without losses regardless of the video card used.

HDMI provides video and audio transmission with a single cable, which enhances connection stability and reduces the risk of interference. The interface reduces the number of connections and maintains the integrity of the digital signal. HDMI supports modern formats and ensures reliable operation with a wide range of devices.

DisplayPort is a modern image transmission standard that ensures stable playback with high resolution and refresh intensity. The interface supports HDR and multiple monitor configurations, transmits details without quality loss and provides accurate graphics display on professional and gaming monitors.

Warranty

AG NEOVO provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

All parameters
Model : SX-19G
Display characteristics
AMD FreeSync : None
Curved : None
NVIDIA G-SYNC : None
Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz
Touchscreen : NO
VESA DisplayHDR : There isn't
Response time 3ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 20000000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 4:3
Color : Black
Size 19"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution SXGA 1280x1024

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : There isn't
Height adjustment : None
Pivot : None
Swivel : None
Tilt : YES
VESA wall mount : 75x75mm

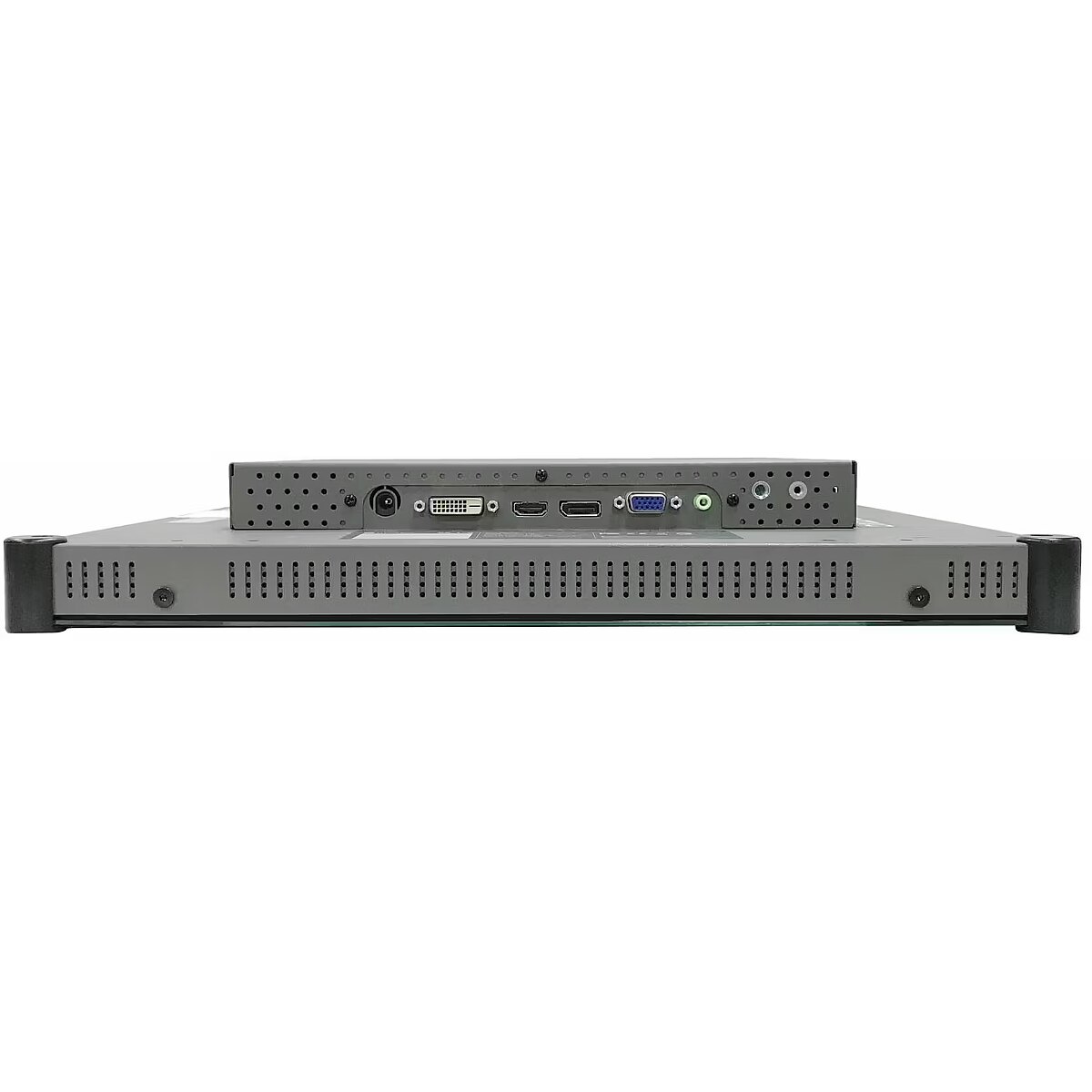

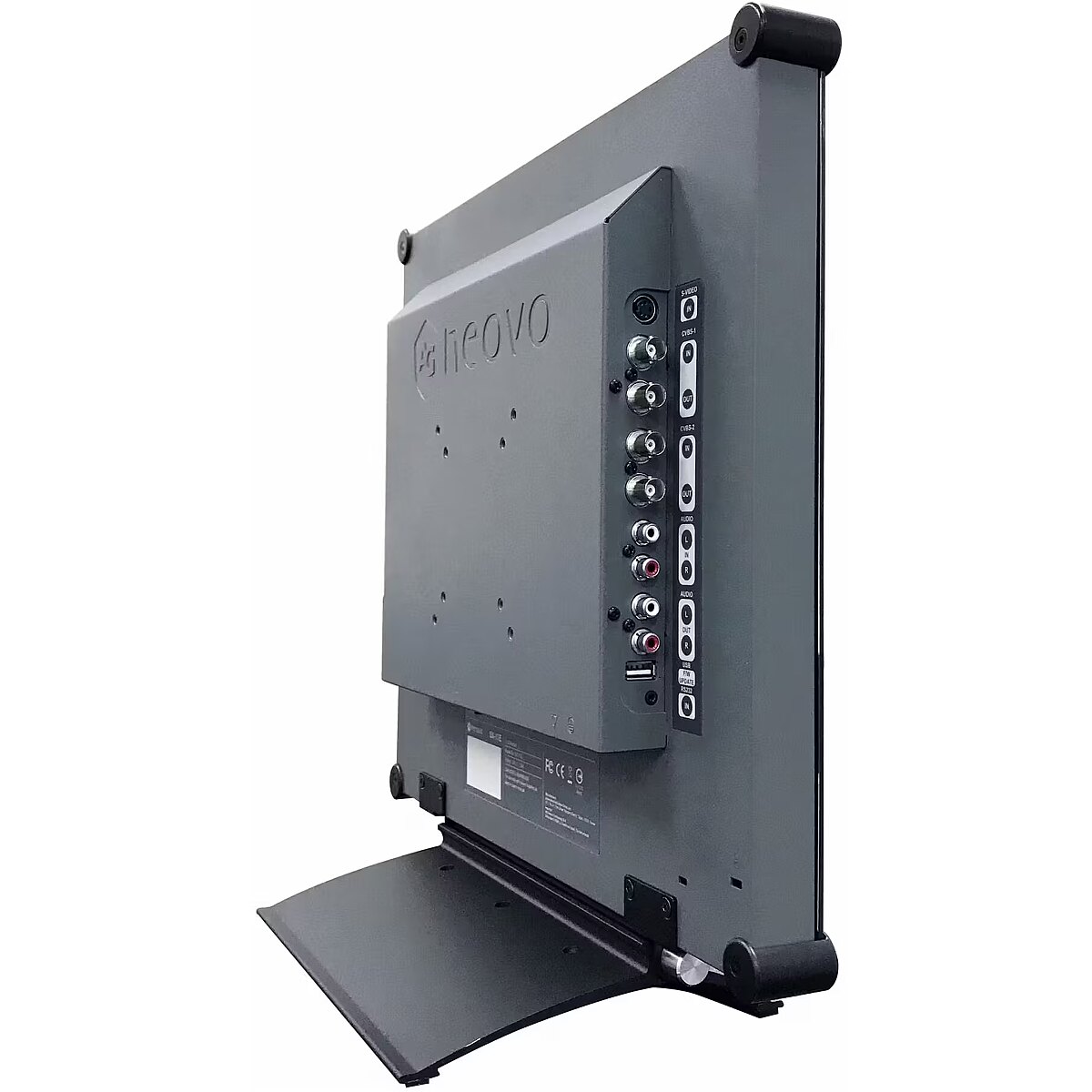

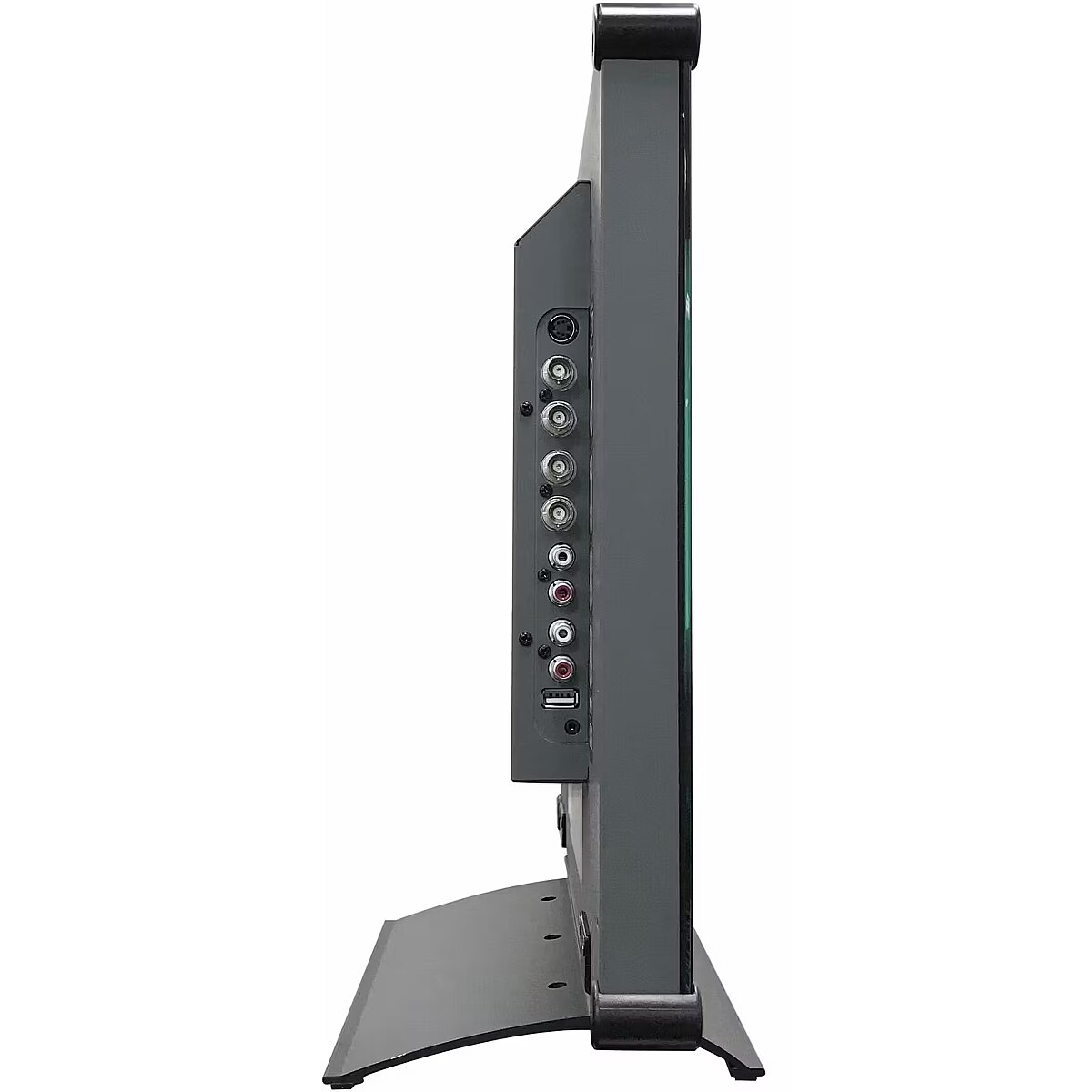

Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Is

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : There isn't
USB-C video input : 0
More detailed specification
Additional information in manufacturers website AG NEOVO SX-19G, 19"
ARTIKEL1 - SX-19G 19IN 1280X1024
ARTIKEL2 - 24/7 BNC S-VIDO CCTV MODE
Brand - AG Neovo
BrandPartCode - SX9G0011E0100
Breite - 0
Category - Surveillance Monitors
Design - Certification - CB, CE, FCC, WEEE, REACH, BSMI
Design - LED indicators - Yes
Design - Mounting type - Freestanding/Wall-mounted
Design - Product colour - Black
Design - Product type - CCTV monitor
Design - Tilt adjustment - Yes
Design - Tilt angle - 20°
Design - Tilt angle range - 0 - 20°
Display - Anti-glare screen - Yes
Display - Backlight type - LED
Display - Contrast ratio (typical) - 20000000:1
Display - Display aspect ratio - 4:3
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 48.3 cm (19")
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1280 x 1024 pixels
Display - Display type - LCD
Display - Glass thickness - 3 mm
Display - Horizontal scan range - 24 - 83 kHz
Display - NTSC coverage (typical) - 72%
Display - Panel type - TN
Display - Pixel pitch - 0.294 x 0.294 mm
Display - Response time - 3 ms
Display - RGB colour space - NTSC
Display - Vertical scan range - 50 - 75 Hz
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4710739595871
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4710739595871
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - SX9G0011E0100
Laenge - 0
LongDesc - Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo’s Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition.Industry-leading ReliabilityThe SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-inTM technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoVTM Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.Optimised for Surveillance and SecurityBuilt with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.Highly Versatile and CompatibleThe SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
LongProductName - 19", 1280 x 1024, LED-Backlit TFT LCD (TN Technology), 250 cd/m², 170°/170°, 3 ms, 1 x DisplayPort, 1 x HDMI 1.4, 1 x VGA, 2 x BNC, 1 x S-Video, 1 x USB 2.0, RS232, 2W x 2, Black
LongSummaryDescription - AG Neovo SX-19G. Product type: CCTV monitor, Mounting type: Freestanding/Wall-mounted, Product colour: Black. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display type: LCD. Speaker power: 2 W, Panel mounting interface: 75 x 75,100 x 100 mm, Cable lock slot type: Kensington. Power source type: DC, Power supply type: External, Power consumption (typical): 16 W. Weight: 6.1 kg, Height: 383.9 mm, Depth: 64.5 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC, Audio, VGA
Packaging content - Quantity - 1
Performance - Built-in speaker(s) - Yes
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Number of built-in speakers - 2
Performance - Panel mounting interface - 75 x 75,100 x 100 mm
Performance - Speaker power - 2 W
Performance - VESA mounting - Yes
Ports & interfaces - 3.5 mm (1/8-inch) in - Yes
Ports & interfaces - Composite video in - 1
Ports & interfaces - Composite video out - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output current - 1.75 A
Power - AC adapter output voltage - 12 V
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 16 W
Power - Power source type - DC
Power - Power supply type - External
ProductName - SX-19G
ShortSummaryDescription - AG Neovo SX-19G, CCTV monitor, Freestanding/Wall-mounted, Black, 20°, 0 - 20°, CB, CE, FCC, WEEE, REACH, BSMI
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - CE, REACH, RoHS, WEEE
Title - AG Neovo SX-19G CCTV monitor 48.3 cm (19") 1280 x 1024 pixels
URL - https://displays.agneovo.com/gl/products/sx-series-advanced/16424-sx-19g
WarrantyInfo -
Weight & dimensions - Depth - 64.5 mm
Weight & dimensions - Depth (with stand) - 175 mm
Weight & dimensions - Height - 383.9 mm
Weight & dimensions - Height (with stand) - 420.2 mm
Weight & dimensions - Package depth - 225 mm
Weight & dimensions - Package height - 526 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package weight - 93 kg
Weight & dimensions - Package width - 552 mm
Weight & dimensions - Weight - 6.1 kg
Weight & dimensions - Weight (with stand) - 6.9 kg
Weight & dimensions - Width - 445.4 mm
Weight & dimensions - Width (with stand) - 445.4 mm
