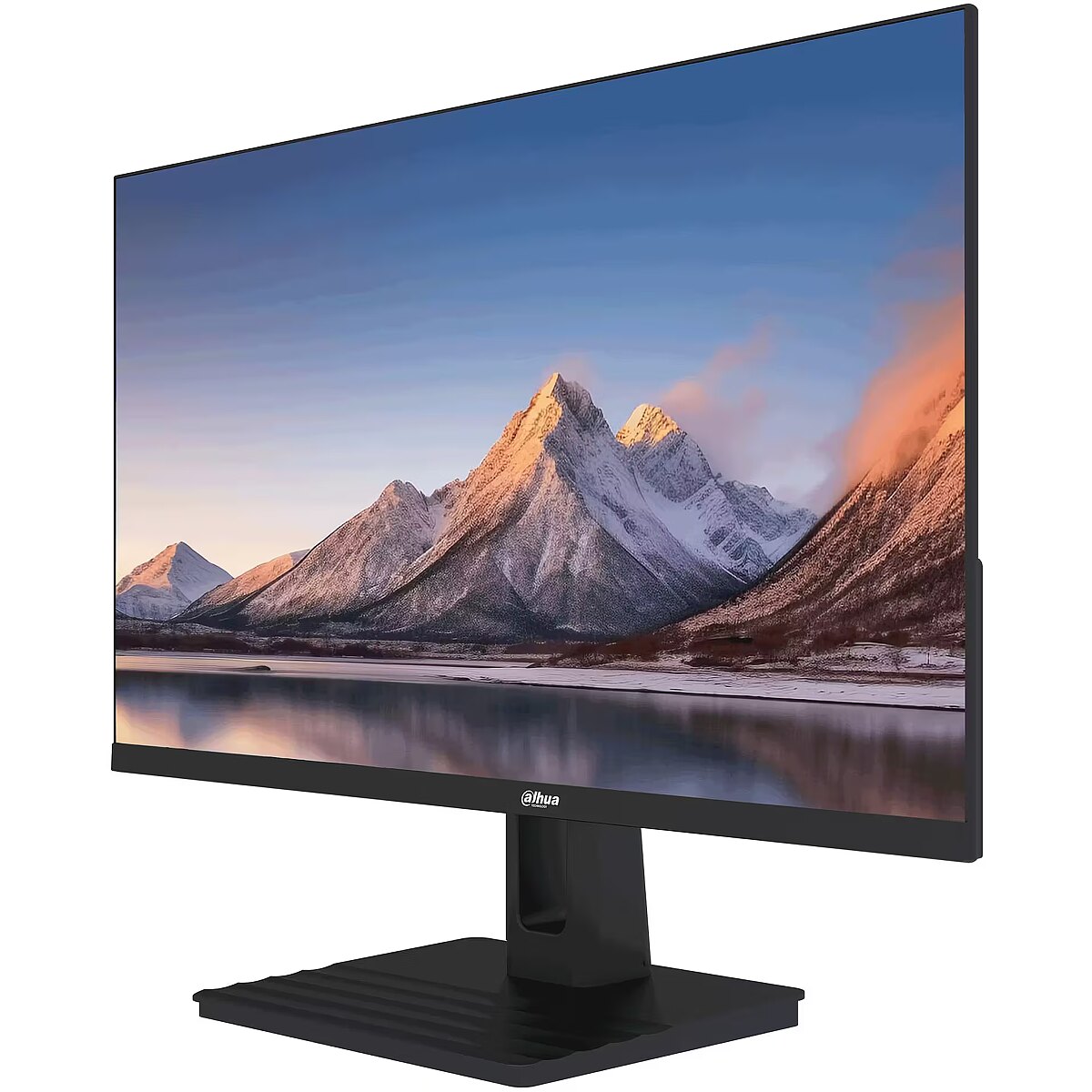

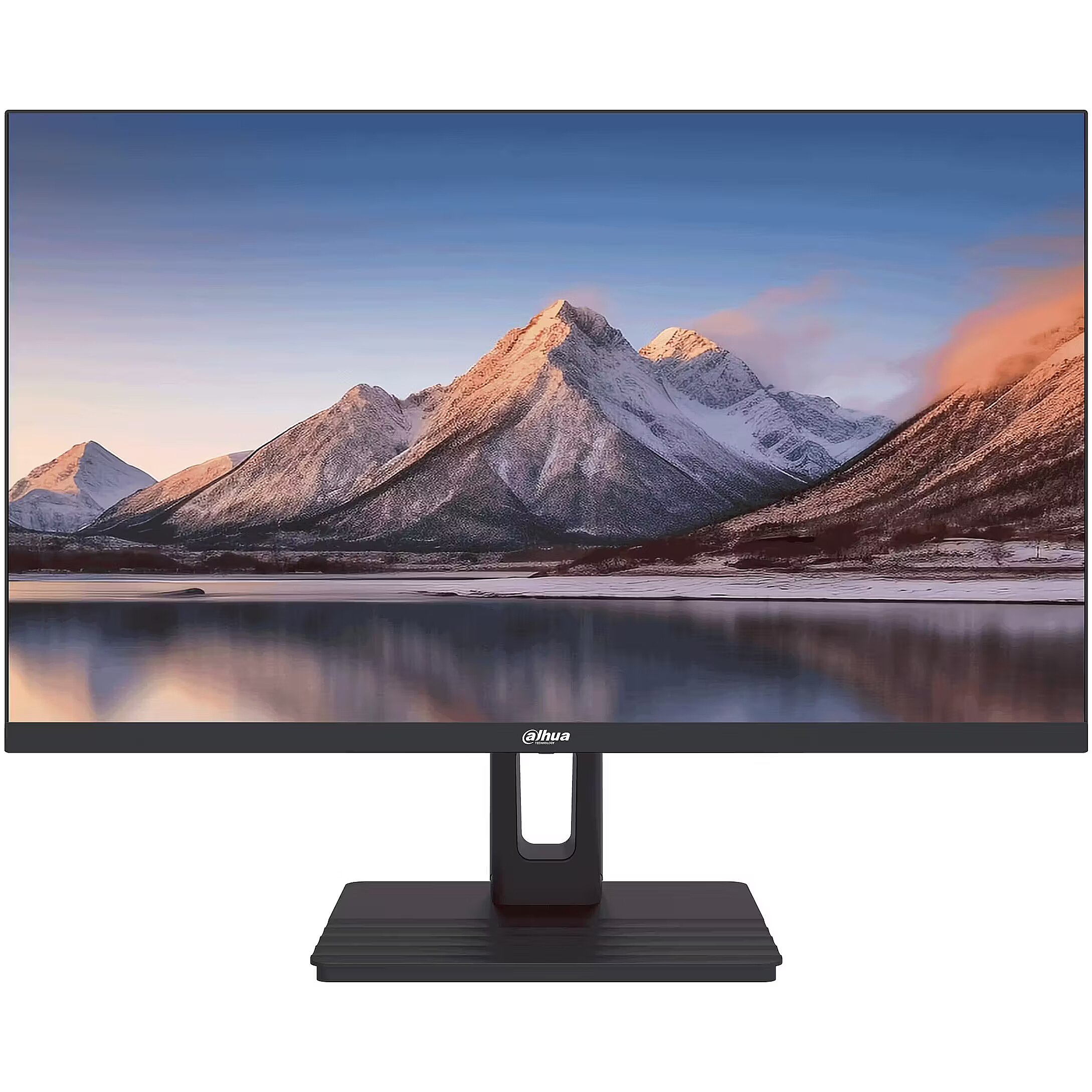

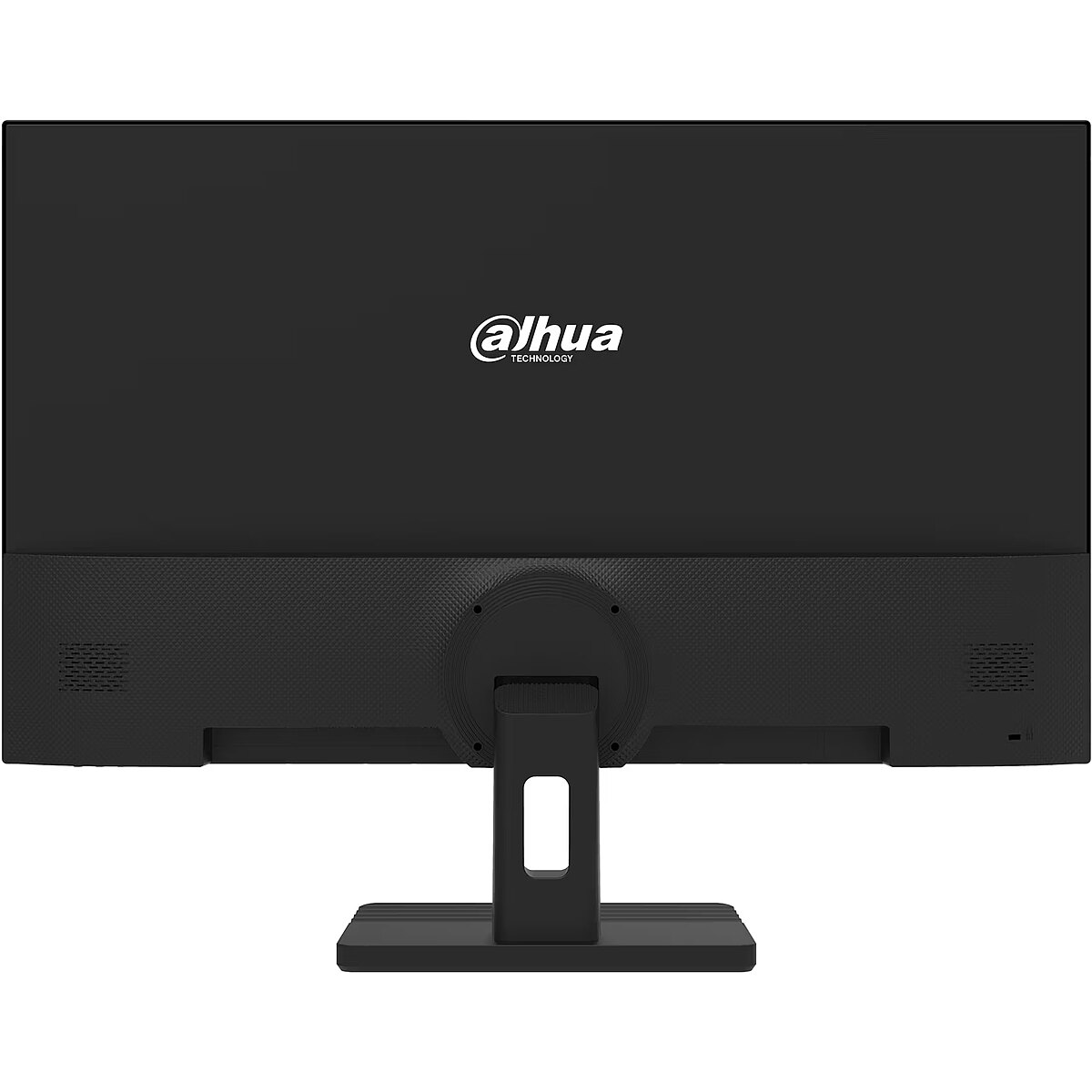

Dahua DHI-LM24-C301B, 23.8"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1292116 Product code: DHI-LM24-C301B
In stock 10 units
Warranty: 3 years
116.00 €
Ready for dispatch
tomorrow, 05.12.2025
starting from 10.99 €
Delivery options
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: IPS
  • Refresh rate: 100 Hz
  • Response time: 5ms
  • Contrast ratio: 1000:1
  • Brightness: 300cd/m2
  • Size: 23.8"
  • Resolution: WQHD 2560x1440
Description
We offer to buy Dahua 23.8" a monitor with WQHD 2560x1440 resolution.
  • IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • 5ms fast response time makes this monitor perfectly suitable for enjoying computer games and dynamic films.
  • The especially high WQHD 2560x1440 resolution due to the increased desktop size makes this monitor a great choice for graphics professionals and video editing experts.
All parameters
Model : DHI-LM24-C301B
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 100 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution WQHD 2560x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Ir
Height adjustment : Ir
Pivot : Ir
Swivel : And
Tilt : YES
VESA wall mount : 100x100 mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : 65W
USB-C video input : 1
More detailed specification
Additional information in manufacturers website Dahua DHI-LM24-C301B, 23.8"
AC adapter output voltage Power - 12 V
AMD FreeSync Performance - No
Automatic brightness control Other features - No
Backlight type Display - Edge LED
Bezel width (bottom) Weight & dimensions - 15.9 mm
Bezel width (side) Weight & dimensions - 3.1 mm
Bezel width (top) Weight & dimensions - 3.1 mm
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - DHI-LM24-C301B
Built-in camera Multimedia - No
Built-in speaker(s) Multimedia - No
Built-in USB hub Ports & interfaces - No
Cables included Packaging content - HDMI
Category - Computer Monitors
Category Code - LC3
CnCode - 85285210
Colour depth Display - 8 bit
Colour gamut standard Display - NTSC
Compliance certificates Other features - Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Contrast ratio (typical) Display - 1200:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/2059227/fiches?language=EN
Depth (without stand) Weight & dimensions - 41.3 mm
Depth (with stand) Weight & dimensions - 190 mm
Description - The 2560 × 1440 resolution produces clearer and more vivid imagesIPS panel for wide viewing angles with 3-sided frameless design178° (H) / 178° (V) extra-wide viewing angle for overall viewing performance5 ms fast response time with no image blurring or ghostingLow blue light technology can support a comfortable viewing experience
Design - Detachable stand - Yes
Design - Feet colour - Black
Design - Frameless design - Yes
Design - Front bezel colour - Black
Design - Illuminated stand - No
Design - Market positioning - Office
Design - Product colour - Black
Detachable stand Design - Yes
Display - Backlight type - Edge LED
Display - Colour depth - 8 bit
Display - Colour gamut standard - NTSC
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 61 cm
Display - Display resolution - 2560 x 1440 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - Quad HD
Display - LED backlight - Yes
Display - Maximum refresh rate - 100 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 85%
Display - Panel type - IPS
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Supported graphics resolutions - 2560 x 1440
Display - Supported video modes - 1440p
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 300 cd/m²
Display diagonal (metric) Display - 61 cm
Display diagonal Display - 23.8 "
DisplayPorts quantity Ports & interfaces - 1
DisplayPort version Ports & interfaces - 1.2
Display resolution Display - 2560 x 1440 pixels
Display technology Display - LED
Energy consumption (SDR) per 1000 hours Power - 21 kWh
Energy efficiency class (HDR) Power - Not available
Energy efficiency class (SDR) Power - F
Energy efficiency class Energy Efficiency - F
Energy efficiency scale Power - A to G
EPREL Registration Number Energy Efficiency - 2059227
EPREL Version Number Energy Efficiency - 2
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - Plug and Play - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 15°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Feet colour Design - Black
Frameless design Design - Yes
Front bezel colour Design - Black
Haze rate Display - 25 %
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 1.4
HD type Display - Quad HD
Headphone connectivity Ports & interfaces - 3.5 mm
Headphone out Ports & interfaces - Yes
Height (without stand) Weight & dimensions - 320.4 mm
Height (with stand) Weight & dimensions - 418.6 mm
Illuminated stand Design - No
LED backlight Display - Yes
LongDesc -
LongProductName - 23.8", 2560 x 1440 QHD, 100 Hz, IPS, ELED, 300 cd/m², 1200: 1, 5 ms, 85% NTSC, 8 bit, DP, HDMI, 3.5mm, Black
LongSummaryDescription - Dahua Technology LM24-C301B. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Low Blue Light technology Performance - Yes
Manual Packaging content - Yes
Market positioning Design - office
Maximum refresh rate Display - 100 Hz
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Native aspect ratio Display - 16:9
Network - Bluetooth - No
Network - Wi-Fi - No
NTSC coverage (typical) Display - 85 %
NVIDIA G-SYNC Performance - No
Operating relative humidity (H-H) Operational conditions - 10 - 90 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Automatic brightness control - No
Other features - Compliance certificates - Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Package depth Packaging data - 111 mm
Package height Packaging data - 405 mm
Package weight Packaging data - 4000 g
Package width Packaging data - 612 mm
Packaging content - Cables included - HDMI
Packaging content - Manual - Yes
Packaging content - Power adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 111 mm
Packaging data - Package height - 405 mm
Packaging data - Package weight - 4 kg
Packaging data - Package width - 612 mm
Panel mounting interface Ergonomics - 75 x 75 mm
Panel type Display - IPS
Performance - AMD FreeSync - No
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Plug and Play Ergonomics - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 21 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (max) - 24 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 24 W
Power - Power supply type - External
Power adapter included Packaging content - Yes
Power consumption (max) Power - 24 W
Power consumption (off) Power - 0.3 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 24 W
Power supply type Power - External
Product colour Design - Black
ProductName - LM24-C301B
Product Net Weight - 3.1 kg
Quick start guide Packaging content - Yes
Response time Display - 5 ms
Screen shape Display - Flat
ShortSummaryDescription - Dahua Technology LM24-C301B, 60.5 cm (23.8"), 2560 x 1440 pixels, Quad HD, LED, 5 ms, Black
Stand included Packaging content - Yes
Storage relative humidity (H-H) Operational conditions - 5 - 90 %
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Dahua Technology LM24-C301B. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Supported graphics resolutions Display - 2560 x 1440
Supported video modes Display - 1440p
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 15 °
Title - Dahua Technology LM24-C301B computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black
Touchscreen Display - No
Unit Calculated Volume - 0.0275 cubm
Unit Calculated Weight - 4 kg
URL - https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-C301B=V1
Vendor Homepage - https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-C301B=V1
VESA mounting Ergonomics - Yes
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Wall mountable Ergonomics - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 1.59 cm
Weight & dimensions - Bezel width (side) - 3.1 mm
Weight & dimensions - Bezel width (top) - 3.1 mm
Weight & dimensions - Depth (without stand) - 41.3 mm
Weight & dimensions - Depth (with stand) - 190 mm
Weight & dimensions - Height (without stand) - 320.4 mm
Weight & dimensions - Height (with stand) - 418.6 mm
Weight & dimensions - Weight (without stand) - 3.1 kg
Weight & dimensions - Width (without stand) - 539.2 mm
Weight & dimensions - Width (with stand) - 539.2 mm
Weight (without stand) Weight & dimensions - 3100 g
Wi-Fi Network - No
Width (without stand) Weight & dimensions - 539.2 mm
Width (with stand) Weight & dimensions - 539.2 mm
116.00 €
Dahua DHI-LM24-C301B, 23.8"
Intel technology provider Platinum 2020
All categories
