AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Adjustable height (max) Ergonomics - 150 mm
AMD FreeSync Performance - No
Anti-glare screen Display - Yes
Aspect ratio Display - 16:9
Backlight type Display - Edge-Lit
Brand - HP
Brand-specific features - HP GTIN (EAN/UPC) - 192545866569, 192545866545, 192545866552
Brand-specific features - HP GTIN (EAN/UPC) - 197961404357, 197961403831
Brand-specific features - HP GTIN (EAN/UPC) with options - (ABB) 197961404357; (ABU) 197961403831
BrandPartCode - 9D9L6A5#ABB
Built-in camera Multimedia - No
Built-in speaker(s) Multimedia - No
Built-in USB hub Ports & interfaces - Yes
Bundled software Packaging content - HP Display Center; HP Client Management Script Library
Cable lock slot Ergonomics - Yes
Cables included Packaging content - AC
Category - Computer Monitors
Category Code - LC3
Certification Other features - BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Ligh
Colour depth Display - 8 bit
Colour gamut Display - 100 %
Colour gamut standard Display - sRGB
Compliance certificates Other features - BIS/BSMI/CB/CCC/CE/CECP/CEL/cTUVus/EAC/Federal Communications Commission (FCC)/GS mark/ICES/KC/KCC/Norma Oficial Mexicana (NOM)/PSE/RCM/VCCI/WEEE
Contrast ratio (dynamic) Display - 10000000:1
Contrast ratio (typical) Display - 1500:1
Country of origin Other features - China/Vietnam
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/1949552/fiches?language=EN
Depth (without stand) Weight & dimensions - 47.2 mm
Depth (with stand) Weight & dimensions - 189.5 mm
Description - Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 23.8” FHD Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.Get more done on this 23.8" FHD resolution monitor with 100 Hz refresh rate[1]. Experience vibrant, consistent colors with 100% sRGB[1] and HP Progressive White Balance.[2]The perfect work setup with a minimal, sleek 3-sided borderless design and the ability to daisy-chain[3] or pair with another HP Series 5 Pro monitor.[4]Find all-day comfort with 4-way adjustability and Ergonomic Setup Guide[5] for the optimal monitor position. HP Eye Ease reduces blue light without impacting color.Thoughtfully designed with at least 90% recycled plastic content and 90% recycled aluminum in the stand[6].[1] All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary, either higher or lower.
[2] HP's Progressive White Balance feature is designed to calibrate 100% full white on HP Series 5 Pro monitors. This adjustment is intended to align the white point more closely among various HP Series 5 Pro monitors. However, due to the nature of monitors, perceptible differences in the white color may still occur when the monitors are viewed from varying angles.
[3] 100 Hz refresh rate supported on host PCs with DisplayPort™ 1.2 or higher. Host PC may affect the refresh rate combinations of monitors 1 and 2. Refresh rates can be user enabled in PC settings.

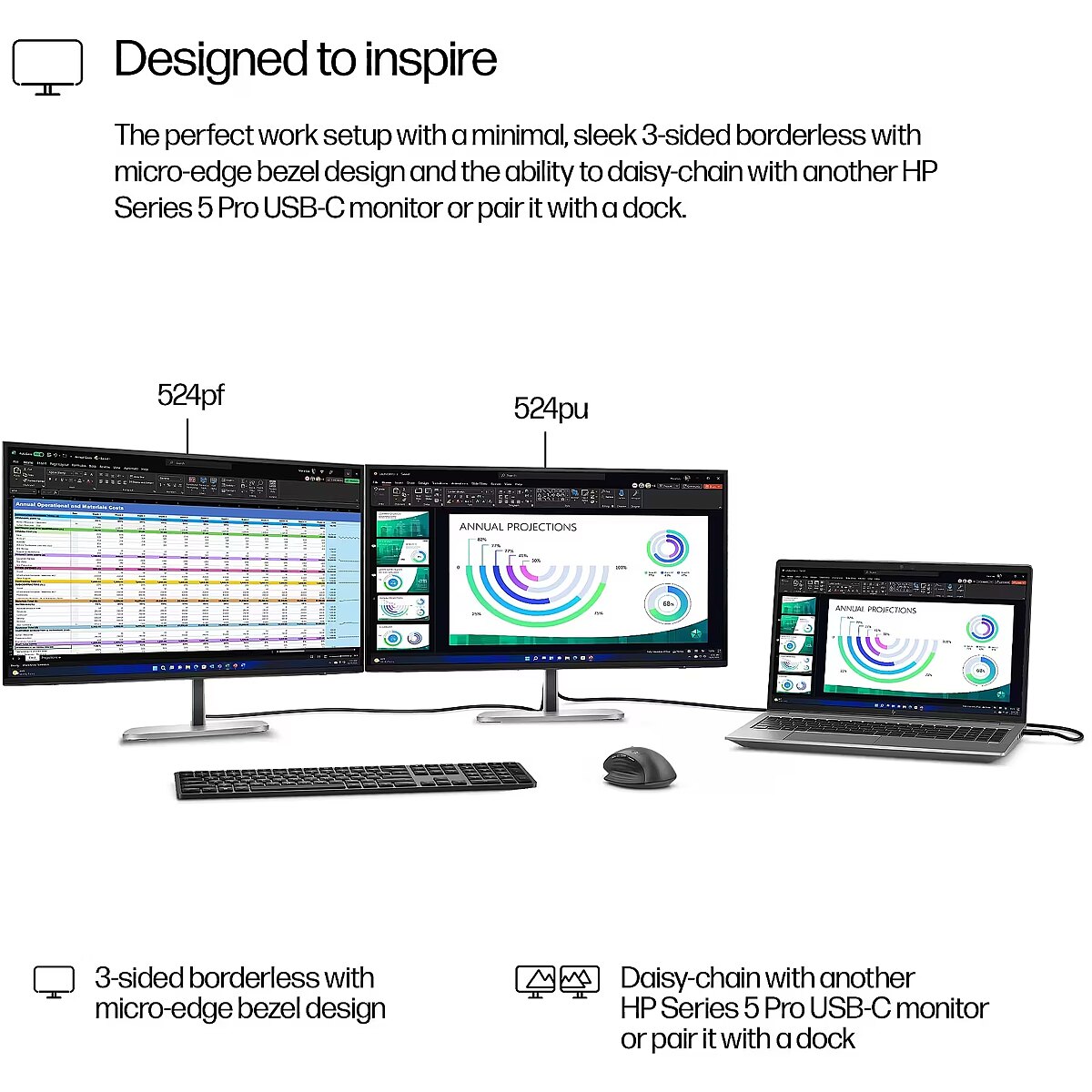

[4] HP Series 5 Pro monitor or additional monitor sold separately.
[5] Ergonomic Setup Guide is available through HP Display Center. Host PC requires Windows 10 or higher. HP Display Center is available on the Microsoft store.
[8] AC Power cable, HDMI cable, DisplayPort™ cable, and USB 3.2 A-B cable included. All other cables sold separately.
[9] Host PC requires Windows 10 or higher. HP Display Center is available for download on the Microsoft store for Windows or support.hp.com for Windows and MacOS.
[10] This product works with devices capable of running the latest version of Chrome OS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC.
[11] Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information. EPEAT® is a world class ecolabel for electronics and technology products. EPEAT® Gold with Climate+ registered products have met rigorous criteria and been independently verified to assure they have been thoughtfully designed with the planet in mind. With EPEAT Climate+, you're not just choosing products; you're choosing a movement towards corporate responsibility and climate action. This product has been verified to meet ENERGY STAR® requirements.
Technical specification disclaimers
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution. The video card of the connected PC must be capable of supporting 1920 x 1080 at 60 Hz with 8-bit color using one DisplayPort™, HDMI. The video card of the connected PC must be capable of supporting 1920 x 1080 and include one DisplayPort™ or one HDMI outputs to drive the monitor at the Preferred Mode.
Number of colors through A-FRC technology.
Included cables may vary by country.
Lock sold separately.
Host PC requires Windows 10 and above. HP Display Center is available on the Microsoft store.
EPEAT® registered where applicable. EPEAT® registration varies by country. See www.epeat.net for registration status by country. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.
External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.
Molded pulp cushions are made from 100% recycled wood fiber and organic materials.
100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.
Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal parts over 25 grams.
HP's Progressive White Balance feature is designed to calibrate 100% full white on HP Series 5 Pro monitors. This adjustment is intended to align the white point more closely among various HP Series 5 Pro monitors. However, due to the nature of monitors, perceptible differences in the white color may still occur when the monitors are viewed from varying angles.
Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.
Design - Feet colour - Black
Design - Feet colour - Silver
Design - Feet colour - Silver, Black
Design - Market positioning - Home
Design - Product colour - Black
dimensionalWeight - 6857
Display - Anti-glare screen - Yes
Display - Aspect ratio - 16:9
Display - Backlight type - Edge-Lit
Display - Colour depth - 8 bit
Display - Colour gamut - 100%
Display - Colour gamut standard - sRGB
Display - Contrast ratio (dynamic) - 10000000:1
Display - Contrast ratio (typical) - 1500:1
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 120 kHz
Display - LED backlight - Yes
Display - Maximum refresh rate - 100 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel density - 93 ppi
Display - Pixel pitch - 0.28 x 0.28 mm
Display - Response time - 5 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 100%
Display - Supported graphics resolutions - 640 x 480 (VGA)
Display - Supported graphics resolutions - 720 x 400
Display - Supported graphics resolutions - 720 x 480
Display - Supported graphics resolutions - 720 x 576
Display - Supported graphics resolutions - 800 x 600 (SVGA)
Display - Supported graphics resolutions - 1024 x 768 (XGA)
Display - Supported graphics resolutions - 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA)
Display - Supported graphics resolutions - 1280 x 720 (HD 720)
Display - Supported graphics resolutions - 1280 x 800
Display - Supported graphics resolutions - 1280 x 1024 (SXGA)
Display - Supported graphics resolutions - 1440 x 900 (WXGA+)
Display - Supported graphics resolutions - 1600 x 900
Display - Supported graphics resolutions - 1680 x 1050 (WSXGA+)
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 50 - 100 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 350 cd/m²
Display diagonal (metric) Display - 60.5 cm
Display diagonal Display - 23.8 "
Display number of colours Display - 16.7 million colours
DisplayPort out quantity Ports & interfaces - 1.2
DisplayPorts quantity Ports & interfaces - 1
DisplayPort version Ports & interfaces - 1.2
Display resolution Display - 1920 x 1080 pixels
Display surface Display - Matt
Display technology Display - LCD
Energy consumption (SDR) per 1000 hours Power - 12 kWh
Energy efficiency class (HDR) Power - C
Energy efficiency class (SDR) Power - C
Energy efficiency class Energy Efficiency - C
Energy efficiency scale Power - A to G
EPREL Registration Number Energy Efficiency - 1949552
EPREL Version Number Energy Efficiency - 2

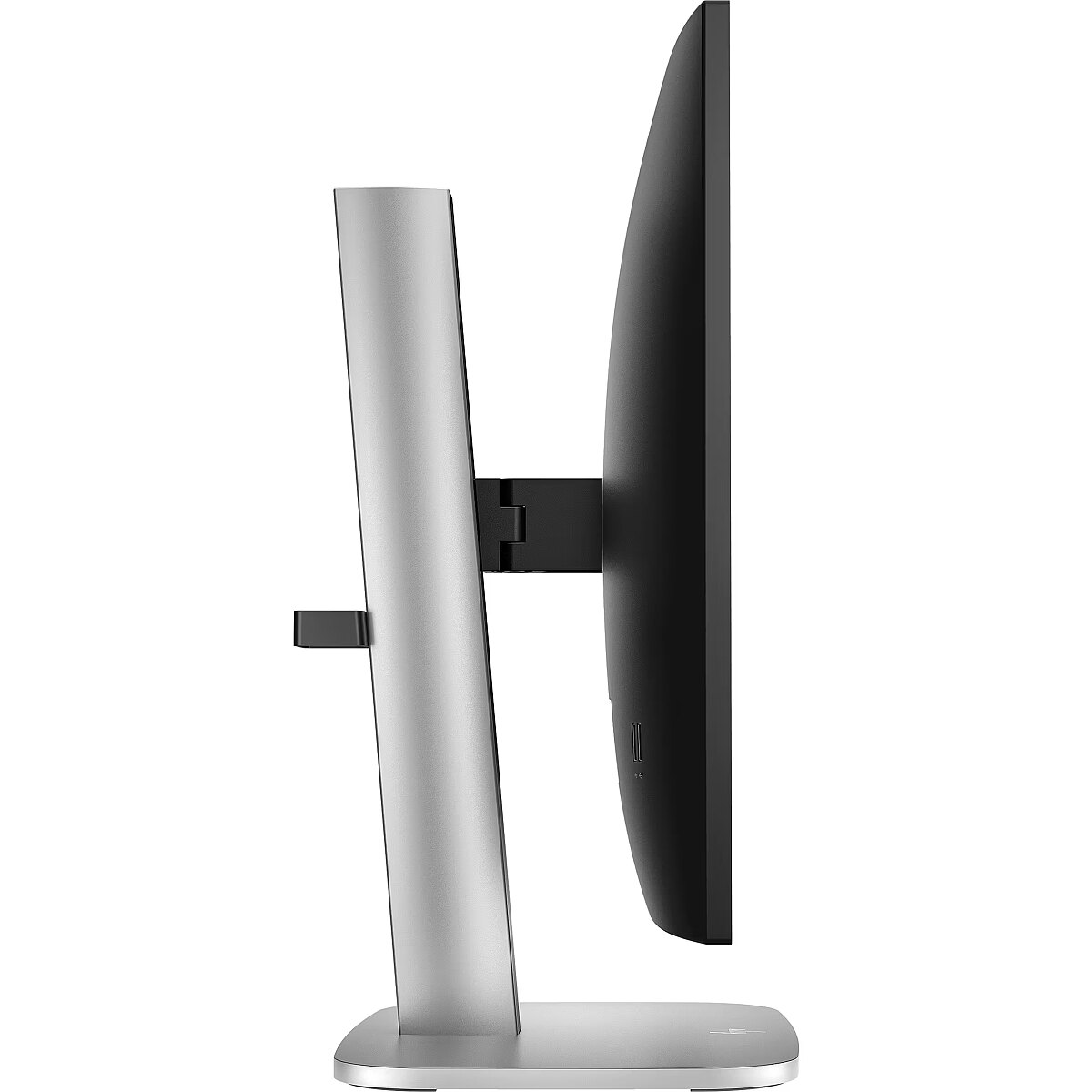

Ergonomics - Adjustable height (max) - 15 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - -90 - 90°
Ergonomics - Swivel angle range - -45 - 45°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 23°
Feet colour Design - Black/Silver
Flicker-free technology Performance - Yes
General Product Safety Regulation (GPSR) URL Technical details - https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
GTIN - 0197961404357
GTIN - 197961404357
Haze rate Display - 25 %
HDCP Ports & interfaces - Yes
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 1.4
HD type Display - Full HD
Headphone out Ports & interfaces - No

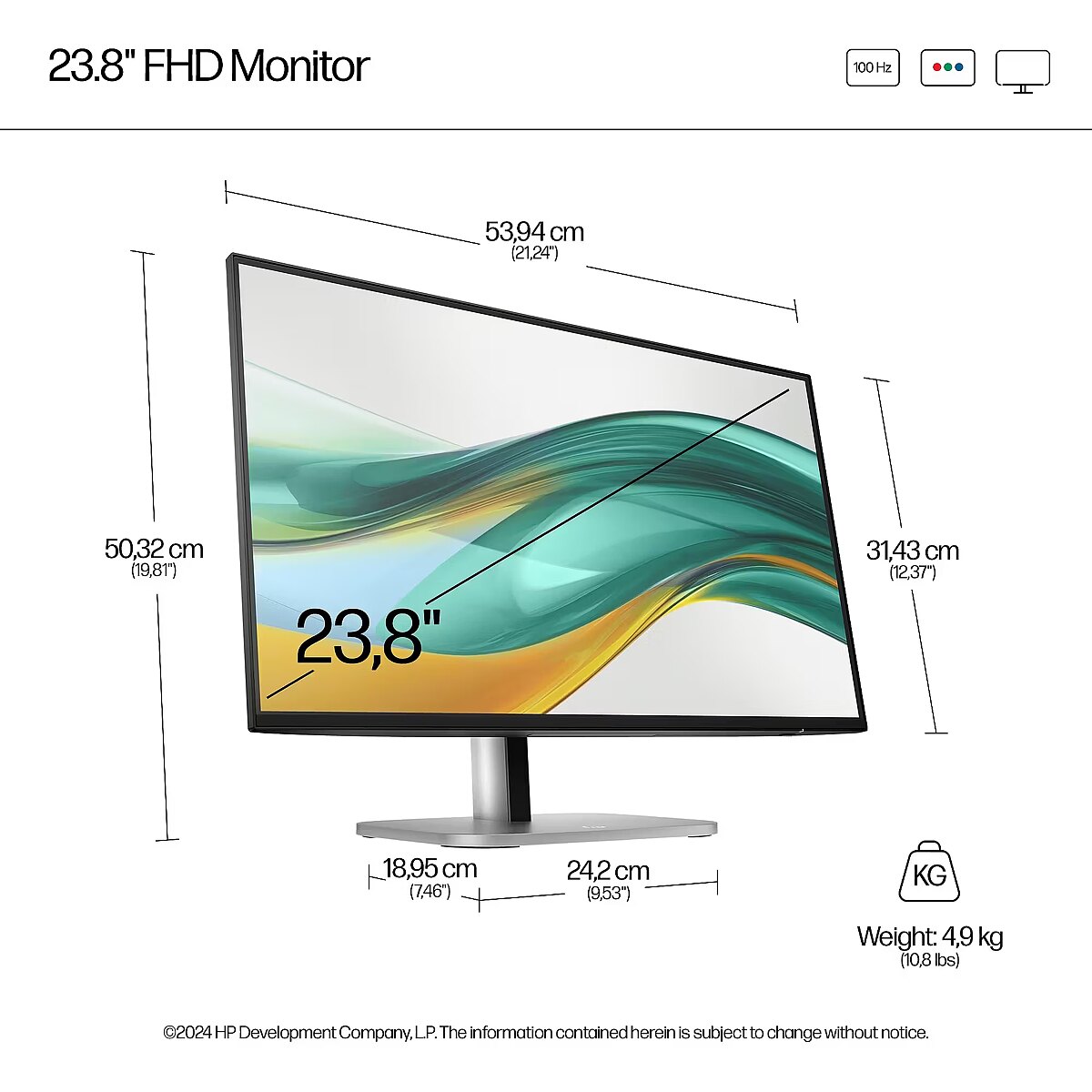

Height (without stand) Weight & dimensions - 314.3 mm
Height (with stand) Weight & dimensions - 503.2 mm
Height adjustment Ergonomics - Yes
Horizontal scan range Display - 30 - 120 kHz
HP GTIN (EAN/UPC) Brand-specific features - 197961404357, 197961403831
HP GTIN (EAN/UPC) with options Brand-specific features - (ABB) 197961404357; (ABU) 197961403831
HP segment Performance - Business
LED backlight Display - Yes
LongDesc - Reimagine what work looks likeGet more out of your workday with the HP Series 5 Pro 23.8” FHD Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.
LongProductName - Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free
LongSummaryDescription - HP Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). Height adjustment. Product colour: Black
Low Blue Light technology Performance - Yes
Market positioning Design - Home
Maximum refresh rate Display - 100 Hz
Model - 524pf (HSD-0178-Q)
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Native aspect ratio Display - 16:9
Number of USB Type-B upstream ports quantity Ports & interfaces - 1
NVIDIA G-SYNC Performance - No
On Screen Display (OSD) Ergonomics - Yes
Operating relative humidity (H-H) Operational conditions - 5 - 95 %
Operating temperature (T-T) Operational conditions - 5 - 35 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 80%
Other features - Certification - BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF
Other features - Compliance certificates - BIS
Other features - Compliance certificates - BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus
Other features - Compliance certificates - BSMI
Other features - Compliance certificates - CB
Other features - Compliance certificates - CCC
Other features - Compliance certificates - CE
Other features - Compliance certificates - CECP
Other features - Compliance certificates - CEL
Other features - Compliance certificates - cTUVus
Other features - Compliance certificates - EAC
Other features - Compliance certificates - Federal Communications Commission (FCC)
Other features - Compliance certificates - GS mark
Other features - Compliance certificates - ICES
Other features - Compliance certificates - KC
Other features - Compliance certificates - KCC
Other features - Compliance certificates - Norma Oficial Mexicana (NOM)
Other features - Compliance certificates - PSE
Other features - Compliance certificates - RCM
Other features - Compliance certificates - VCCI
Other features - Compliance certificates - WEEE
Other features - Country of origin - China, Vietnam
Other features - Manufacturer warranty - HP three-year limited warranty
Other features - UNSPSC-code - 43211902
Other features - Weight - 4.9 kg
Package depth Packaging data - 140 mm
Package height Packaging data - 393 mm
Package type Packaging data - Box
Package weight Packaging data - 7200 g
Package width Packaging data - 621 mm
Packaging content - Bundled software - HP Display Center; HP Client Management Script Library
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 140 mm
Packaging data - Package height - 393 mm
Packaging data - Package type - Box
Packaging data - Package weight - 7.2 kg
Packaging data - Package width - 621 mm
Panel type Display - IPS
Performance - AMD FreeSync - No
Performance - Flicker-free technology - Yes
Performance - HP segment - Business
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Pivot angle Ergonomics - -90 - 90 °
Pivot Ergonomics - Yes
Pixel density Display - 93 ppi
Pixel pitch Display - 0.28 x 0.28 mm

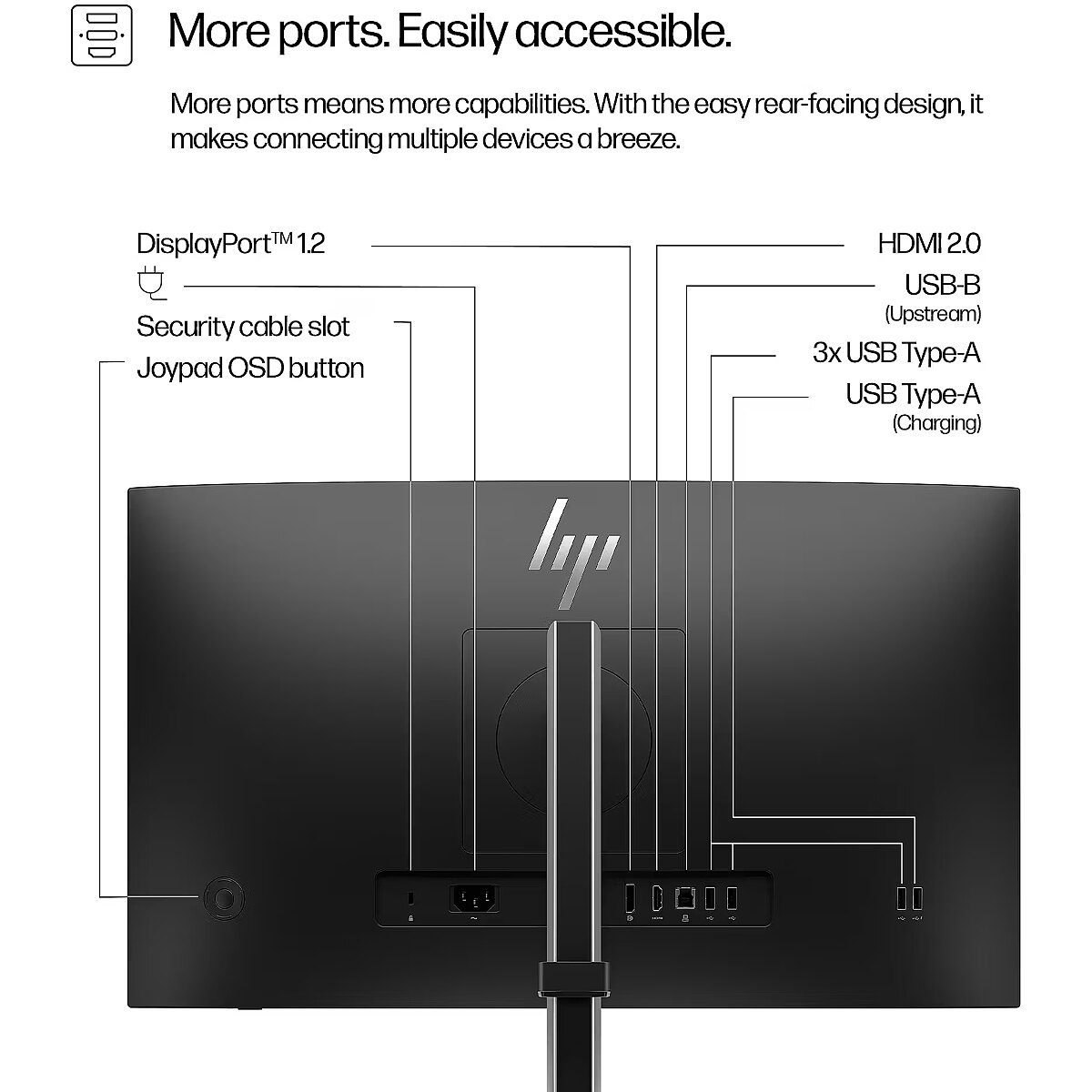

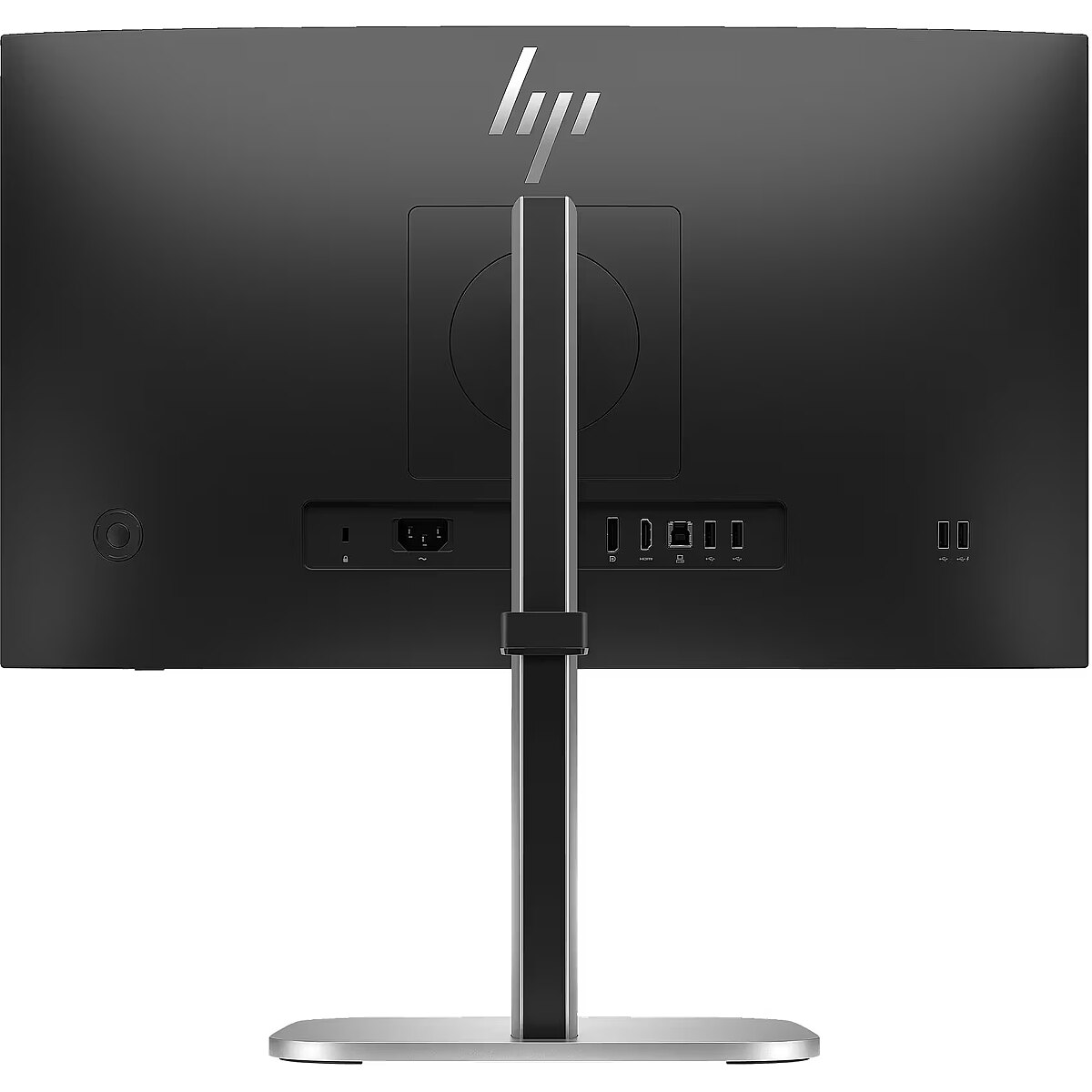

Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPort out quantity - 1.2
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - No
Ports & interfaces - Number of USB Type-B upstream ports quantity - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 12 kWh
Power - Energy efficiency class (HDR) - C
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - C
Power - Energy efficiency scale - A to G
Power - Power consumption (max) - 58 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 22 W
Power - Power supply type - Internal
Power consumption (max) Power - 58 W
Power consumption (off) Power - 0.3 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 22 W
Power supply type Power - Internal
producerCode - 9D9L6A5#ABB
Product colour Design - Black

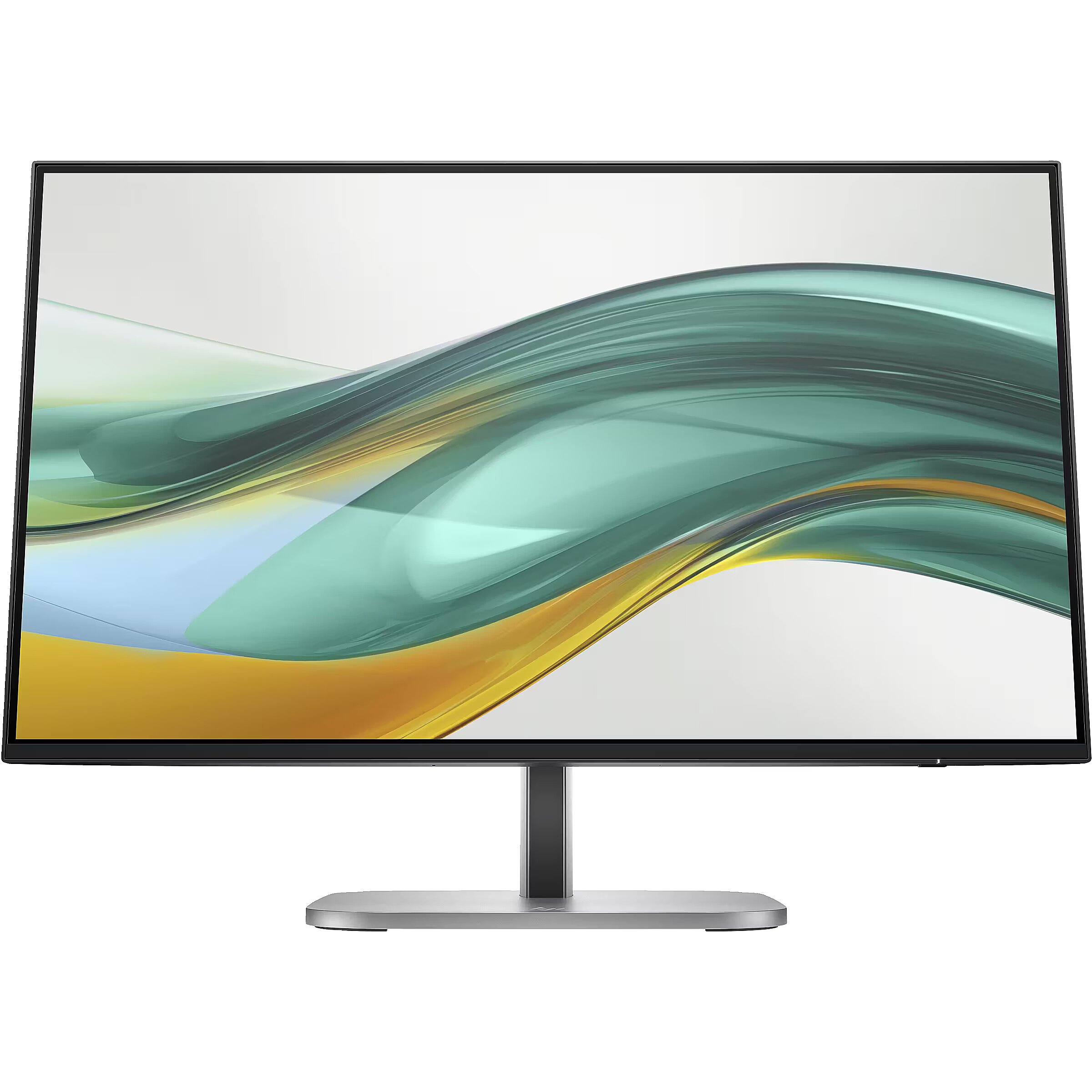

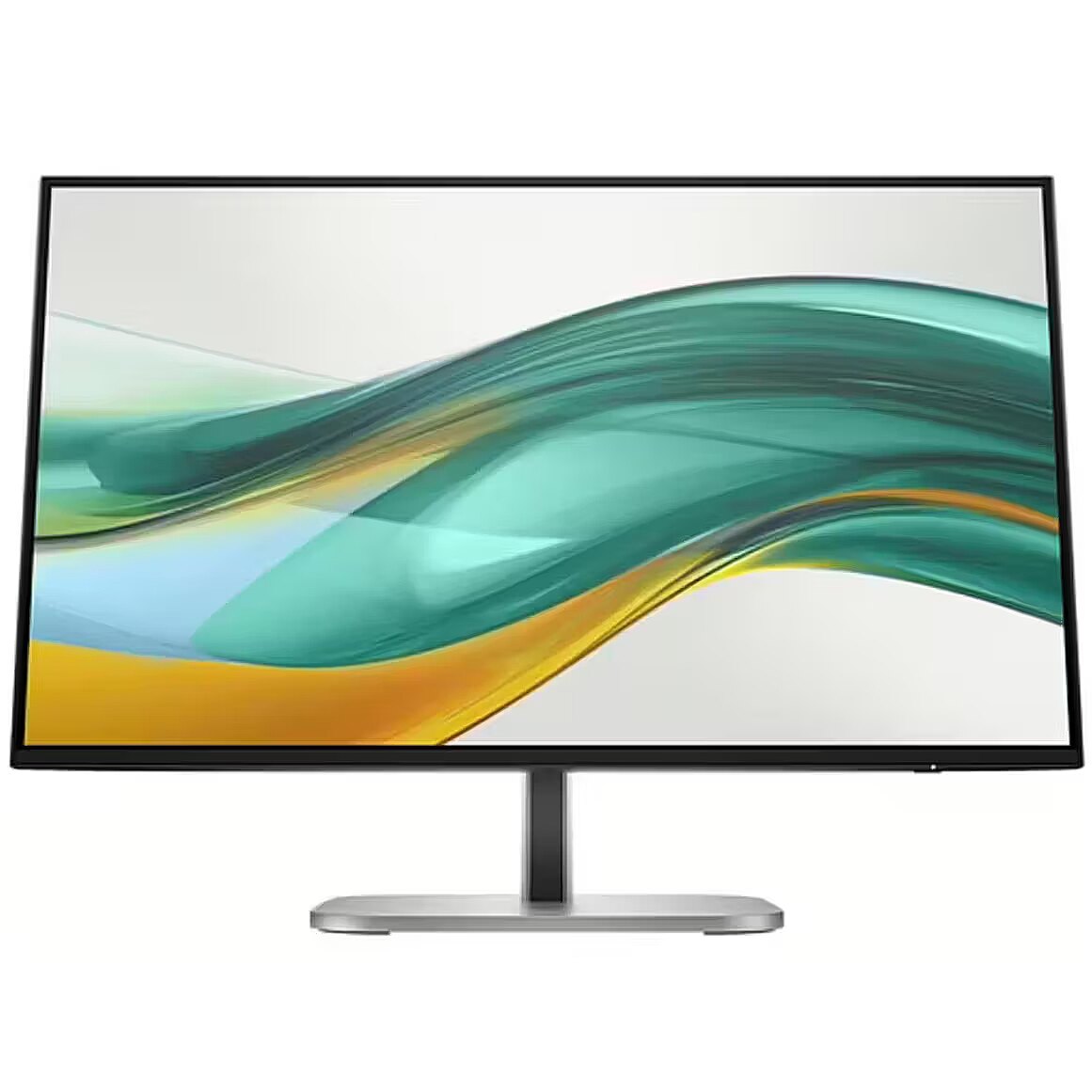

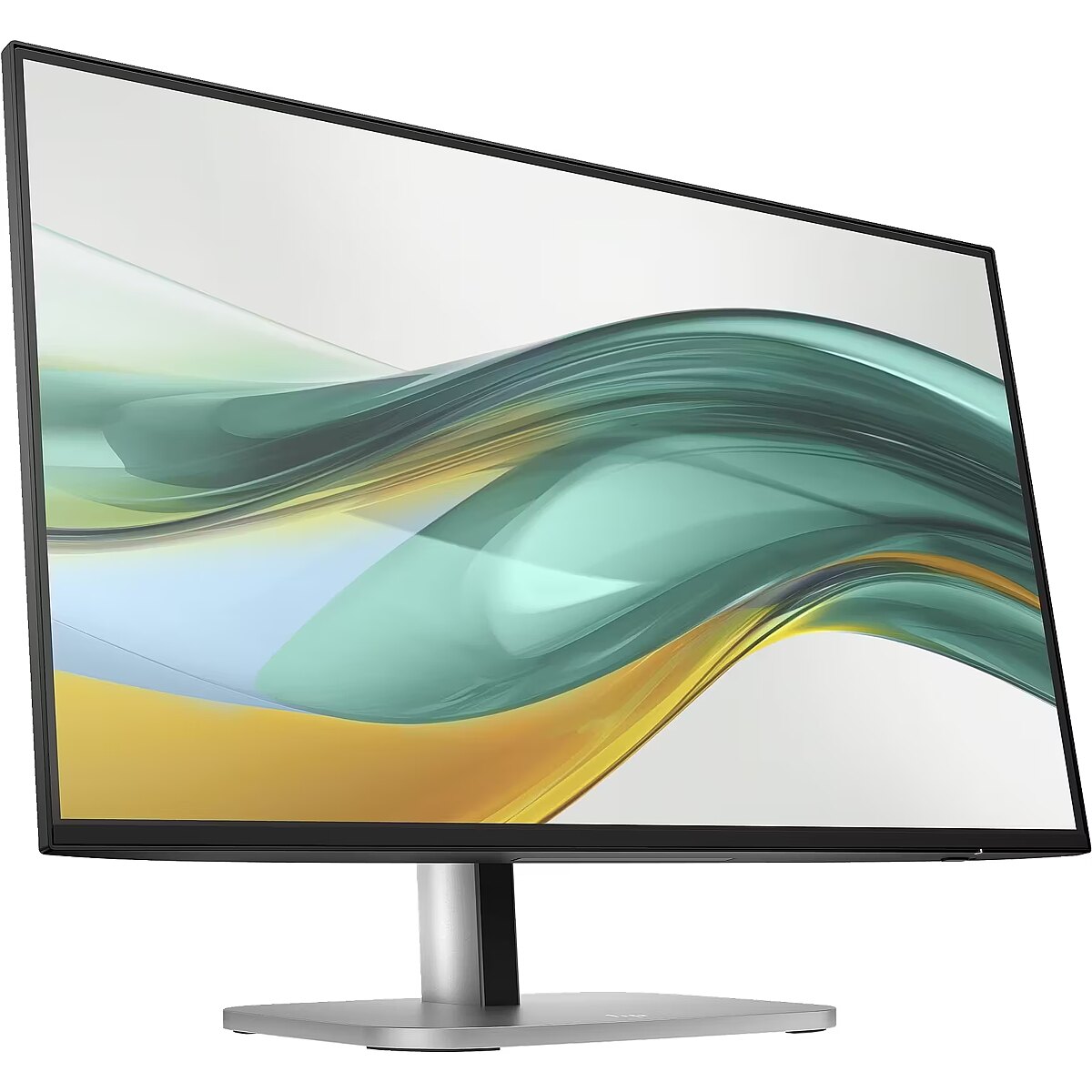

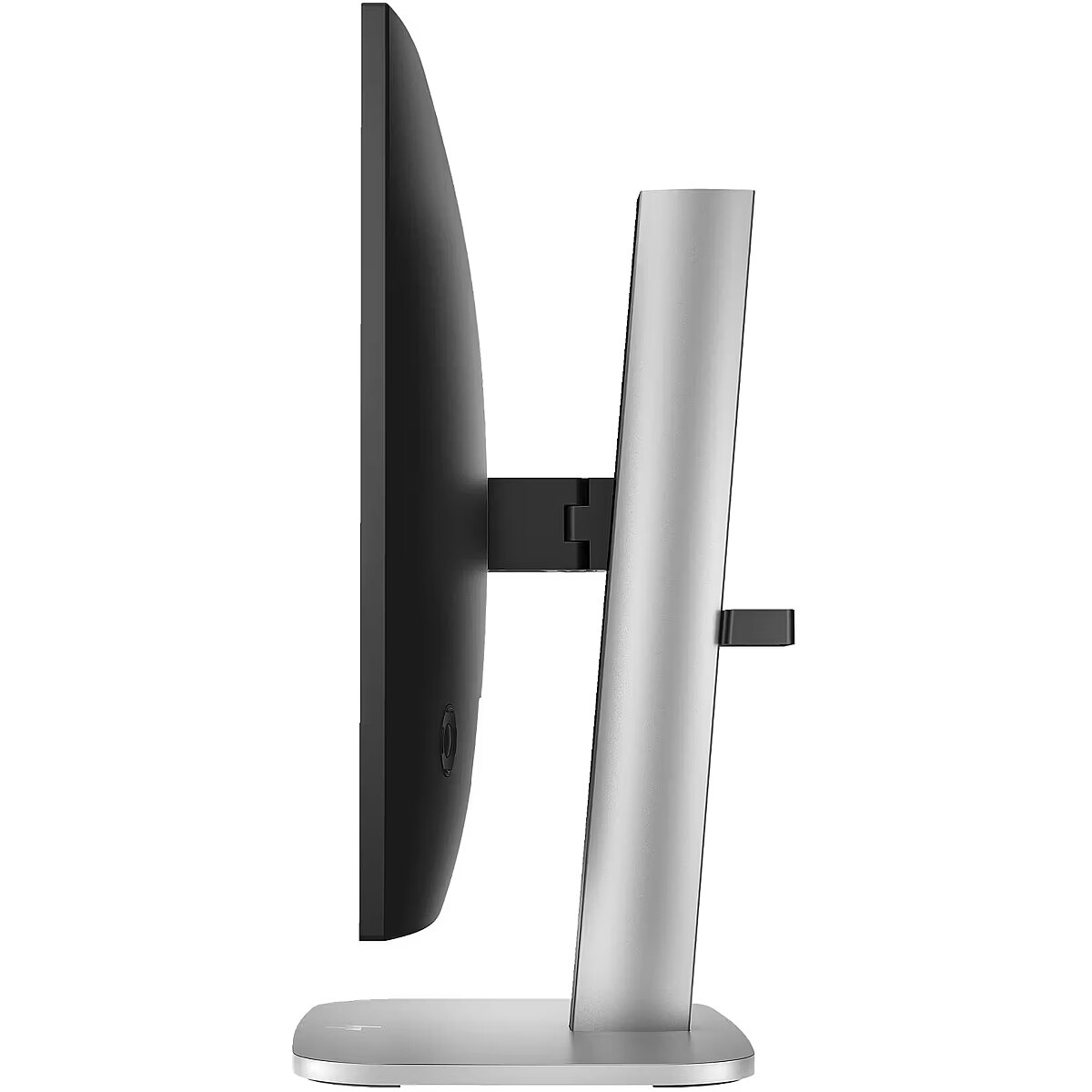

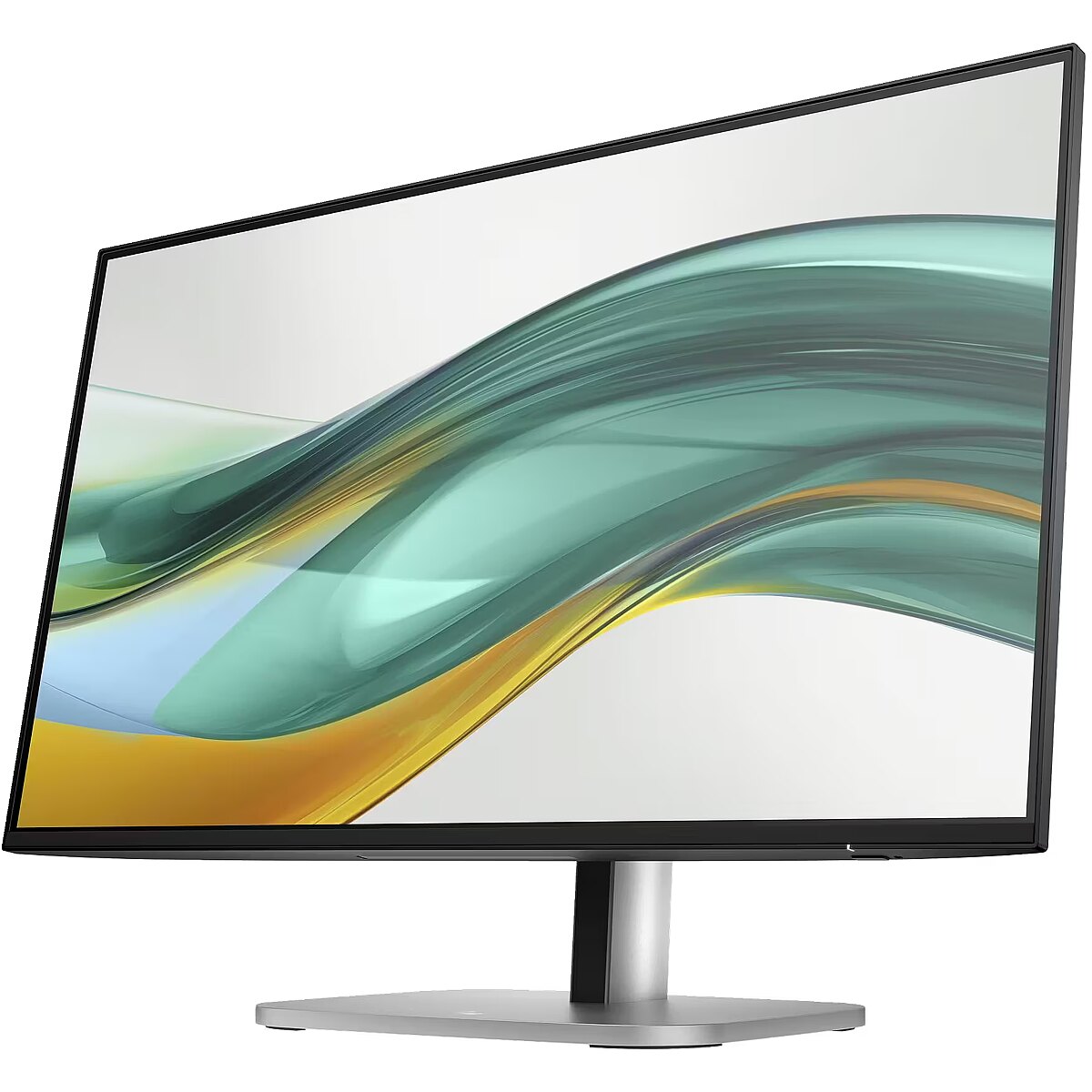

productName - HP Series 5 Pro 23.8 inch FHD Monitor - 524pf
ProductName - Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free
Product Net Weight - 4.9 kg
productSize - Normal
Quick start guide Packaging content - Yes
Response time Display - 5 ms
Response time measurement type Display - GTG (Gray to Gray)
Safety warning - Warnings - Do not disassemble the monitor casing to avoid risk of electric shock.
Safety warning - Warnings - Place the monitor on a flat and stable surface to avoid tipping and damage.
Safety warning - Warnings - Unplug the monitor from the power source before cleaning.
Screen shape Display - Flat
ShortSummaryDescription - HP Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
sizeX - 140
sizeY - 620
sizeZ - 395
sRGB coverage (typical) Display - 100 %
Storage relative humidity (H-H) Operational conditions - 20 - 80 %
Summary - HP Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). Height adjustment. Product colour: Black
Supported graphics resolutions Display - 1024 x 768 (XGA)/1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1280 x 800/1440 x 900 (WXGA+)/1600 x 900/1680 x 1050 (WSXGA+)/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 400/720 x 480/720 x 576/800 x 600 (SVGA)
Surface hardness Display - 3H
Sustainability - European Product Registry for Energy Labelling (EPREL) code - 1949552
Sustainability - Sustainability certificates - ENERGY STAR
Sustainability certificates Sustainability - ENERGY STAR
Swivel angle range Ergonomics - -45 - 45 °
Swivelling Ergonomics - Yes
Technical details - General Product Safety Regulation (GPSR) URL - https://support.hp.com/gb-en/product/setup-user-guides/hp-color-laserjet-professional-cp5225-printer-series/model/3974356?sku=CE710A ; https://kaas.hpcloud.hp.com/pdf-public/pdf_10340661_en-US-1.pdf
Technical details - General Product Safety Regulation (GPSR) URL - https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 23 °
Title - HP Series 5 Pro 23.8 inch FHD Monitor - 524pf PVC Free
Touchscreen Display - No
Unit Box Height - 0.39
Unit Box Length - 0.62
Unit Box Width - 0.14
Unit Calculated Volume - 0.03385 cubm
Unit Calculated Weight - 6.7 kg
Units per Pallet - 0
UNSPSC-code Other features - 43211902
URL - https://www8.hp.com
USB hub version Ports & interfaces - 3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity Ports & interfaces - 4
Vendor Homepage - https://www8.hp.com
Vertical scan range Display - 50 - 100 Hz
Viewable size, horizontal Display - 527 mm
Viewable size, vertical Display - 296.5 mm
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Warranty - 24 months
WarrantyInfo - HP three-year limited warranty
warrantyLength - 36
warrantyType - F
weight - 7200
Weight & dimensions - Depth (without stand) - 47.2 mm
Weight & dimensions - Depth (with stand) - 189.5 mm
Weight & dimensions - Height (without stand) - 314.3 mm
Weight & dimensions - Height (with stand) - 503.2 mm
Weight & dimensions - Weight (without stand) - 3.4 kg
Weight & dimensions - Weight (with stand) - 4.9 kg
Weight & dimensions - Width (without stand) - 539.4 mm
Weight & dimensions - Width (with stand) - 539.4 mm
Weight (without stand) Weight & dimensions - 3400 g
Weight (with stand) Weight & dimensions - 4900 g
Weight Other features - 4900 g
Width (without stand) Weight & dimensions - 539.4 mm
Width (with stand) Weight & dimensions - 539.4 mm
DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.
