Iiyama TF1015MC-B2 A, 10", Touchpanel

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1117291 Product code: TF1015MC-B3
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
384.89 €
Ready for dispatch
14.05.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Curved: None
  • Panel Type: IPS
  • Refresh rate: N/A
  • Response time: 25ms
  • Contrast ratio: 800:1
  • Brightness: 500dc/m2
  • Size: 10.1"
  • Resolution: WXGA 1280 x 800
Description

The portable monitor Iiyama TF1015MC-B2 A, 10", Touchpanel with WXGA 1280 x 800 resolution ensures a comfortable workspace expansion on the go. Its lightweight design and easy connectivity make it an excellent choice for mobile professionals and active users.

IPS technology ensures more accurate color representation and stable image when viewed from the side. Compared to TN and VA, it changes brightness and contrast less with viewing angle, making the displayed data visually more reliable and technically more accurate.

VESA wall mount provides a standardized mounting hole layout, allowing you to safely attach the monitor to the wall using compatible brackets. This type of installation frees up desk space, reduces vibrations from the table, and ensures a stable screen position for prolonged work.

D-Sub is an analog interface that ensures monitor compatibility with various video signals. It allows the use of a monitor with older devices without adapters, maintaining a stable image. D-Sub makes the device universal for various generation operating systems, ensuring correct graphics transmission and minimal distortions.

HDMI is a digital interface designed for stable video and audio transmission with a single cable. This approach reduces the number of connections and prevents unnecessary signal conversion. HDMI ensures a reliable connection, high throughput, and precise operation with modern devices without loss of quality.

DisplayPort is a modern monitor interface standard that ensures stable image transmission with high resolution and refresh intensity. It supports HDR, frame synchronization, and multiple monitor systems, maintaining detail accuracy and image quality for professional and gaming work.

Warranty

Iiyama provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

All parameters
Model : TF1015MC-B3
Display characteristics
AMD FreeSync : None
Curved : None
NVIDIA G-SYNC : None
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : N/A
Touchscreen : YES
VESA DisplayHDR : There isn't
Response time 25ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 800:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 500dc/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Mobile
Aspect ratio : 16:10
Color : Black
Size 10.1"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution WXGA 1280 x 800

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : There isn't
Height adjustment : None
Pivot : None
Swivel : None
Tilt : NO
VESA wall mount : 100x100 mm

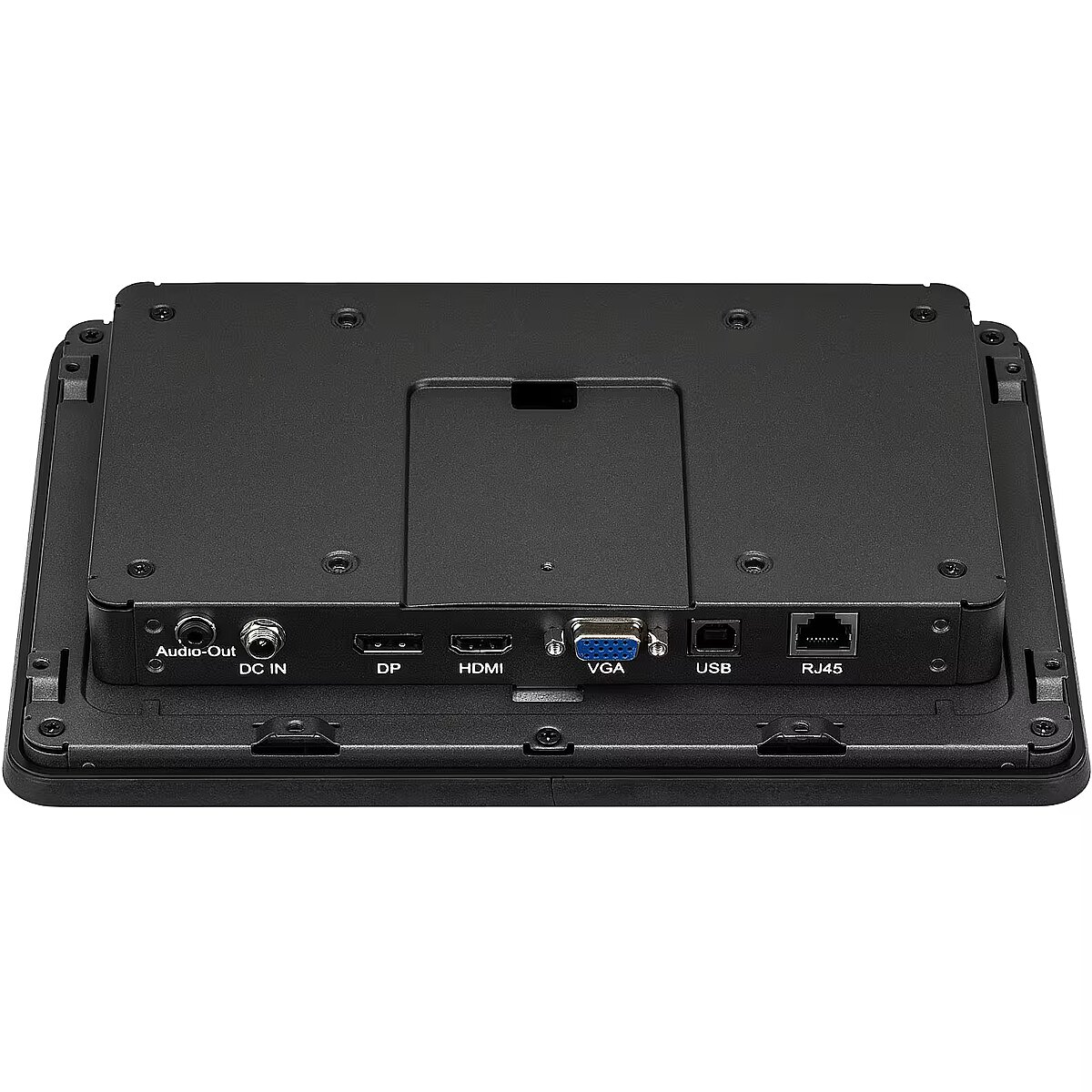

Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 0

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers None

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : There isn't
USB-C video input : 0
More detailed specification
Additional information in manufacturers website Iiyama TF1015MC-B2 A, 10", Touchpanel
ARTIKEL1 - TF1015MC-B3 10.1IN PCAP TOUCH
ARTIKEL2 - 101 PCAP BEZEL FREE 10P TOUCH WI
Brand - iiyama
BrandPartCode - TF1015MC-B3
Breite - 0
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Front bezel colour - Black
Design - Glass thickness - 3.3 mm
Design - Market positioning - Business
Design - Product colour - Black
Display - Contrast ratio (typical) - 800:1
Display - Digital horizontal frequency - 30 - 49.7 kHz
Display - Display brightness - 425 cd/m²
Display - Display brightness (peak) - 500 cd/m²
Display - Display brightness (typical) - 500 cd/m²
Display - Display diagonal - 25.6 cm (10.1")
Display - Display diagonal (metric) - 25.7 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1280 x 800 pixels
Display - Display technology - LED
Display - HD type - HD
Display - Horizontal scan range - 30 - 49.7 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 16:10
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.1695 x 0.1695 mm
Display - Response time - 29 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 21.7 cm
Display - Viewable size, vertical - 13.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570124107
EANCode - 4948570124107
Ergonomics - LED indicators - Yes
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Gewicht - 3.32
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570124107
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TF1015MC-B3
Laenge - 0
LongDesc - The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
LongProductName - 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
LongSummaryDescription - iiyama TF1015MC-B3. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: HD, Display technology: LED, Response time: 29 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black
Manufacturer - iiyama
MPN - TF1015MC-B3
Name - IIYAMA 25.7cm (10.1") TF1015MC-B3 16:10 M-Touch HDMI+DP+USB
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 216.96 x 135.6 mm
Other features - Brightness - 425 cd/m²
Other features - Certification - CB, CE, TÜV-Bauart, EAC, cULus
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Depth - 39.5 mm
Other features - Ethernet LAN (RJ-45) ports - 1
Other features - Height - 183.5 mm
Other features - International Protection (IP) code - IP65
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Packaging content - AC adapter, external control pad
Other features - Placement supported - Indoor
Other features - Touch method - stylus, finger, glove (latex)
Other features - USB ports quantity - 1
Other features - User controls - picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Other features - Weight - 1.4 kg
Other features - Width - 260.5 mm
Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 370 mm
Packaging data - Package height - 160 mm
Packaging data - Package weight - 2.7 kg
Packaging data - Package width - 310 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Palm rejection - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 5.7 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - C
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.7 W
Power - Power consumption (typical) - 6 W
Power - Power supply type - External
ProductName - TF1015MC-B3
ShortSummaryDescription - iiyama TF1015MC-B3, 25.6 cm (10.1"), 1280 x 800 pixels, HD, LED, 29 ms, Black
Stck_Kart - 9998
Stck_Pal - 12
Storno - Y
Sustainability - Sustainability certificates - ErP
Title - iiyama TF1015MC-B3 computer monitor 25.6 cm (10.1") 1280 x 800 pixels HD LED Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight - 3.25
Weight & dimensions - Depth (without stand) - 39.5 mm
Weight & dimensions - Depth (with stand) - 39.5 mm
Weight & dimensions - Height (without stand) - 183.5 mm
Weight & dimensions - Height (with stand) - 183.5 mm
Weight & dimensions - Weight (without stand) - 2.7 kg
Weight & dimensions - Weight (with stand) - 1.4 kg
Weight & dimensions - Width (without stand) - 260.5 mm
Weight & dimensions - Width (with stand) - 260.5 mm
