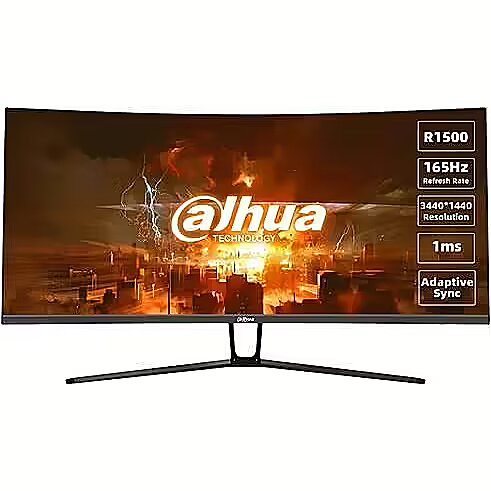

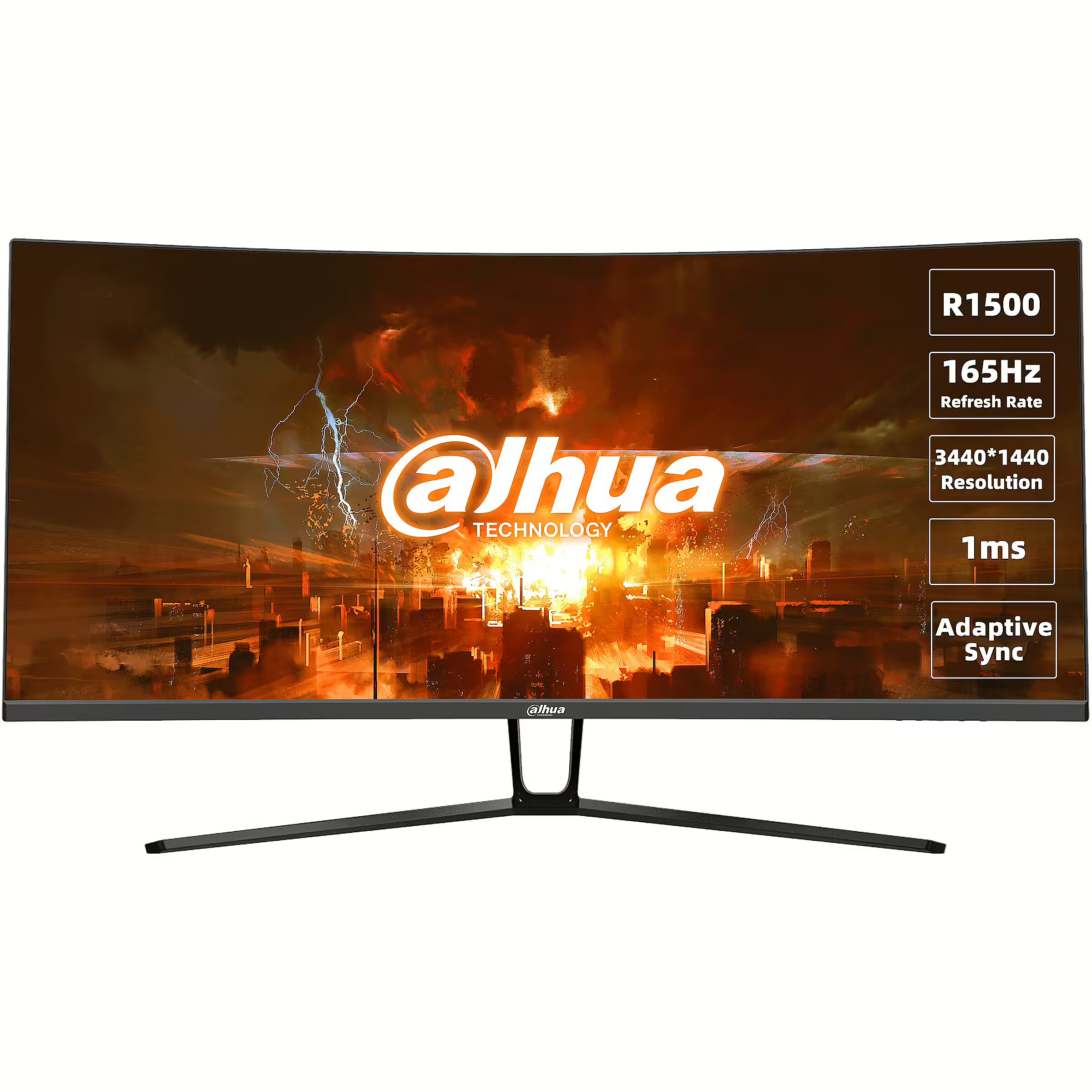

Dahua LM34-E330C, 34"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1117286 Product code: LM34-E330C
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Curved: Ir
  • Panel Type: VA
  • Refresh rate: 165 Hz
  • Response time: 1ms
  • Contrast ratio: 3000:1
  • Brightness: 350cd/m2
  • Size: 34"
  • Resolution: UWWQHD 3440x1440
Similar Products
This product Dahua LM34-E330C, 34"
Dahua LM30-E330CA, 30"
Dahua DHI-LM32-E330CA, 31.5"
Dahua LM24-E230C, 23.6"
Dahua DHI-LM24-E240C, 23.6"
Show similar specs. Hide similar specs.
217.93 €
210.96 €
211.68 €
102.04 €
103.34 €
Model DHI-LM34-E330C DHI-LM30-E330CA DHI-LM32-E330CA LM24-E230C DHI-LM24-E240C
Display characteristics
AMD FreeSync Nav Nav Nav Nav Ir
Curved Ir Ir Ir Ir Ir
NVIDIA G-SYNC Nav Nav Nav Nav Nav
Panel Type VA VA VA VA VA
Refresh rate 165 Hz 200 Hz 180 Hz 165 Hz 165 Hz
Touchscreen NO NO NO NO NO
VESA DisplayHDR Nav Nav Nav Nav Nav
Response time 1ms 1ms 1ms 1ms 1ms
Contrast ratio 3000:1 3000:1 3000:1 3000:1 3000:1
Brightness 350cd/m2 250cd/m2 300cd/m2 250cd/m2 250cd/m2
Basic information
Application Gaming Gaming Gaming Gaming Gaming
Aspect ratio 21:9 21:9 16:9 16:9 16:9
Color Black Red Black Red Black Black Black
Size 34" 30" 31.5" 23.6" 23.6"
Resolution UWWQHD 3440x1440 UWFHD 2560x1080 WQHD 2560x1440 FHD 1920x1080 FHD 1920x1080
Functionality
Flicker-free Nav Nav Ir Nav Ir
Height adjustment Nav Ir Ir Nav Nav
Pivot Nav Nav Nav Nav Nav
Swivel None And And None None
Tilt YES YES YES YES YES
VESA wall mount 75x75mm 75x75mm 100x100 mm 75x75mm 75x75mm
Ports and equipment
D-SUB Nav Nav Nav Nav 1
DisplayPort 2 2 2 1 1
DVI Nav Nav Nav Nav Nav
HDMI port 2 2 2 2 1
Speakers Nav Nav Nav Nav Nav
USB Hub NO NO NO NO NO
USB-C Power Delivery Nav Nav Nav Nav Nav
USB-C video input 0 0 0 0 0
Description

This Dahua LM34-E330C, 34" gaming monitor with UWWQHD 3440x1440 resolution offers an expanded workspace and crystal-clear picture. It's a great choice for gamers who appreciate realistic graphics, rich details and smooth gameplay on a large screen.

The reaction time of 1ms means that pixels change state faster, reducing artifacts in motion picture depiction. This ensures a more accurate representation of fast transitions and reduces visual disturbances. The monitor provides a clear image in dynamic situations and improves the readability of moving objects.

VA panel technology ensures high contrast and deep black color, thanks to the vertical orientation of the liquid crystals. They maintain brightness stability at various viewing angles and reduce lighting losses. Compared to TN, VA panels are better suited for watching movies and working with dark images, retaining details in shadows.

The 165 Hz frequency enhances the clarity of fast-moving objects and reduces blurring at high speeds. The screen refreshes quickly enough to accurately display fine motion details, which is crucial in shooters and competitive games. It ensures high visual stability without sudden changes.

The Tilt function ensures flexible adjustment of the panel's vertical tilt, allowing for precise adaptation of the screen to the working position. This reduces the risk of discomfort during prolonged use, maintains an optimal viewing angle, and helps avoid image distortion in various lighting conditions.

VESA wall mount provides a standardized mounting hole layout, allowing you to safely attach the monitor to the wall using compatible brackets. This type of installation frees up desk space, reduces vibrations from the table, and ensures a stable screen position for prolonged work.

HDMI uses a single cable connection for video and audio transmission, ensuring a stable signal and minimal losses. Such an interface simplifies connection and reduces the possibility of synchronization errors. HDMI is compatible with a majority of modern devices and ensures reliable operation in various configurations.

DisplayPort is a modern monitor interface standard that ensures stable image transmission with high resolution and refresh intensity. It supports HDR, frame synchronization, and multiple monitor systems, maintaining detail accuracy and image quality for professional and gaming work.

Warranty

Dahua provides this model with a 3 year warranty at all certified service centres.

All parameters
Model : DHI-LM34-E330C
Display characteristics
AMD FreeSync : Nav
Curved : Ir
NVIDIA G-SYNC : Nav
Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 165 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 1ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.fi recommends to buy monitors with 5ms response time or lower.
Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.fi iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Gaming
Aspect ratio : 21:9
Color : Black, Red
Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 75x75mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 2

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Backlight type Display - Edge LED
Brand - Dahua Technology
BrandPartCode - DHI-LM34-E330C
Built-in USB hub Ports & interfaces - No
Cables included Packaging content - DisplayPort
Category - Computer Monitors
Category Code - LC3
Contrast ratio (typical) Display - 3000:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/1716120/fiches?language=EN
Depth (without stand) Weight & dimensions - 129.59 mm
Description - The 3440*1440 resolution produces clearer and more vivid picturesComfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoymentWide color gamut, 120% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture178°H/178°V extra-wide viewing angle for all-round viewing performanceAdaptive sync can effectively solve picture lagging and tearing problemsFast response time with no image blurring or ghosting
Design - Market positioning - Gaming
Design - Product colour - Black, Red
Display - Backlight type - Edge LED
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display resolution - 3440 x 1440 pixels
Display - Display technology - LCD
Display - HD type - UltraWide Quad HD
Display - Maximum refresh rate - 165 Hz
Display - Native aspect ratio - 21:9
Display - Panel type - VA
Display - Response time - 1 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 120%
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness (typical) Display - 350 cd/m²
Display diagonal Display - 34 "
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 1.4
Display resolution Display - 3440 x 1440 pixels
Display technology Display - LCD
Energy efficiency class (HDR) Power - Not available
Energy efficiency class (SDR) Power - F
Energy efficiency class Energy Efficiency - F
EPREL Registration Number Energy Efficiency - 1716120
EPREL Version Number Energy Efficiency - 1
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 15°
Ergonomics - VESA mounting - Yes
European Product Registry for Energy Labelling (EPREL) code Power - 1716120
GTIN - 6923172557377
HDMI Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 2
HDMI version Ports & interfaces - 2.0
HD type Display - UltraWide Quad HD
Headphone out Ports & interfaces - Yes
Height (without stand) Weight & dimensions - 363.33 mm
Input current Power - 2 A
LongDesc -
LongProductName - 34", VA, 3440 x 1440, E-LED, 350 nits, 3000:1, 1 ms, 165 Hz, Black/Red
LongSummaryDescription - Dahua Technology LM34-E330C. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 1 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black, Red
Market positioning Design - Gaming
Maximum refresh rate Display - 165 Hz
Model - DHI-LM34-E330C
Native aspect ratio Display - 21:9
Operating relative humidity (H-H) Operational conditions - 10 - 85 %
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package depth Packaging data - 486 mm
Package height Packaging data - 182 mm
Package weight Packaging data - 9670 g
Package width Packaging data - 907 mm
Packaging content - Cables included - DisplayPort
Packaging content - Stand included - Yes
Packaging data - Package depth - 486 mm
Packaging data - Package height - 182 mm
Packaging data - Package weight - 9.67 kg
Packaging data - Package width - 907 mm
Panel mounting interface Ergonomics - 75 x 75 mm
Panel type Display - VA
Performance - VESA Adaptive Sync support - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone out - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - F
Power - European Product Registry for Energy Labelling (EPREL) code - 1716120
Power - Input current - 2 A
Power - Power consumption (max) - 78 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 64 W
Power - Power supply type - External
Power consumption (max) Power - 78 W
Power consumption (off) Power - 0.3 W
Power consumption (standby) Power - 0.5 W
Power consumption (typical) Power - 64 W
Power supply type Power - External
Product colour Design - Black,Red
ProductName - LM34-E330C
Product Net Weight - 7.24 kg
Response time Display - 1 ms
Screen curvature rating Display - 1500R
Screen shape Display - Curved
ShortSummaryDescription - Dahua Technology LM34-E330C, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LCD, 1 ms, Black, Red
sRGB coverage (typical) Display - 120 %
Stand included Packaging content - Yes
Summary - Dahua Technology LM34-E330C. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 1 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black, Red
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 15 °
Title - Dahua Technology LM34-E330C computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LCD Black, Red
Touchscreen Display - No
Unit Box Height - 0.48
Unit Box Length - 0.91
Unit Box Width - 0.18
Unit Calculated Volume - 0.07862 cubm
Unit Calculated Weight - 9.5 kg
URL - https://display.dahuasecurity.com/consumer/en/products/productDetail?product_id=133347
Vendor Homepage - https://display.dahuasecurity.com/consumer/en/products/productDetail?product_id=133347
VESA Adaptive Sync support Performance - Yes
VESA mounting Ergonomics - Yes
Viewing angle, horizontal Display - 178 °
Viewing angle, vertical Display - 178 °
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 129.6 mm
Weight & dimensions - Height (without stand) - 363.3 mm
Weight & dimensions - Weight (without stand) - 7.24 kg
Weight & dimensions - Width (without stand) - 808.6 mm
Weight (without stand) Weight & dimensions - 7240 g
Width (without stand) Weight & dimensions - 808.65 mm
217.93 €

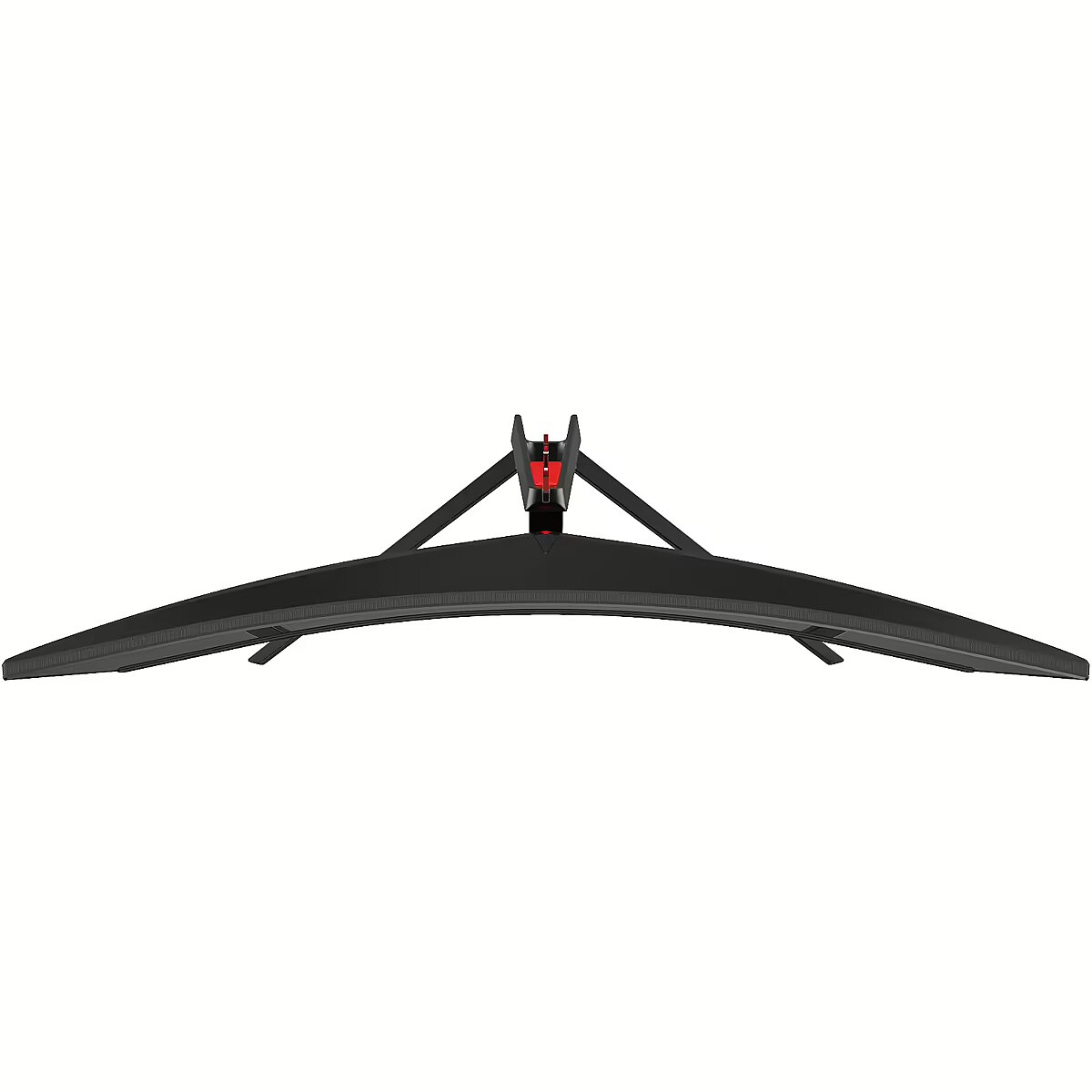

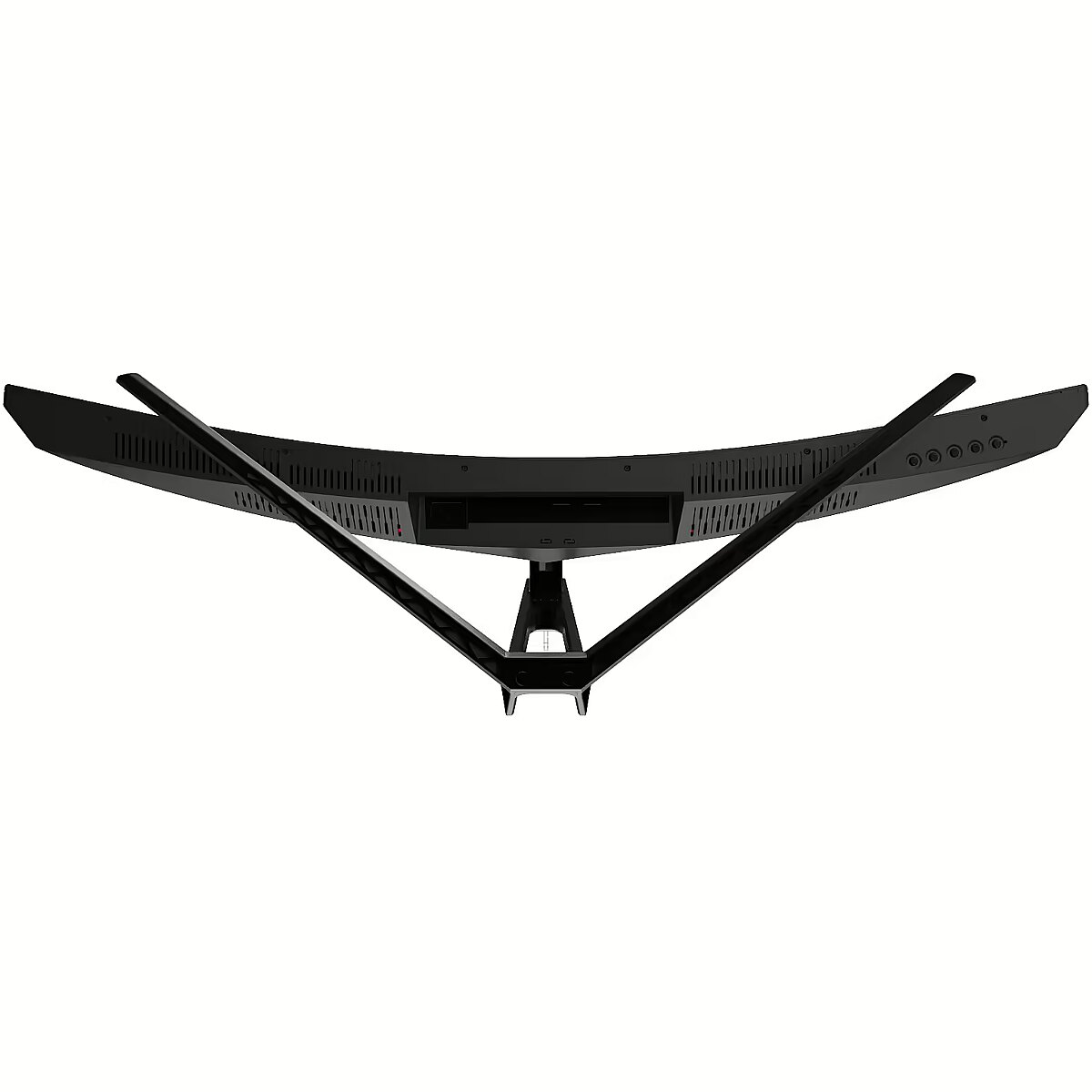

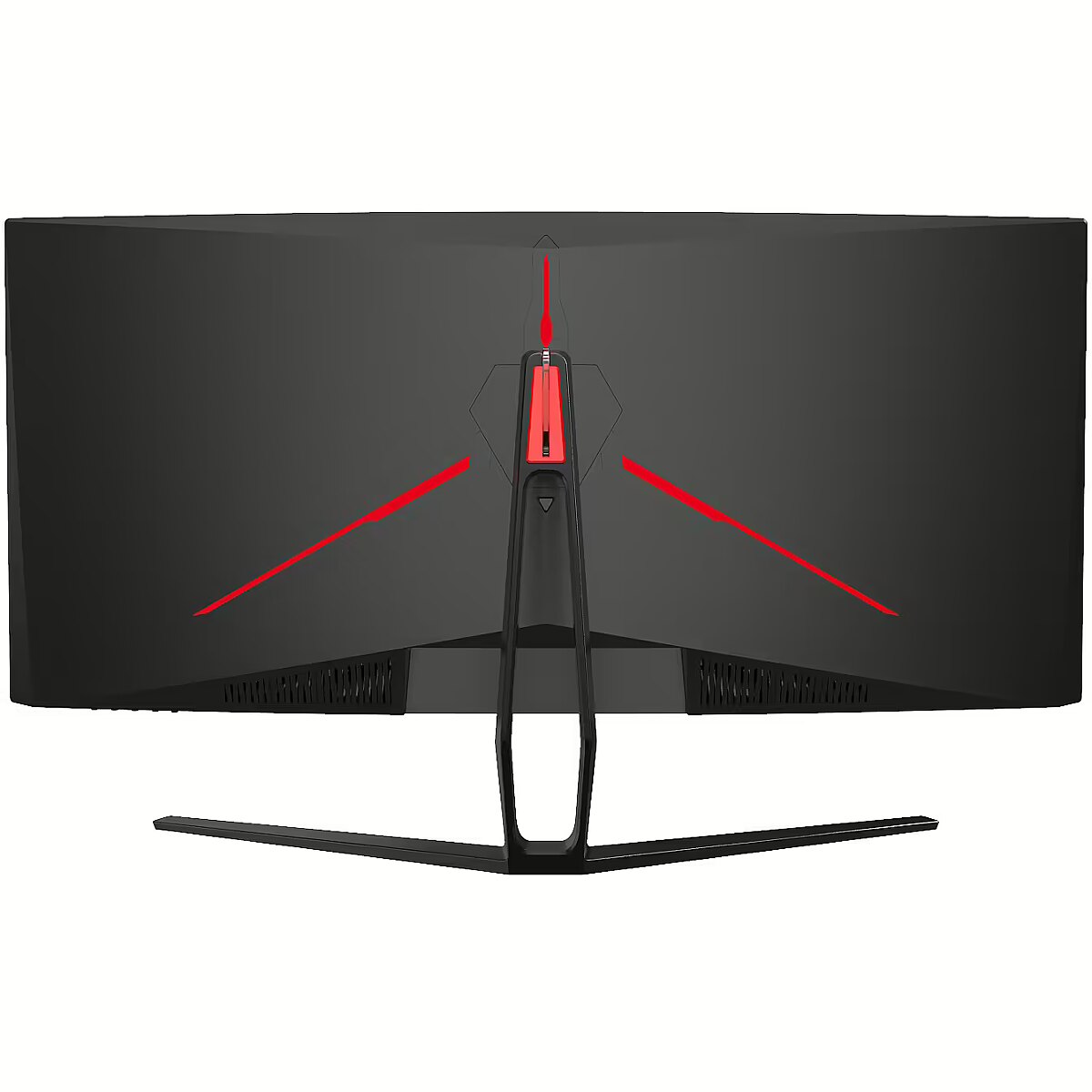

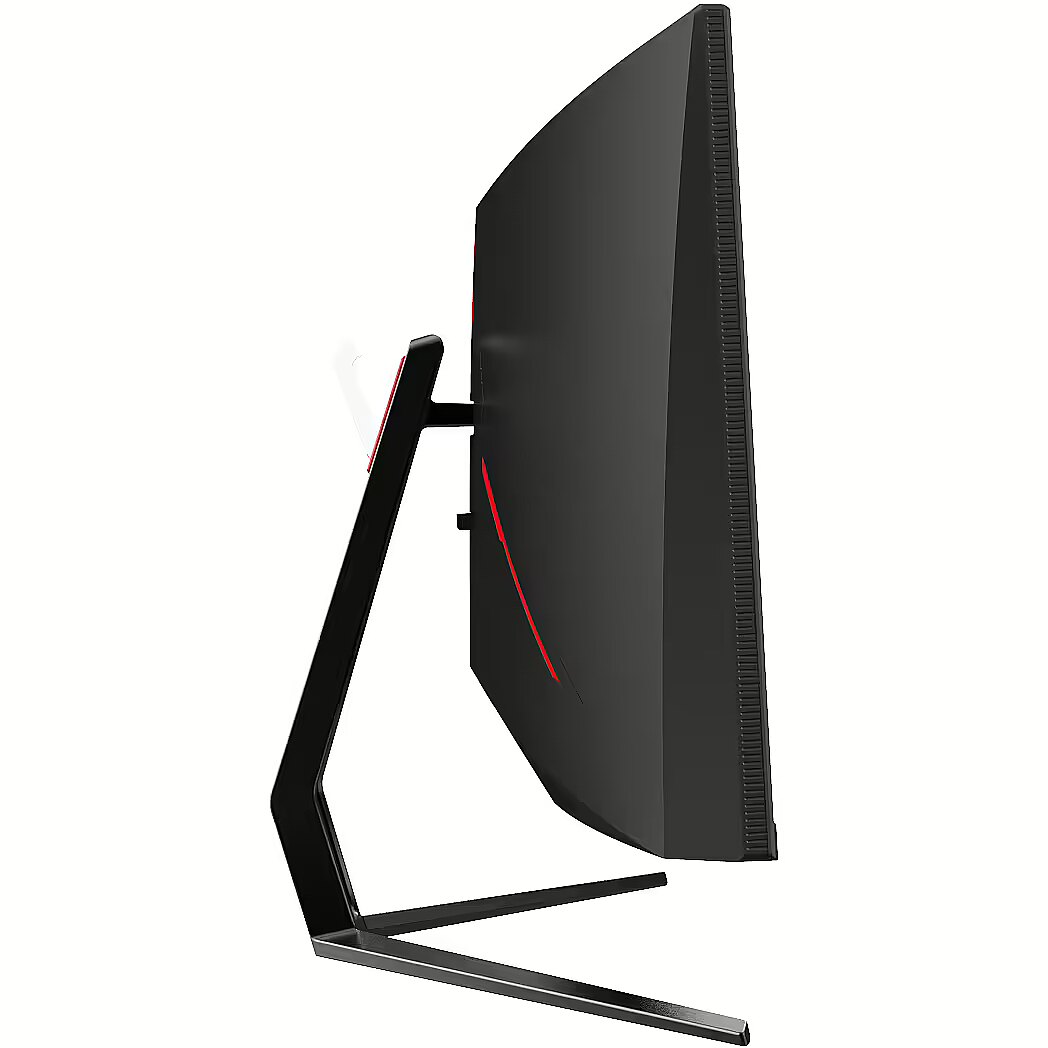

Dahua LM34-E330C, 34"
Intel technology provider Platinum 2020
All categories
