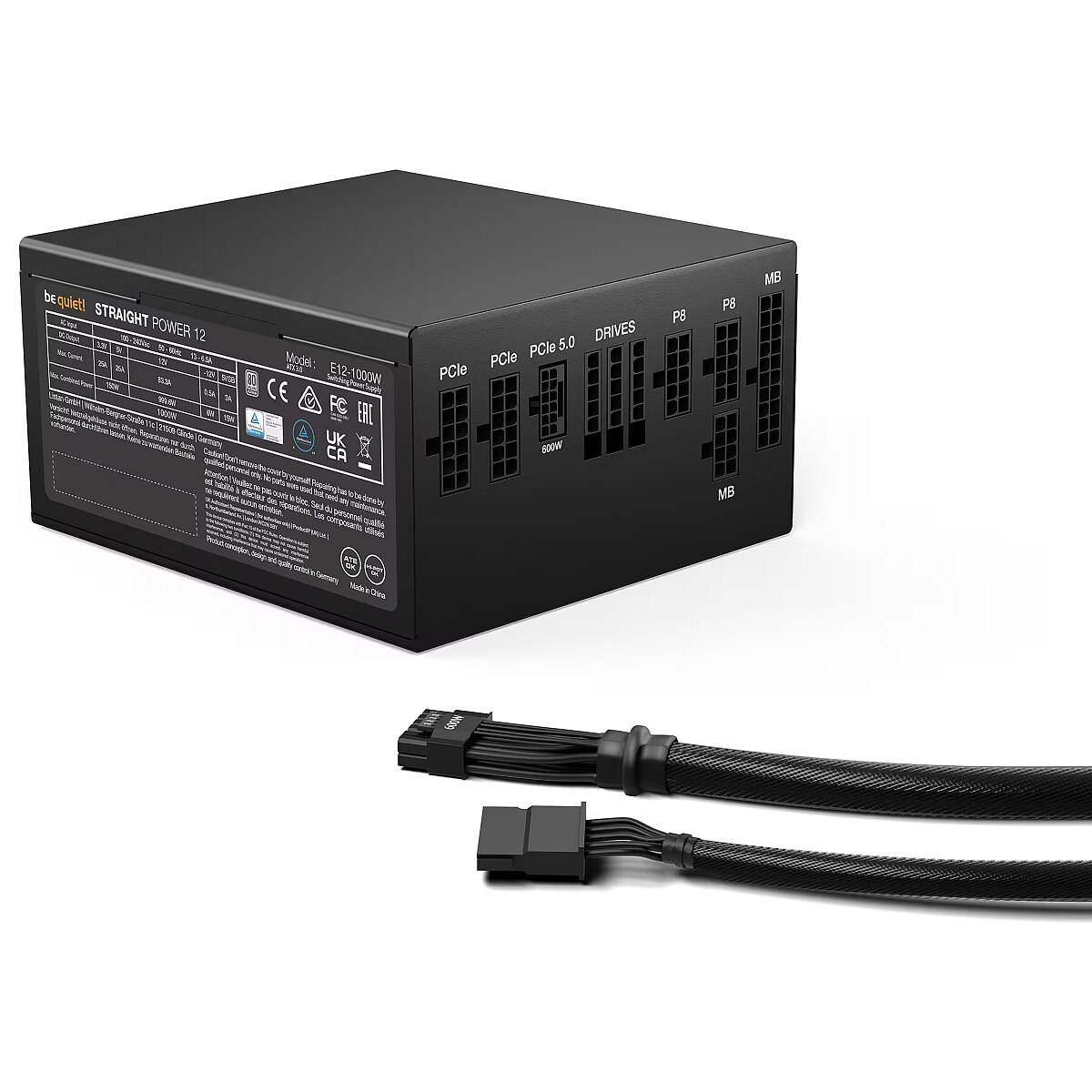

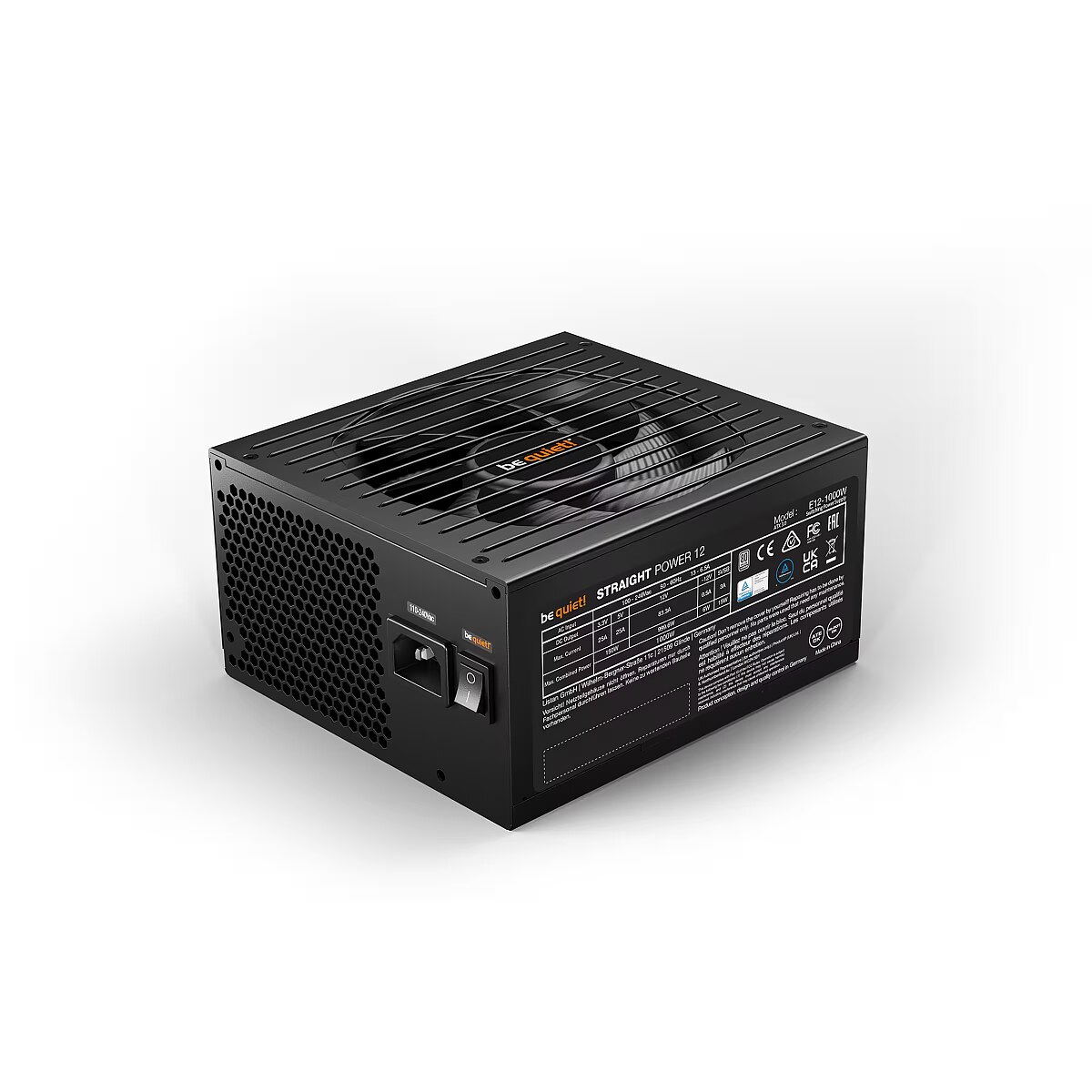

Be Quiet Straight Power 12, 1000W, ATX 3.0, 80PLUS Platinum, PCIe 5.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 978274 Product code: BN338
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Be Quiet
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Be Quiet Straight Power 12, 1000W, ATX 3.0, 80PLUS Platinum, PCIe 5.0
Be Quiet Straight Power 12, 1200W, ATX 3.0, 80PLUS Platinum, PCIe 5.0
Recommended Phanteks AMP GH V2, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Seasonic Prime Fanless PX, 500W, 80PLUS Platinum
Show similar specs. Hide similar specs.
218.58 €
244.48 €
180.00 €
52.59 €
176.31 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Nav Nav
Cybenetics Noise level certification Nav Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 1000W 1200W 1200W 650W 500W
80 PLUS certification 80 PLUS Platinum 80 PLUS Platinum 80 PLUS Platinum 80 PLUS Bronze 80 PLUS Platinum
Total amperage (+12V) 83.3A 100A 100A 54A 41A
Fan size 135 mm 135 mm 120 mm 120 mm Fanless
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Fully-Modular Nav Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 1 x 600W 12VHPWR (5.0) 2 x 600W 12VHPWR (5.0) 1 x 600W 12V-2X6 (5.1) 1 x 450W 12V-2X6 (5.1) Nav
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 24-pin 24-pin 20+4pin
PCI-E 4 X 6+2pin 4 X 6+2pin 4 X 6+2pin 2 X 6+2pin 2 X 6+2pin
SATA cconnectors 9 9 14 6 Eight Core
4pin Molex 2 2 2 2 3
Description

We offer to purchase a Be Quiet power supply unit with a power capacity of 1000W, which has received the 80 PLUS Platinum energy efficiency certification.

This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

The power supply manufacturer is Be Quiet. All Be Quiet produced power supplies can be viewed here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83.3A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12VHPWR (5.0)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 9
4pin Molex : 2
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Maks. głośność - 28.9 dB
Dane techniczne: Moc - 1000 W
Dane techniczne: Model - be quiet! Straight Power 12
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 83.3 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 160 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 1.85 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x FAN
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 9 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 0 - 2100 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1732
EAN - 4260052189436
Eans - 4260052189436
EAN_code - 4260052189436
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case net weight - 22.9 kg
Logistics data - Shipping (inner) case width - 28.2 cm
Logistics data - Warranty period - 10 year(s)
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN338
MPN - BN338
Name - 1000W be quiet! Straight Power 12 | 80+Platinum
Name - be quiet! Straight Power 12 1000W
Name - be quiet! Straight Power 12 Platinum 1000W ATX3.0, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 1000 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - CPU, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.56 kg
Packaging data - Package width - 248 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 28.9 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1000
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850 mm
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+12V) - 999.6 W
Power - Efficiency - 91.8%
Power - Hold time - 25.3 ms
Power - Input current - 13/6.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1070 W
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Producent: Nazwa producenta / importera - be quiet!Listan GmbHWilhelm-Bergner-Str 11C21509 Glinde / HamburgNiemcyEmail: bequietcee@bequiet.com
Producer - be quiet!
producerCode - BN338
ProducerCode - BN338
productName - be quiet! BN338 power supply unit 1000 W 20+4 pin ATX ATX Black
productSize - Normal
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 170mm | 80 PLUS Platinum
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
warrantyLength - 120
warrantyType - G
Weight - 3,56
Weight - 3.666
weight - 3650
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.85 kg
Weight & dimensions - Width - 150 mm
