ID: 958308
Product code: XN340
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years

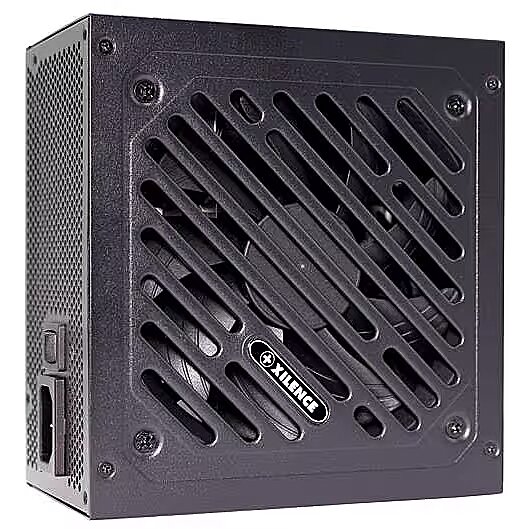

Xilence Gaming Gold, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Xilence
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
We offer to purchase a Xilence power supply unit with a power capacity of 850W, which has received the 80 PLUS Gold energy efficiency certification.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 200 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 2.52
Bearing technology Performance - HDB
Cabling type Ports & interfaces - Non-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - 80PLUS certification
Combined power (+3.3V) Power - 66 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 16 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 247 mm
Description - XN340 | XP850R12
The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.Whisper-Quiet Cooling: Large 120mm fan*Excellent Airflow Design for Improved Heat DissipationWith the Following Safety Equipment:OVP (Overvoltage Protection)UVP (Undervoltage Protection)SCP (Short Circuit Protection)OLP (Overload Protection)OTP (Over Temperature Protection)OCP (Overcurrent Protection)Low Standby Power Consumption
EAN_code - 4044953503368
Fan diameter Design - 120 mm
Fan location Design - Top
Height Weight & dimensions - 98 mm
Input current Power - 6.3 A
Manufacturer - Xilence
Manufacturer_code - XN340
Model name - XN340 | XP850R12
Motherboard power cable length Ports & interfaces - 55 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Xilence Gaming Gold 850W, PC power supply (black, 850 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
On/off switch Design - Yes
PCI Express connector Ports & interfaces - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Silent mode Performance - Yes
Summary - Xilence Performance A+ XN340 | XP850R12. Total power: 850 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 5.5 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS certification
Total power Power - 850 W
Unit Box Height - 0.205
Unit Box Length - 0.265
Unit Box Width - 0.1
Unit Calculated Volume - 0.005432 cubm
Unit Calculated Weight - 2.19 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.xilence.net/en/power-supplies/222
Warranty - 24 months
Weight - 2,19
Weight Weight & dimensions - 2300 g
Width Weight & dimensions - 198 mm
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 200 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version Performance - 2.52
Bearing technology Performance - HDB
Cabling type Ports & interfaces - Non-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - 80PLUS certification
Combined power (+3.3V) Power - 66 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 16 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 247 mm
Description - XN340 | XP850R12
The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.Whisper-Quiet Cooling: Large 120mm fan*Excellent Airflow Design for Improved Heat DissipationWith the Following Safety Equipment:OVP (Overvoltage Protection)UVP (Undervoltage Protection)SCP (Short Circuit Protection)OLP (Overload Protection)OTP (Over Temperature Protection)OCP (Overcurrent Protection)Low Standby Power Consumption
EAN_code - 4044953503368
Fan diameter Design - 120 mm
Fan location Design - Top
Height Weight & dimensions - 98 mm
Input current Power - 6.3 A
Manufacturer - Xilence
Manufacturer_code - XN340
Model name - XN340 | XP850R12
Motherboard power cable length Ports & interfaces - 55 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Xilence Gaming Gold 850W, PC power supply (black, 850 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
On/off switch Design - Yes
PCI Express connector Ports & interfaces - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Silent mode Performance - Yes
Summary - Xilence Performance A+ XN340 | XP850R12. Total power: 850 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 5.5 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS certification
Total power Power - 850 W
Unit Box Height - 0.205
Unit Box Length - 0.265
Unit Box Width - 0.1
Unit Calculated Volume - 0.005432 cubm
Unit Calculated Weight - 2.19 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.xilence.net/en/power-supplies/222
Warranty - 24 months
Weight - 2,19
Weight Weight & dimensions - 2300 g
Width Weight & dimensions - 198 mm
