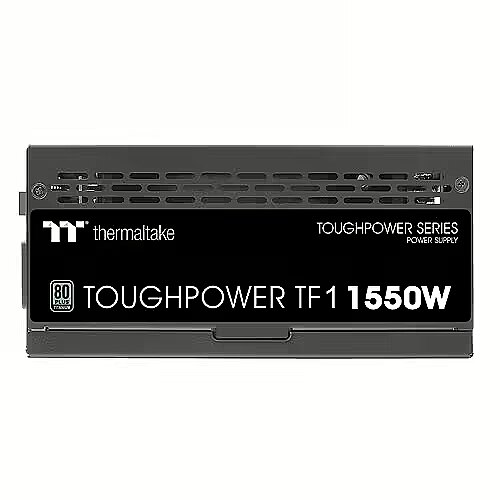

Thermaltake Toughpower TF1, 1550W, 80PLUS Titanium

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 777775 Product code: PS-TPD-1550FNFATE-1
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
350.70 €
Delivery options
  • Delivery to Smartpost 6.99 €: 19.05.2025
  • Courier delivery 11.99 €: 19.05.2025
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 1500W
  • 80 PLUS certification: 80 PLUS Titanium
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 8 x 6+2pin
Description

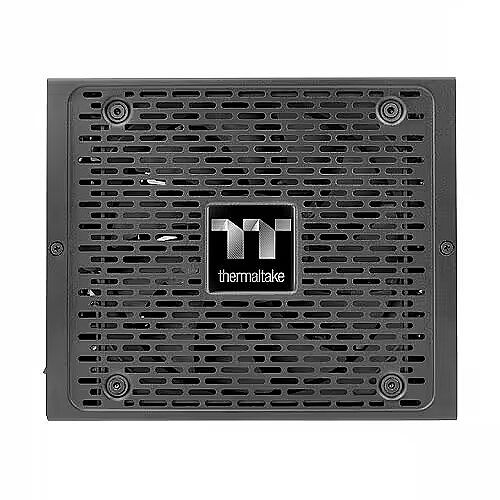

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.

80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The power supply has received a Cybenetics Standard + noise level certificate – the noise generated by the unit will be 35-40 decibels.

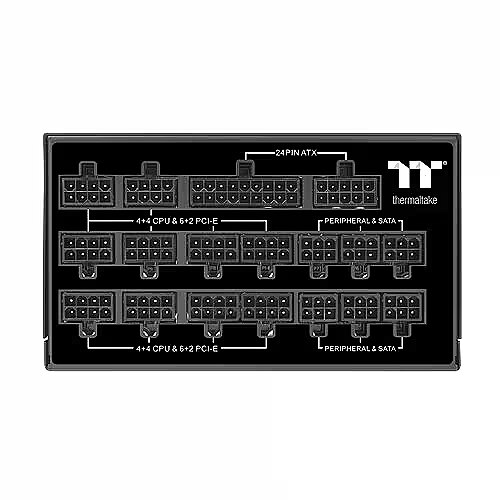

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Titanium
Cybenetics Noise level certification : Cybenetics Standard +
Power supply type : ATX
Power output 1500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Titanium
Total amperage (+12V) : 129.16A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 8 x 6+2pin
SATA cconnectors : 16
4pin Molex : Eight Core
Case
More detailed specification
8-pin 12V power connectors - 1

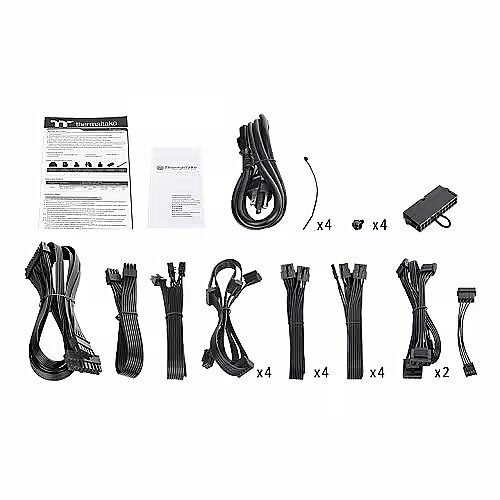

Accessories included -
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Titanium
Description - Zasilacz Toughpower TF1 1550W Modular 80+ Titanium
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 2502
dimension depth - 160 mm
dimension height - 340 mm
Dimensions - 150 * 86 * 180 mm
dimension weight - 4729 g
dimension width - 230 mm
ean - 4713227528245
EAN_code - 4713227528245
Fan - 14 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-1550FNFATE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 8
name - Thermaltake Toughpower TF1 1550W
Name - Thermaltake Toughpower TF1 1550W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 4
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 7 m
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1549.92 W
Power - Combined power (-12V) - 6 W
Power - Hold time - 16 ms
Power - Input current - 18 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 129.16 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1860 W
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 1550 W
Power supply - 1500 W
producer - Thermaltake
producerCode - PS-TPD-1550FNFATE-1
productName - Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 16
sizeX - 340
sizeY - 230
sizeZ - 160
vendpn - PS-TPD-1550FNFATE-1
warrantyLength - 120
warrantyType - G
Weight - 4,71
weight - 4300
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.4 kg
Weight & dimensions - Width - 150 mm
