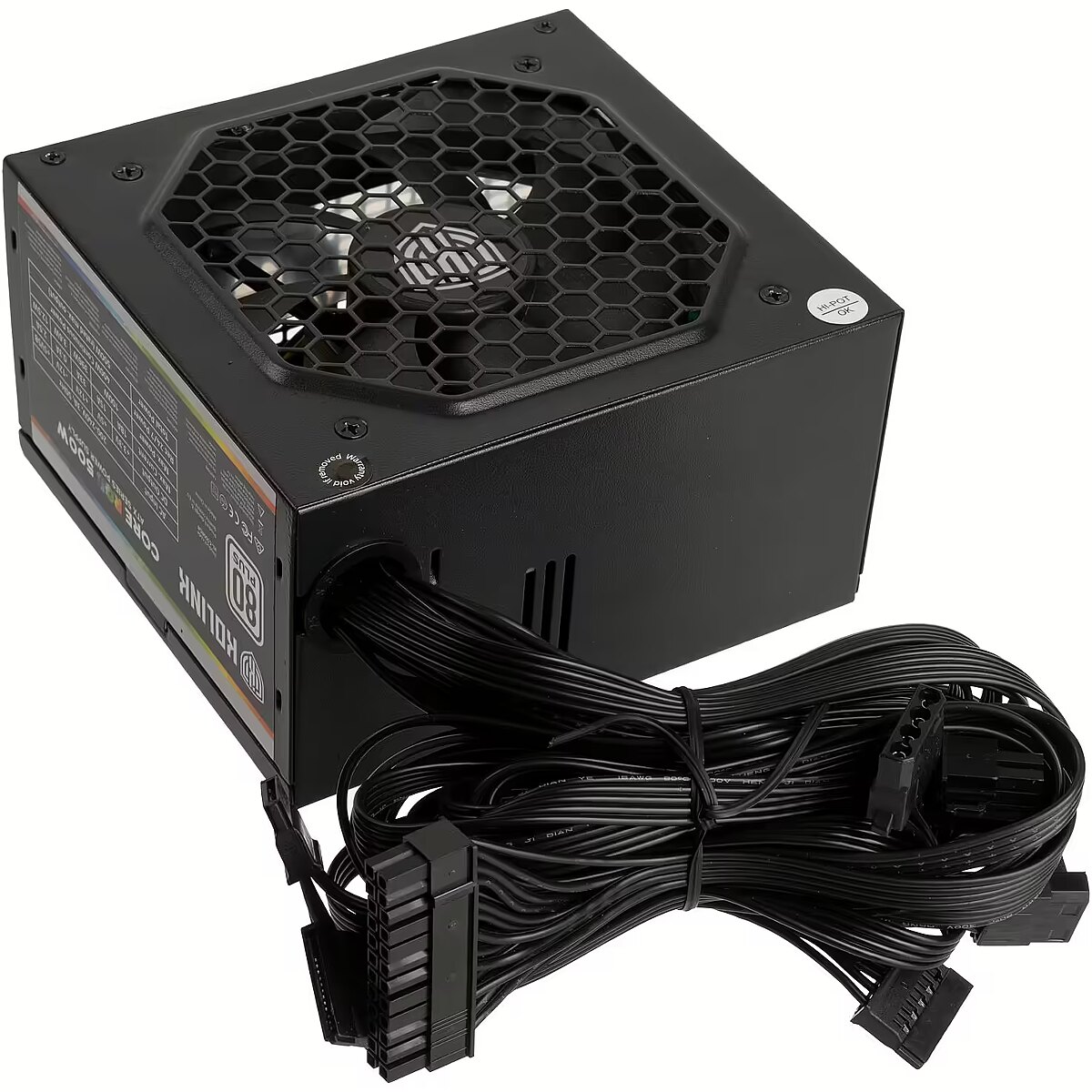

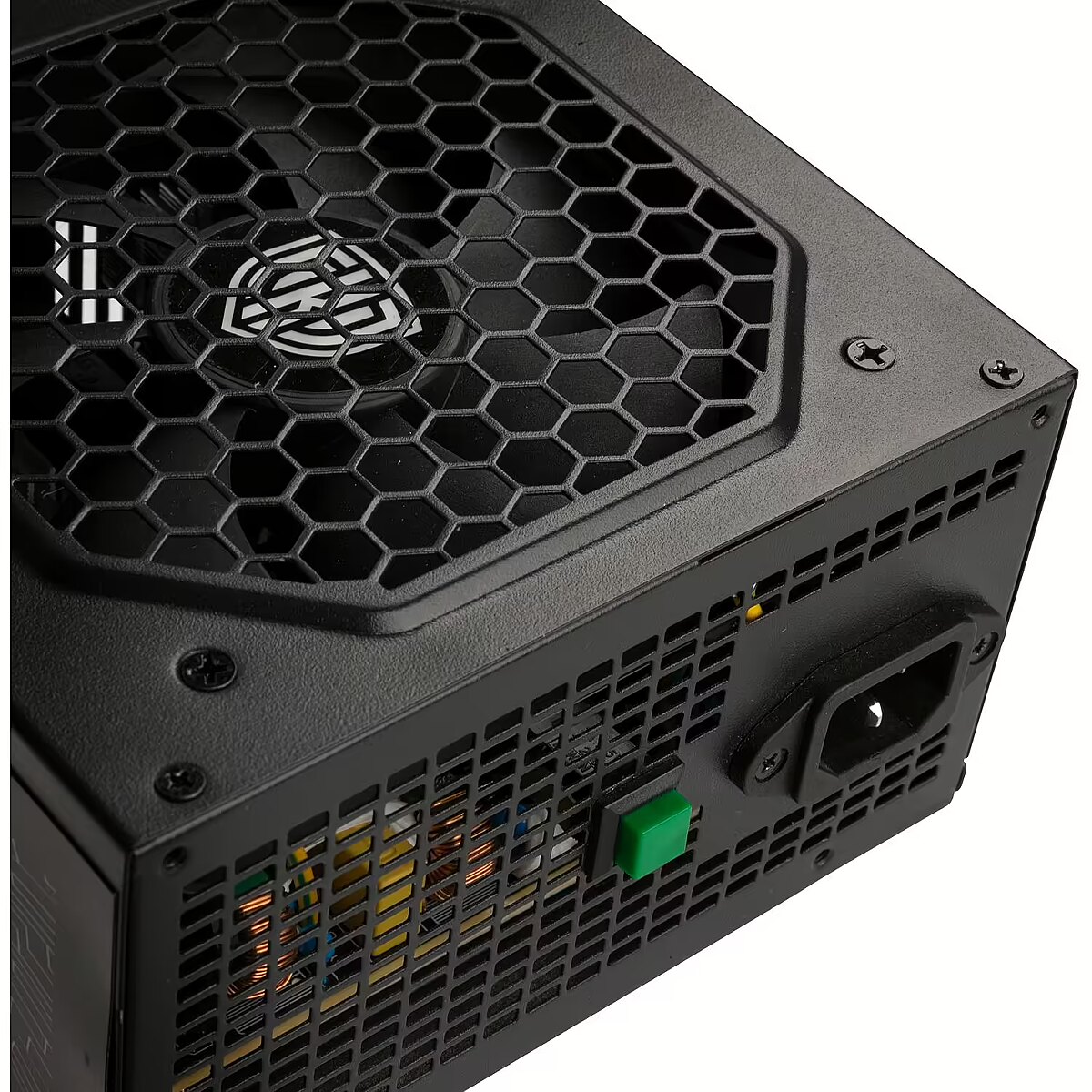

Kolink Core RGB Series, 500W, 80PLUS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 627875 Product code: KL-C500RGB
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Kolink
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS (White)
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Similar Products
This product Kolink Core RGB Series, 500W, 80PLUS
Recommended Deepcool PF500, 500W, 80PLUS
Recommended Cougar STC600, 600W, 80PLUS
Recommended Deepcool PF700, 700W, 80PLUS
Recommended Cougar Atlas, 650W, 80PLUS Bronze
Show similar specs. Hide similar specs.
43.80 €
38.69 €
49.37 €
51.53 €
55.69 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Nav Nav
Cybenetics Noise level certification Nav Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 500W 500W 600W 700W 650W
80 PLUS certification 80 PLUS (White) 80 PLUS (White) 80 PLUS (White) 80 PLUS (White) 80 PLUS Bronze
Total amperage (+12V) 33A 40A 49A 58A 54.16A
Fan size 120 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Raiba Melna Melna
Lighting RGB Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Nav Nav Nav Nav
Ports and equipment
PCI-E 5.0/5.1 Nav Nav Nav Nav Nav
Processor plug-in 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 24-pin 20+4pin 20+4pin
PCI-E 1 X 6+2pin 2 X 6+2pin 2 X 6+2pin 4 X 6+2pin 2 X 6+2pin
SATA cconnectors 4 6 6 6 6
4pin Molex 2 2 2 2 2
Description

We offer to purchase a Kolink power supply unit with a power capacity of 500W, which has received the 80 PLUS (White) energy efficiency certification.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

80 PLUS (White) energy efficiency certificate, which this power supply unit has received, guarantees at least 80% efficiency. In other words, for every 100 W of energy the power supply unit gets from the electrical grid, at least 80 W goes to your computer components, while the remaining 20 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

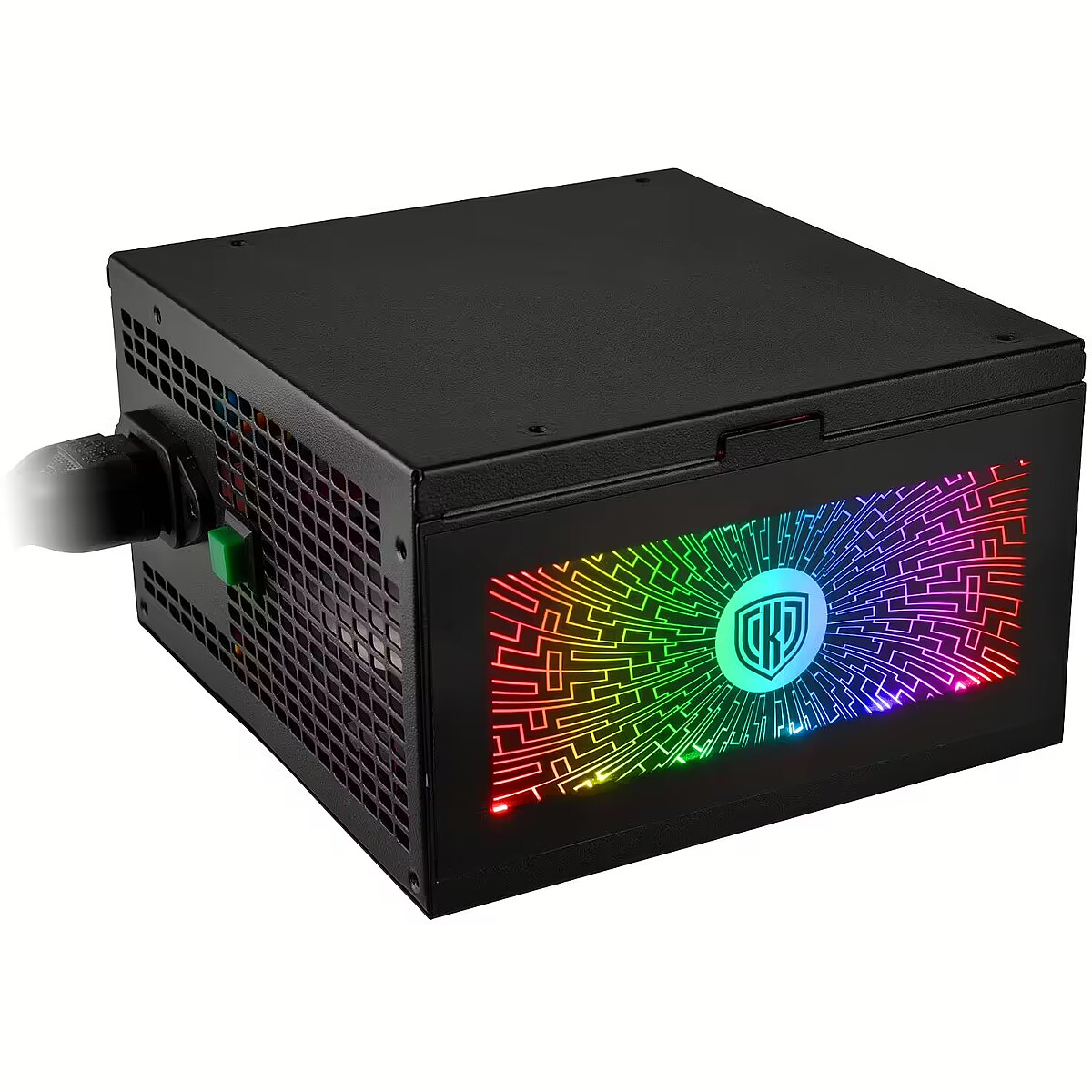

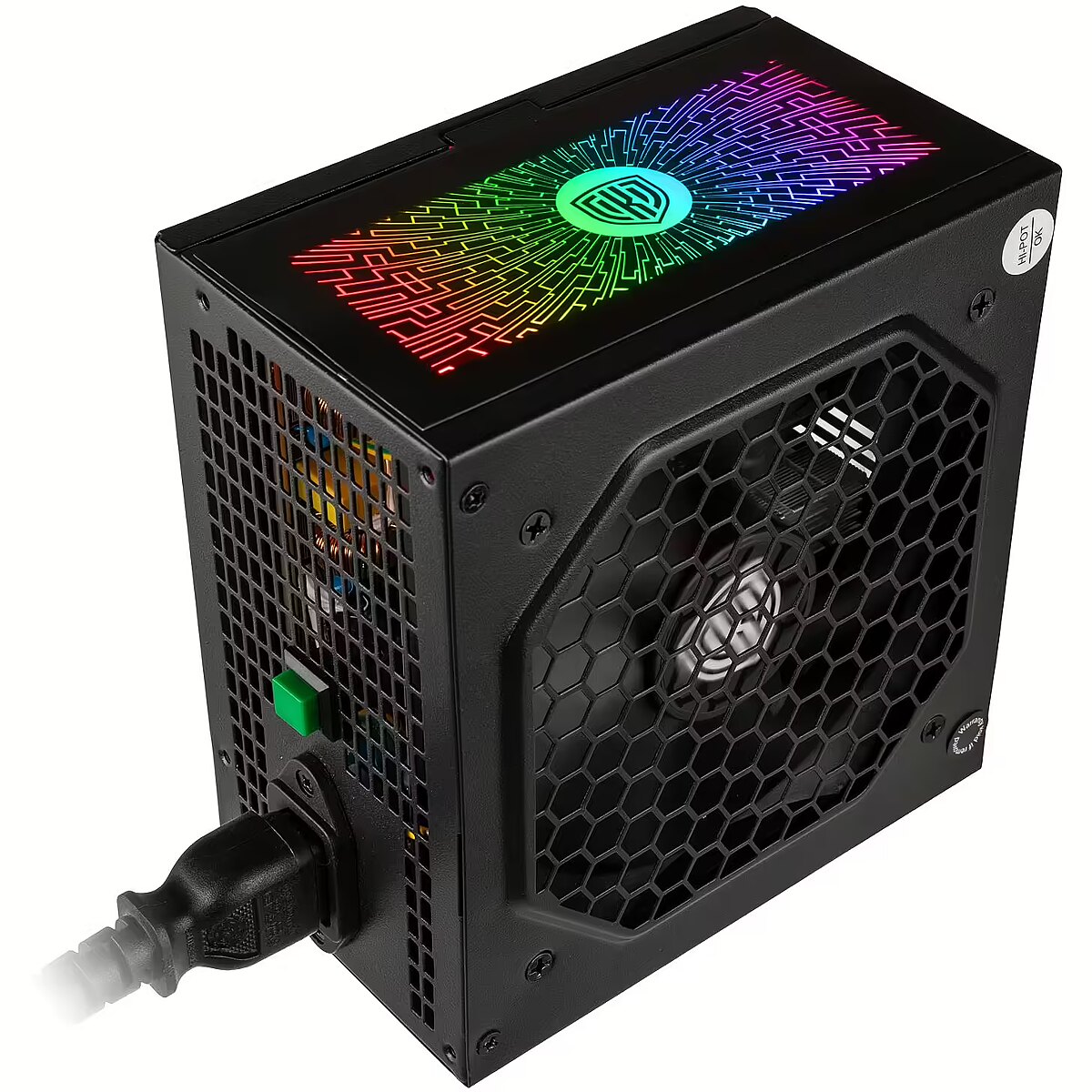

The power supply unit has RGB lighting.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS (White)
Total amperage (+12V) : 33A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 4
4pin Molex : 2
More detailed specification
Additional information in manufacturers website Kolink Core RGB Series, 500W, 80PLUS
4-Pin connectors - 2x
6+2-Pin PCIe - 1x
12V power - 396 Watt
12V Rail distribution - single rail
Case fan controller - no
category - PC Components|Power Supplies|PSUs up to 500 Watts
Category - Root/Electronics/PC parts/PC power supply units
code - KL-C500RGB
CPU power supply - 1x 4+4-Pin
ean - 5999094003644
Eans - 5999094001312
Efficiency 80Plus - 80 PLUS
Installation depth - 14 cm
Lighting - yes
Lighting colour - RGB (selectable)
Modular PSU - no
Name - Kolink Core RGB - 500W
name - Kolink Core RGB 80 PLUS PSU - 500W
Power (exact) - 500 Watt
Power category - 451 to 550 Watt
Primary colour - black
Producer - Kolink
ProducerCode - KL-C500RGB
PSU fan - 120 mm
PSU formfactor - ATX
SATA connectors - 4x
Secondary colour - green
Semi passiv PSU - no
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150 x 86 x 140 mm | 80 Plus
Software Interface (digital) - no
