ID: 524358
Product code: PRIME-TX-700
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 2 years

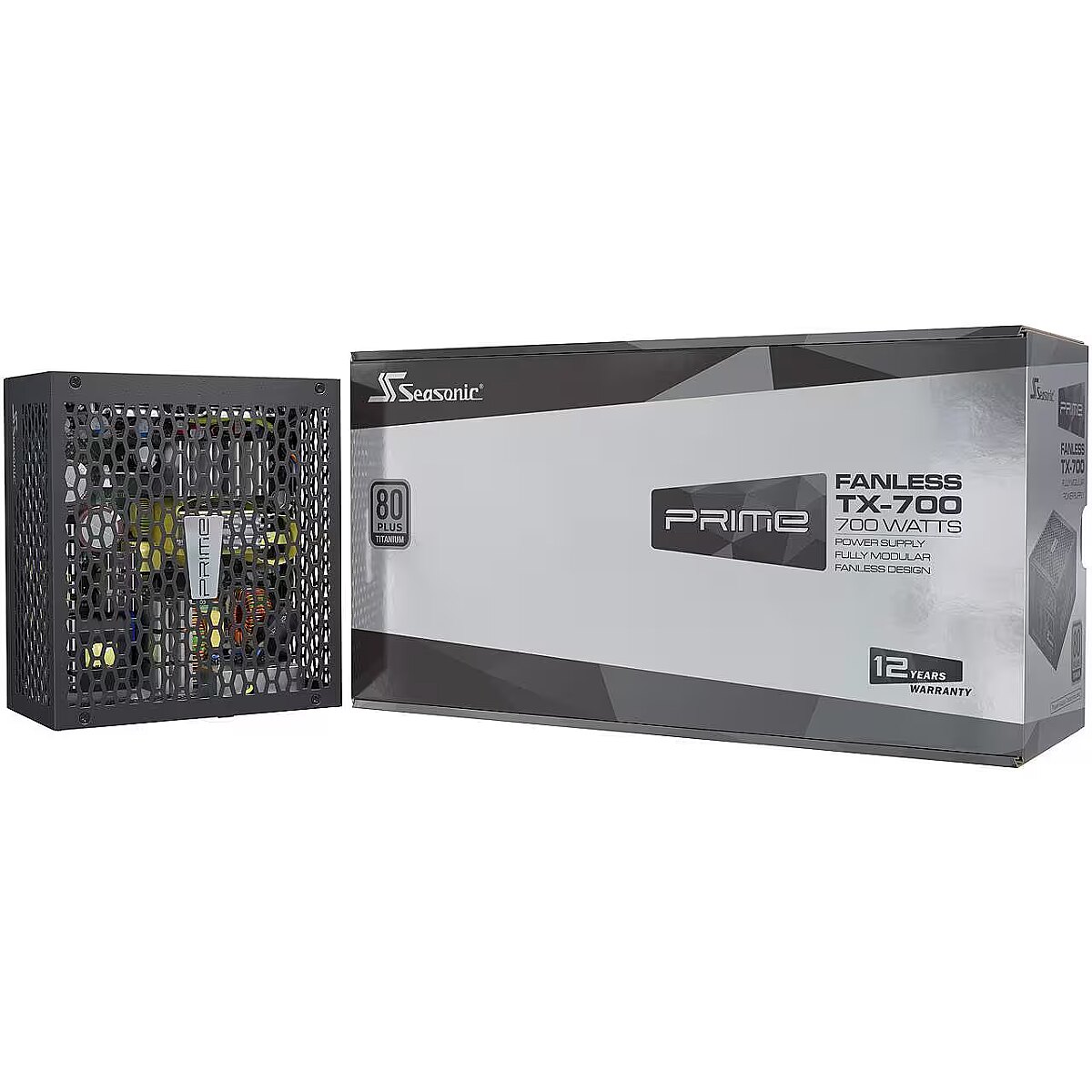

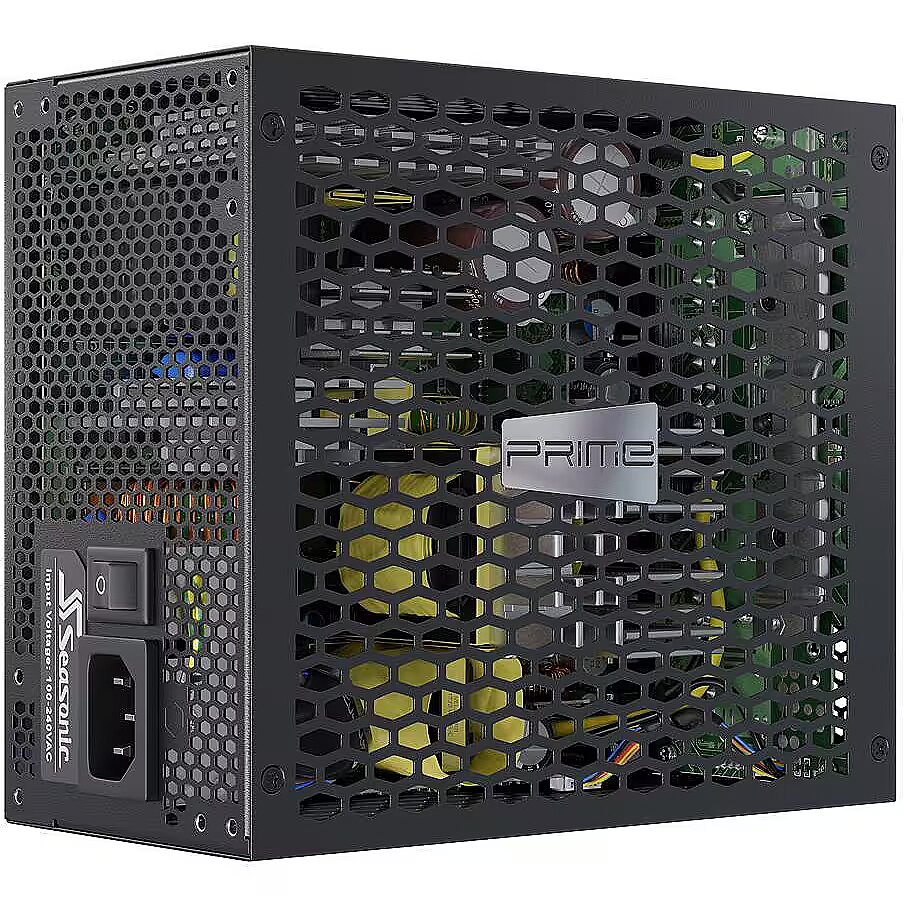

Seasonic Prime Fanless TX, 700W, 80PLUS Titanium
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Seasonic
- Power output: 700W
- 80 PLUS certification: 80 PLUS Titanium
- Fan size: Fanless
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Seasonic power supply unit with a power capacity of 700W, which has received the 80 PLUS Titanium energy efficiency certification.
For polite mid-range computer game playing, a power supply with a 700W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.
80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
The power supply unit has a Cybenetics A ++ noise level certificate, which means its noise level is below 15 dB.

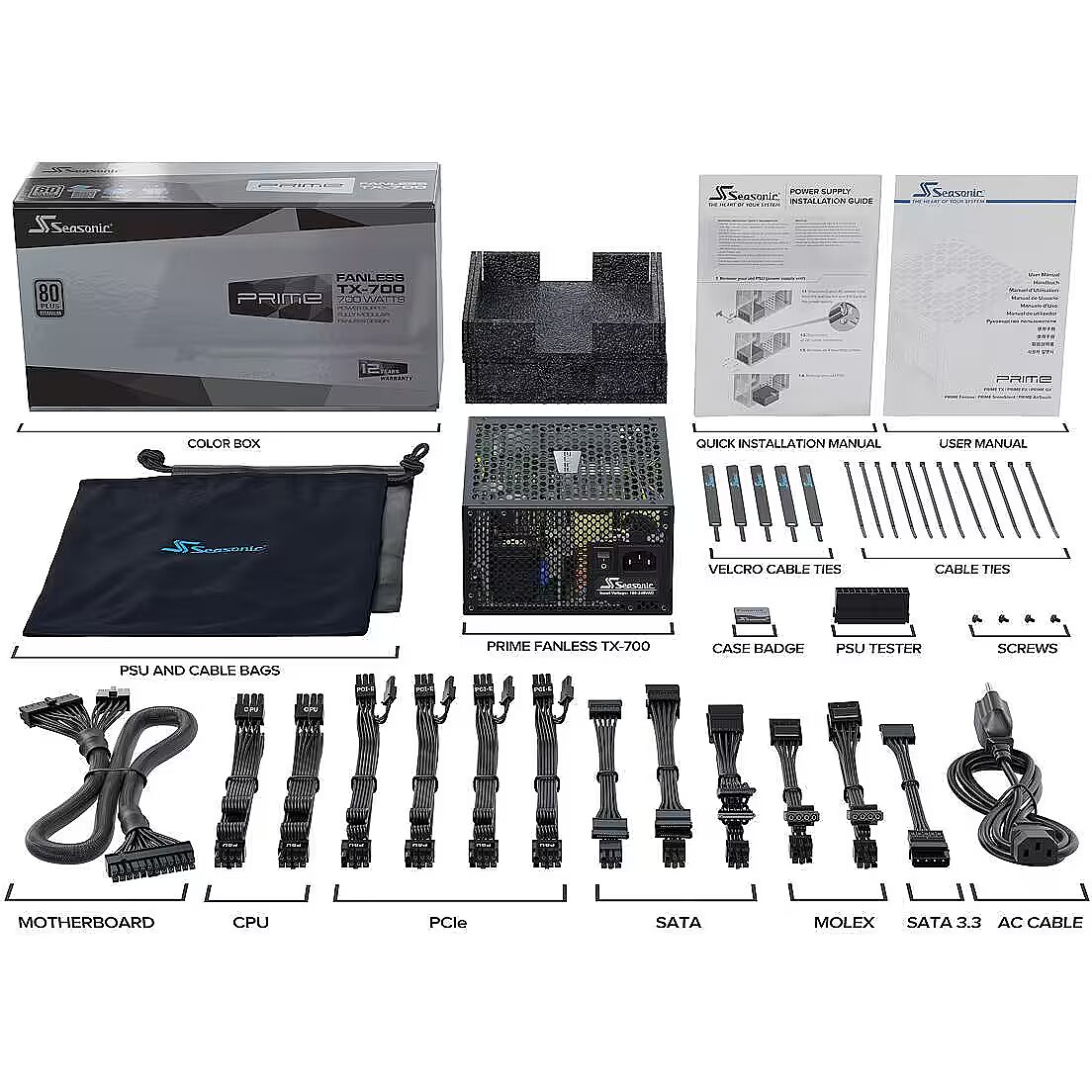

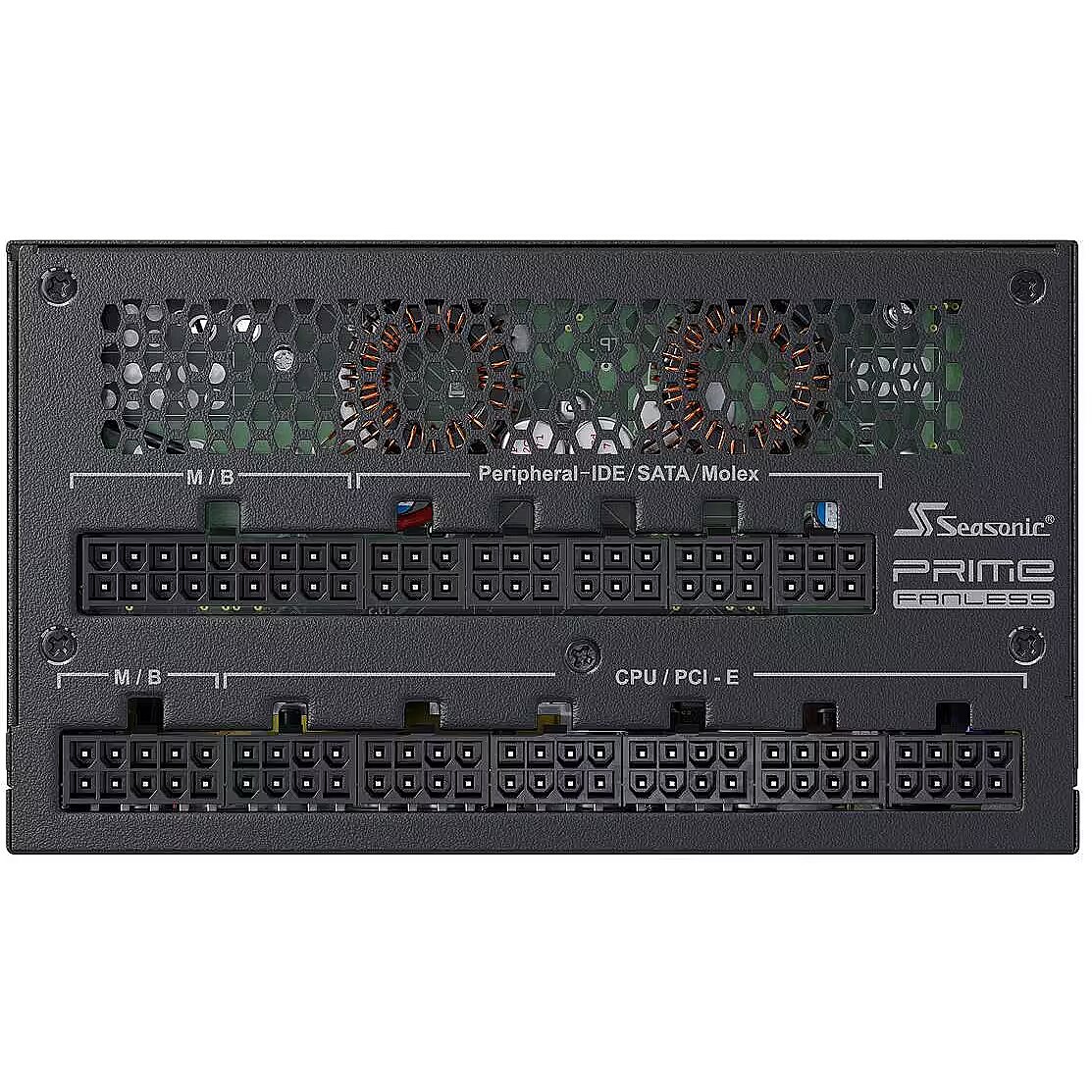

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Titanium
Cybenetics Noise level certification
: Cybenetics A ++
Power supply type
: ATX
Power output
700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Titanium
Total amperage (+12V)
: 58A
Fan size
: Fanless
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 10
4pin Molex
: 5
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Titanium
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|Modular Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
code - PRIME-TX-700

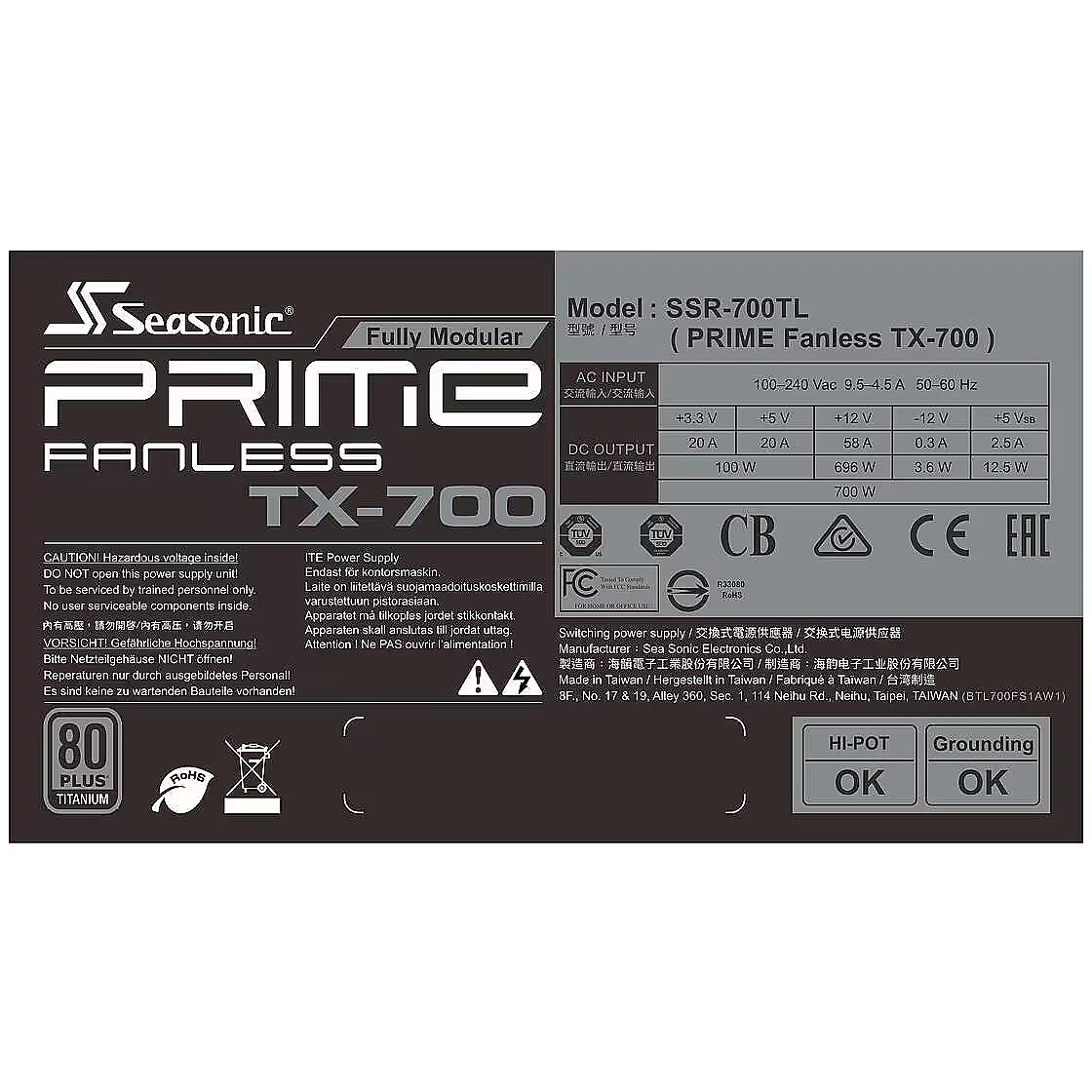

Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 696 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - RoHS
Cooling type Design - Passive
CPU power cable length Ports & interfaces - 650 mm
CPU power connectors (8-pin) Ports & interfaces - 2
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Dodatkowe informacje - Certyfikaty: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 12 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 170 mm
Dane techniczne: Moc - 700 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 150000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 58 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Seasonic
Dane techniczne: Rodzaj chłodzenia - brak
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 5 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 10 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - AFC
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Depth Weight & dimensions - 170 mm
Description - PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case. 80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load. Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems. Seasonic Fanless Design

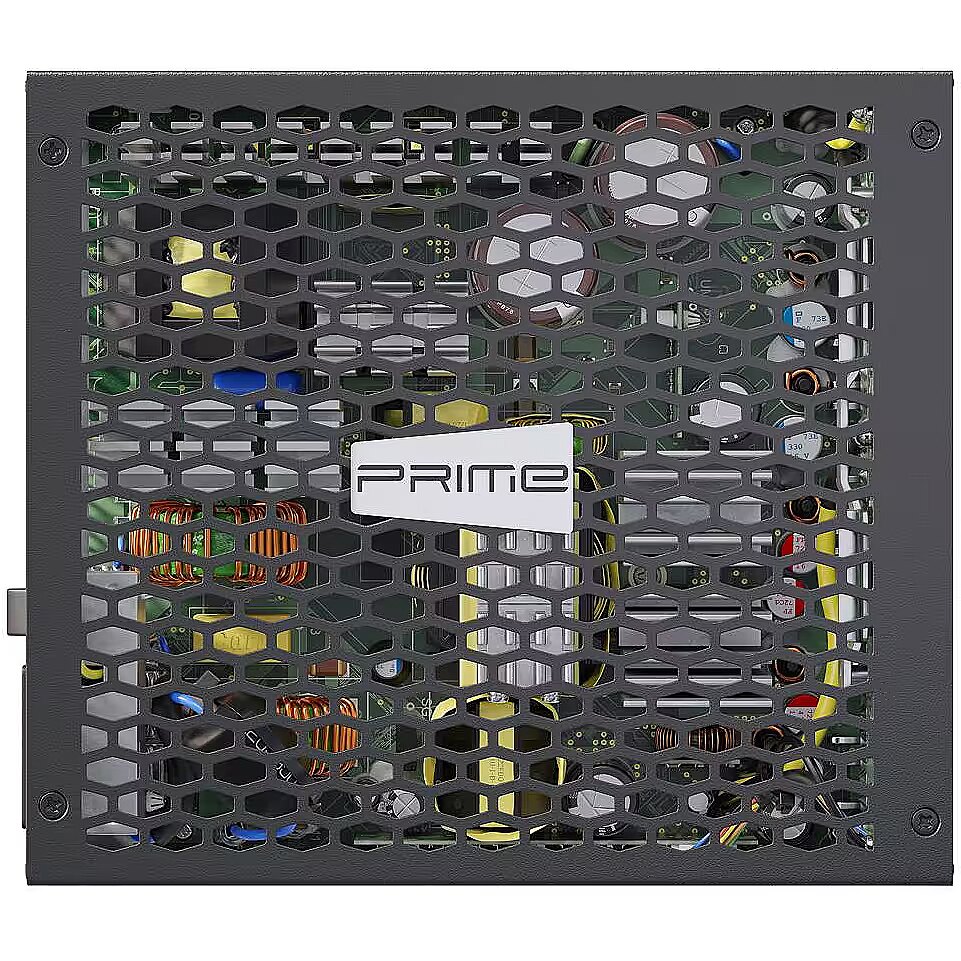

Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.ATX 12 VFull Modular80 PLUS Titanium CertifiedDimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
ean - 4711173876175
EAN - 4711173876175
Eans - 4711173876175
EAN_code - 4711173876175
Efficiency Power - 94 %
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 86 mm
Input current Power - 4.5 - 9.5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - PRIME-TX-700
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 58 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 150000 h
Model name - PRIME FANLESS TX
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - PRIME-TX-700
Name - 700W Seasonic PRIME TX Fanless 80+ Titanium
Name - Seasonic PRIME FANLESS TX-700 700W PC power supply (black, 4x PCIe, cable management)
Name - Seasonic Prime Fanless TX - 700W
name - Seasonic Prime Fanless TX Netzteil, 80 PLUS Titanium, modular - 700 Watt
Number of SATA power connectors Ports & interfaces - 3
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 45 °C
Package type Packaging data - Box
PCI Express power cable length Ports & interfaces - 750 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
Peripheral (Molex) power cable length Ports & interfaces - 300/470/690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - SeasonicSea Sonic Europe B.V.Rietveld 75258ED BerlicumHolandiaEmail: nils.stallmach@seasonic.com
Producer - Seasonic
ProducerCode - PRIME-TX-700
Product colour Design - Black
Purpose Performance - PC
SATA power cable length Ports & interfaces - 450/800/810 mm
ShortDescription - 700 | ATX | pasywny | 24 pin | 150 x 86 x 170 mm | 80 Plus Titanium | modularny
Summary - Seasonic PRIME Fanless TX. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,800,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS, Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Supported motherboard form factors Performance - ATX
Sustainability certificates Technical details - ENERGY STAR
Total power Power - 700 W
Unit Box Height - 0.19
Unit Box Length - 0.345
Unit Box Width - 0.115
Unit Calculated Volume - 0.007538 cubm
Unit Calculated Weight - 3.44 kg
Units per Shipping Box - 1
Vendor Homepage - https://seasonic.com/prime-fanless-tx
Warranty - 24 months
Weight - 3,43
Weight - 3.396
Width Weight & dimensions - 150 mm
