Brand - ASUS
BrandPartCode - 90YE0100-B0NA00
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active
Design - Number of fans - 1 fan(s)

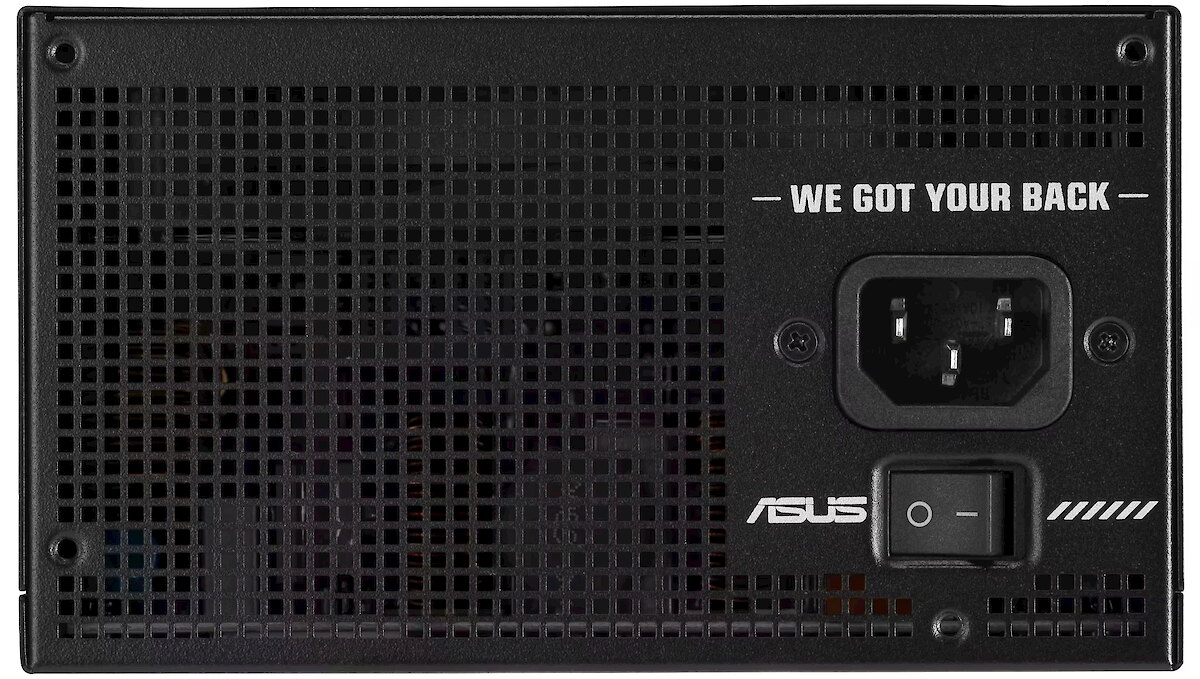

Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 4711636489607
GTIN - 0199291489608
GTIN - 199291489608
GTIN - 4711636489607
LongDesc - Built For The Long HaulThe ASUS TUF Gaming 1200W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
LongProductName - 1200W, ATX12V, Active PFC, ATX 3.1, 80Plus Platinum, 100-240Vac
LongSummaryDescription - ASUS TUF-GAMING-1200P. Total power: 1200 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Compliance certificates: RoHS
Manufacturer - Asus
Manufacturer_code - 90YE0100-B0NA00
Name - Asus TUF-GAMING-1200P (black, 1x 12-pin high power GPU, 3x PCIe, cable management, 1200 watts)
Packaging data - Package depth - 188 mm
Packaging data - Package height - 127 mm

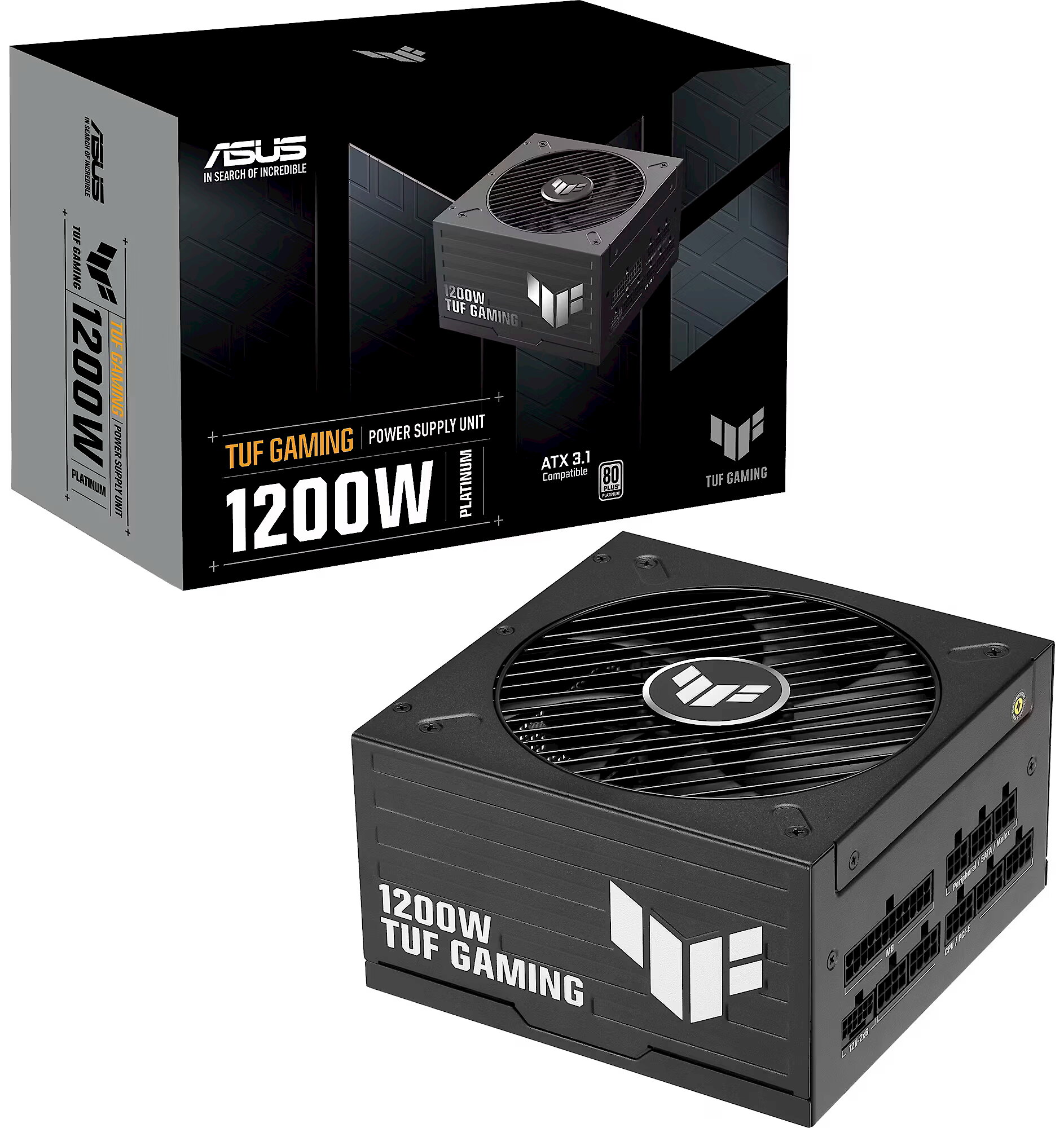

Packaging data - Package type - Box
Packaging data - Package weight - 3.36 kg
Packaging data - Package width - 304 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 75 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over current, Over voltage, Under voltage, Short circuit
Power - Total power - 1200 W
ProductName - TUF-GAMING-1200P
ShortSummaryDescription - ASUS TUF-GAMING-1200P, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W

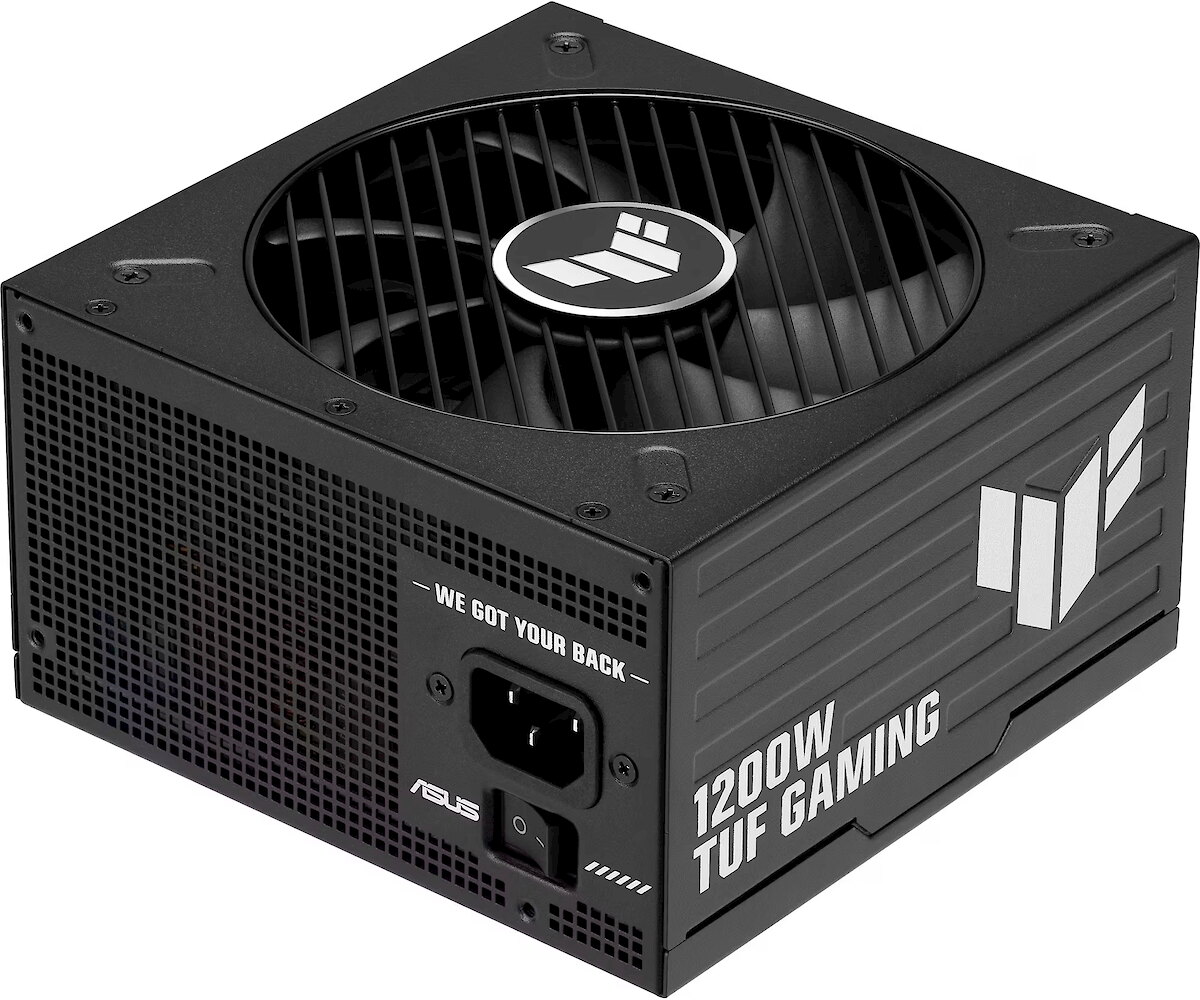

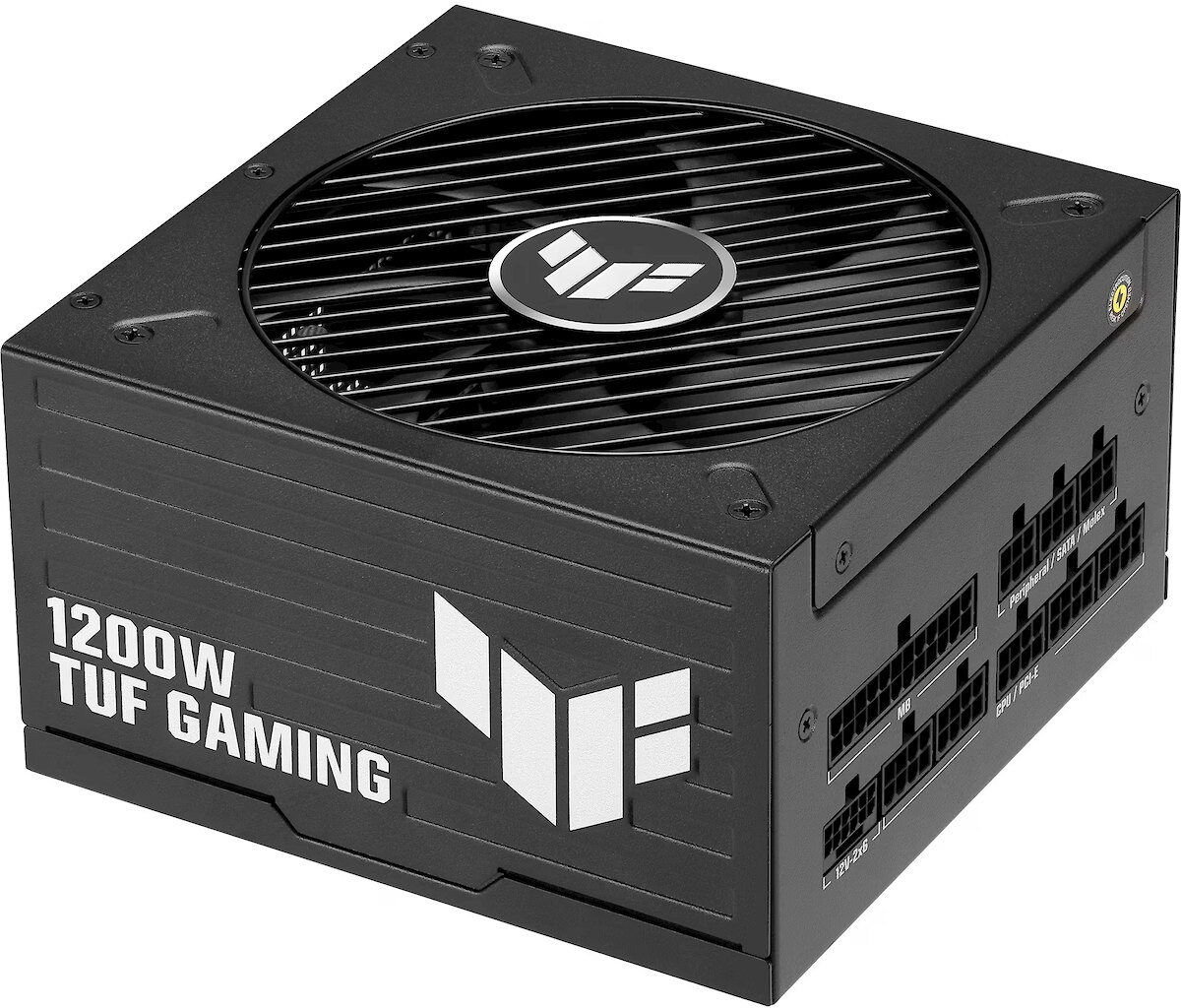

Title - ASUS TUF-GAMING-1200P power supply unit 1200 W 20+4 pin ATX ATX Black
URL - https://www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1200p/
WarrantyInfo -
Weight - 3,30
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.58 kg
Weight & dimensions - Width - 150 mm
