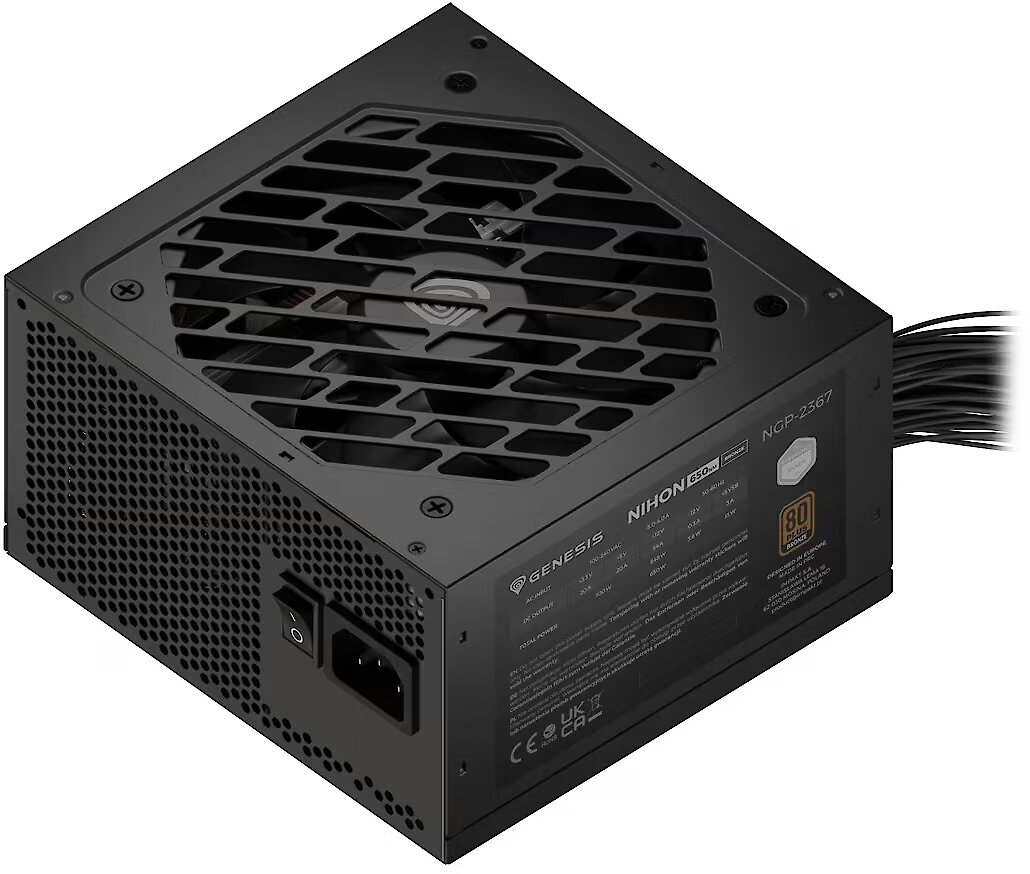

Genesis Nihon 650NM, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1

Brand - GENESIS
BrandPartCode - NGP-2367
Category - Power Supply Units
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, RoHS, UKCA
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - UKCA
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1809
GTIN - 5901969449853
Logistics data - Country of origin - China
LongDesc - Cybenetics Silver and 80 PLUS Bronze certifications - high efficiency and culture of operation GENESIS Nihon 650 W is a power supply that combines high energy efficiency with quiet and stable operation. This is confirmed by the 80 PLUS Bronze and Cybenetics Silver certifications. What do they tell us in practice? An average efficiency of more than 88% at 230V translates into lower energy losses and less heating of components even under heavy load, keeping your computer safe. In addition, the Cybenetics LAMBDA Standard++ rating indicates good operating culture and low noise levels. Stable and future-ready with ATX 3.1 standard and powerful 12-volt line The Nihon 650 Watt power supply is designed in accordance with the ATX 3.1 standard, so it can easily cope with the demands of modern components, including high-performance graphics cards. Support for momentarypower excursions, reaching up to 200% of the GPU’s nominal demand, allows the computer to maintain stable operation even during dynamic load changes. A powerful 12-volt line, the quality of which was confirmed in the aforementioned Cybenetics tests, is responsible for stable power supply of key components - the power supply showed very good voltage regulation and low ripple levels. This is a solid base for today’s and future configurations of your gaming PC. 12V-2x6 connector compliant with PCIe 5.1 standard GENESIS Nihon 650 W is equipped with a state-of-the-art 12V-2x6 connector, which is the successor to the earlier 12VHPWR standard and complies with the PCIe 5.1 specification. Its improved design improves connection security and reduces the risk of incomplete cable plugging problems. In turn, the included 12+4 pin PCIe 12V-2x6 cable is made of Tinned Copper, which allows it to handle up to 450 watts of power, making the unit ready to power the most efficient compatible graphics cards using a single connector. It’s a practical solution that will work perfectly in your computer. Japanese main capacitor = durability without compromise When designing NIhon Series Power Supplies, we used capacitors rated for up to 105°C, including a high-end Japanese main capacitor in the primary section. Such selected components further promote stable operation of the unit, improve the durability of the power supply system and help maintain reliability during long-term loading. This is an important design element that distinguishes the power supply from the basic solutions used in budget units. At GENESIS, we do not recognize compromises. Premium cooling thanks to FDB fan We used a Fluid Dynamic Bearing(FDB) fan in the Nihon 650 W power supply unit, designed for quiet and long-lasting operation. This allows the unit to effectively dissipate heat under load, while maintaining a good operating culture and supporting the life of the components used. And you? You don’t worry about unnecessary noise and high temperatures. Maximum security At GENESIS, we realize how important security is. That’s why the Nihon 650 W offers an extensive set of protections: OCP, OPP, OTP, OVP, SCP, SIP, UVP and NLO, which support the protection of the unit and other computer components in typical emergency situations. All of this highlights the quality of workmanship and the reliability of the design, which we guarantee. Compatibility with networks around the world The GENESIS Nihon 650 Watt Global version supports a wide input voltage range of 100-240 V, allowing it to work with power grids used in different countries around the world. Compared to units that only support the 200-240 V range, the Global version offers greater versatility and a more extensive input circuit with APFC and noise filters that help reduce the impact of power grid interference on the power supply’s operation. And less interference means fewer problems. Aesthetic wiring and accessories for arrangement We’ve used knurled, round braid-like cables in Nihon power supplies that combine flexibility, durability and easy routing inside the case. The included cable combs and Velcro make it easy for you to arrange your cabling aesthetically and help keep your finished setup neat and tidy.
LongProductName - 650 W, ATX 12V v3.1, 80 Plus Bronze, Cybenetics Silver, Efficiency88%, Non-modular, Fan 120 mm, 2000 RPM, 24.7 dB, FDB, 150 x 140 x 86 mm, Black
LongSummaryDescription - GENESIS Nihon 650NM. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,550,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Packaging content: User guide, Set of assembly elements, Velcro bands, Cable combs
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - AC
Packaging content - Packaging content - User guide, Set of assembly elements, Velcro bands, Cable combs
Packaging data - Package depth - 290 mm
Packaging data - Package height - 125 mm
Packaging data - Package weight - 2.36 kg
Packaging data - Package width - 240 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Cybenetics certification - Silver
Performance - Cybenetics noise rating - Standard++
Performance - Mean time between failures (MTBF) - 80000 h
Performance - Noise level - 24.7 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 85 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 67 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 450,550,650 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 650 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 8 - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - No load operation
Power - Power protection features - No load operation, Over current, Over power, Overheating, Short circuit, Surge & inrush protection (SIP), Surge & inrush, Surge and inrush, Under voltage
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge and inrush
Power - Power protection features - Under voltage
Power - Total power - 650 W
producerCode - NGP-2367
productName - GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
ProductName - Nihon 650NM
productSize - Normal
ShortSummaryDescription - GENESIS Nihon 650NM, 650 W, 100 - 240 V, 50/60 Hz, 8 - 4 A, Active, 100 W
sizeX - 240
sizeY - 290
sizeZ - 130
Title - GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
URL - https://genesis-zone.com/
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 2425
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.96 kg
Weight & dimensions - Width - 150 mm
