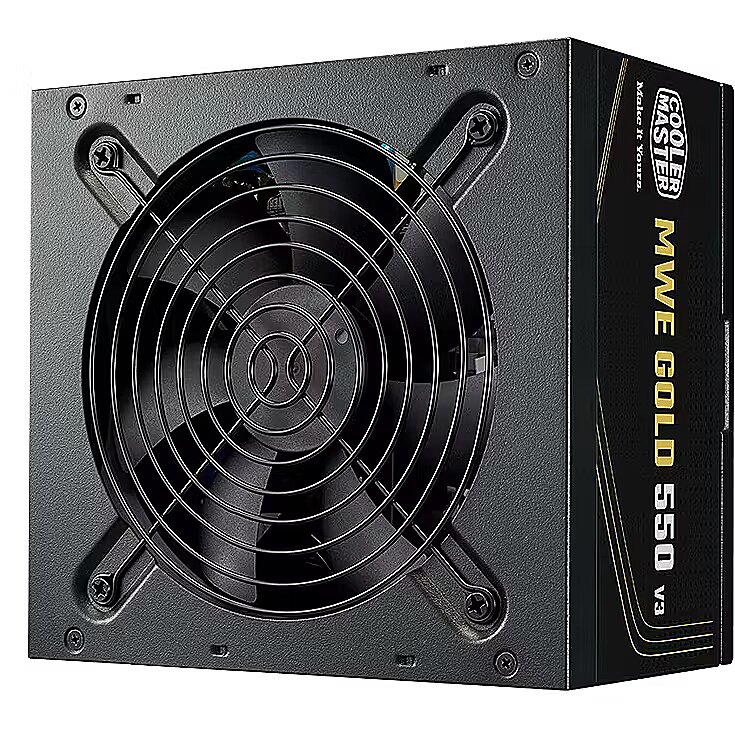

Cooler Master MW Gold V3, 550W, 80PLUS Gold, ATX 3.1
-
Posti parcel machineWithin 1-2 working days6.99 €
-
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
- Producer: Cooler Master
- Power output: 550W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: None
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
This Cooler Master brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 550W.
The power of 550W is more than sufficient for office programs, web browsing, and light computer games. It will be able to run a basic computer with an integrated graphics card, budget-level processor, small SSD or hard drive. If you plan to upgrade your computer in the future, you should definitely consider a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
ATX version - 3.1
Certificates 80+ - 80 PLUS Gold
Description - Power supply MWE GOLD 550 V3 ATX 3.1 Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices
deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 195 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2060 g
dimension width - 260 mm
ean - 4719512157282
Fan - 12 cm
Fan speed (max) - 1800 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 3
name - Power supply MWE GOLD 550 V3 ATX 3.1
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
PMBus 5 Pin - 0
Power supply - 550 W
producer - Cooler Master
SATA power connectors - 6
vendpn - MPE-5502-ACAAG-3BEU
Weight - 1.566 kg
