ID: 1412808
Product code: PRO A850PL PCIE5
In stock 11 units
Warranty: 2 years

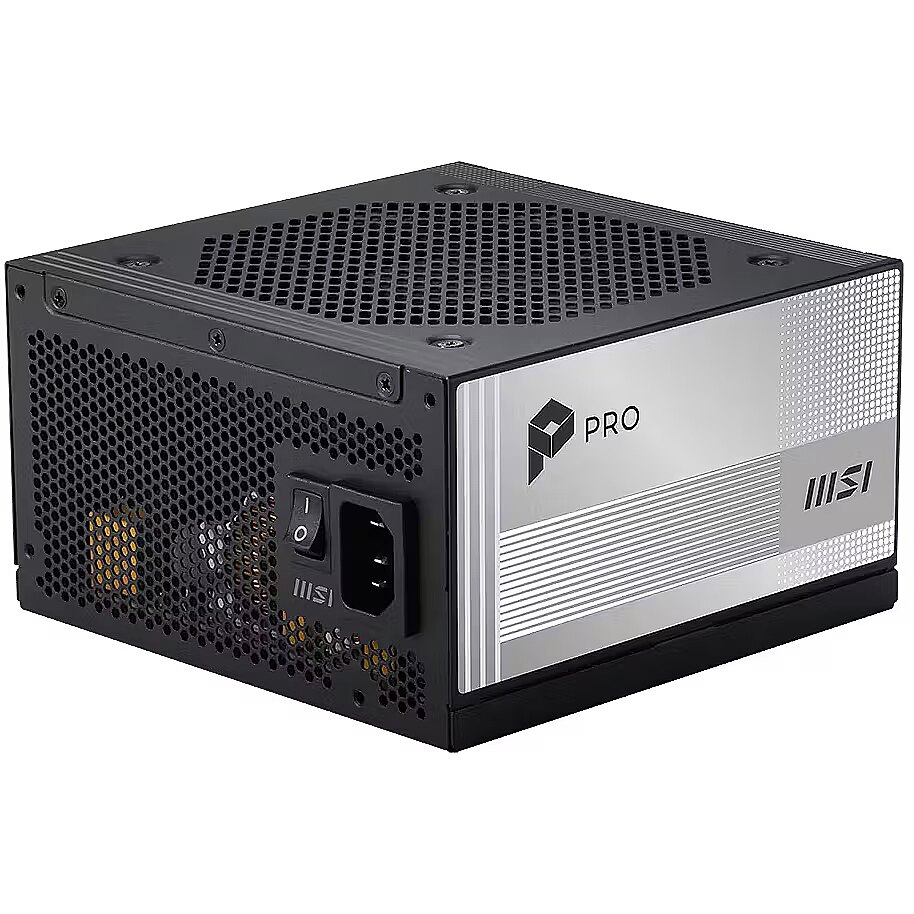

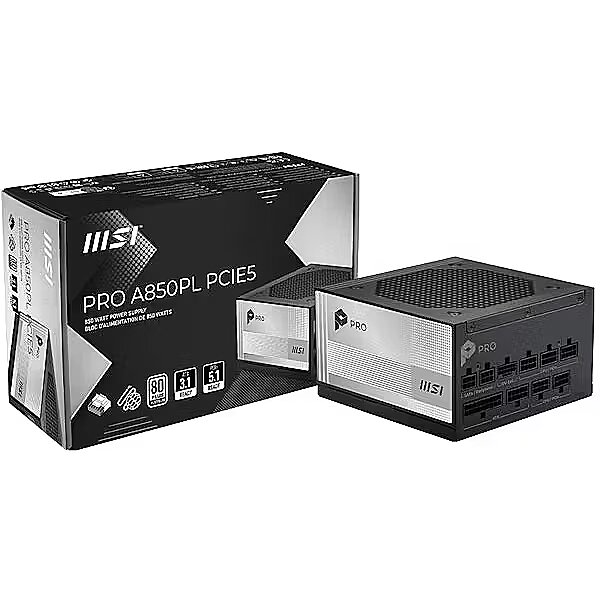

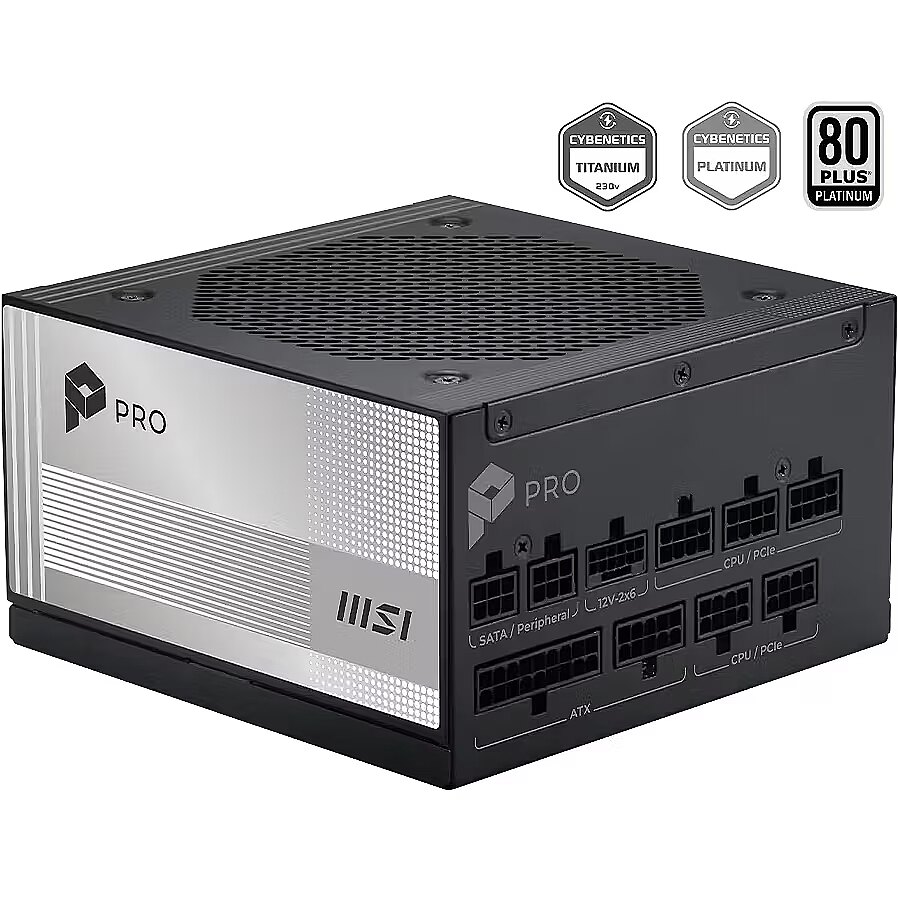

MSI PRO A850PL PCIE5, 850W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: MSI
- Power output: 850W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
Available for purchase is a power supply produced by MSI with a power output of 850W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.

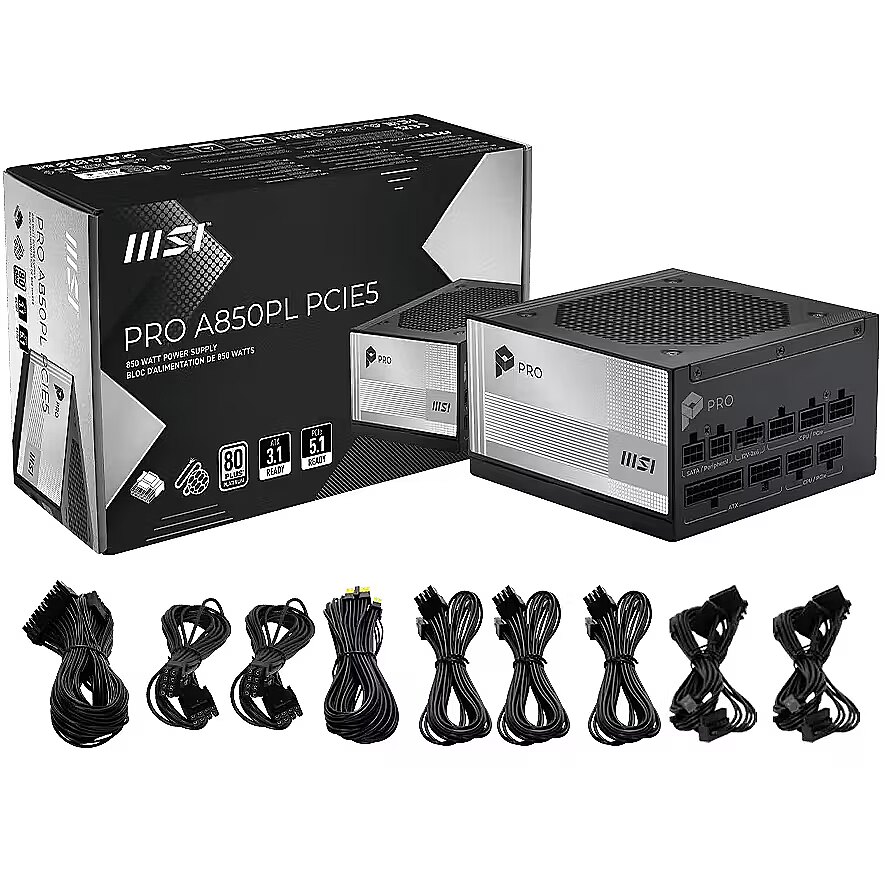

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
The power supply manufacturer is MSI. All power supplies produced by MSI can be viewed here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Black
Lighting
: None
Color
: Black
Modular cables
: Fully-Modular

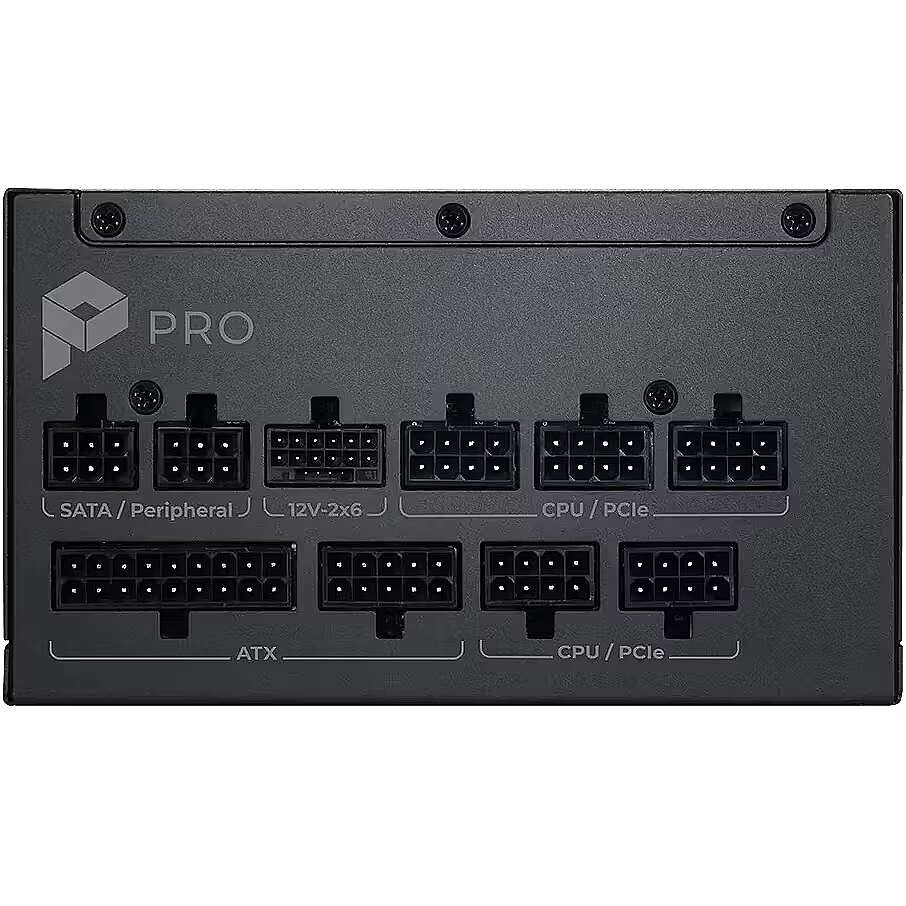

Ports and equipment
PCI-E 5.0/5.1
: 1 x 600W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
80 PLUS certification Performance - 80 PLUS Platinum
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX Power connector (24-pin) Ports & interfaces - No
Cabling type Ports & interfaces - Fully-Modular
Category Code - PSU
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 849.6 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 150 mm
Description - The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion. Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards. GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards. Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels. 105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability. Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.ATX 3.1 ReadyPCIe 5.1 Ready (600W)105°C Main Electrolytic Capacitor80 PLUS Platinum CertificationEmbossed Jacket Certified CablesIndustrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1320
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan diameter Design - 12 cm
Floppy disk drive connector Ports & interfaces - No
Height Weight & dimensions - 86 mm
Logistics data - Harmonized System (HS) code - 84733020
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 70.8 A
Max output current (-12V) Power - 0.3 A
Model name - PRO A850PL PCIE5
Motherboard power cable length Ports & interfaces - 60 cm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
On/off switch Design - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Efficiency - 92%
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 850 W
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - ATX
producerCode - 306-7ZPLY11-HD8
Product colour Design - Black
productName - MSI PRO A850PL PCIE5 850W 120mm 80 Plus Platinum aPFC power supply
productSize - Normal
Purpose Performance - PC
Shipping Box Depth ELKO Internal Logistics Data - 59.5 cm
Shipping Box Height ELKO Internal Logistics Data - 21.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 14.5 kg
Shipping Box Width ELKO Internal Logistics Data - 32.5 cm
sizeX - 110
sizeY - 200
sizeZ - 300
Summary - MSI PRO A850PL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Total power Power - 850 W
Unit Box Height - 0.19
Unit Box Length - 0.3
Unit Box Width - 0.11
Unit Calculated Volume ELKO Internal Logistics Data - 0.008315 cubm
Unit Calculated Weight ELKO Logistics Data - 2.9 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 5
Vendor Homepage - https://www.msi.com/Power-Supply/PRO-A850PL-PCIE5
Warranty - 24/12L months
warrantyLength - 84
warrantyType - G
weight - 2750
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Width Weight & dimensions - 150 mm
