ID: 1386152
Product code: 306-7ZP5C11-CE0
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

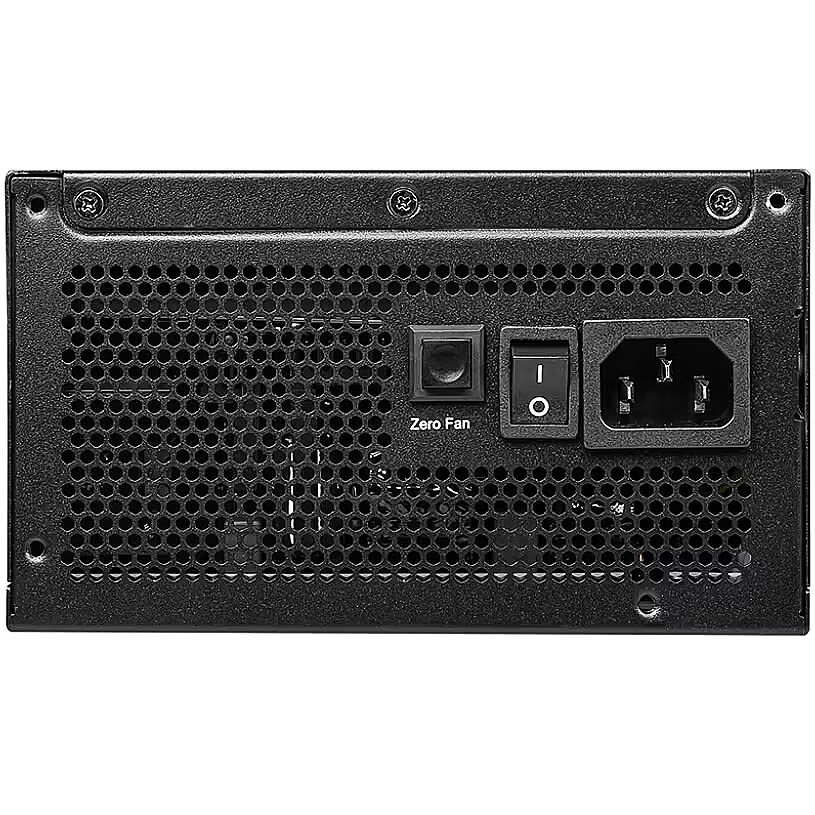

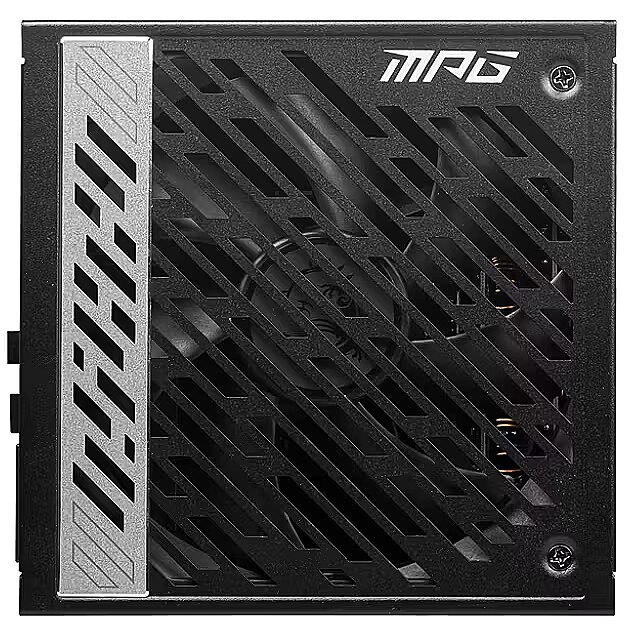

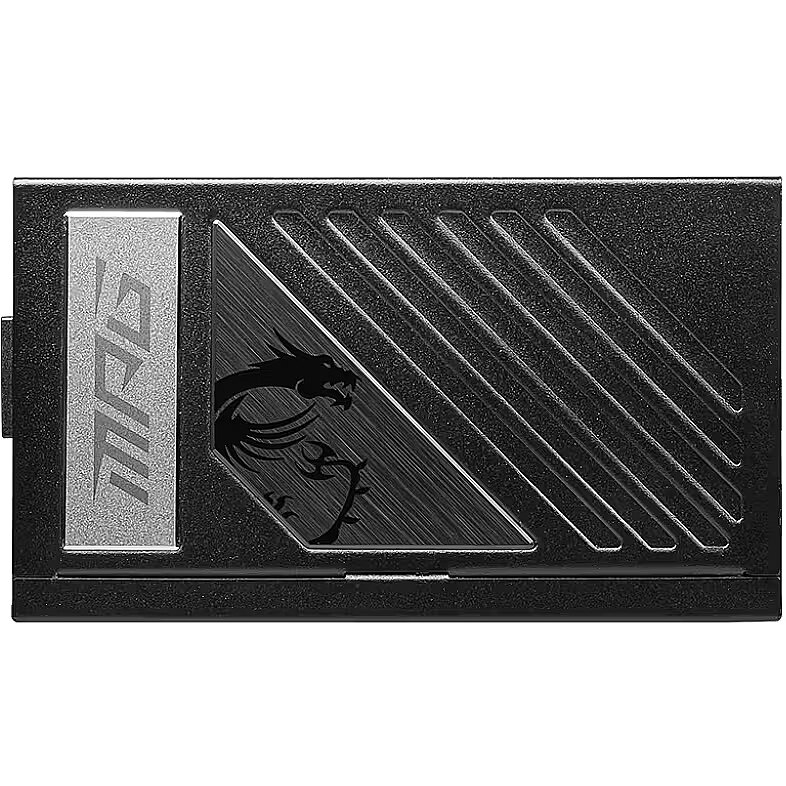

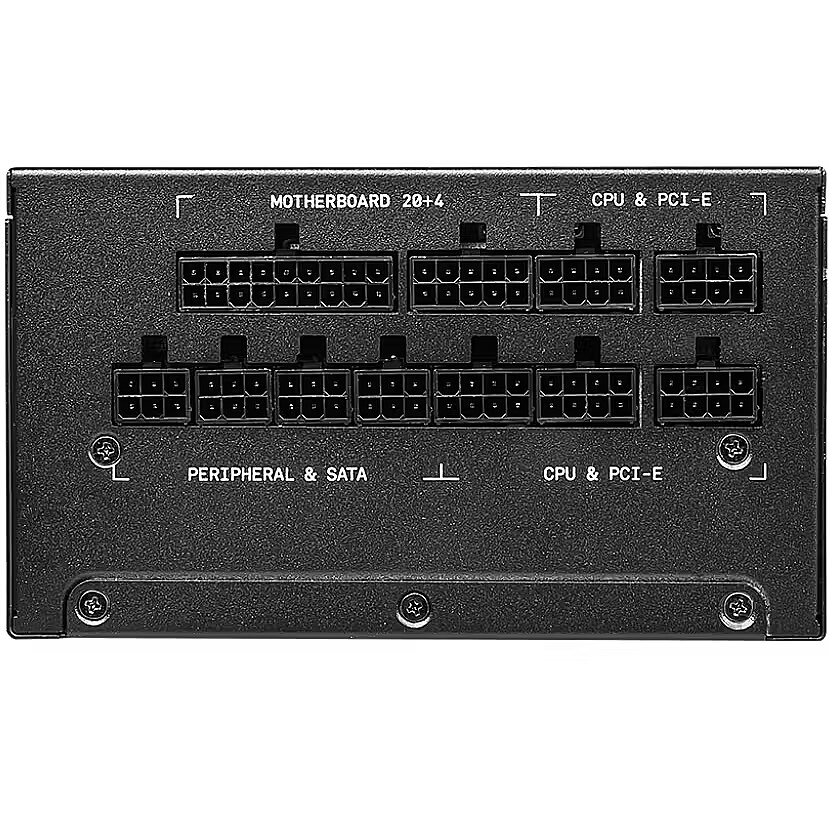

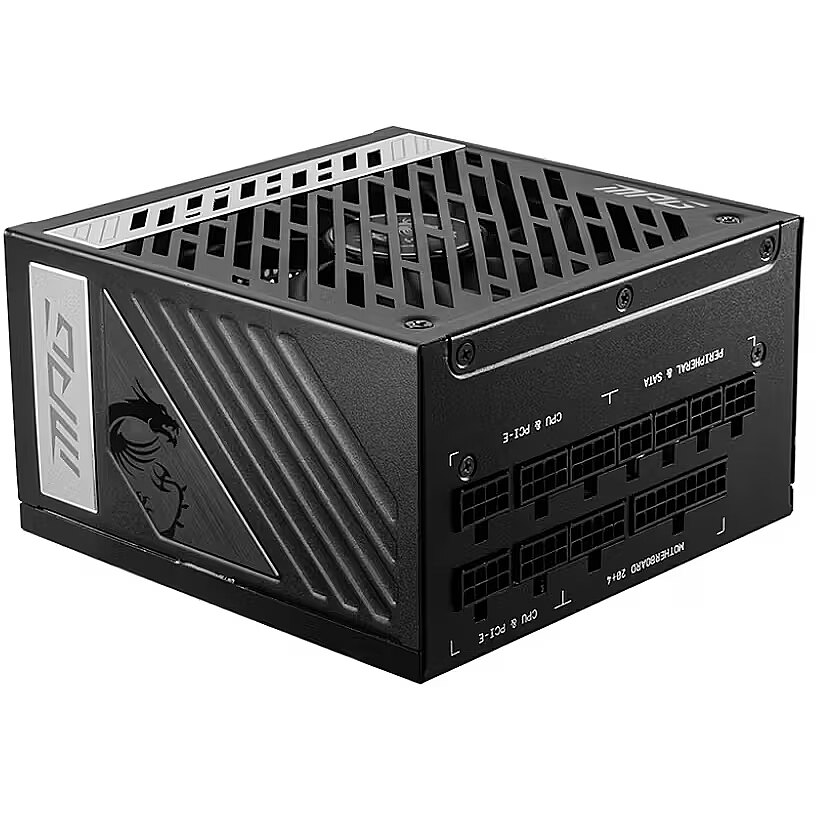

MSI MPG A1000G, 1000W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: MSI
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 7 x 6+2pin
Description
Available for purchase is a power supply produced by MSI with a power output of 1000W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.
Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The manufacturer of this power supply unit is MSI. Check out all MSI power supply units here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 83.3A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 7 x 6+2pin
SATA cconnectors
: 12
4pin Molex
: 4
Case
More detailed specification
Brand - MSI
BrandPartCode - MPG A1000G
Category - Power Supply Units
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
GTIN - 0824142272978
GTIN - 824142272978
GTIN - 4526541040351
GTIN - 4719072898724
GTIN - 4719072898755
GTIN - 10824142272975
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - POWERED BY MSICreate and establish the most powerful setup with Powered by MSI products,including PC case, motherboard, liquid cooler, graphics card, and power supply unit.80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.0% RPM MODEThe fan 0 RPM mode can stop the fan’s operation when TDP is below 40% to let you enjoy gaming in silence.100% JAPANESE 105°C CAPACITORSAiming for unwavering product quality and performance stability, the MPG A1000G comes with 100% Japanese 105° C capacitors and solid capacitors.USE WHAT YOU NEEDThe MPG A1000G's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.SINGLE-RAILEDThe MPG A1000G's single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, the MPG A1000G's 5 CPU & PCI-E slots are more than plenty.COMPACT SIZINGSmaller than typical PSUs on the market, the new ATX series PSU’s compact sizing makes it an excellent fit for more PC cases.
LongProductName - MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
LongSummaryDescription - MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: All-in-One PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 86 mm, Height: 150 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - All-in-One PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 13.0/6.5 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1000 W
ProductName - MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
ShortSummaryDescription - MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU', 1000 W, 100 - 240 V, 50 - 60 Hz, 13.0/6.5 A, 1000 W, 120 W
Title - MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
URL - https://www.msi.com/Power-Supply/MPG-A1000G
WarrantyInfo - 10 years
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Width - 150 mm
