ID: 134828
Product code: GPB-500S
Can be ordered 28 units Availability: 14 days after order approval
Warranty: 2 years

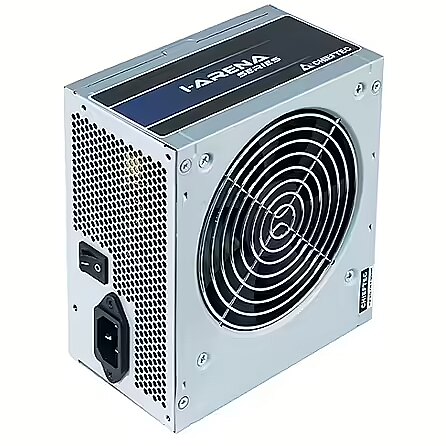

Chieftec iArena GPB Series, 500W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
This image was created with the help of AI and is for illustrative purposes. The appearance, colours, dimensions, lighting and arrangement of the components may differ from the actual product. The image may include parts and accessories that are not included with the product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Posti courier deliveryWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Chieftec
- Power output: 500W
- 80 PLUS certification: None
- Fan size: 120 mm
- Modular cables: None
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The color of the power supply is Sudraba. It is equipped with flat cables, whose color is Raiba.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: There isn't
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: None
Total amperage (+12V)
: 38A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: None
Color
: Silver
Modular cables
: None
Ports and equipment
PCI-E 5.0/5.1
: There is no
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 200 - 240 V
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - GPB-500S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Compliance certificates - RoHS
Combined power (+3.3V) Power - 110 W
Combined power (+5V) Power - 110 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 456 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - RoHS
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 500 W
Dane techniczne: Model - Chieftec GPB
Dane techniczne: Natężenie przy napięciu +3.3V - 17 A
Dane techniczne: Natężenie przy napięciu +5V - 18 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 38 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Producent - Chieftec
Dane techniczne: Regulacja obrotów wentylatorów - automatyczna
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Wersja standardu ATX - ATX 2.3x
Dane techniczne: Wtyczka zasilania [pin] - 1 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 3 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 20pin
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Złącze dla płyt pod P4 - tak
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 150 mm
Description - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
dimensionalWeight - 545
Eans - 4710713233645
Efficiency Power - 85%
Fan diameter Design - 12 cm
Fan location Design - Top
GTIN - 4710713233645
GTIN - 5704174261032
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 87 mm
Input current Power - 4 A
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
LongProductName - 500W, 200-240V, 47-63Hz, ATX 12V 2.3, PS II, 120mm, Active PFC
LongSummaryDescription - Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Manual Packaging data - Yes
Max output current (+3.3V) Power - 18 A
Max output current (+5V) Power - 17 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 38 A
Max output current (-12V) Power - 0.3 A
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - CASE PSU ATX 500W/GPB-500S CHIEFTEC
Name - Chieftec GPB-500S
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
Other features - Manual - Yes
Other features - Warranty card - Yes
Package type Packaging data - Box
Packaging data - Manual - Yes
Packaging data - Package type - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - RoHS compliance - Y
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 38 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over voltage, Overload, Short circuit, Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Producent: Nazwa producenta / importera - Chieftec
Arena Electronic GmbH
Koppersstr. 18
40549 Duesseldorf
Producer - Chieftec
producerCode - GPB-500S
ProducerCode - GPB-500S
Product colour Design - Silver
productName - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
ProductName - GPB-500S
Product Net Weight ELKO Verified Logistics Data - 1.1 kg
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Shipping Box Depth ELKO Internal Logistics Data - 49.5 cm
Shipping Box Height ELKO Internal Logistics Data - 20 cm
Shipping Box Weight ELKO Internal Logistics Data - 13.65 kg
Shipping Box Width ELKO Internal Logistics Data - 45 cm
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS | standard | bulk |
ShortSummaryDescription - Chieftec GPB-500S, 500 W, 200 - 240 V, 47 - 63 Hz, 4 A, Active, 110 W
sizeX - 88
sizeY - 155
sizeZ - 200
Summary - Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Title - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
Total power Power - 500 W
Unit Box Height - 0.155
Unit Box Length - 0.2
Unit Box Width - 0.09
Unit Calculated Volume ELKO Internal Logistics Data - 0.004455 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 1.36 kg
Unit Depth ELKO Verified Logistics Data - 20 cm
Unit Height ELKO Verified Logistics Data - 15.5 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 10
Unit Width ELKO Verified Logistics Data - 9 cm
URL - https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Vendor Homepage - https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Warranty - 24 months
Warranty card Other features - Yes
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - R
weight - 1252
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
Width Weight & dimensions - 140 mm
AC input voltage Power - 200 - 240 V
ATX version Performance - 2.3
Brand - Chieftec
BrandPartCode - GPB-500S
Cabling type Ports & interfaces - Non-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Compliance certificates - RoHS
Combined power (+3.3V) Power - 110 W
Combined power (+5V) Power - 110 W
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 456 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - RoHS
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 500 W
Dane techniczne: Model - Chieftec GPB
Dane techniczne: Natężenie przy napięciu +3.3V - 17 A
Dane techniczne: Natężenie przy napięciu +5V - 18 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 38 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Producent - Chieftec
Dane techniczne: Regulacja obrotów wentylatorów - automatyczna
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Wersja standardu ATX - ATX 2.3x
Dane techniczne: Wtyczka zasilania [pin] - 1 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 3 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 20pin
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Złącze dla płyt pod P4 - tak
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 150 mm
Description - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
dimensionalWeight - 545
Eans - 4710713233645
Efficiency Power - 85%
Fan diameter Design - 12 cm
Fan location Design - Top
GTIN - 4710713233645
GTIN - 5704174261032
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 87 mm
Input current Power - 4 A
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
LongProductName - 500W, 200-240V, 47-63Hz, ATX 12V 2.3, PS II, 120mm, Active PFC
LongSummaryDescription - Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Manual Packaging data - Yes
Max output current (+3.3V) Power - 18 A
Max output current (+5V) Power - 17 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 38 A
Max output current (-12V) Power - 0.3 A
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - CASE PSU ATX 500W/GPB-500S CHIEFTEC
Name - Chieftec GPB-500S
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
Other features - Manual - Yes
Other features - Warranty card - Yes
Package type Packaging data - Box
Packaging data - Manual - Yes
Packaging data - Package type - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - RoHS compliance - Y
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 38 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over voltage, Overload, Short circuit, Under voltage
Power supply unit (PSU) form factor Performance - PS/2
Producent: Nazwa producenta / importera - Chieftec
Arena Electronic GmbH
Koppersstr. 18
40549 Duesseldorf
Producer - Chieftec
producerCode - GPB-500S
ProducerCode - GPB-500S
Product colour Design - Silver
productName - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
ProductName - GPB-500S
Product Net Weight ELKO Verified Logistics Data - 1.1 kg
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Shipping Box Depth ELKO Internal Logistics Data - 49.5 cm
Shipping Box Height ELKO Internal Logistics Data - 20 cm
Shipping Box Weight ELKO Internal Logistics Data - 13.65 kg
Shipping Box Width ELKO Internal Logistics Data - 45 cm
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS | standard | bulk |
ShortSummaryDescription - Chieftec GPB-500S, 500 W, 200 - 240 V, 47 - 63 Hz, 4 A, Active, 110 W
sizeX - 88
sizeY - 155
sizeZ - 200
Summary - Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Title - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
Total power Power - 500 W
Unit Box Height - 0.155
Unit Box Length - 0.2
Unit Box Width - 0.09
Unit Calculated Volume ELKO Internal Logistics Data - 0.004455 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 1.36 kg
Unit Depth ELKO Verified Logistics Data - 20 cm
Unit Height ELKO Verified Logistics Data - 15.5 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 10
Unit Width ELKO Verified Logistics Data - 9 cm
URL - https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Vendor Homepage - https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Warranty - 24 months
Warranty card Other features - Yes
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - R
weight - 1252
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
Width Weight & dimensions - 140 mm
