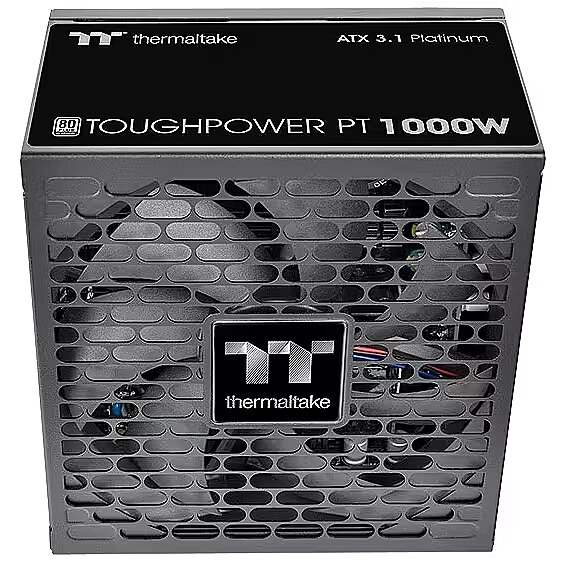

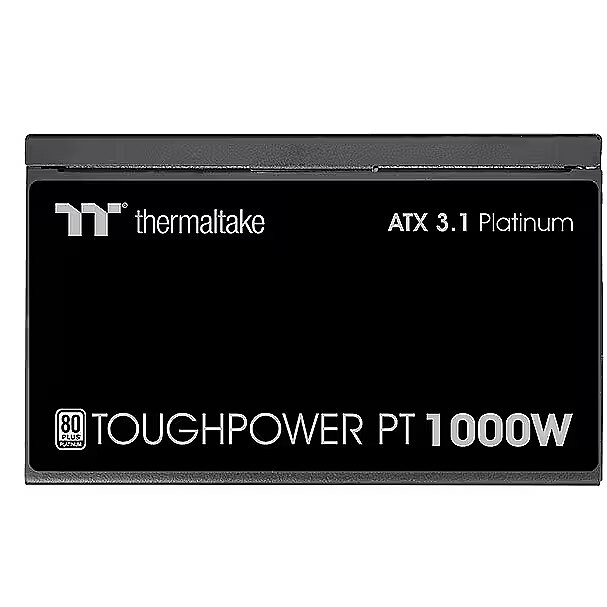

Thermaltake Toughpower PT, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1296755 Product code: PS-TPP-1000FNFAPE-1
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
145.45 €
Ready for dispatch
07.04.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 5 x 6+2pin
Description

We offer to purchase a Thermaltake power supply unit with a power capacity of 1000W, which has received the 80 PLUS Platinum energy efficiency certification.

1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : There isn't
Cybenetics Noise level certification : There isn't
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83.3A
Fan size : 135 mm
Functionality
Cable colour : Black
Lighting : None
Color : Black
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 5 x 6+2pin
SATA cconnectors : 6
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
ATX version - 3.1
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description - Zasilacz - Toughpower PT 1000W Platinum modular Gen5
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 300 mm
dimension weight - 3100 g
dimension width - 220 mm
ean - 4711658545206
EAN - 4711658545206
EAN_code - 4711658545206
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPP-1000FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - PS-TPP-1000FNFAPE-1
Name - 1000W Thermaltake Toughpower PT
Name - Thermaltake Toughpower PT 1000W, PC power supply 1x 12 pin high power GPU, 4x PCIe, cable management, 1000 watts
name - Thermaltake Toughpower PT 1000W Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 5
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
PMBus 5 Pin - 0
Power supply - 1000 W
producer - Thermaltake
SATA power connectors - 6
vendpn - PS-TPP-1000FNFAPE-1
Weight - 3.34
Weight - 7,36
