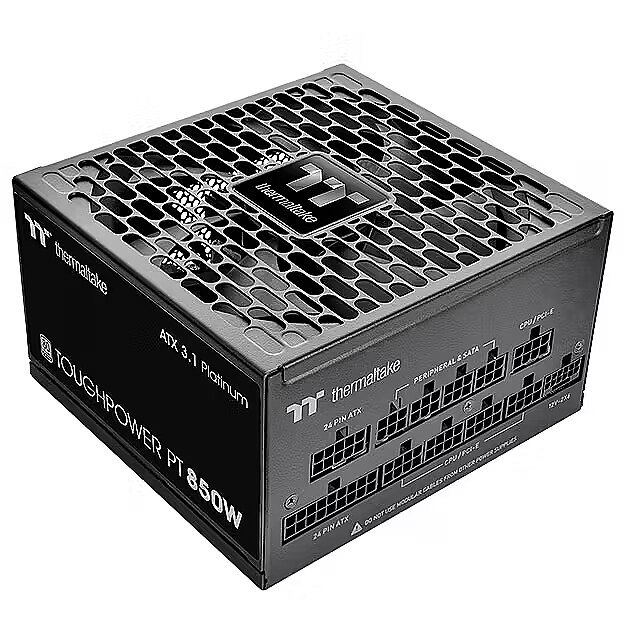

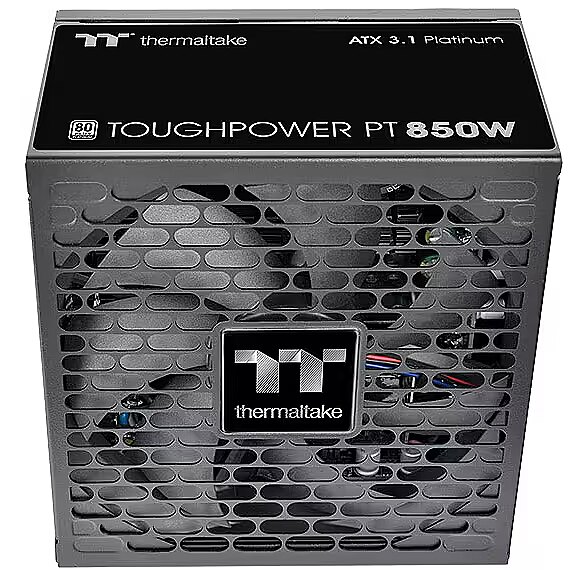

Thermaltake Toughpower PT, 850W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1296754 Product code: PS-TPP-0850FNFAPE-1
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
132.83 €
105.84 € w/o VAT
Ready for dispatch
16.11.2026
starting from 6.99 € with VAT
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Posti courier delivery
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Thermaltake with a power output of 850W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : There isn't
Cybenetics Noise level certification : There isn't
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 70.8A
Fan size : 135 mm
Functionality
Cable colour : Black
Lighting : None
Color : Black
Modular cables : Fully-Modular

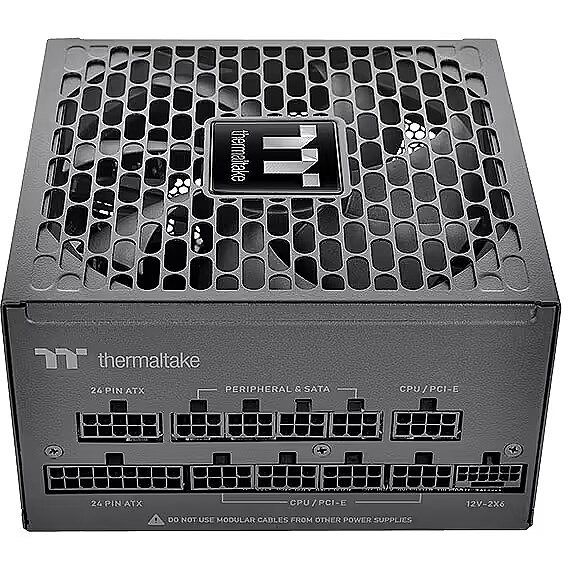

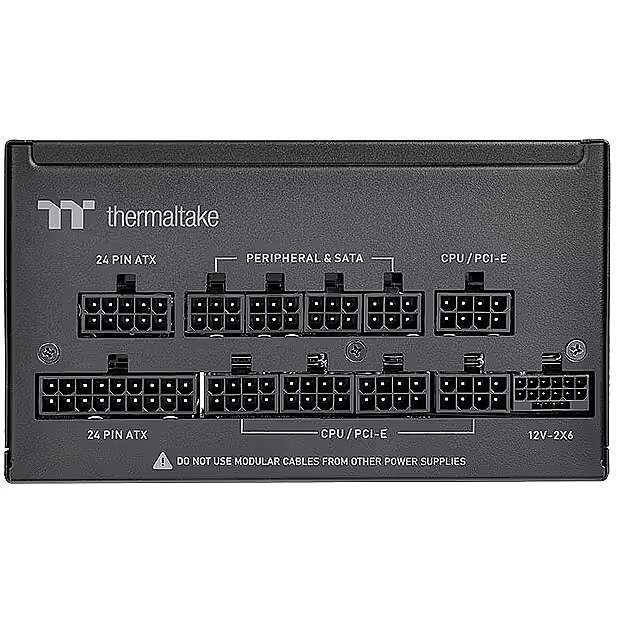

Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
ATX version - 3.1
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description - Zasilacz - Toughpower PT 850W Platinum modular Gen5
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1592
dimension depth - 120 mm
dimension height - 300 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 3100 g
dimension width - 220 mm
ean - 4711658545107
EAN - 4711658545107
EAN_code - 4711658545107
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPP-0850FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - PS-TPP-0850FNFAPE-1
Name - 850W Thermaltake Toughpower PT
Name - Thermaltake Toughpower PT 850W, PC power supply 1x 12 pin high power GPU, 4x PCIe, cable management, 850 watts
name - Thermaltake Toughpower PT 850W Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
PMBus 5 Pin - 0
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power cable length - 450
Ports & interfaces - Peripheral (Molex) power cable length - 600
Ports & interfaces - Peripheral (Molex) power cable length - 750
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 600
Ports & interfaces - SATA power cable length - 750
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 849.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 17 ms
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power supply - 850 W
producer - Thermaltake
producerCode - PS-TPP-0850FNFAPE-1
productName - Thermaltake Toughpower PT 850W power supply unit 24-pin ATX ATX Black
productSize - Normal
Safety regulation & standards - Safety - CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
SATA power connectors - 6
sizeX - 124
sizeY - 214
sizeZ - 300
vendpn - PS-TPP-0850FNFAPE-1
warrantyLength - 120
warrantyType - G
Weight - 3.1
Weight - 4,00
weight - 3085
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
