ID: 1294712
Product code: MAG A650BNL
In stock >50 units
Warranty: 3 years

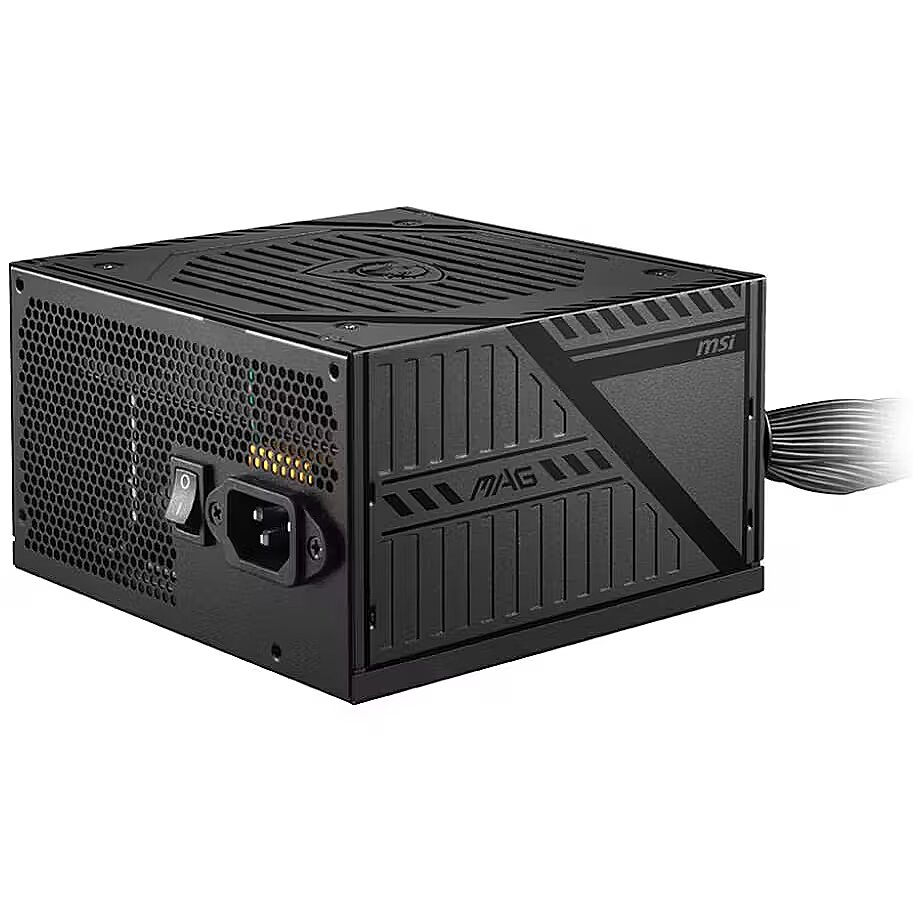

MSI MAG A650NL, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: MSI
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This MSI brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The manufacturer of this power supply unit is MSI. Check out all MSI power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - No
ATX Power connector (24-pin) Ports & interfaces - Yes
Cabling type Ports & interfaces - Non-Modular
Category Code - PSU
Cooling type Design - Active
Depth Weight & dimensions - 150 mm
Description - The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. The MAG A650BNL's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A650BNL, any system has the power it needs to survive all challenges. 80 PLUS BRONZE
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level. PROTECTION DESIGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection. TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment. 120mm LOW NOISE FAN

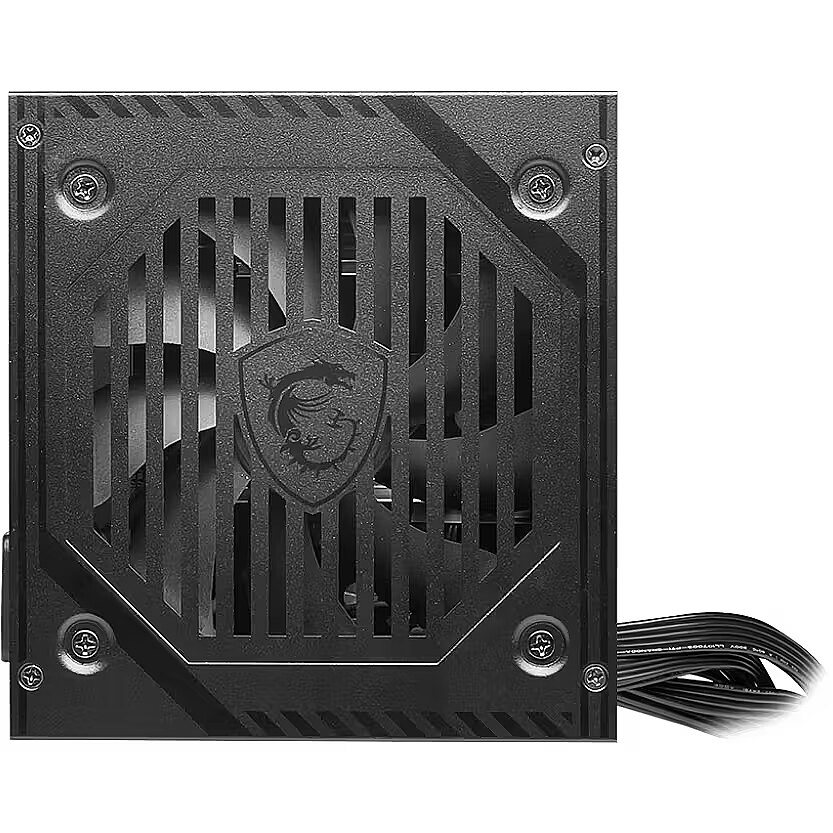

The 120mm fan reduces the noise generated while maintaining excellent heat dissipation. FLAT CABLE EQUIPMENT
The MAG A650BNL’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.120mm FanIndustrial level protection with OCP, OVP, OPP, SCPActive PFC DesignFlat Cable Equipment
Efficiency Power - 85 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - No
Fan diameter Design - 120 mm
Floppy disk drive connector Ports & interfaces - Yes
Height Weight & dimensions - 86 mm
Motherboard power connector Ports & interfaces - 24-pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 5
On/off switch Design - Yes
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over current/Over power/Over voltage/Short circuit
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - MSI MAG A650BNL. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Supported motherboard form factors Performance - ATX
Total power Power - 650 W
Unit Box Height - 0.085
Unit Box Length - 0.2
Unit Box Width - 0.15
Unit Calculated Volume - 0.005848 cubm
Unit Calculated Weight - 2.02 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://www.msi.com/Power-Supply/MAG-A650BNL/Overview
Warranty - 36 months
Width Weight & dimensions - 140 mm
