ID: 1292154
Product code: RB0750B
Can be ordered 46 units Availability: 21 days after order approval
Warranty: 2 years

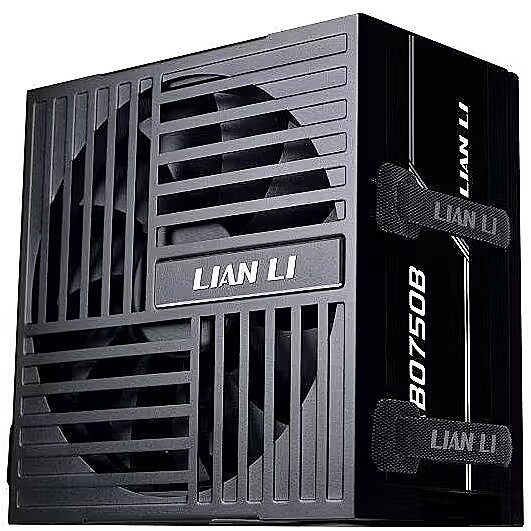

Lian Li RB 750B, 750W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Lian Li
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 135 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a Lian Li power supply unit with a power capacity of 750W, which has received the 80 PLUS Bronze energy efficiency certification.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.

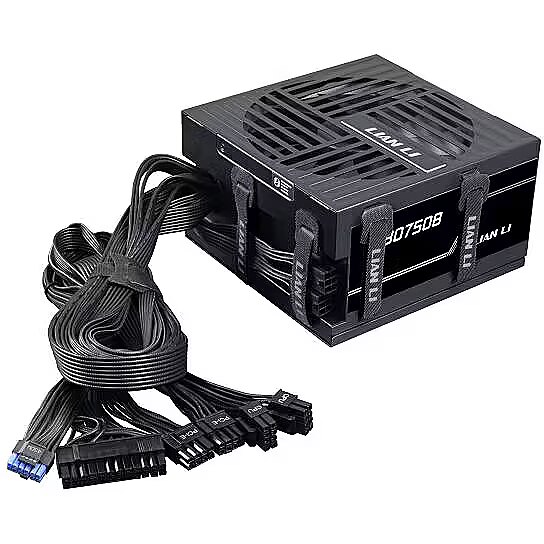

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62.5A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: 1 x 450W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category Code - PSU
code - G9P.RB0750B.B000.EU
Combined power (+12V) Power - 750 W
Depth Weight & dimensions - 150 mm
Description - RB PSU Compact 150 mm ATX size for wide case compatibility. 80 PLUS Bronze certified with up to 85% efficiency for everyday systems. ATX 3.1 ready with native 12V-2×6 connector for next-gen GPU support. A Built-in cable routing channel with Velcro straps for neat management. Three-sided cable exits designed for back-connector motherboards. 135 mm HYB smart temperature-controlled fan for quiet cooling. Six protection mechanisms including OVP, UVP, OCP, OPP, OTP, SCP. Includes full cable set for CPU, GPU, SATA, and PATA connections.
ean - 4718466019660
Fan diameter Design - 135 mm
Fan speed Design - 1600rpm RPM
Height Weight & dimensions - 150 mm
Model name - RB PSU
name - Lian Li RB Series 80 PLUS Bronze Netzteil, teilmodular, PCIe 5.1, ATX 3.1 - 750 Watt, schwarz
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Total power Power - 750 W
Unit Calculated Volume - 0.01485 cubm
Unit Calculated Weight - 3.85 kg
Units per Shipping Box - 1
Vendor Homepage - lian-li.com/product/rb-psu/
Warranty - 24 months
Width Weight & dimensions - 86 mm
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category Code - PSU
code - G9P.RB0750B.B000.EU
Combined power (+12V) Power - 750 W
Depth Weight & dimensions - 150 mm
Description - RB PSU Compact 150 mm ATX size for wide case compatibility. 80 PLUS Bronze certified with up to 85% efficiency for everyday systems. ATX 3.1 ready with native 12V-2×6 connector for next-gen GPU support. A Built-in cable routing channel with Velcro straps for neat management. Three-sided cable exits designed for back-connector motherboards. 135 mm HYB smart temperature-controlled fan for quiet cooling. Six protection mechanisms including OVP, UVP, OCP, OPP, OTP, SCP. Includes full cable set for CPU, GPU, SATA, and PATA connections.
ean - 4718466019660
Fan diameter Design - 135 mm
Fan speed Design - 1600rpm RPM
Height Weight & dimensions - 150 mm
Model name - RB PSU
name - Lian Li RB Series 80 PLUS Bronze Netzteil, teilmodular, PCIe 5.1, ATX 3.1 - 750 Watt, schwarz
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Total power Power - 750 W
Unit Calculated Volume - 0.01485 cubm
Unit Calculated Weight - 3.85 kg
Units per Shipping Box - 1
Vendor Homepage - lian-li.com/product/rb-psu/
Warranty - 24 months
Width Weight & dimensions - 86 mm
